Page 1

2216

Cloud Controller

www.hozelock.com/cloudsupport

Year

guarantee

See the

Quick Start Video

Midpoint Park, Birmingham, B76 1AB. England

0168

Hozelock Ltd.,

www.hozelock.com

33915 -0 02

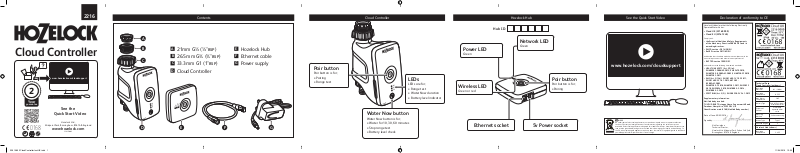

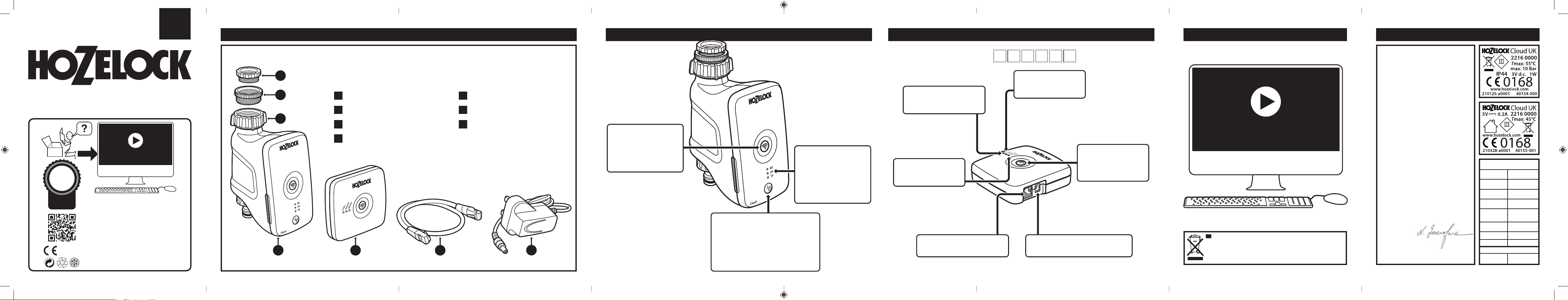

Contents Cloud Controller Hozelock Hub Declaration of conformity to CESee the Quick Start Video

21mm G½ (½”)

26.5mm G¾ (¾”)

33.3mm G1 (1”)

Cloud Controller

Hozelock Ltd declare that the following Electrically

Hub I.D.

Network LED

Hozelock Hub

Ethernet cable

Power supply

Pair button

Pair button is for;

• Pairing

• Range test

LEDs

LEDs are for;

• Range test

• Water Now duration

• Battery level indicator

Power LED

Green

Wireless LED

Green or red

Green

www.hozelock.com/cloudsupport

Pair button

Pair button is for;

• Pairing

Water Now button

Water Now button is for;

• Water for 10, 30, 60 minutes

• Stop range test

Ethernet socket 5v Power socket

• Battery level check

WEEE

Do not disp ose of electr ical appliance s as unsorte d municipal was te, use separate c ollection faciliti es. Contact yo u local governm ent for informat ion regarding th e collectio n systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into t he groundwate r and get into the foo d chain, damag ing your health a nd well-bei ng. In the EU, when replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

Operated Water Valves:

• Cloud UK (2216 0000)

• Cloud EU (2216 1240)

Comply with:

• the Essential Hea lth and Safety Requirement s of the Mac hinery D irecti ve 2006/42/EC and its amending directives.

• EMC Directive – 2014/30 /EU

• RoHS Direc tive 2011/65/EU

and declare that the above models are in compliance with the essential requirements and other relervant provisions of

• R&TTE Dire ctive 1999/5/EC

and conforms to the following harmonised standards:

• HEALTH & SAFE TY (Art. 3 (1)(a)): EN 60950-1:2006/A2:2013; EN 62479:2010; EN 60730-2-8:2002+A1:2003, EN 60730-2-7:2010, EN 60730-1:2011

• EMC (Art . 3(1)(b)): EN 301 489 -1 V1. 9.2:2011; EN 301 489 -3 V1.6.1 :2013; 60730 -28:2002+A1:2003, EN 60730 -2-7: 2010, EN 6073 0-1:2011, EN 55022 :2010, EN 55 024 :2010, EN 6100 0-3-2 :2014, EN 610 00-3 -3 :2013

• SPECTRU M (Art . 3(2)): EN 300 2 20-2 V2. 4.1 :2012

Supplementary information: Notifi ed body involved: TUV SUD B ABT, Octagon House , Segenswor th Road,

Fareha m, Hampshire, PO15 5R L , UK Identif ication m ark: 0168 (N otified Body nu mber)

Date of Is sue: 09/05/ 2016

Signed by: ...............................................................................................

Nick Iaciofano Technical Dire ctor, Hozelock Ltd . Midpoint Park, Sut ton Coldfield, Birmingham. B76 1AB. England.

Technical Data Cloud Controller (outdoors)

Operati ng Pressure

Operati ng Temperature

Max. Wate r Temperature

Ba tte ry Typ e

Purpos e of Control

Mounting Method

Ac tio n Type Typ e 1

Pollution Degree 4

Hozelock Hub (indoors)

Operati ng Temperature

0.1 – 10 Bar

0 - 55°C

30°C

2x AA 1.5v L ithium/

Alkaline Batteries

Electrically

operate d water

valve

Surface mounting

2 - 45°C

33915-002 CloudControllerInst-UK.indd 1 11/04/2016 12:55

Page 2

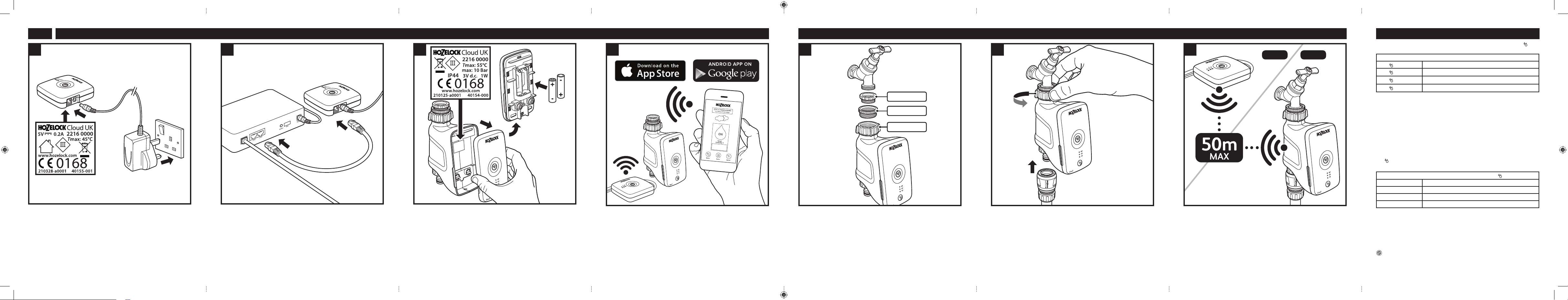

Inside your home Outside your home Manual operation (Water Now)

Position your Hub within 0.5m of your router. Plug the Power Supply into your mains and connect to your Hub.

The Hub starts up, LEDs ﬂash until only the Power LED remains permanently on. If this doesn’t happen, check the Power Supply is plugged in and switched on at the mains.

2 3 4 75 6

G½ (½”BSP)

G¾ (¾”BSP)

G1 (1”BSP)

Router not supplied

Connect the Hub to your home router using the Ethernet cable supplied.

The Network LED should now be lit. If not check that both ends of the Ethernet cable are plugged in and your router has internet access.

Do not install batteries until you are ready to install the Cloud Controller. Do not install the Cloud Controller on your garden tap yet. Remove the front panel from the valve unit. Install 2x AA 1.5v Lithium/Alkaline batteries into the back of the front panel. Replace the controller front panel.

When batteries are installed the LEDs will ﬂash until all 3 LEDs go out. The motor will operate the internal valve. If you have installed ﬂat batteries the ‘10’ LED will ﬂash red. You will not be able to operate the water timer until the batteries are replaced with new ones. Replace batteries each season.

Download the App onto your smart phone and follow the setup instructions in the app to pair the system.

For Apple iPhones the app is available from the Apple iTunes store. For Android phones the app is available from the Google Play store.

When you have completed the setup in the app install the Controller on your tap. Check which adaptors are required to ﬁt the valve unit onto your outdoor tap.

A ½ inch BSP and a ¾ inch BSP thread adaptor are supplied.

With the correct adapters in place, hold the Cloud Controller up to the tap. Tighten ﬁrmly by hand to avoid leaks. Attach your hose pipe to the hose connector and turn on your tap.

Do not use a spanner or other tool to tighten it up because this could cause damage to the component threads.

Inside Outside

It is important that your water timer is in radio reception range of the Hub. You can test the signal strength by doing a Range Test.

Up to 50m depending on obstacles between the Hozelock Hub and the Cloud Controller. See the troubleshooting section on the Hozelock website for details of how to do a range test. www.hozelock.com/cloudsupport

You can turn on the water controller at any time by pressing the Water Now button.

Water now function

Once 10 minutes watering

Press

Twi ce

Press

Three times

Four times

Press

The LED light will come on to indicate you have turned the controller on and will start to flash when the valve has opened. Depending on the mode selecte d the lights will count down as the time lapses; So if you press the button 3 times to water for 60 minutes, after the first 30 minutes the top light will stop f lashing and the bottom t wo lights will continue to flash.

If you decide to stop manual watering at any time simply press on the Water Now button until all the green lights stop flashing. You will hear the motor operate the internal valve turning the water off.

Note: To protect batter y life the water controller can only be turned on and off a maximum of 3 times in one minute.

30 minutes watering

60 minutes watering

Cancels Water Now

How do I cancel an automatic watering operation

The

button can also be used as a manual override to cancel any current

automatic watering operation that has started. The schedule will then resume.

Battery Level Check (Press And Hold Down The Water Now Button)

3x Green Lights Battery level is Excellent

2x Green Lights Battery level is Good

1x Green Light Battery level is ok but consider replacing them soon

1x Red Light Battery level is low - replace the batteries now

Failure prevention mode

A built in safety feature detects when the batter y levels have dropped to a level that could fail whilst the valve is open and result in wasting water. The safety mode prevents the controller from turning on until the batteries have been replaced. The LED indicator light will flash red when the failure prevention mode has been activated. The Water Now func tion will also not operate until the batteries have been replaced.

This produc t is not designed to be used in sub -zero (frost) temperatures.

During winter months drain any remaining water out of your timer and bring it indoors until the next watering season.
