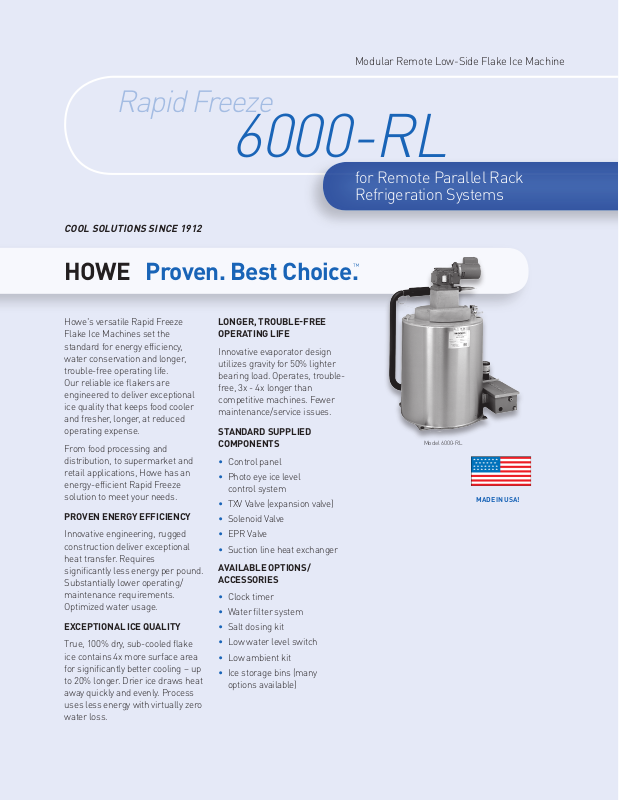

Howe 6000-RL User Manual

6000-RL

Rapid Freeze

COOL SOLUTIONS SINCE 1912

HOWE Proven. Best Choice.

Modular Remote Low-Side Flake Ice Machine

for Remote Parallel Rack
Refrigeration Systems

™

Howe'sversatile Rapid Freeze
Flake Ice Machinesset the
standard for energy efficiency,
water conservation andlonger,
trouble-free operating life.
Our reliable ice flakers are
engineered to deliver exceptional
ice quality that keeps food cooler
and fresher, longer, atreduced
operating expense.

From food processing and
distribution, to supermarket and
retail applications, Howe has an
energy-efficient Rapid Freeze
solution to meet your needs.

PROVEN ENERGY EFFICIENCY

Innovative engineering, rugged
construction deliver exceptional
heat transfer. Requires
significantly less energy per pound.
Substantially lower operating/
maintenance requirements.
Optimized water usage.

EXCEPTIONAL ICE QUALITY

True, 100% dry, sub-cooled flake
ice contains 4x more surface area
for significantly better cooling – up
to 20% longer. Drier ice draws heat
away quickly and evenly. Process
uses less energy with virtually zero
water loss.

LONGER, TROUBLE-FREE
OPERATING LIFE

Innovative evaporator design
utilizes gravity for 50% lighter
bearing load.Operates, trouble­free,3x - 4x longer than
competitive machines. Fewer
maintenance/service issues.

STANDARD SUPPLIED
COMPONENTS

• Control panel

• Photo eye ice level

control system

• TXV Valve (expansion valve)

• Solenoid Valve

• EPR Valve

• Suction line heat exchanger

AVAILABLE OPTIONS/
ACCESSORIES

• Clock timer

• Water filter system

• Salt dosing kit

• Low water level switch

• Low ambient kit

• Ice storage bins (many

options available)

Model 6000-RL

HHH
HHH

MADE IN USA!

MADE IN USA!

6000-RL on CP4500

Storage bin system sold separately.

6000-RL

151"

90"

48"

SUCTION

LIQUID

H

E

I

W

C

OPENING

TO ICE BIN

F

F

P-TRAP

BALANCE

PORT VALVE

LIQUID INDICATOR

SOLENOID VALVE

SUCTION OUTLET

LIQUID INLET

WATER DRAIN

WATER PUMP

WATER

SUMP

WATER INLET

DRIVE

MOTOR

S

H

A

F

T

R

O

T

A

T

I

O

N

D

SUCTION

LIQUID

H

E

I

W

C

OPENING
TO ICE BIN

MODEL DIMENSIONS (INCHES) CONNECTION SIZES (ODS)

C E F I

6000-RL 19 29-1/2 10-1/4 37-1/4 1-5/8 5/8 3/8

SUCTION LIQUID WATER INLET

for Remote Parallel Rack Refrigeration Systems

ICE FLAKER

MODEL CAPACITY/ KWH/ WATER USAGE/ DRIVE MOTOR DRIVE MOTOR WATER PUMP TOTAL MIN. MAX.
24 HRS* 100 LBS* 100 LBS OF ICE 208-230/1/60** 460/3/60** 230/1/60 APPROX. CIRCUIT FUSE

12.2 1/2 4.3 — — 1.15 5.452 72 15

6000-RL 6,000 LBS .52

12.2 — — 1/2 1.1 1.15 2.252 32 15

* @ 70°/90°F (21°/32°C) based on total consumption for a split system. **208-230/1/60 voltage is standard. 460 volt drive motor is optional. 1 KWH rating is estimated for a RL connected to a rack

system. 2 without low ambient kit, add 2 amps for LAK when applicable.

DIMENSIONS SHIPPING WATER APPROX REFRIGERATION
MODEL WEIGHT

W D H LBS LBS BTU/HR KCAL/HR

6000-RL 36 33 50 900 .50 25 51,150 12,890

** @ -5°F (-20.4°C) Evaporator Temperature

IN GPM

1

WARRANTY

See complete warranty for details.

• 25 year evaporator warranty

• 10 year ice blade warranty

• 2 year parts warranty

GALS

HP FLA HP FLA FLA RLA

OPERATING REQUIRED**

CHARGE R-404A

OPERATING PARAMETERS

MINIMUM OPTIMUM MAXIMUM

AMBIENT TEMPERATURE

WATER TEMPERATURE

WATER PRESSURE

50°F (10°C) 90°F (32°C) 100°F (38°C)

45°F (8°C) 70°F (21°C) 90°F (32°C)

20 PSI 25-40 PSI 60 PSI

AMPS

AMPS

RF6000-RL-Rack | © 2013 Howe Corporation | 09/13

1650 N. Elston Ave., Chicago, IL 60642-1585 | 773 235 0200 | Fax [phone]
howecorp.com | [e-mail]
