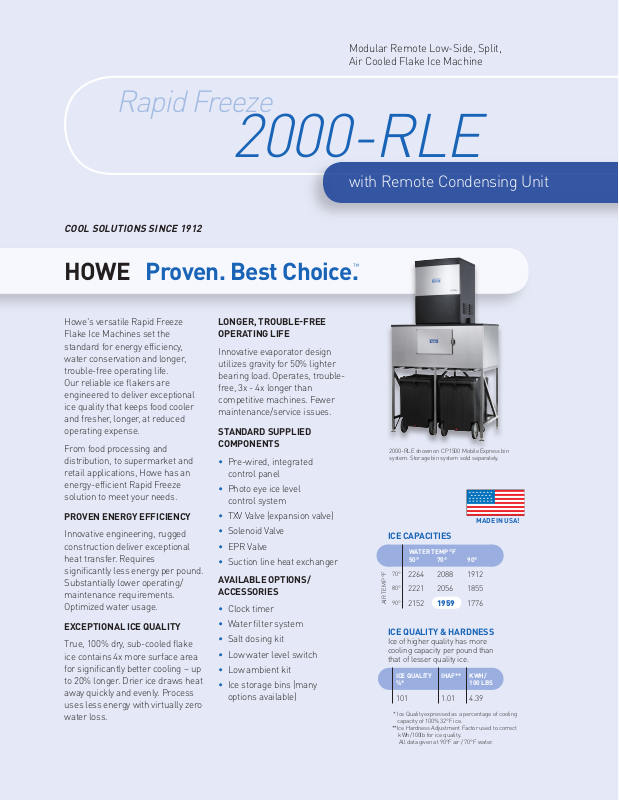

Howe 2000-RLH User Manual
Modular Remote Low-Side, Split,
Rapid Freeze
Air Cooled Flake Ice Machine
2000-RLE
with Remote Condensing Unit
COOL SOLUTIONS SINCE 1912
HOWE Proven. Best Choice.
™
Howe'sversatile Rapid Freeze
Flake Ice Machinesset the
standard for energy efficiency,
water conservation andlonger,
trouble-free operating life.
Our reliable ice flakers are
engineered to deliver exceptional
ice quality that keeps food cooler
and fresher, longer, atreduced
operating expense.
From food processing and
distribution, to supermarket and
retail applications, Howe has an
energy-efficient Rapid Freeze
solution to meet your needs.
PROVEN ENERGY EFFICIENCY
Innovative engineering, rugged
construction deliver exceptional
heat transfer. Requires
significantly less energy per pound.
Substantially lower operating/
maintenance requirements.
Optimized water usage.
EXCEPTIONAL ICE QUALITY
True, 100% dry, sub-cooled flake
ice contains 4x more surface area
for significantly better cooling – up
to 20% longer. Drier ice draws heat
away quickly and evenly. Process
uses less energy with virtually zero
water loss.
LONGER, TROUBLE-FREE
OPERATING LIFE
Innovative evaporator design
utilizes gravity for 50% lighter
bearing load.Operates, troublefree,3x - 4x longer than
competitive machines. Fewer
maintenance/service issues.
STANDARD SUPPLIED
COMPONENTS
• Pre-wired, integrated
control panel
• Photo eye ice level
control system
• TXV Valve (expansion valve)
• Solenoid Valve
• EPR Valve
• Suction line heat exchanger
AVAILABLE OPTIONS/
ACCESSORIES
• Clock timer
• Water filter system
• Salt dosing kit
• Low water level switch
• Low ambient kit
• Ice storage bins (many
options available)
2000-RLE shown on CP1500 Mobile Express bin
system. Storage bin system sold separately.
MADE IN USA!
ICE CAPACITIES
WATER TEMP °F
50° 70° 90°
70°
2264 2088 1912
80°
2221 2056 1855
AIR TEMP °F
90°
2152 1959 1776
ICE QUALITY & HARDNESS
Ice of higher quality has more
cooling capacity per pound than
that of lesser quality ice.
ICE QUALITY IHAF** KWH/
%* 100 LBS
101 1.01 4.39
* Ice Quality expressed as a percentage of cooling
capacity of 100% 32°F ice.
**I ce Hardness Adjustment Factor used to correct
kWh/100lb for ice quality.
All data given at 90°F air / 70°F water.
POWER
SUPPLY
LIQUID
INLET
SUCTION
WATER
INLET
BACK PANEL
WATER
DRAIN (2)
4” CUT OUT
LEFT
RIGHT
B
C
A
E
D
H
W
6-1/2"
1-1/2"
111"
60"
36"
2000-RLE on CP1500
Storage bin system sold separately.
2000-RLE
with Remote Condensing Unit
MODEL DIMENSIONS (INCHES) POWER SUCTION LIQUID DRAIN WATER
A B C E
SUPPLY SUPPLY
2000-RLE 3-1/2 18-3/8 11-3/8 14-1/2 1/2 K.O. 1-1/8 ODS 1/2 ODS 1/2 ID HOSE 3/8 COMP.
ICE FLAKER
MODEL CAPACITY/ KWH/ WATER USAGE/ DRIVE MOTOR WATER COMPRESSOR COND. FAN TOTAL MIN. MAX.
24 HRS* 100 LBS* 100 LBS OF ICE 208-230/1/60 PUM P 230/3/60 230/1/60 APPROX. CIRCUIT FUSE
2000-RLE 1,959 LBS 4.391 12.0 1/3 3.2 .75 — — — 3.9 5 15
2000-RLH** 1,959 LBS 4.39 12.0 1/3 3.2 .75 12.2 88 2.0 16.8 20 30
* @ 70°/90°F (21°/32°C) based on total consumption for a split system. **2000-RLH is a split system consisting of model 2000-RLE remote low side flaker & 2001-RHS, or MA2001-A-R404A-1
remote air cooled condensing unit. 1 KWH rating is for a split system. Actual KWH for RLE connected to a rack system may be less.
DIMENSIONS SHIPPING WEIGHT WATER APPROX REFRIGERATION
MODEL
W D H W D H LBS KG LBS BTU/HR KCAL/HR
2000-RLE 29-1/2 34 40 75 86 102 475 227 .17 7 17,050 4,300
** @ -5°F (-20.4°C) Evaporator Temperature
CONDENSING UNIT
MODEL TYPE REFRIG POWER
W D H W D H RLA MCA MOP LBS KG
2001-RHS AC R-404A 208-230/3/60 42-1/2 30-1/4 29-3/4 108 77 76 16.8 24.5 40.0 313 142
MA2001-AR404A-1
WARRANTY
See complete warranty for details.
• 25 year evaporator warranty
• 10 year ice blade warranty
• 2 year parts warranty
• 5 year compressor warranty (optional)
RF2000-RLE-RCU | © 2012 Howe Corporation | 03/13
GALS
IN CM GPM
IN CM
AC R-404A 208-230/3/60 42-1/2 30-1/4 29-3/4 108 77 76 16.8 24.5 30.0 313 142
HP FLA FLA RLA LRA FLA RLA
DIMENSIONS
OPERATING REQUIRED**
CHARGE R-404A
ELECTRICAL DATA
AMPS
SHIPPING WEIGHT
OPERATING PARAMETERS
MINIMUM OPTIMUM MAXIMUM
AMBIENT TEMPERATURE
WATER TEMPERATURE
WATER PRESSURE
50°F (10°C) 90°F (32°C) 100°F (38°C)
45°F (8°C) 70°F (21°C) 90°F (32°C)
20 PSI 25-40 PSI 60 PSI
