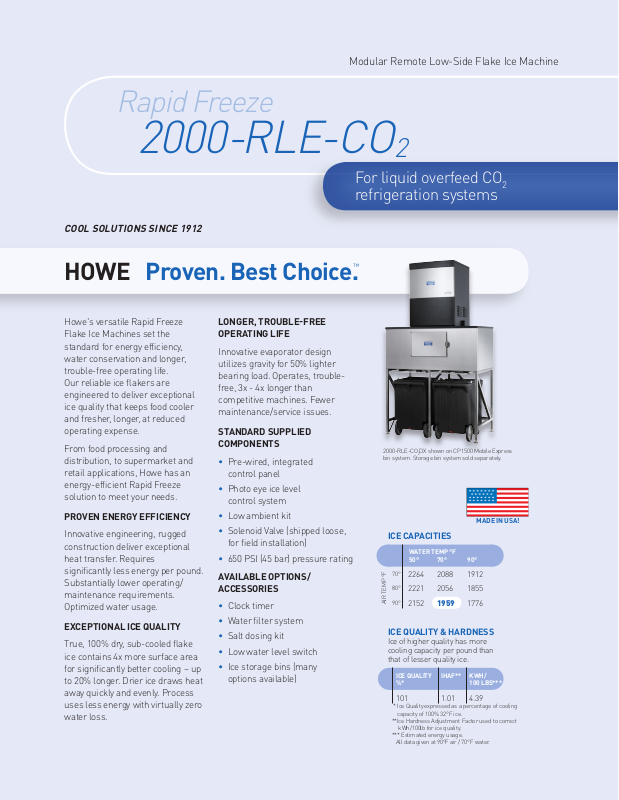

Howe 2000-RLE-CO2 User Manual

Rapid Freeze

Modular Remote Low-Side Flake Ice Machine

2000-RLE-CO2

COOL SOLUTIONS SINCE 1912

HOWE Proven. Best Choice.

For liquid overfeed CO2
refrigeration systems

™

Howe'sversatile Rapid Freeze
Flake Ice Machinesset the
standard for energy efficiency,
water conservation andlonger,
trouble-free operating life.
Our reliable ice flakers are
engineered to deliver exceptional
ice quality that keeps food cooler
and fresher, longer, atreduced
operating expense.

From food processing and
distribution, to supermarket and
retail applications, Howe has an
energy-efficient Rapid Freeze
solution to meet your needs.

PROVEN ENERGY EFFICIENCY

Innovative engineering, rugged
construction deliver exceptional
heat transfer. Requires
significantly less energy per pound.
Substantially lower operating/
maintenance requirements.
Optimized water usage.

EXCEPTIONAL ICE QUALITY

True, 100% dry, sub-cooled flake
ice contains 4x more surface area
for significantly better cooling – up
to 20% longer. Drier ice draws heat
away quickly and evenly. Process
uses less energy with virtually zero
water loss.

LONGER, TROUBLE-FREE
OPERATING LIFE

Innovative evaporator design
utilizes gravity for 50% lighter
bearing load.Operates, trouble­free,3x - 4x longer than
competitive machines. Fewer
maintenance/service issues.

STANDARD SUPPLIED
COMPONENTS

• Pre-wired, integrated

control panel

• Photo eye ice level

control system

• Low ambient kit

• Solenoid Valve (shipped loose,

for field installation)

• 650 PSI (45 bar) pressure rating

AVAILABLE OPTIONS/
ACCESSORIES

• Clock timer

• Water filter system

• Salt dosing kit

• Low water level switch

• Ice storage bins (many

options available)

2000-RLE-CO2DX shown on CP1500 Mobile Express
bin system. Storage bin system sold separately.

MADE IN USA!

ICE CAPACITIES

WATER TEMP °F
50° 70° 90°

70°

2264 2088 1912

80°

2221 2056 1855

AIR TEMP °F

90°

2152 1959 1776

ICE QUALITY & HARDNESS

Ice of higher quality has more
cooling capacity per pound than
that of lesser quality ice.

ICE QUALITY IHAF** KWH/
%* 100 LBS***

101 1.01 4.39

* Ice Quality expressed as a percentage of cooling

capacity of 100% 32°F ice.

**I ce Hardness Adjustment Factor used to correct

kWh/100lb for ice quality.
*** Estimated energy usage.
All data given at 90°F air / 70°F water.

111"

60"

36"

2000-RLE on CP1500

Storage bin system sold separately.

2000-RLE-CO2

2000-RLE-CO

2

for liquid overfeed CO2 Refrigeration Systems

MODEL DIMENSIONS (INCHES) POWER SUCTION LIQUID DRAIN WATER

A B C E F

SUPPLY SUPPLY

2000-RLE-CO2 3-1/2 13-3/4 20-3/4 10 16-1/2 1/2 K.O. 5/8 ODS 1/2 ODS 1/2 ID HOSE 3/8 COMP.

ICE FLAKER

MODEL CAPACITY/ KWH/ WATER USAGE/ DRIVE MOTOR WATER L.A.K. TOTAL MIN. MAX.
24 HRS* 100 LBS* 100 LBS OF ICE 208-230/1/60 PUMP 208/1/60 APPROX. CIRCUIT FUSE

2000-RLE-CO2 1,959 LBS 4.391 12.0 1/3 3.2 .75 2.16 6.11 10 15

* @ 70°/90°F (21°/32°C) based on total consumption for a split system. 1 Estimated energy usage.

DIMENSIONS SHIPPING WATER APPROX REFRIGERATION CO2 FLOW
MODEL WEIGHT OPERATING REQUIRED** RATE

W D H W D H LBS KG LBS BTU/HR KCAL/HR LB/HR

IN CM GPM

2000-RLE-CO2 29-1/2 34 40 75 86 102 475 216 .17 8 17,050 4,300 300

** @ -20°F (-29°C) Evaporator Temperature

Low Ambinet kit is included on all liquid overfeed CO2 model ice flakers.
Warm water mixing valve required in low ambient, & low water temperature conditions.

GALS

HP FLA FLA AMPS RLA AMPS AMPS

CHARGE R-744

WARRANTY

See complete warranty for details.

• 25 year evaporator warranty

• 10 year ice blade warranty

• 2 year parts warranty

RF2000-RLE-CO2DX | © 2013 Howe Corporation | 10/14

OPERATING PARAMETERS

MINIMUM OPTIMUM MAXIMUM

AMBIENT TEMPERATURE

WATER TEMPERATURE

WATER PRESSURE

1650 N. Elston Ave., Chicago, IL 60642-1585 | 773 235 0200 | Fax [phone]
howecorp.com | [e-mail]

50°F (10°C) 90°F (32°C) 100°F (38°C)

45°F (8°C) 70°F (21°C) 90°F (32°C)

20 PSI 25-40 PSI 60 PSI
