2000-RLE

Rapid Freeze

COOL SOLUTIONS SINCE 1912

HOWE Proven. Best Choice.

Modular Remote Low-Side Flake Ice Machine

for Remote Parallel Rack
Refrigeration Systems

™

Howe'sversatile Rapid Freeze
Flake Ice Machinesset the
standard for energy efficiency,
water conservation andlonger,
trouble-free operating life.
Our reliable ice flakers are
engineered to deliver exceptional
ice quality that keeps food cooler
and fresher, longer, atreduced
operating expense.

From food processing and
distribution, to supermarket and
retail applications, Howe has an
energy-efficient Rapid Freeze
solution to meet your needs.

PROVEN ENERGY EFFICIENCY

Innovative engineering, rugged
construction deliver exceptional
heat transfer. Requires
significantly less energy per pound.
Substantially lower operating/
maintenance requirements.
Optimized water usage.

EXCEPTIONAL ICE QUALITY

True, 100% dry, sub-cooled flake
ice contains 4x more surface area
for significantly better cooling – up
to 20% longer. Drier ice draws heat
away quickly and evenly. Process
uses less energy with virtually zero
water loss.

LONGER, TROUBLE-FREE
OPERATING LIFE

Innovative evaporator design
utilizes gravity for 50% lighter
bearing load.Operates, trouble­free,3x - 4x longer than
competitive machines. Fewer
maintenance/service issues.

STANDARD SUPPLIED
COMPONENTS

• Pre-wired, integrated

control panel

• Photo eye ice level

control system

• TXV Valve (expansion valve)

(for virtually any available
refrigerant)

• Solenoid Valve

• EPR Valve

• Suction line heat exchanger

AVAILABLE OPTIONS/
ACCESSORIES

• Clock timer

• Water filter system

• Salt dosing kit

• Low water level switch

• Low ambient kit

• Ice storage bins (many

options available)

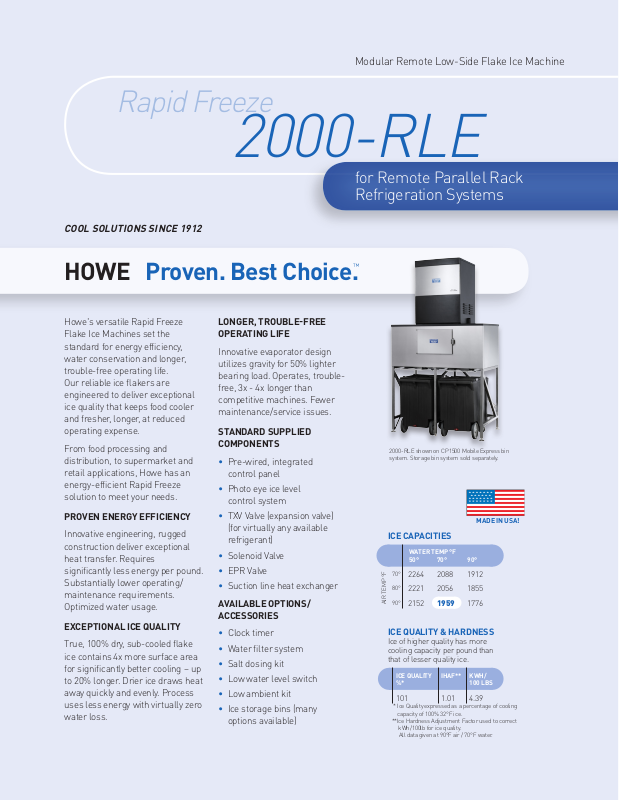

2000-RLE shown on CP1500 Mobile Express bin
system. Storage bin system sold separately.

MADE IN USA!

ICE CAPACITIES

WATER TEMP °F
50° 70° 90°

70°

2264 2088 1912

80°

2221 2056 1855

AIR TEMP °F

90°

2152 1959 1776

ICE QUALITY & HARDNESS

Ice of higher quality has more
cooling capacity per pound than
that of lesser quality ice.

ICE QUALITY IHAF** KWH/
%* 100 LBS

101 1.01 4.39

* Ice Quality expressed as a percentage of cooling

capacity of 100% 32°F ice.

**I ce Hardness Adjustment Factor used to correct

kWh/100lb for ice quality.

All data given at 90°F air / 70°F water.

POWER
SUPPLY

LIQUID

INLET

SUCTION

WATER
INLET

BACK PANEL

WATER

DRAIN (2)

4” CUT OUT

LEFT

RIGHT

B

C

A

E

D

H

W

6-1/2"

1-1/2"

111"

60"

36"

2000-RLE on CP1500

Storage bin system sold separately.

2000-RLE

for Remote Parallel Rack Refrigeration Systems

MODEL DIMENSIONS (INCHES) POWER SUCTION LIQUID DRAIN WATER

A B C E

SUPPLY SUPPLY

2000-RLE 3-1/2 18-3/8 11-3/8 14-1/2 1/2 K.O. 1-1/8 ODS 1/2 ODS 1/2 ID HOSE 3/8 COMP.

ICE FLAKER

MODEL CAPACITY/ KWH/ WATER USAGE/ DRIVE MOTOR WATER TOTAL MIN. MAX.
24 HRS* 100 LBS* 100 LBS OF ICE 208-230/1/60 PUMP APPROX. CIRCUIT FUSE

2000-RLE 1,959 LBS 4.391 12.0 1/3 3.2 .75 3.9 5 15

* @ 70°/90°F (21°/32°C) based on total consumption for a split system. 1 KWH rating is for a split system. Actual KWH for RLE connected to a rack system may be less.

DIMENSIONS SHIPPING WEIGHT WATER APPROX REFRIGERATION
MODEL

W D H W D H LBS KG LBS BTU/HR KCAL/HR

IN CM GPM

2000-RLE 29-1/2 34 40 75 86 102 475 227 .17 7 17,050 4,300

** @ -5°F (-20.4°C) Evaporator Temperature

WARRANTY

See complete warranty for details.

• 25 year evaporator warranty

• 10 year ice blade warranty

• 2 year parts warranty

GALS

HP FLA FLA RLA AMPS AMPS

OPERATING REQUIRED**

OPERATING PARAMETERS

MINIMUM OPTIMUM MAXIMUM

AMBIENT TEMPERATURE

WATER TEMPERATURE

WATER PRESSURE

50°F (10°C) 90°F (32°C) 100°F (38°C)

45°F (8°C) 70°F (21°C) 90°F (32°C)

20 PSI 25-40 PSI 60 PSI

CHARGE R-404A
