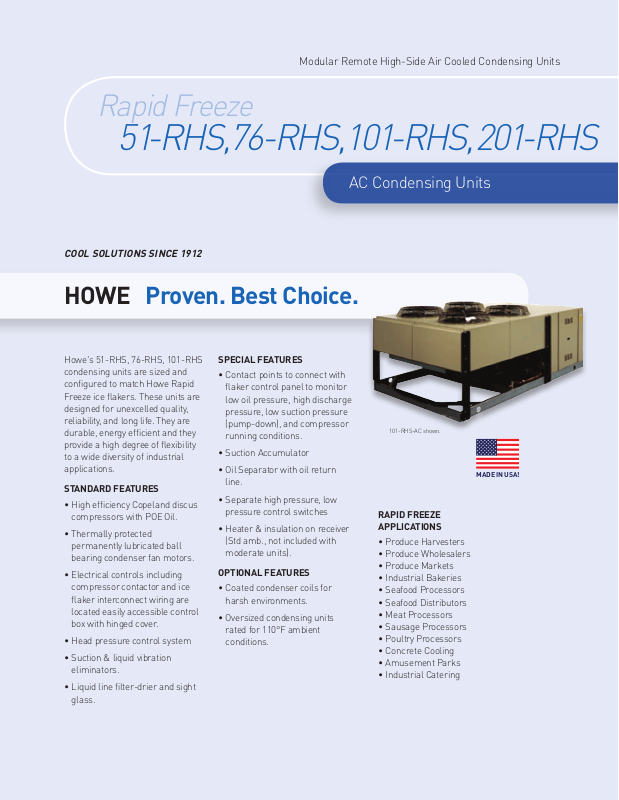

Howe 101-RHS User Manual
Rapid Freeze
Modular Remote High-Side Air Cooled Condensing Units
51-RHS,76-RHS,101-RHS,201-RHS
AC Condensing Units
COOL SOLUTIONS SINCE 1912
HOWE Proven. Best Choice.
Howe's 51-RHS, 76-RHS, 101-RHS
condensing units are sized and
configured to match Howe Rapid
Freeze ice flakers. These units are
designed for unexcelled quality,
reliability, and long life. They are
durable, energy efficient and they
provide a high degree of flexibility
to a wide diversity of industrial
applications.
STANDARD FEATURES
• High efficiency Copeland discus
compressors with POE Oil.
• Thermally protected
permanently lubricated ball
bearing condenser fan motors.
• Electrical controls including
compressor contactor and ice
flaker interconnect wiring are
located easily accessible control
box with hinged cover.
• Head pressure control system
• Suction & liquid vibration
eliminators.
• Liquid line filter-drier and sight
glass.
SPECIAL FEATURES
• Contact points to connect with
flaker control panel to monitor
low oil pressure, high discharge
pressure, low suction pressure
(pump-down), and compressor
running conditions.
• Suction Accumulator
• Oil Separator with oil return
line.
• Separate high pressure, low
pressure control switches
• Heater & insulation on receiver
(Std amb., not included with
moderate units).
OPTIONAL FEATURES
• Coated condenser coils for
harsh environments.
• Oversized condensing units
rated for 110°F ambient
conditions.
101-RHS-AC shown.
MADE IN USA!
RAPID FREEZE
APPLICATIONS
• Produce Harvesters
• Produce Wholesalers
• Produce Markets
• Industrial Bakeries
• Seafood Processors
• Seafood Distributors
• Meat Processors
• Sausage Processors
• Poultry Processors
• Concrete Cooling
• Amusement Parks
• Industrial Catering
51-RHS,76-RHS,101-RHS,201-RHS
CONDENSING UNIT
SIDE VIEW
END VIEWS
55.6
1.76 FRAME C/L
B1
B2
2.50 DIA.
K.O.
1.38 x 1.75
DIA. K.O.
(2 PLACES)
8.44
11.57
10.13
6.62
4.00
55.6
1.76
FRAME
C/L
B1
B2
2.50 DIA. K.O.
1.38 x 1.75
DIA. K.O.
(2 PLACES)
8.44
11.57
10.13
6.62
4.00
55.6
1.76
FRAME
C/L
B1
B2
2.50 DIA. K.O.
1.38 x 1.75
DIA. K.O.
(2 PLACES)
8.44
11.57
10.13
6.62
4.00
AC Condensing Units
55.6
SUCTION 9.28
15.00
65.93
98.07
DIMENSIONS
CONNECTION SIZES SHIPPING WEIGHT
MODEL A B1 B2 H A B H SUCTION LIQUID LBS KG
IN
LIQ. 7.41
A
3.00 DIA. HOLE
15.00
CM
1.76 FRAME C/L
B2
B1
2.50 DIA.
K.O.
8.44
1.38 x 1.75
DIA. K.O.
(2 PLACES)
10.13
6.62
4.00
11.57
55.6
1.76
FRAME
2.50 DIA. K.O.
C/L
1.38 x 1.75
DIA. K.O.
(2 PLACES)
11.57
10.13
8.44
6.62
B2
B1
4.00
51-RHS 144 44½ 42½ 555/8 366 113 141 21/8 7/8 1980 899
76-RHS 170.7 44½ 42½ 555/8 434 113 141 21/8 7/8 2370 1076
101-RHS 144 87 85 555/8 366 224 141 25/8 11/8 3600 1635
102-RHS 144 87 85 555/8 366 224 141 (2) 21/8 (2) 7/8 3600 1635
201-RHS* 144 87 85 555/8 366 224 141 25/8 11/8 3760 1703
* Model 201-2-RL ice flaker requires (2) two 201-RHS condensing units. Dimensions and connections are for each condensing unit.
Models 51 & 76-RHS have single rows of fans
ELECTRICAL R-404A
COMPRESSOR CONDENSER FAN MOTORS UNIT
VOLTAGE MODEL RLA LRA QUANTITY FLA (EACH) MCA MOP
208-230/3/60 51-RHS 52.6 278 2 8.0 67.0 110
76-RHS 80.8 450 2 14.0 104.5 175
101-RHS 52.6 x 2 278 x 2 4 16.0 122.2 150
201-RHS 66.0 x 2 374 x 2 4 16.0 145.8 200
460/3/60 51-RHS 26.3 139 2 4.0 34.0 50
76-RHS 40.4 225 2 7.0 52.0 80
101-RHS 26.3 x 2 139 x 2 4 8 .0 61.1 80
201-RHS 33.0 x 2 187 x 2 4 8 .0 72.9 100
575/3/60 51-RHS 20.9 113 2 5.0 28.1 45
76-RHS 32.5 172 2 6.0 42.1 70
101-RHS 20.9 x 2 113 x 2 4 3 .0 71.0 90
201-RHS 24.2 x 2 135 x 2 4 3 .0 63.4 100
380/3/50 51-RHS 33.0 187 2 8 .0 40.0 60
76-RHS 47.8 235 2 14 .0 61.0 100
101-RHS 33.0 x 2 187 x 2 4 8 .0 145.8 200
201-RHS 47.8 x 2 235 x 2 4 14 .0 140.5 175
Electrical specs for 102-RHS are same as 101-RHS. 102-RHS has two separate refrigeration circuits.
Suction accumulator is provided with Howe furnished condensing unit.
51-201 Condensing Untis | © 2014 Howe Corporation | 9/14
1650 N. Elston Ave., Chicago, IL 60642-1585 | 773 235 0200 | Fax 773 235 0269
howecorp.com | howeinfo@howecorp.com
