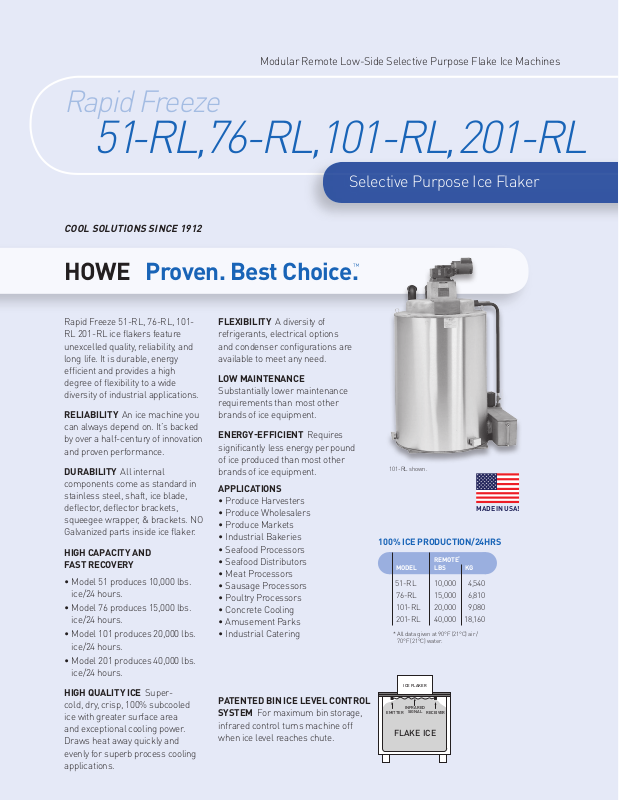

Rapid Freeze
Modular Remote Low-Side Selective Purpose Flake Ice Machines
51-RL,76-RL,101-RL,201-RL
Selective Purpose Ice Flaker
COOL SOLUTIONS SINCE 1912
™
HOWE Proven. Best Choice.
Rapid Freeze 51-RL, 76-RL, 101RL 201-RL ice flakers feature
unexcelled quality, reliability, and
long life. It is durable, energy
efficient and provides a high
degree of flexibility to a wide
diversity of industrial applications.
RELIABILITY An ice machine you
can always depend on. It’s backed
by over a half-century of innovation
and proven performance.
DURABILITY All internal
components come as standard in
stainless steel, shaft, ice blade,
deflector, deflector brackets,
squeegee wrapper, & brackets. NO
Galvanized parts inside ice flaker.
HIGH CAPACITY AND
FAST RECOVERY
• Model 51 produces 10,000 lbs.
ice/24 hours.
• Model 76 produces 15,000 lbs.
ice/24 hours.
• Model 101 produces 20,000 lbs.
ice/24 hours.
• Model 201 produces 40,000 lbs.
ice/24 hours.
HIGH QUALITY ICE Supercold, dry, crisp, 100% subcooled
ice with greater surface area
and exceptional cooling power.
Draws heat away quickly and
evenly for superb process cooling
applications.
FLEXIBILITY A diversity of
refrigerants, electrical options
and condenser configurations are
available to meet any need.
LOW MAINTENANCE
Substantially lower maintenance
requirements than most other
brands of ice equipment.
ENERGY-EFFICIENT Requires
significantly less energy per pound
of ice produced than most other
brands of ice equipment.
APPLICATIONS
• Produce Harvesters
• Produce Wholesalers
• Produce Markets
• Industrial Bakeries
• Seafood Processors
• Seafood Distributors
• Meat Processors
• Sausage Processors
• Poultry Processors
• Concrete Cooling
• Amusement Parks
• Industrial Catering
PATENTED BIN ICE LEVEL CONTROL
SYSTEM For maximum bin storage,
infrared control turns machine off
when ice level reaches chute.
101-RL shown.
MADE IN USA!
100% ICE PRODUCTION/24HRS
REMOTE*
MODEL LBS KG
51-RL 10,000 4,540
76-RL 15,000 6,810
101-RL 20,000 9,080
201-RL 40,000 18,160
* All data given at 90°F (21°C) air /
70°F (21°C) water.
ICE FLAKER
INFRARED
SIGNAL
EMITTER RECEIVER
FLAKE ICE
51-RL,76-RL,101-RL,201-RL
J
J
D
S
H
A
F
T
R
O
T
A
T
I
O
N
J
J
MOUNTING HOLE
1/2" SCREWS
MOUNTING HOLE
I
E
H
W
OPENING TO ICE BIN
C DIA.
SUCTION
LIQUID
10" MINIMUM FOR SERVICE
Selective Purpose Ice Flaker
DIMENSIONS CONNECTION REFRIGERATION APPROX SHIPPING
MODEL C D E H I J W SUCTION LIQUID WATER BTU/HR TEMPERATURE R-404A LBS KG
SIZES
EVAPORATOR CHARGE
REQUIREMENT* OPERATING WEIGHT
51-RL 30 52 31 60 35¼ 16¼ 53½ 2
76-RL 30 52 43½ 72 47¾ 16¼ 53½ 2
101-RL 30 52 51½ 79 55¾ 16¼ 53½ 2
101-2-RL 30 52 51½ 79 55¾ 16¼ 53½ (2) 2
201-2-RL** 48 73 69 100 75½ 22
* @ 70°F (21°C) Water Temperature
** Model 201 rated at, and must operate @ -10 F Evaporator temperature. Model 201 standard configuration is dual circuit. Single circuit is available upon special request.
ICE MAKE UP DRIVE WATER
PRODUCTION WATER MOTOR PUMP
VOLTAGE MODEL LB KG GPM HP FLA HP FLA APMS FUSE
1
/
72¾ (2) 2
8
1
/
7/8 1/2 85,250 -5 F/-20.4 C 81 1780 808
8
1
/
7/8 1/2 128,000 -5 F/-20.4 C 123 2150 976
8
5
/
1
1
/
8
1/2 170,500 -5 F/-20.4 C 188 2476 1124
8
1
/
(2) 7/8 1/2 (2) 85,050 -5 F/-20.4 C 188 2476 1124
8
5
/
(2) 1
8
1
/
1/2 (2) 173,250 -10 F/-23 C 538 4800 2180
8
MIN
CIRCUIT MAX
208230/1/60 51RL 10,000 4,540 .85 1 6.8 1/8 1.05 15 20
76-RL 15,000 6,810 1.25 1 6.8 1/8 1.05 15 20
101-RL 20,000 9,080 1.65 1 6.8 1/8 1.05 15 20
201-RL† 40,000 18,160 3.33 1 4.0 1/3 2.8 15 20
460/3/60 51-RL 10,000 4,540 .85 1 1.8 1/6 .35 5 15
76-RL 15,000 6,810 1.25 1 1.8 1/6 .35 5 15
101-RL 20,000 9,080 1.65 1 1.8 1/6 .35 5 15
201-RL 40,000 18,160 3.33 1 2.0 1/3 1.4 5 15
380/3/50 51-RL 10,000 4,540 .85 1 2.4 1/8 1.1 7 15
76-RL 15,000 6,810 1.25 1 2.4 1/8 1.1 7 15
101-RL 20,000 9,080 1.65 1 2.4 1/8 1.1 7 15
201-RL 40,000 18,160 3.33 1 4.2 1/3 .7 8 15
575/3/60 51-RL 10,000 4,540 .85 1 1.7 1/6 .28 7 15
76-RL 15,000 6,810 1.25 1 1.7 1/6 .28 7 15
101-RL 20,000 9,080 1.65 1 1.7 1/6 .28 7 15
All remote low-side ice flakers come with these standard features, suction & liquid lines pre-piped, and insulated. Liquid line has thermostatic expansion valve, solenoid valve, and liquid indicator mounted,
suction line has built in p-trap at outlet connection, TXV bulb is pre-installed in correct location on suction line. Standard NEMA1 control panel is shipped loose for field installation. (Optional NEMA4 enclosure is available with NEMA4/TEFC kit) Drive motor is standard ODP (open drip proof) (TEFC motor is available with optional NEMA4/TEFC kit). Suction accumulator is not provided with ice flaker, suction
accumulator is provided with Howe furnished condensing unit. (see condensing unit spec sheets for details. Rapid Freeze ice flakers require a condensation drip pan to be fabricated and installed under
flaker, but above the storage bin. Drip pan shall be constructed to prevent condensation from entering ice storage bin.
†
Model 201-RL standard voltage for drive motor is 230/3/60.
51-201 | © 2014 Howe Corporation | 9/14
