1. Appearance
GPS Antenna
Earpiece
Touch panel
Function Keys
Camera Key
Power Key
Microphone
Reset button
S10 Series Quick Start
Back strap holder
eaker
Sp
External antenna
connector
Camera
Lock Screw
Back cover
Front
Back
Mini USB socket
Back strap holder
Bottom
2. Operating steps：
I. Charging
II. Fix TF card/SIM card/battery
III．Turn on the collector
IV. Connect to PC to install application or data
V. Collect GIS data with internal GPS and GIS application
VI. Upload data
• Charging
Insert the Li-ion battery into the battery charger to charge.
Remark: mini USB cable can also be used to charge the receiver. When normally charged, there is
charging icon in the screen if receiver is off and there is charging icon to the top right corner in the screen
if receiver is on.
• Fix TF card/SIM card/Battery
1、Turn the back cover screw to the open position according to the instruction on the back
cover and take off the back cover(figure 1).
2、Fix the SIM card and TF card according to the instruction in the battery cabin(figure 2).
3、Fix the battery.
4、Fix the back cover and turn the back cover screw to the lock position according to the
instruction on the back cover(figure 1).
Counter clockwise rotation
Turning Lock
（Figure 1）
（Figure 2）
• Turn on/off collector
1、Make sure there is enough power in battery, or connect receiver to PC with mini USB
cable(with battery in).
2、Press power button for 3～5 seconds to turn on(until the boot screen appears)/ turn off.
Remark: if receiver is down, press the reset button in the bottom of receiver to reset.
• Connect to PC
1、Make sure Microsoft ActiveSync application has been installed in PC.
2、Connect receiver to PC with mini USB cable.
3、ActiveSync application connect receiver and PC automatically. There is
appears in the tool bar of PC and ‘Synchronization Setup Wizard’ appears meantime, click
‘Cancel’.
4、Click ‘Browse’ to check the files in receiver, then transfer data between PC and
receiver.
• Install Application
1、Make sure S10 is connect with PC via ActiveSync.
2、Click install file on PC to start the installation. If the install file is compatible for mobile
device, copy the file into S10 and click to start the installation.
3、Select installation directory in S10 （‘Flash Storage’ is suggested）, click ‘install’.
Remark: it’s suggested to install the application in ‘Flash Storage’, save data in TF card.
• Use GPS
icon
Option 1
Use the internal GPS settings.
1. Start->Settings->System->GPS Settings->Satellite State
2. Click ‘Please click here to startup A-GPS’.
3. Wait until get GPS information.
•
Option 2
Use user-define application software: Set COM port as COM6 and baud rate as
9600 in application.

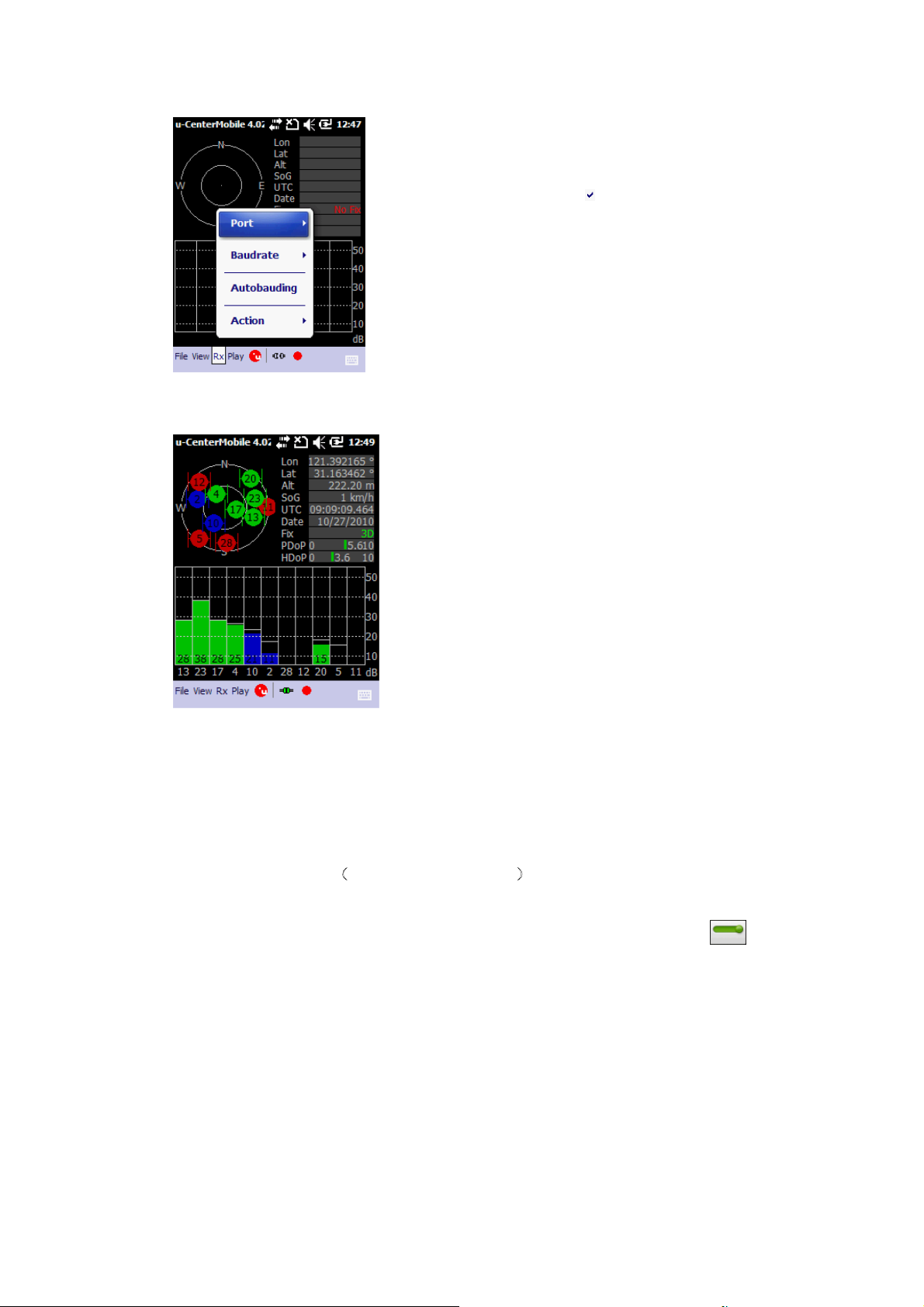

Here take ‘u-center mobile’ application software for example.
1. Install ‘u-center mobile’ and run it.
2. Set Port and Baud rate in ‘Rx’ menu.
3. Wait until get GPS information.
• Use Camera
1、
Select ‘Start->Picture & Video’，select ‘Camera’ or camera icon to take photos.
Click screen and select ‘OK’ to exit.
Press camera key to take photos. Click screen and select ‘OK’ to exit. 2、
• Wireless Connection（
Bluetooth/GPRS/WIFI）
Bluetooth
1、Select‘Start->Settings->Connections->Wireless management’, click the
icon
on the right of ‘Bluetooth’ to activating the Bluetooth device.
2、Select ‘Start-> Settings-> Bluetooth’, click ‘Add new device…’, system will
search available Bluetooth device. Select the device in refurbished list and click ‘Next’
in the bottom right corner, input password.
3、Select ‘Next’, input password in external Bluetooth device and finish the connection.
Remark: The password is used to the connection between Bluetooth devices and can be setup freely,
such as ‘1234’.
GPRS
1、Make sure there's SIM card in receiver.
2、Select ‘Start->Settings->Connections->Connections’.
3、Click ‘Add a new modem connection’.
4、Input connection name, select ‘Cellular Line(GPRS)’, click ‘Next’.
5、Input ‘cmnet’, click ‘Next’.
6、Click ‘Finish’ and add new connection successfully.
7、Click ‘Manage existing connections’.
8、Click on the new connection for a while and select ‘Connect’.
9、There is GPRS identifier on the signal icon on the top right corner, indicates the
successful connection.
WIFI
1、 Select 'Start->Settings->Connections->Wi-Fi'；
2、 Click ‘Search for Networks’, select a network that listed. Follow the installation
guide to input password and finish the connection.
3. Useful Settings
Screen response
Select ‘Start-> Settings-> System-> Screen’, click ‘Align Screen’ icon and follow the
guide to align the screen.
Adjust backlight
Select ‘Start-> Settingsguild.
Auto power off
Select ‘Sta
different conditions.
Remove programs
Select ‘Start-> Settings-> System-> Remove Programs’, select the program in the list
and click ‘OK’ to remove.
Fall alarm
Select ‘Start-> Settings-> System-> Motion Sensor’, select ‘Fall Alarm’, check or
not the function of sharp warning sound when Odin is dropped. You can also open or
close the ‘Screen rotation’ function in this menu.
rt-> Settings-> System-> Power-> Advanced’, set the power off time in
> System-> Backlight', adjust backlight status according to the
Restore Factory Defaults
Select ‘Start-> Settings-> System-> Restore Factory Defaults’, restore factory defaults
settings according to the guide.
4. Environmental
• Operating temperature: -10℃~+60℃
• Storage temperature: -30℃~+70℃
• Drop: 1.2m drop onto all faces
• Casing: Dustproof and resistant to heavy wind driven rain per IP65 standard
• Humidity: 5% ~ 95% (non-condensing)
Appendix‐ Product Safety Warnings
Safety and compliance information
Use responsibility –Read all instructions and safety information before use to avoid
injury.
Battery safety
Charge battery only in temperature ranging from 32℉ to 140℉ (0℃ to 60℃)
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type of battery recommended by the manufacturer.
The maximum operating ambient temperature of the switching power supply declared by the manufacturer
is 50.
Dispose of used batteries according to battery manufacturer’s instructions.
WiFi safety
Turn WiFi off in areas where WiFi use is prohibited or when it may cause interference or
danger, such as in airplanes while flying.
Care and maintenance
S10 is an electronic product and should be treated with care, to reduce the risk of fire,
electronic shock, or product damage.
• Do not expose this device to rain, moisture, or any type of liquid that corrodes
electronic circuits. If your device gets wet, immediate turn the power off. Allow the
device to dry completely before using it again.
• Clean the display with a soft cloth, and be careful not to wipe the display with
anything abrasive.
• Do not expose your device to extreme heat or cold . For example, do
not leave it in the trunk of your car in high heat conditions.
• Do not attempt to open the device other than as instructed in this manual.
• Rough handling can break internal circuitry.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
device.
• Use only the recommended accessories.
• Do not excessive sound pressure from earphones and headphones, which can cause
hearing loss.
USB Data Cables
This version supports the USB interface. You can connect your S10 with the
PC via the USB&data cable, copying or moving the files amid the S10 and PC, or
browsing the images, record files and video files saved in the S10 via the PC.
1 Insert the USB data cable connector into the USB interface of the S10.
2 Connect the other terminal of the USB data cable with the USB interface of the PC.
CAUTION
THE CONNECTION TO USB INTERFACES HAS TO BE LIMITED TO
USB2.0 VERSION OR HAIGHER
THE CONNECTION TO SO CALLED POWER USE IS PROHIBITED
RF Safety Precautions
This section includes some i mportant information on safe and ef ficient
operation. Please read this information before using the phone.
This device complies with Part 22 and Part 24 of the FCC Rules.
Operational Precautions
Please use your phone properly . When making or receiving a call, pleas e
hold your phone as holding a wireline telephone.
SAR: This mobile phone meets governm ent requirements fo r exposure to
radio waves. Y our mobile phone is a radio transmitter and receiver . It is
designed and manuf actured not to exce ed limits for exposure to radio
frequency (RF) energy. These limits are part of comprehensive guidelines
and establish permitted levels of RF energy for the population. The
guidelines were developed and conf irmed by i ndependent scientific
organizations through periodic and thorough evaluation of scientific studies.
The limits include a substantial safety margin designed to assure the safety
of all persons, regardless of age and health. The expos ure standard for
mobile phones employs a unit of m easurement known as the Specific
Absorption Rate. The highest tested SAR values for this mobile phone
compliance against FCC standard limit 1.6 W/kg is 0.667 W/kg for body
(based on 0 cm distance separation fr om body to the device) and 0.895
W/kg for head (while the phone touches ear).
Do not touch the antenna area when the phone is in use. Touching the
antenna area affects call quality and may cause the phone to operate at a
high power level than needed.
Keep the phone out of the reach of small children. The phone may cause injury
if used as a toy.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
