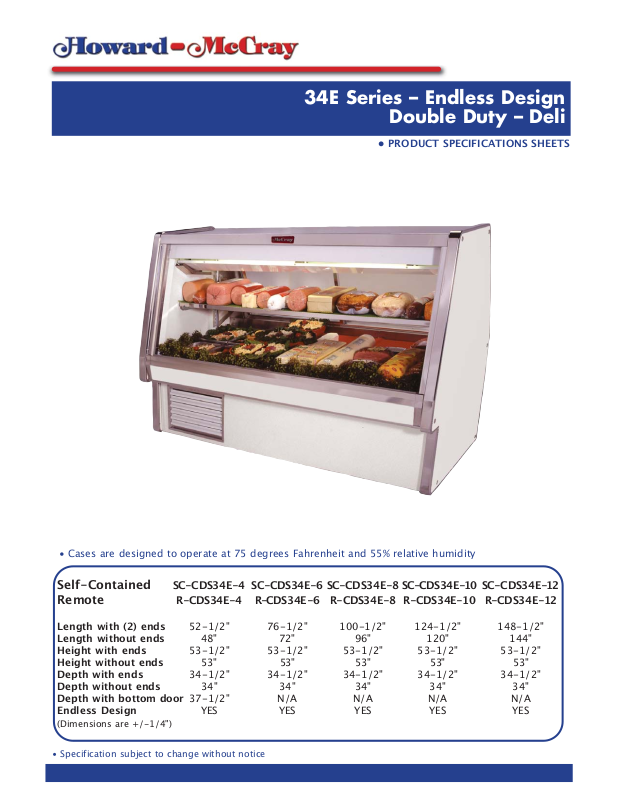

Howard McCray R-CDS34E-10 User Manual

34E Series – Endless Design

Double Duty – Deli

• PRODUCT SPECIFICATIONS SHEETS

• Specification subject to change without notice

• Cases are designed to operate at 75 degrees Fahrenheit and 55% relative humidity

Self-Contained SC-CDS34E-4 SC-CDS34E-6 SC-CDS34E-8 SC-CDS34E-10 SC-CDS34E-12
Remote R-CDS34E-4 R-CDS34E-6 R-CDS34E-8 R-CDS34E-10 R-CDS34E-12

Length with (2) ends 52-1/2" 76-1/2" 100-1/2" 124-1/2" 148-1/2"
Length without ends 48" 72" 96" 120" 144"
Height with ends 53-1/2" 53-1/2" 53-1/2" 53-1/2" 53-1/2"
Height without ends 53" 53" 53" 53" 53"
Depth with ends 34-1/2" 34-1/2" 34-1/2" 34-1/2" 34-1/2"
Depth without ends 34" 34" 34" 34" 34"
Depth with bottom door 37-1/2" N/A N/A N/A N/A
Endless Design YES YES YES YES YES

(Dimensions are +/-1/4")

34E Series – Endless Design

Double Duty – Deli

Standard Specifications and Optional Features

OPTIONAL FEATURES

A Division of HMC Enterprises LLC • 2501 Grant Avenue • Philadelphia, PA 19114 USA

[phone] • 1-800-344-8222 • Fax [phone] • E-Mail: [e-mail] • www.howardmccray.com

UL Classified to ANSI/NSF 7
Foamed in place CFC free foam
Triple pane insulated front glass-28"H
Heavy gauge steel super structure
Bottom storage
Endless design allows for continuous line up
Drain is included for cleaning

Satin finish extrusion on doors and door tracks
Designer white exterior front and ends
Stainless steel mirror trim
Stainless steel heavy gauge top – 19-1/2" W
Designer white exterior rear

CONSTRUCTION FINISHES

INTERIOR REFRIGERATION

EXTERIOR LIGHTING

ELECTRICAL REQUIREMENTS

Designer white interior ends
Stainless steel heavy gauge mezzanine shelf
White aluminum floor (bottom storage area)
Air insulated baffle (prevents moisture from drip-

ping into display area)

Copevap system (eliminates need for condensate pan)
R134a expansion valve system
Gravity coil located at inside top of unit and bot-

tom storage area

Self contained system
Automatic defrost controlled by time clock-(self

contained units only)

Pressure control maintains constant temperatures
Remotes available

Double pane rear removable doors
Newly designed rear compression door jamb
Removable front grille allows for cleaning
Removable rear grille for easy servicing
2-1/4" removable end panels

2 Rows of T12 lighting at top of unit

115V/60Hz/1Ph
Unit must be hard wired
UL/CUL listed
115V-12AMP general purpose receptacle (wired

separately)

Scale Stand
Paper cutter
Painted, laminate or stainless steel
Mirrored doors
Extra stainless steel mezzanine shelf
Drop work shelf

Front bumpers 1" or 3"
Door lock
Digital thermometer
Pass thru front doors
Sandwich racks
Salad pan settings

Important Note: All refrigerated cases are
designed to operate in an environment of
75 degrees and 55% relative humidity.

Important Note:

Product must be cooled

before being displayed within the case.
