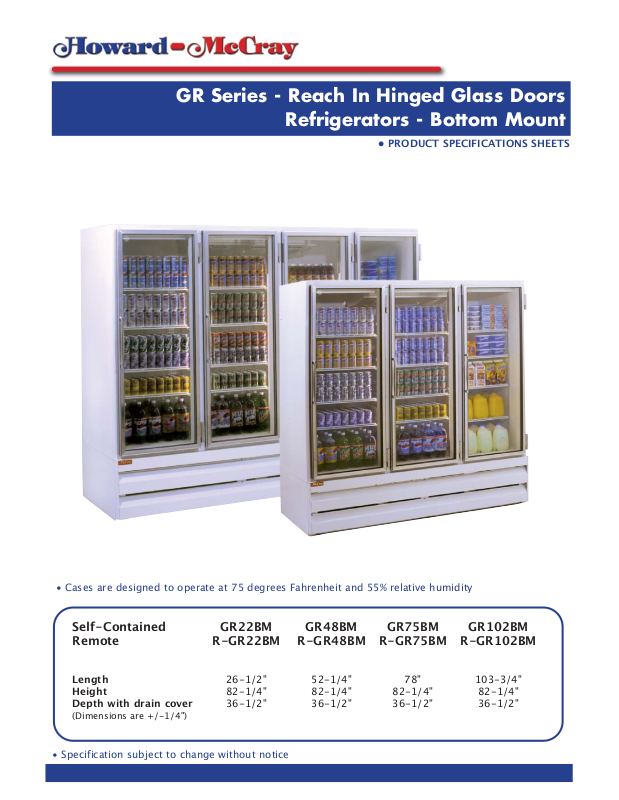

GR Series - Reach In Hinged Glass Doors
Refrigerators - Bottom Mount
• PRODUCT SPECIFICATIONS SHEETS
• Specification subject to change without notice
Self-Contained GR22BM GR48BM GR75BM GR102BM
Remote R-GR22BM R-GR48BM R-GR75BM R-GR102BM
Length 26-1/2" 52-1/4" 78" 103-3/4"
Height 82-1/4" 82-1/4" 82-1/4" 82-1/4"
Depth with drain cover 36-1/2" 36-1/2" 36-1/2" 36-1/2"
(Dimensions are +/-1/4")
• Cases are designed to operate at 75 degrees Fahrenheit and 55% relative humidity
GR Series - Reach In Hinged Glass Doors
Refrigerators - Bottom Mount
Standard Specifications and Optional Features
OPTIONAL FEATURES
A Division of HMC Enterprises LLC • 2501 Grant Avenue • Philadelphia, PA 19114 USA
(215) 464-6800 • 1-800-344-8222 • Fax (215) 969-4890 • E-Mail: sales@howardmccray.com • www.howardmccray.com
UL Classified to ANSI/NSF 7
Heavy duty construction
CFC free foamed in place insulation
Removable front grille for easy servicing
1, 2, 3 or 4 door models available
Heavy duty edge mounted hinges
Doors-Anthony style 101-chrome finish
Exterior-designer white
Interior-designer white
Rear-designer white
CONSTRUCTION FINISHES
INTERIOR REFRIGERATION
EXTERIOR LIGHTING
ELECTRICAL REQUIREMENTS
White aluminum ends and back
White aluminum floor
Aluminum evaporater fan housing
4 heavy duty epoxy coated shelves per door
Bottom mounted condensing unit
R134a refrigeration
1, 2, & 3 door, Capillary tube
4 door-expansion valve
Remote available
White aluminum ends and fronts
Double pane glass doors 23-3/4"X62-1/4"
provides wide view display
Vertical light behind mullion
1 Dr = 1 light
2 Dr = 1 light
3 Dr = 2 lights
4 Dr = 3 lights
1,2,3 Door Units 115V/60Hz/1Ph
Cord and plug
4 Door 115V/208-230V/60Hz/1Ph
Unit must be hard wired
UL/CUL listed
Important Note: All refrigerated cases are
designed to operate in an environment of
75 degrees and 55% relative humidity.
Important Note:
Product must be cooled
before being displayed within the case.
Stainless steel, laminate or paint
Digital thermometer
Door swing change
Extra shelf with clips
Door locks
A Division of HMC Enterprises LLC • 2501 Grant Avenue • Philadelphia, PA 19114 USA
(215) 464-6800 • 1-800-344-8222 • Fax (215) 969-4890 • E-Mail: sales@howardmccray.com • www.howardmccray.com
GR Series - Reach In Hinged Glass Doors
Refrigerators - Bottom Mount
Technical Data
• Cases are designed to operate at 75 degrees Fahrenheit and 55% relative humidity
• Specification subject to change without notice
SHIPPING INFORMATION
Model Self contained GR22BM GR48BM GR75BM GR102BM
Remote R-GR22BM R-GR48BM R-GR75BM R-GR102BM
26-1/2"
82-1/4"
33-7/8"
36-1/2"
52-1/4"
82-1/4"
33-7/8"
36-1/2"
78"
82-1/4"
33-7/8"
36-1/2"
103-3/4"
82-1/4"
33-7/8"
36-1/2"
Length
Height
Depth
Depth with drain
(Dimensions are +/- 1/4")
38°F to 41°F
R134a
Capillary tube
1/3
Temp. control
1700
115V
10.2A
2.6A
Yes(15A)
38°F to 41°F
R134a
Capillary tube
1/3
Temp. control
3100
115V
11.0A
3.4A
Yes(15A)
38°F to 41°F
R134a
Capillary tube
1/2
Temp. control
4400
115V
13.8A
4.1A
Yes(20A)
38°F to 41°F
R134a
Expansion valve
3/4
Pressure control
5900
115/208-230V
6.4/7.1A
6.4A
No
Operating temperature
Refrigerant
System type
Compressor size- HP
Refrigeration system
BTU’s at +20°F Evap. Temp.
Voltage
Amperage
Amperage
Cord and plug
Self contained
Self contained
Remote
Self contained
Remote
86"
44"
31"
330#
215#
77ft
3
86"
44"
58"
520#
405#
125ft
3
86"
44"
84"
720#
595#
182ft
3
86"
44"
109"
980#
830#
236ft
3
Height
Depth
Length
Gross weight
Cubic feet
Self contained
Remote
White
White
White
White
No
4
23-3⁄4 "X62-1⁄4 "
22
White
White
White
White
No
8
23-3⁄4 "X62-1⁄4 "
48
White
White
White
White
No
12
23-3⁄4 "X62-1⁄4 "
75
White
White
White
White
No
16
23-3⁄4 "X62-1⁄4 "
102
Exterior color
Interior color
Inside end panels
Floors
Drain
Total shelves
Door size
Cubic capacity (ft
3
)
GR Series - Reach In Hinged Glass Doors
Refrigerators - Bottom Mount
Technical Data • Side View • Plan View
A Division of HMC Enterprises LLC • 2501 Grant Avenue • Philadelphia, PA 19114 USA
(215) 464-6800 • 1-800-344-8222 • Fax (215) 969-4890 • E-Mail: sales@howardmccray.com • www.howardmccray.com
103.750
99.000
62.25
33.875
32.00
5.682
Coil
Interior
Lighting
60.25
4 Wire Shelves
Per Door
17.25
82.25
33.875
33.875
23.750
33.875
32.000
57.688
78.000
73.250
32.000
57.688
23.750
52.250
47.500
32.000
57.688
23.750
Cross Section
33.875
26.500
21.782
29.875
32.000
21.125
Plan Views
23.750
