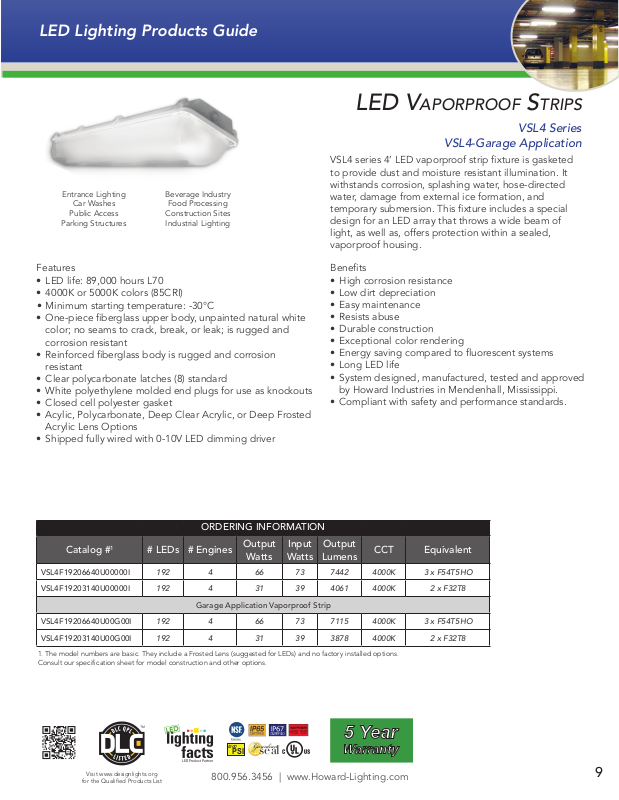

Howard Industries VSL4F19206640U00000I, VSL4F19203140U00000I, VSL4F19206640U00G00I, VSL4F19203140U00G00I Catalog Page
Page 1
Entrance Lighting
1500
PSI
Guardian
seal
™
LED Product Partner
Car Washes
Public Access
Parking Structures
Beverage Industry
Food Processing
Construction Sites
Industrial Lighting
leD VaPorProof sTriPs
VSL4 Series
VSL4-Garage Application
VSL4 series 4’ LED vaporproof strip fixture is gasketed
to provide dust and moisture resistant illumination. It
withstands corrosion, splashing water, hose-directed
water, damage from external ice formation, and
temporary submersion. This fixture includes a special
design for an LED array that throws a wide beam of
light, as well as, offers protection within a sealed,
vaporproof housing.
Features
• LED life: 89,000 hours L70
• 4000K or 5000K colors (85CRI)
•Minimum starting temperature: -30°C
• One-piece fiberglass upper body, unpainted natural white
color; no seams to crack, break, or leak; is rugged and
corrosion resistant
• Reinforced fiberglass body is rugged and corrosion
resistant
• Clear polycarbonate latches (8) standard
• White polyethylene molded end plugs for use as knockouts
• Closed cell polyester gasket
Benefits
• High corrosion resistance
• Low dirt depreciation
• Easy maintenance
• Resists abuse
• Durable construction
• Exceptional color rendering
• Energy saving compared to fluorescent systems
• Long LED life
• System designed, manufactured, tested and approved
by Howard Industries in Mendenhall, Mississippi.
• Compliant with safety and performance standards.
• Acylic, Polycarbonate, Deep Clear Acrylic, or Deep Frosted
Acrylic Lens Options
• Shipped fully wired with 0-10V LED dimming driver
ORDERING INFORMATION
Catalog #
VSL4F19206640U00000I 192 4 66 73 7442 4000K 3 x F54T5HO
VSL4F19203140U00000I 192 4 31 39 4061 4000K 2 x F32T8
VSL4F19206640U00G00I 192 4 66 73 7115 4000K 3 x F54T5HO
VSL4F19203140U00G00I 192 4 31 39 3878 4000K 2 x F32T8
1. The model numbers are basic. They include a Frosted Lens (suggested for LEDs) and no factory installed options.
Consult our specification sheet for model construction and other options.
1
# LEDs # Engines
Garage Application Vaporproof Strip
Output
Watts
Input
Watts
Output
Lumens
CCT Equivalent
Visit www.designlights.org
for the Qualified Products List
5 Year
Warranty
800.956.3456 | www.Howard-Lighting.com
9
