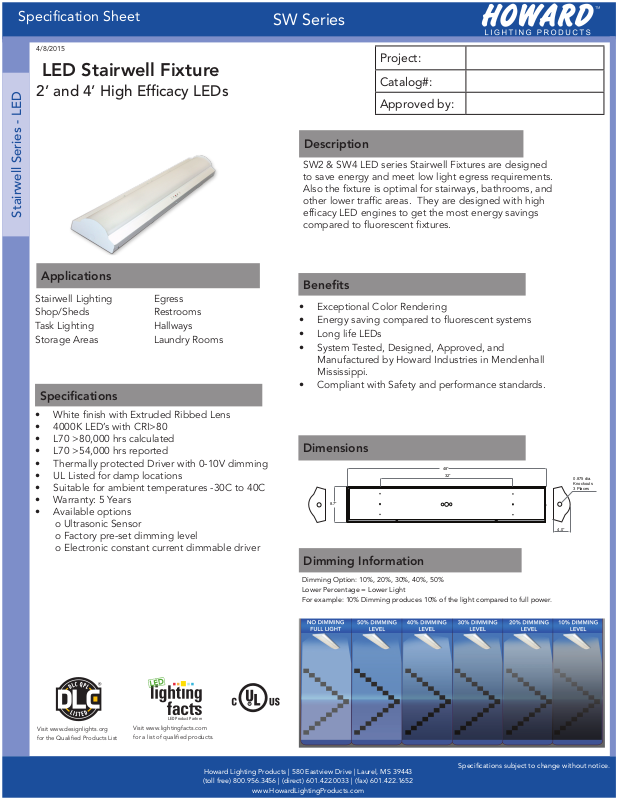

LED Stairwell Fixture
2’ and 4’ High Efficacy LEDs
Stairwell Series - LED
SW Series
Project:
Catalog#:
Approved by:
Description
SW2 & SW4 LED series Stairwell Fixtures are designed to save energy and meet low light egress requirements. Also the fixture is optimal for stairways, bathrooms, and other lower traffic areas. They are designed with high efficacy LED engines to get the most energy savings compared to fluorescent fixtures.
Applications
Stairwell Lighting Shop/Sheds Task Lighting Storage Areas
Egress Restrooms Hallways Laundry Rooms
Specifications
• White finish with Extruded Ribbed Lens
• 4000K LED’s with CRI>80
• L70 >80,000 hrs calculated
• L70 >54,000 hrs reported
• Thermally protected Driver with 0-10V dimming
• UL Listed for damp locations
• Suitable for ambient temperatures -30C to 40C
• Warranty: 5 Years
• Available options
o Ultrasonic Sensor o Factory pre-set dimming level o Electronic constant current dimmable driver
Benefits
• Exceptional Color Rendering
• Energy saving compared to fluorescent systems
• Long life LEDs
• System Tested, Designed, Approved, and
Manufactured by Howard Industries in Mendenhall Mississippi.
• Compliant with Safety and performance standards.
Dimensions
48”
32”
8.7”
Dimming Information
0.875 dia. Knockouts 3 Places
4.0”
Visit www.designlights.org for the Qualified Products List
Visit www.lightingfacts.com for a list of qualified products.
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
Dimming Option: 10%, 20%, 30%, 40%, 50% Lower Percentage = Lower Light For example: 10% Dimming produces 10% of the light compared to full power.
www.HowardLightingProducts.com
Specification Sheet
SW Series
LED Stairwell Fixture
2’ and 4’ High Efficacy LEDs
Ordering Information
Model Family
Stairwell Series - LED
SW4 LED 085 10 40 U US 000 I
SW4: 4’ (192LEDs)
SW2: 2’ (96 LEDs)
Stairwell Fixture
LED: High Efficacy Long-Life LED Fixture 085: 85 Output Watts (4’)
LED Wattage Dimming
030: 30 Output Watts (2’)
1
10: 10% Dimming 20: 20% Dimming 30: 30% Dimming 40: 40% Dimming 50: 50% Dimming
Project:
Catalog#:
Approved by:
CCT Input Volts
40: 4000K U Universal Input 120-277v US: Ultrasonic Sensor TBA I: Single
Factory Installed
Options
TBA
Pack.
Footnote:
1. 10% Dimming produces 10% of the light compared to full power.
100% 50% 40% 30% 20% 10%
Model#* Lumens
SW4LED0851040UUS000I 7049 96 73.7 4000K/85CRI 3x54T5HO
SW2LED0301040UUS000I 2566 34 74.6 4000K/85CRI 2x32T8
Input
Watts
Lm/W CCT/CRI
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
Suggested Fluorescent
www.HowardLightingProducts.com
Replacement
Sample Ordering Number SW4 LED 085 10 40 U US 000 I SW4 –4’ (192 LEDs)) stairwell fixture LED – High efficacy Long life LED fixture 085 – 85 output watts 10 – 10 % dimming 40 – 4000K CCT U – Universal Input 120 – 277 US – Ultra Sonic sensor 000 – TBA I – Individually packed.
Specification Sheet
4/8/2015
SW Series
Project:
LED Stairwell Fixture
2’ and 4’ High Efficacy LEDs
Photometric Data
SW2LED0271040UUS000I
T32146A.IES
Testing done in accordance with LM079-08
Stairwell Series - LED
713
535
357
178
Catalog#:
Approved by:
SW2LED0271040
Input Power 31.1W
Efficacy Lm/W 73.2
LEDs 96
Lumen Ouput 2276
Luminance Data
In Candela/SQ M at 0° plane
Angle Average
2
45 8600
55 8293
65 7808
75 6822
85 4097
Zonal Lumen Summary
Zone Lumens % Fixture
0-30 550 24.19
0-40 902 39.62
1
Maximum Candela = 713 Located At Horizontal Angle = 0, Vertical Angle = 2.5 # 1 - Vertical Plane Through Horizontal Angles (0 - 180) (Through Max. Cd.) # 2 - Horizontal Cone Through Vertical Angle (2.5) (Through Max. Cd.)
0-60 1608 70.68
0-90 2189 96.21
0-180 2276 100.00
Coefficients of Utilization - Zonal Cavity Method
(Effective Floor Cavity Reflectance 0.20)
RW 80 70 50 30 10 0
RC 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
0 118 118 118 118 115 115 115 115 109 109 109 104 104 104 99 99 99 96
1 106 101 96 92 103 98 94 90 93 90 86 89 86 83 84 82 80 77
2 96 87 80 74 93 85 78 72 81 75 70 77 72 68 73 69 66 63
3 87 76 68 61 84 74 66 60 71 64 58 67 62 57 64 59 55 53
4 80 67 58 51 77 66 57 50 63 55 49 60 53 48 57 52 47 45
5 73 60 51 44 71 59 50 43 56 48 42 54 47 42 51 46 41 39
6 68 54 45 38 65 53 44 38 51 43 37 48 42 36 47 41 36 34
7 63 49 40 34 61 48 39 33 46 38 33 44 37 32 42 36 32 30
8 58 44 36 30 57 44 35 30 42 35 29 40 34 29 39 33 28 26
9 54 41 32 27 53 40 32 27 39 31 26 37 31 26 36 30 26 24
10 51 38 30 24 50 37 29 24 36 29 24 34 28 24 33 27 23 21
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
Specification Sheet
4/8/2015
SW Series
Project:
LED Stairwell Fixture
2’ and 4’ High Efficacy LEDs
Photometric Data
SW4LED0851040UUS000I
T32037A.IES
Testing done in accordance with LM079-08
Stairwell Series - LED
2242
1682
1121
561
Catalog#:
Approved by:
SW4LED0851040
Input Power 95.7W
Efficacy Lm/W 73.7
LEDs 192
Lumen Ouput 7049
Luminance Data
In Candela/SQ M at 0° plane
Angle Average
2
45 13405
55 12857
65 12047
75 10411
85 5876
Zonal Lumen Summary
Zone Lumens % Fixture
0-30 1729 24.53
0-40 2830 40.15
1
Maximum Candela = 2242.3 Located At Horizontal Angle = 67.5, Vertical Angle = 2.5 # 1 - Vertical Plane Through Horizontal Angles (67.5 - 247.5) (Through Max. Cd.)
# 2 - Horizontal Cone Through Vertical Angle (2.5) (Through Max. Cd.)
0-60 5036 71.44
0-90 6810 96.61
0-180 7049 100.00
Coefficients of Utilization - Zonal Cavity Method
(Effective Floor Cavity Reflectance 0.20)
RW 80 70 50 30 10 0
RC 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
0 118 118 118 118 115 115 115 115 109 109 109 104 104 104 99 99 99 97
1 107 101 96 92 103 98 94 90 94 90 87 89 86 83 85 82 80 78
2 96 87 80 74 93 85 78 73 81 75 71 77 73 68 74 70 66 64
3 88 76 68 61 85 75 67 60 71 64 59 68 62 57 65 60 56 53
4 80 68 58 51 77 66 57 51 63 56 50 60 54 49 58 52 48 45
5 74 60 51 44 71 59 50 44 56 49 43 54 47 42 52 46 41 39
6 68 54 45 38 66 53 44 38 51 43 37 49 42 37 47 41 36 34
7 63 49 40 34 61 48 40 34 46 39 33 44 38 33 43 37 32 30
8 59 45 36 30 57 44 36 30 42 35 29 41 34 29 39 33 29 27
9 55 41 33 27 53 40 32 27 39 32 27 38 31 26 36 30 26 24
10 51 38 30 24 50 37 29 24 36 29 24 35 28 24 34 28 24 22
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
Specification Sheet
SW Series
LED Stairwell Fixture
2’ and 4’ High Efficacy LEDs
Project:
Catalog#:
Approved by:
Dimming Information Required Format for LED Lighting Facts Submissions
Dimmer
Make
Stairwell Series - LED
Watt Stopper FS Series - FS505 Low End N/A N/A SW4LED Series - SW4LED0851040UUS000I 99% - 0% 1 2
Dimmer
Series - Model
Dimmer Trim
Requirements
Transformer
Make
(low voltage
lamps)
Transformer
Model
(low voltage
lamps)
LED Lamp or Luminaire
Series - Model
SW2LED Series - SW2LED0271040UUS000I
Dimming Range
Max - Min
(% lumens)
Minimum Lamps
or Luminaires
(per circuit)
Maximum Lamps
or Luminaires
(per circuit)
Additional
Comments
