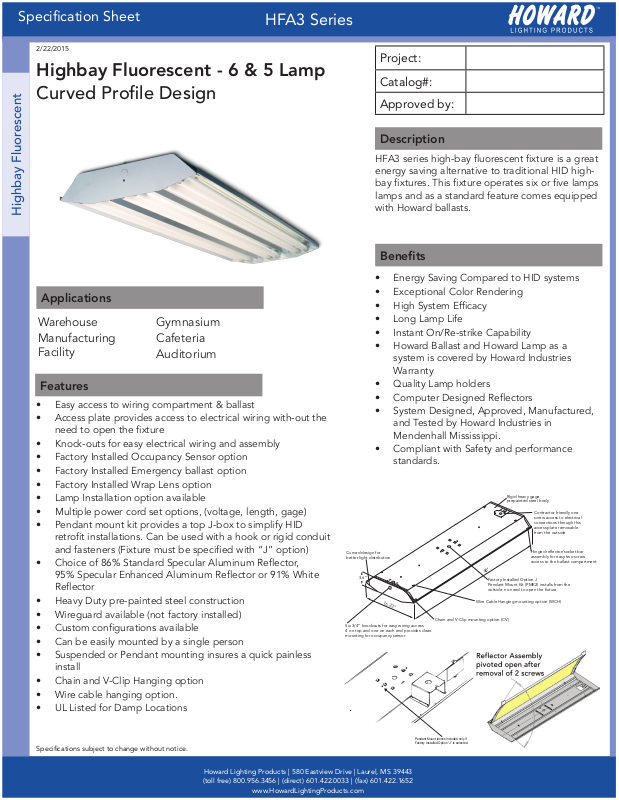

Howard Industries HFA3 Series Specifications

Specification Sheet

Pendant Mount lances included only if
Factory Installed Option “J” is selected.

2/22/2015

HFA3 Series

Highbay Fluorescent - 6 & 5 Lamp

Curved Profile Design

Highbay Fluorescent

Applications

Warehouse
Manufacturing

Facility

Features

• Easy access to wiring compartment & ballast

• Access plate provides access to electrical wiring with-out the

need to open the fixture

• Knock-outs for easy electrical wiring and assembly

• Factory Installed Occupancy Sensor option

• Factory Installed Emergency ballast option

• Factory Installed Wrap Lens option

• Lamp Installation option available

• Multiple power cord set options, (voltage, length, gage)

• Pendant mount kit provides a top J-box to simplify HID

retrofit installations. Can be used with a hook or rigid conduit
and fasteners (Fixture must be specified with “J” option)

• Choice of 86% Standard Specular Aluminum Reflector,
95% Specular Enhanced Aluminum Reflector or 91% White
Reflector

• Heavy Duty pre-painted steel construction

• Wireguard available (not factory installed)

• Custom configurations available

• Can be easily mounted by a single person

• Suspended or Pendant mounting insures a quick painless

install

• Chain and V-Clip Hanging option

• Wire cable hanging option.

• UL Listed for Damp Locations

Gymnasium
Cafeteria
Auditorium

Project:

Catalog#:

Approved by:

Description

HFA3 series high-bay fluorescent fixture is a great
energy saving alternative to traditional HID high­bay fixtures. This fixture operates six or five lamps
lamps and as a standard feature comes equipped
with Howard ballasts.

Benefits

• Energy Saving Compared to HID systems

• Exceptional Color Rendering

• High System Efficacy

• Long Lamp Life

• Instant On/Re-strike Capability

• Howard Ballast and Howard Lamp as a

system is covered by Howard Industries
Warranty

• Quality Lamp holders

• Computer Designed Reflectors

• System Designed, Approved, Manufactured,

and Tested by Howard Industries in
Mendenhall Mississippi.

• Compliant with Safety and performance
standards.

Rigid heavy gage
prepainted steel body

Curved design for
better light distribution

3.6”

16.23”

Six 3/4” knockouts for easy wiring access
4 on top and one on each end provides clean
mounting for occupancy sensor

48”

Factory Installed Option J
Pendant Mount Kit (PMK2) installs from the
outside: no need to open the fixture

Wire Cable Hanging mounting option (WCH)

Chain and V-Clip mounting option (CV)

Hinged reflector/socket bar
assembly for easy two screw
access to the ballast compartment

Contractor friendly one
screw access to electrical
connections through this
access plate removable
from the outside

Specifications subject to change without notice.

Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443

(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652

www.HowardLightingProducts.com

Specification Sheet

HFA3 Series

Highbay Fluorescent - 6 & 5 Lamp

Curved Profile Design

Project:

Catalog#:

Approved by:

Ordering Information

Model

Family

Reflector

No. of
Lamps

Lamp Type/

Wattage

(1)

CRI/CCT Ballast Input Volts Factory Installed

Options

Cordset Options

(see customer service for

other cordset options)

Highbay Fluorescent

HFA3 E 6 32 A HE MV 00D 01 0 I

HFA3 E: Enhanced

Specular
Aluminum (95%)

A: Specular
Aluminum (86%)

W: White
reflective (91%)

6
5

T8 Lamps

28: F28T8
32: F32T8

T5 Lamps

28:F28T5
54: F54T5HO

CRI CCT

A: No Lamps

B:

75

C:

75

D:

75

E:

75

F:

85

G:

85

H:

85

I:

85

J:

85

K:

85

L:

85

M:

85

N:

85

3000
3500
4100
5000
3000
3500
4100
5000
6500
3000
3500
4100
5000

High

Lumen

Yes
Yes
Yes
Yes

T8 T5

X
X
X
X
X
X
X
X

X
X
X
X

X
X
X
X
X

SE: SBF High Eff
HE: HBF High Eff
LE: LBF High Eff
P8: PRS T8

PS: PRS T5

(2)

MV: 120-277v

(2)

AX: 480-277

(2)

(2)

MV: 120-277v
HV: 347-480v (T5HO)

000: No FIOs

(3)

A: Occ Sensor
B: Emergency Ballast
D: Wrap Lens
I: Special Wiring
Instructions
J: J-box config.
T: Toggle switch bi­level lighting control

(4)

(6)

(7)

00: Standard Disconnect
01: 6’ SJT 18/3, no plug

(5)

02: 10’ SJT 18/3, no plug
03: 6’ SJT 18/3 L5-15, twist lock 120v
04: 10’ SJT 18/3 L5-15twist lock 120v
05: 6’ SJT 18/3 5-15non twist lock 120v
06: 10’ SJT 18/3 5-15non twist lock 120v
07: 6’ SJT 18/3 L7-15 twist lock 277v

(8)

08: 10’ SJT 18/3 L7-15 twist lock 277v
09: 6’ SJT 7-15 non twist lock 277v
10: 10’ SJT 7-15 non twist lock 277v
11: 16/3, no plug spec lens
12: 16/4, no plug spec lens
16: 16’ SJT 18/3 7-15, non twist lock 277v
17: 18/3, no plug spec lens
18: 6’ STW L8-20, twist lock 480v
19: 10’ STW L8-20, twist lock 480v
20: 16’ SJT 18/3 L5-15, twist lock 120v
21: 16’ SJT 18/3 L5-15, twist lock 277v

T
B
A

Pack.

I: Single
B: Bulk

(1) Lamp installation available.
(2) High Efficiency ballasts are CEE Listed.
(3) Step-down autotransformer. Allows hook-up of standard MV ballast to 480v.
(4) Occupancy Sensors should be used with programmed rapid start ballasts for maximum lamp life.
Standard Occupancy Sensor requires neutral wired fixtures (ex. -120v or -277v).
For phase-to-phase voltage applications (240v) advise Customer Service at time of request.

500 Lumen ballast is standard for T8. 120 or 277v input only. Advise Customer Service at time of quote for higher lumen rated ballast.

(5)
(6) Standard acrylic prismatic, pattern 12, 0.100” thick. Call for options.
(7) Unless otherwise specified, fixture will include field installed J-box. Supply wires will exit the center of the fixture, not the
access plate. J-box can be installed without entering the fixture.
(8) Allows for separate control of two ballasts through simple “toggling” of a standard wall switch.
Recommend use of programmed rapid start ballast with this control.

SE Standard Ballast Factor High Efficiency Instant Start T8 Ballast

HE High Ballast Factor High Efficiency Instant Start T8 Ballast

LE Low Ballast Factor High Efficiency Instant Start T8 Ballast

PS Program Rapid Start T5 Ballast

P8 Program Rapid Start High Efficiency T8 Ballast

Specifications subject to change without notice.

Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443

(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652

www.HowardLightingProducts.com

Sample Ordering Number:
HFA3 E 6 32 A HE MV 00D 01 I

HFA3 Series Highbay Fluorescent
Enhanced Specular Aluminum Reflector
6-lamps (none installed)
F32T8 High Ballast Factor High Efficiency Ballast
Multi-volt (120-277v)
Wrap Lens Factory Installed Options
6’ SJT 18/3 cord, no plug
Single Packaging

RAPID SHIP MODELS
AVAILABLE FOR NEXT DAY SHIPMENT

•HFA3A632AHEMV000000I

•HFA3A654APSMV000000I

•HFA3E632AHEMV000000I

•HFA3E632NHEMV000000I (with lamps)

•HFA3E654APSMV000000I

•HFA3E654IPSMV000000I (with lamps)

Specification Sheet

2/22/2015

HFA3 Series

Project:

Field Installed Options Ordering

Highbay Fluorescent

HFA3-WG

Wire Guard

HF-2CV (2 foot)
HF-3CV (3 foot)

Hanging Chain & V-clips

HFA-WCH

Wire Cable Hanging Kit

(2 pcs per kit)

HF-SK1

Stabilizer Kit

(Hub, color and wire cable)

Catalog#:

Approved by:

HF-PMK2

Pendant Mount Kit

with 1.0” diameter through hole

HFA3-WL

Wrap Lens

(Can be used with wire guard)

Energy Cost Estimator

Existing System New System

HFA3E632ASE

400W MH Highbay

Hours

burned

per year

Cost per

kWh$

4368

0.12

Energy Cost

Estimation

Howard Industries provides this tool to examine the potential impact of lighting decisions. This tool provides an ESTIMATE only. The analysis of this tool does not
warrant or guarantee the actual costs or savings that will be realized as the analysis suggested. You can find the full version of this cost saving tool at the Howard
Lighting Website—www.howardlightingproducts.com. Click “Cost of Ownership Calculator”.

Copyright (c) 2008 Howard Industries All Rights Reserved.

Number

of Fixtures

Watts per

Fixture

(existing

system)

Energy

used
per year
(existing

system)

Energy saving per

year (per fixture)

1

458

$240

High Eff Standard BF

Fluorescent Highbay

Number of

Fixtures

Watts per

Fixture

(new

system)

Energy

used per

year (new

system)

$154

1

165

$86

$250

$200

$150

$100

$50

$0

Energy Cost Per Year

64% Annual Savings

$240 $86

Existing System New System

Specifications subject to change without notice.

Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443

(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652

www.HowardLightingProducts.com

Specification Sheet

2/22/2015

HFA3 Series

Project:

Photometric Data - 6 Lamp T8 (HFA3E632)

Candela Polar Plot

Highbay Fluorescent

Catalog#:

Approved by:

Luminaire Efficiencies*

Reflector Type T8

Enhanced Specular 88%
Specular 83%
White 83%

*Luminaire efficiency is the ratio of light output emitted by the
luminaire to the light output emitted by its lamps.

Zonal Lumen Summary

Zone Lumens %Lamp %Fix

0-30 4042.0 22.8 25.1

0-40 6461.0 37.1 40.8

0-60 11510.0 65.0 71.5

0-90 15256.0 86.2 94.8

0-180 16099.0 91.0 100.0

HFA3E632
Test Report: HFA3E632AHE.ies
Spacing Criteria (0-180): 1.28
Spacing Criteria (90-270): 1.36
Spacing Criteria (Diagonal): 1.46

Maximum Candela = 5467

Located at Horizontal Angle = 90, Vertical Angle = 10
#1 = Vertical Plane Through Horizontal Angles (90-270) Through Max Cd.
#2 = Vertical Plane Through Horizontal Angles (45-225)
#3 = Horizontal Cone Through Vertical Angle (10) (Through Max. Cd.)

Luminance Data (cd/Sq.m)

Angle In
Degrees

45 9508 7662 7255

55 8894 6911 7111

65 8032 6258 6775

75 7236 5040 5428

Average
0-deg

85 3175 3940 4836

Coefficients of Utilization - Zonal Cavity Method

Effective Floor Cavity Reflectance 0.20

RC 80 70 50 30 10 0

RW 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

0 107 107 107 107 104 104 104 104 98 98 98 93 93 93 88 88 88 86

1 97 92 88 84 94 90 86 82 85 82 79 81 78 76 76 74 73 70

2 88 80 74 68 85 78 72 67 74 69 65 70 66 62 67 63 60 58

3 80 70 62 56 77 68 61 55 65 59 54 62 57 52 72 68 64 62

4 73 62 54 48 71 60 53 47 58 51 46 55 49 45 52 47 44 41

5 67 55 47 41 65 54 46 40 52 45 40 49 43 39 47 42 38 36

6 62 50 42 36 60 49 41 35 46 40 35 44 38 34 43 37 33 31

7 58 45 37 31 56 44 37 31 42 35 31 41 35 30 39 34 29 28

8 54 41 33 28 52 40 33 28 39 32 27 37 31 27 36 30 26 25

9 50 38 30 25 48 37 30 25 36 29 25 34 28 24 33 28 24 22

Average
45-deg

Average
90-deg

Specifications subject to change without notice.

Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443

(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652

www.HowardLightingProducts.com

Specification Sheet

2/22/2015

HFA3 Series

Project:

Photometric Data - 6 Lamp T5 (HFA3E654)

Candela Polar Plot

Highbay Fluorescent

Catalog#:

Approved by:

Luminaire Efficiencies*

Reflector Type T5

Enhanced Specular 92%
Specular 87%
White 87%

*Luminaire efficiency is the ratio of light output emitted by the
luminaire to the light output emitted by its lamps.

Zonal Lumen Summary

Zone Lumens %Lamp %Fix

0-30 6689.19 22.30 24.20

0-40 11289.07 37.60 40.90

0-60 20735.75 69.10 75.10

0-90 27623.12 92.10 100.00

0-180 27623.12 92.10 100.00

HFA3E654
Test Report: HFA3E654.ies
Spacing Criteria (0-180): 1.26
Spacing Criteria (90-270): 1.54
Spacing Criteria (Diagononal): 1.58

Maximum Candela = 8836.93

Located at Horizontal Angle = 90, Vertical Angle = 17.5
#1 = Vertical Plane Through Horizontal Angles (90-270) Through Max Cd.
#2 = Vertical Plane Through Horizontal Angles (45-225)
#3 = Horizontal Cone Through Vertical Angle (17.5) (Through Max. Cd.)

Luminance Data (cd/Sq.m)

Angle In
Degrees

45 13885 16065 16307

55 12833 14735 13235

65 11207 11763 12827

75 9140 10768 11819

Average
0-deg

85 5101 5415 6441

Coefficients of Utilization - Zonal Cavity Method

Effective Floor Cavity Reflectance 0.20

RC 80 70 50 30 10 0

RW 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

0 107 107 107 107 104 104 104 104 98 98 98 93 93 93 88 88 88 86

1 97 92 88 84 94 90 86 82 85 82 79 81 78 76 76 74 73 70

2 88 80 74 68 85 78 72 67 74 69 65 70 66 62 67 63 60 58

3 80 70 62 56 77 68 61 55 65 59 54 62 57 52 59 54 51 49

4 73 62 54 48 71 60 53 47 58 51 46 55 49 45 52 47 44 41

5 67 55 47 41 65 54 46 40 52 45 40 49 43 39 47 42 38 36

6 62 50 42 36 60 49 41 35 46 40 35 44 38 34 43 37 33 31

7 58 45 37 31 56 44 37 31 42 35 31 41 35 30 39 34 29 28

8 54 41 33 28 52 40 33 28 39 32 27 37 31 27 36 30 26 25

9 50 38 30 25 48 37 30 25 36 29 25 34 28 24 33 28 24 22

10 47 35 28 23 45 34 27 23 33 27 22 32 26 22 31 25 22 20

Specifications subject to change without notice.

Average
45-deg

Average
90-deg

Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443

(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652

www.HowardLightingProducts.com
