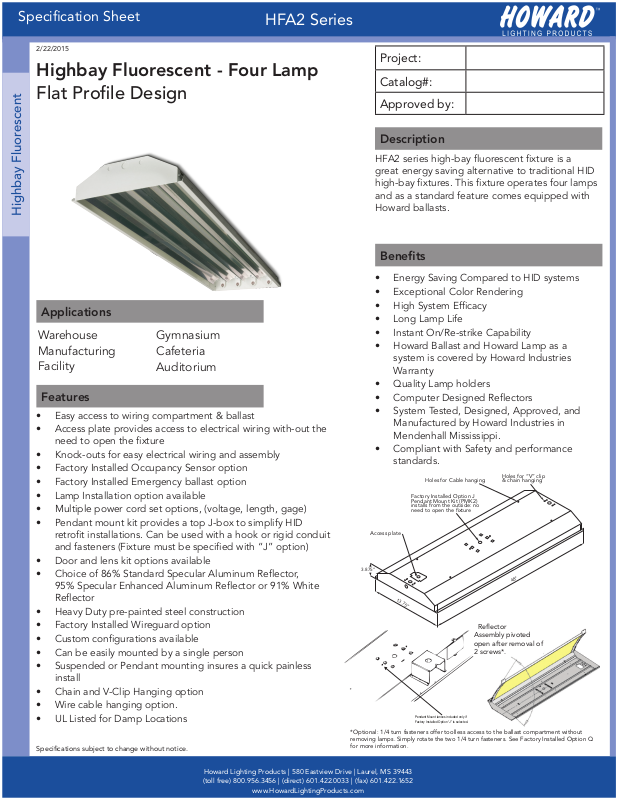

Specification Sheet
Pendant Mount lances included only if
Factory Installed Option “J” is selected.
2/22/2015
HFA2 Series
Highbay Fluorescent - Four Lamp
Flat Profile Design
Highbay Fluorescent
Applications
Warehouse
Manufacturing
Facility
Features
• Easy access to wiring compartment & ballast
• Access plate provides access to electrical wiring with-out the
need to open the fixture
• Knock-outs for easy electrical wiring and assembly
• Factory Installed Occupancy Sensor option
• Factory Installed Emergency ballast option
• Lamp Installation option available
• Multiple power cord set options, (voltage, length, gage)
• Pendant mount kit provides a top J-box to simplify HID
retrofit installations. Can be used with a hook or rigid conduit
and fasteners (Fixture must be specified with “J” option)
• Door and lens kit options available
• Choice of 86% Standard Specular Aluminum Reflector,
95% Specular Enhanced Aluminum Reflector or 91% White
Reflector
• Heavy Duty pre-painted steel construction
• Factory Installed Wireguard option
• Custom configurations available
• Can be easily mounted by a single person
• Suspended or Pendant mounting insures a quick painless
install
• Chain and V-Clip Hanging option
• Wire cable hanging option.
• UL Listed for Damp Locations
Specifications subject to change without notice.
Gymnasium
Cafeteria
Auditorium
Project:
Catalog#:
Approved by:
Description
HFA2 series high-bay fluorescent fixture is a
great energy saving alternative to traditional HID
high-bay fixtures. This fixture operates four lamps
and as a standard feature comes equipped with
Howard ballasts.
Benefits
• Energy Saving Compared to HID systems
• Exceptional Color Rendering
• High System Efficacy
• Long Lamp Life
• Instant On/Re-strike Capability
• Howard Ballast and Howard Lamp as a
system is covered by Howard Industries
Warranty
• Quality Lamp holders
• Computer Designed Reflectors
• System Tested, Designed, Approved, and
Manufactured by Howard Industries in
Mendenhall Mississippi.
• Compliant with Safety and performance
standards.
Holes for Cable hanging
Factory Installed Option J
Pendant Mount Kit (PMK2)
installs from the outside: no
need to open the fixture
Access plate
3.875”
13.75”
*Optional: 1/4 turn fasteners offer toolless access to the ballast compartment without
removing lamps. Simply rotate the two 1/4 turn fasteners. See Factory Installed Option Q
for more information.
Holes for “V” clip
& chain hanging
48”
Reflector
Assembly pivoted
open after removal of
2 screws*.
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
Specification Sheet
HFA2 Series
Highbay Fluorescent - Four Lamp
Flat Profile Design
Project:
Catalog#:
Approved by:
Ordering Information
Model
Family
Reflector
No. of
Lamps
Lamp Type/
Wattage
(1)
CRI/CCT Ballast Input Volts Factory Installed
Options
Cordset Options
(consult customer service for
other cordset options)
Highbay Fluorescent
HFA2 E 4 54 A PS MV 0AC 07 0 I
HFA2 E: Enhanced
Specular Aluminum
(95%)
F: Enhanced
Specular Enhanced
Performance (95%)
A: Specular
Aluminum (86%)
W: White reflective
(91%)
4 T8 Lamps
28: F28T8
32: F32T8
T5 Lamps
28:F28T5
54: F54T5HO
CRI CCT
A: No Lamps
B:
75
3000
C:
75
E:
F:
K:
J:
L:
3500
75
4100
75
5000
85
3000
85
3500
85
4100
I:
85
5000
85
6500
85
3000
85
3500
85
4100
85
5000
D:
G:
H:
M:
N:
High
Lumen
Yes
Yes
Yes
Yes
T8 T5
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
SE: SBF High Eff
HE: HBF High Eff
LE: LBF High Eff
PS: PRS T5
P8: PRS T8
(2)
MV: 120-277v
(2)
HV: 347-480v
(2)
(T5HO)
AX: 480-277
(2)
000: No FIOs
A: Occ Sensor
B: Emergency Ballast
(3)
C: Door W/Lens &
Safety Cable
D: Door W/Lens
G: Wireguard
I: Special Wiring
Instructions
J: J-box config.
T: Toggle switch bilevel lighting control
Q: Quarter Turn
Fasteners
(4)
(6)
(9)
00: Standard Disconnect
01: 6’ SJT 18/3, no plug
(5)
02: 10’ SJT 18/3, no plug
03: 6’ SJT 18/3 L5-15, twist lock 120v
04: 10’ SJT 18/3 L5-15twist lock 120v
(6)
05: 6’ SJT 18/3 5-15non twist lock 120v
06: 10’ SJT 18/3 5-15non twist lock 120v
07: 6’ SJT 18/3 L7-15 twist lock 277v
08: 10’ SJT 18/3 L7-15 twist lock 277v
(7)
09: 6’ SJT 7-15 non twist lock 277v
10: 10’ SJT 7-15 non twist lock 277v
(8)
11: 16/3, no plug specify length
12: 16/4, no plug specify length
16: 16’ SJT 18/3 7-15, non twist lock 277v
17: 18/3, no plug specify length
18: 6’ STW L8-20, twist lock 480v
19: 10’ STW L8-20, twist lock 480v
20: 16’ SJT 18/3 L5-15, twist lock 120v
21: 16’ SJT 18/3 L5-15, twist lock 277v
T
B
A
Pack.
I: Single
B: Bulk
(1) Lamp installation available.
(2) High Efficiency ballasts are CEE Listed.
(3) Step-down autotransformer. Allows hook-up of standard MV ballast to 480v.
(4) Occupancy Sensors should be used with programmed rapid start ballasts for maximum lamp life.
Standard Occupancy Sensor requires neutral wired fixtures (ex. -120v or -277v).
For phase-to-phase voltage applications (240v) advise Customer Service at time of request.
(5) Please specify Emergency Ballast (120-277v only) lumen requirements at time of request.
(6) Standard acrylic prismatic, pattern 12, 0.100” thick. Call for options.
(7) Unless otherwise specified, fixture will include field installed J-box. Supply wires will exit the center of the fixture, not the
access plate. J-box can be installed without entering the fixture.
(8) Allows for separate control of two ballasts through simple “toggling” of a standard wall switch.
Recommend use of programmed rapid start ballast with this control.
(9) 1/4 Turn Fasteners for toolless access to ballast compartment. Does not require lamp removal.
SE Standard Ballast Factor High Efficiency Instant Start T8 Ballast
HE High Ballast Factor High Efficiency Instant Start T8 Ballast
LE Low Ballast Factor High Efficiency Instant Start T8 Ballast
PS Program Rapid Start T5 Ballast
P8 Program Rapid Start High Efficiency T8 Ballast
Specifications subject to change without notice.
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
Sample Ordering Number:
HFA2 E 4 54 A PS MV 0AC 07 I
HFA2 Series Highbay Fluorescent
Enhanced Specular Aluminum Reflector
4-lamps (none installed)
F54T5HO Program Rapid Start Ballast
Multi-volt (120-277v)
Factory Installed Occupancy Sensor
Factory Installed Door with Lens & Safety Cable
6’ SJT 18/3 L7-15 twist lock 277v Cordset
Single Packaging
RAPID SHIP MODELS
AVAILABLE FOR NEXT DAY SHIPMENT
•HFA2A454APSMV000000I
•HFA2E432AHEMV000000I
•HFA2E454APSMV000000I
Specification Sheet
2/22/2015
HFA2 Series
Project:
Field Installed Options Ordering
Highbay Fluorescent
HFA2-WG
Wire Guard
HF-2CV (2 foot)
HF-3CV (3 foot)
Hanging Chain & V-clips
HFA-WCH
Wire Cable Hanging Kit
(2 pcs per kit)
HF-SK1
Stabilizer Kit
(Hub, color and wire cable)
Catalog#:
Approved by:
HF-PMK2
Pendant Mount Kit
with 1.0” diameter through hole
Energy Cost Estimator
Existing System New System
400W MH Highbay
Hours
burned
per year
Cost per
kWh$
4368
0.12
Energy Cost
Estimation
Specifications subject to change without notice.
Number
of Fixtures
Watts per
Fixture
(existing
system)
Energy
used
per year
(existing
system)
Energy saving per
year (per fixture)
HFA2E454APS
Program Start T5 Ballast
Fluorescent Highbay
$250
Number of
1
458
$240
Fixtures
Watts per
Fixture
(new
system)
Energy
used per
year (new
system)
1
234
$123
$200
$150
$100
$50
$0
$117.00
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
49% Annual Savings
$240 $123
Existing System New System
Specification Sheet
2/22/2015
HFA2 Series
Project:
Photometric Data - 4 Lamp T8 (HFA2E432)
Candela Polar Plot
Highbay Fluorescent
Catalog#:
Approved by:
Luminaire Efficiencies*
Reflector Type T8
Enhanced Specular 91%
Specular 86%
White 86%
*Luminaire efficiency is the ratio of light output emitted by the
luminaire to the light output emitted by its lamps.
Zonal Lumen Summary
Zone Lumens %Lamp %Fix
0-30 3025.59 26.10 28.80
0-40 4723.33 40.70 44.90
0-60 7839.79 67.60 74.60
0-90 10510.33 90.60 100.00
0-180 10510.33 90.60 100.00
HFA2E432
Test Report: HFA2E432.ies
Spacing Criteria (0-180): 1.26
Spacing Criteria (90-270): 0.92
Spacing Criteria (Diagnonal): 1.16
Maximum Candela = 4358.13
Located at Horizontal Angle = 0, Vertical Angle = 5
#1 = Vertical Plane Through Horizontal Angles (0-180) Through Max Cd.
#2 = Vertical Plane Through Horizontal Angles (45-225)
#3 = Horizontal Cone Through Vertical Angle (0) (Through Max. Cd.)
Luminance Data (cd/Sq.m)
Angle In
Degrees
45 10207 6623 5976
55 9802 5726 5941
65 8605 5849 7791
75 7250 7410 7863
Average
0-deg
85 5523 4788 4835
Coefficients of Utilization - Zonal Cavity Method
Effective Floor Cavity Reflectance 0.20
RC 80 70 50 30 10 0
RW 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
0 108 108 108 108 105 105 105 105 101 101 101 96 96 96 92 92 92 91
1 98 93 89 85 95 91 87 83 87 84 81 83 81 78 80 78 76 74
2 88 81 74 69 86 79 73 68 76 71 66 73 68 65 70 66 63 61
3 81 71 63 57 78 69 62 56 67 60 55 64 59 54 62 57 53 51
4 74 63 55 48 72 62 54 48 59 53 47 57 51 47 55 50 46 44
5 68 56 48 42 66 55 47 42 53 46 41 51 45 41 50 45 40 38
6 63 51 43 37 61 50 42 37 48 41 36 47 41 36 45 40 36 34
7 59 46 38 33 57 46 38 33 44 37 32 43 37 32 42 36 32 30
8 55 42 35 29 53 42 34 29 41 34 29 39 33 29 38 33 29 27
9 51 39 32 27 50 39 31 26 37 31 26 36 30 26 36 30 26 24
10 48 36 29 24 47 36 29 24 35 28 24 34 28 24 33 28 24 22
Specifications subject to change without notice.
Average
45-deg
Average
90-deg
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
Specification Sheet
2/22/2015
HFA2 Series
Project:
Photometric Data - 4 Lamp T5 (HFA2E454)
Candela Polar Plot
Highbay Fluorescent
Catalog#:
Approved by:
Luminaire Efficiencies*
Reflector Type T5
Enhanced Specular 94%
Specular 89%
White 89%
*Luminaire efficiency is the ratio of light output emitted by the
luminaire to the light output emitted by its lamps.
Zonal Lumen Summary
Zone Lumens %Lamp %Fix
0-30 5570.54 27.90 29.60
0-40 8871.01 44.40 47.10
0-60 14660.99 73.30 77.80
0-90 18842.01 94.20 100.00
0-180 18842.01 94.20 100.00
HFA2E454
Test Report: HFA2E454.ies
Spacing Criteria (0-180): 1.32
Spacing Criteria (90-270): 1.20
Spacing Criteria (Diagnonal): 1.32
Maximum Candela = 7245.18
Located at Horizontal Angle = 67.5, Vertical Angle = 5
#1 = Vertical Plane Through Horizontal Angles (67.5-247.5) Through Max Cd.
#2 = Vertical Plane Through Horizontal Angles (45-225)
#3 = Horizontal Cone Through Vertical Angle (5) (Through Max. Cd.)
Luminance Data (cd/Sq.m)
Angle In
Degrees
45 17691 13785 11702
55 16775 11103 10989
65 15299 10000 11227
75 13001 10801 13185
Average
0-deg
85 8582 8610 7941
Coefficients of Utilization - Zonal Cavity Method
Effective Floor Cavity Reflectance 0.20
RC 80 70 50 30 10 0
RW 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
0 112 112 112 112 110 110 110 110 105 105 105 100 100 100 96 96 96 94
1 102 97 93 89 99 95 91 88 91 88 85 87 85 82 84 82 80 78
2 93 85 78 73 90 83 77 72 80 75 70 77 72 69 74 70 67 65
3 85 75 67 61 82 73 66 60 70 64 59 68 63 58 65 61 57 55
4 78 66 58 52 76 65 57 51 63 56 51 61 55 50 59 54 49 47
5 72 60 51 45 70 59 51 45 57 50 44 55 49 44 53 48 43 41
6 66 54 45 39 65 53 45 39 51 44 39 50 43 39 48 43 38 36
7 62 49 41 35 60 48 40 35 47 40 35 45 39 34 44 38 34 32
8 58 45 37 31 56 44 37 31 43 36 31 42 35 31 41 35 31 29
9 54 41 34 28 52 41 33 28 40 33 28 39 32 28 38 32 28 26
10 51 38 31 26 49 38 31 26 37 30 26 36 30 26 35 29 25 24
Specifications subject to change without notice.
Average
45-deg
Average
90-deg
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
Specification Sheet
2/22/2015
HFA2 Series
Project:
Photometric Data - 4 Lamp T5 (HFA2F454)
Candela Polar Plot
8403
6303
4202
Highbay Fluorescent
2101
2
1
Catalog#:
Approved by:
Luminaire Efficiencies*
Reflector Type T5
Enhanced Performance 93%
*Luminaire efficiency is the ratio of light output emitted by the
luminaire to the light output emitted by its lamps.
3
Zonal Lumen Summary
Zone Lumens %Lamp %Fix
0-30 6325.09 31.60 33.90
0-40 9953.39 49.80 53.40
0-60 15898.08 79.50 85.20
0-90 18652.73 93.30 100.00
0-180 18652.73 93.30 100.00
HFA2F454
Test Report: HFA2F454.ies
Spacing Criteria (0-180): 1.30
Spacing Criteria (90-270): 1.14
Spacing Criteria (Diagnonal): 1.28
Maximum Candela = 8403.49
Located at Horizontal Angle = 67.5, Vertical Angle = 10
#1 = Vertical Plane Through Horizontal Angles (67.5-247.5) Through Max Cd.
#2 = Vertical Plane Through Horizontal Angles (45-225)
#3 = Horizontal Cone Through Vertical Angle (10) (Through Max. Cd.)
Luminance Data (cd/Sq.m)
Angle In
Degrees
45 16404 10848 8899
55 15423 7846 5666
65 13121 4989 4773
75 9476 3241 2351
Average
0-deg
85 3207 662 697
Coefficients of Utilization - Zonal Cavity Method
Effective Floor Cavity Reflectance 0.20
RC 80 70 50 30 10 0
RW 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
0 111 111 111 111 108 108 108 108 104 104 104 99 99 99 95 95 95 93
1 103 99 95 92 100 97 93 90 93 90 88 89 87 85 86 84 82 80
2 94 87 81 77 92 85 80 76 82 78 74 79 76 72 76 73 71 69
3 87 78 71 65 84 76 70 64 73 68 63 71 66 62 69 65 61 59
4 80 69 62 56 78 68 61 56 66 60 55 64 58 54 62 57 53 51
5 74 62 55 49 72 61 54 49 60 53 48 58 52 48 56 51 47 45
6 68 57 49 43 67 56 48 43 54 48 43 53 47 42 51 46 42 40
7 64 52 44 38 62 51 44 38 50 43 38 48 42 38 47 42 38 36
8 59 47 40 35 58 47 40 35 46 39 34 44 38 34 43 38 34 32
9 56 44 36 31 54 43 36 31 42 36 31 41 35 31 40 35 31 29
10 52 40 33 29 51 40 33 29 39 33 28 38 32 28 37 32 28 27
Specifications subject to change without notice.
Average
45-deg
Average
90-deg
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
Loading...
