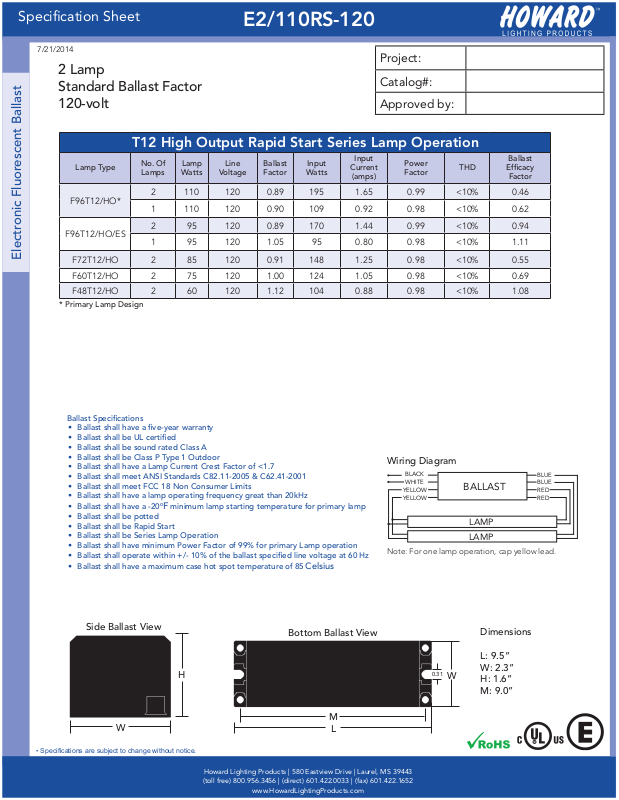

Howard Industries Compact Fluorescent Electronic Ballast Specifications
Specification Sheet
7/21/2014
2 Lamp
Standard Ballast Factor
120-volt
Lamp Type
F96T12/HO*
F96T12/HO/ES
Electronic Fluorescent Ballast
F72T12/HO 2 85 120 0.91 148 1.25 0.98 <10% 0.55
F60T12/HO 2 75 120 1.00 124 1.05 0.98 <10% 0.69
F48T12/HO 2 60 120 1.12 104 0.88 0.98 <10% 1.08
* Primary Lamp Design
E2/110RS-120
Project:
Catalog#:
Approved by:
T12 High Output Rapid Start Series Lamp Operation
No. Of
Lamps
Lamp
Watts
Line
Voltage
Ballast
Factor
Input
Watts
2 110 120 0.89 195 1.65 0.99 <10% 0.46
1 110 120 0.90 109 0.92 0.98 <10% 0.62
2 95 120 0.89 170 1.44 0.99 <10% 0.94
1 95 120 1.05 95 0.80 0.98 <10% 1.11
Input
Current
(amps)
Power
Factor
THD
Ballast
Efficacy
Factor
Ballast Specifications
• Ballast shall have a five-year warranty
• Ballast shall be UL certified
• Ballast shall be sound rated Class A
• Ballast shall be Class P Type 1 Outdoor
• Ballast shall have a Lamp Current Crest Factor of <1.7
• Ballast shall meet ANSI Standards C82.11-2005 & C62.41-2001
• Ballast shall meet FCC 18 Non Consumer Limits
• Ballast shall have a lamp operating frequency great than 20kHz
• Ballast shall have a -20
• Ballast shall be potted
• Ballast shall be Rapid Start
• Ballast shall be Series Lamp Operation
• Ballast shall have minimum Power Factor of 99% for primary Lamp operation
• Ballast shall operate within +/- 10% of the ballast specified line voltage at 60 Hz
• Ballast shall have a maximum case hot spot temperature of 85
Side Ballast View
o
F minimum lamp starting temperature for primary lamp
Celsius
Bottom Ballast View
H
Wiring Diagram
BLACK
WHITE
YELLOW
YELLOW
BALLAST
LAMP
LAMP
Note: For one lamp operation, cap yellow lead.
BLUE
BLUE
RED
RED
Dimensions
L: 9.5”
0.31
W
W: 2.3”
H: 1.6”
M: 9.0”
W
• Specications are subject to change without notice.
M
L
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
