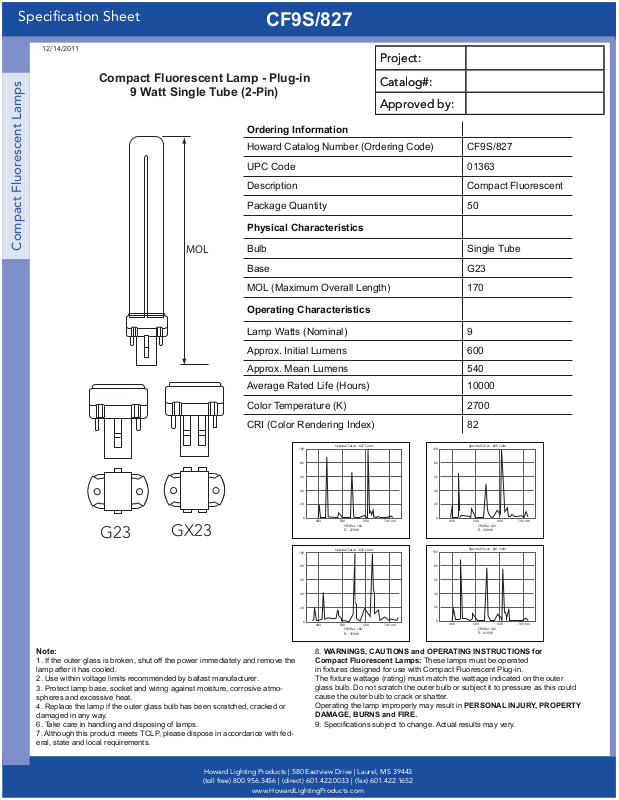

Howard Industries CF9S/827 Specifications

Specification Sheet
Compact Fluorescent Lamps
Compact Fluorescent Lamps
Specification Sheet
12/14/2011
CF9S/827
Project:
Project:
Compact Fluorescent Lamp - Plug-in
9 Watt Single Tube (2-Pin)
Ordering Information
Howard Catalog Number (Ordering Code) CF9S/827
UPC Code 01363
Description Compact Fluorescent
Package Quantity 50
Physical Characteristics
MOL
Bulb Single Tube
Base G23
MOL (Maximum Overall Length) 170
Operating Characteristics
Lamp Watts (Nominal) 9
Approx. Initial Lumens 600
Approx. Mean Lumens 540
Catalog#:
Catalog#:
Approved by:
Approved by:
Average Rated Life (Hours) 10000
Color Temperature (K) 2700
CRI (Color Rendering Index) 82
G23
Note:
2. Use within voltage limits recommended by ballast manufacturer.
3. Protect lamp base, socket and wiring against moisture, corrosive atmo­spheres and excessive heat.
4. Replace the lamp if the outer glass bulb has been scratched, cracked or damaged in any way.
6. Take care in handling and disposing of lamps.
7. Although this product meets TCLP, please dispose in accordance with fed­eral, state and local requirements.
GX23
100
80
60
40
20
0
100
80
60
40
20
0
Spectral Curve - 827 Color
400 500 600 700 nm
CRI (Ra) = 82 Tc - 2700K
Spectral Curve - 835 Color
400 500 600 700 nm
CRI (Ra) = 82 Tc - 3500K
100
80
60
40
20
0
100
80
60
40
20
0
Spectral Curve - 830 Color
400 500 600 700 nm
CRI (Ra) = 82 Tc - 3000K
Spectral Curve - 841 Color
400 500 600 700 nm
CRI (Ra) = 82 Tc - 4100K
8. WARNINGS, CAUTIONS and OPERATING INSTRUCTIONS for Compact Fluorescent Lamps: These lamps must be operated
in xtures designed for use with Compact Fluorescent Plug-in. The xture wattage (rating) must match the wattage indicated on the outer
glass bulb. Do not scratch the outer bulb or subject it to pressure as this could cause the outer bulb to crack or shatter. Operating the lamp improperly may result in PERSONAL INJURY, PROPERTY
DAMAGE, BURNS and FIRE.
9. Specications subject to change. Actual results may very.
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
