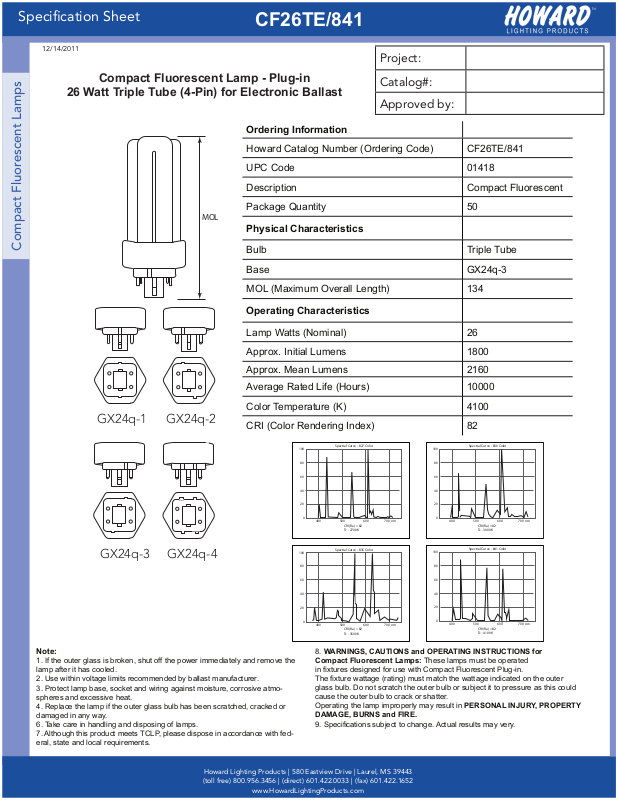

Howard Industries CF26TE/841 Specifications
Specification Sheet
Compact Fluorescent Lamps
12/14/2011
CF26TE/841
Project:
Compact Fluorescent Lamp - Plug-in
26 Watt Triple Tube (4-Pin) for Electronic Ballast
Ordering Information
Howard Catalog Number (Ordering Code) CF26TE/841
UPC Code 01418
Description Compact Fluorescent
Package Quantity 50
MOL
Physical Characteristics
Bulb Triple Tube
Base GX24q-3
MOL (Maximum Overall Length) 134
Operating Characteristics
Lamp Watts (Nominal) 26
Approx. Initial Lumens 1800
Approx. Mean Lumens 2160
Catalog#:
Approved by:
Average Rated Life (Hours) 10000
Color Temperature (K) 4100
GX24q-1
GX24q-3
Note:
1. If the outer glass is broken, shut off the power immediately and remove the
lamp after it has cooled.
2. Use within voltage limits recommended by ballast manufacturer.
3. Protect lamp base, socket and wiring against moisture, corrosive atmospheres and excessive heat.
4. Replace the lamp if the outer glass bulb has been scratched, cracked or
damaged in any way.
6. Take care in handling and disposing of lamps.
7. Although this product meets TCLP, please dispose in accordance with federal, state and local requirements.
GX24q-2
GX24q-4
CRI (Color Rendering Index) 82
100
80
60
40
20
0
100
80
60
40
20
0
Spectral Curve - 827 Color
400 500 600 700 nm
CRI (Ra) = 82
Tc - 2700K
Spectral Curve - 835 Color
400 500 600 700 nm
CRI (Ra) = 82
Tc - 3500K
100
80
60
40
20
0
100
80
60
40
20
0
Spectral Curve - 830 Color
400 500 600 700 nm
CRI (Ra) = 82
Tc - 3000K
Spectral Curve - 841 Color
400 500 600 700 nm
CRI (Ra) = 82
Tc - 4100K
8. WARNINGS, CAUTIONS and OPERATING INSTRUCTIONS for
Compact Fluorescent Lamps: These lamps must be operated
in xtures designed for use with Compact Fluorescent Plug-in.
The xture wattage (rating) must match the wattage indicated on the outer
glass bulb. Do not scratch the outer bulb or subject it to pressure as this could
cause the outer bulb to crack or shatter.
Operating the lamp improperly may result in PERSONAL INJURY, PROPERTY
DAMAGE, BURNS and FIRE.
9. Specications subject to change. Actual results may very.
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
