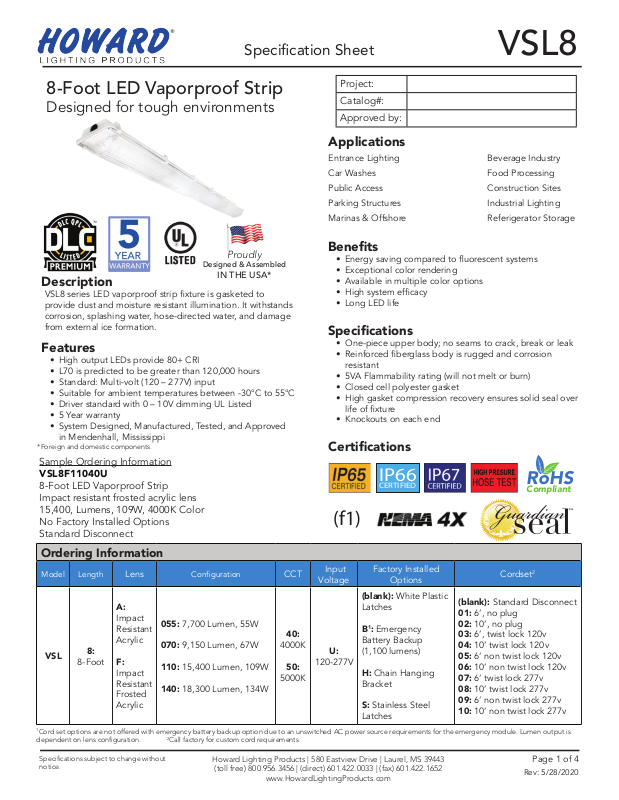

Specification Sheet
VSL8
8-Foot LED Vaporproof Strip
Designed for tough environments
Proudly
Designed & Assembled
IN THE USA*
Description
VSL8 series LED vaporproof strip fixture is gasketed to
provide dust and moisture resistant illumination. It withstands
corrosion, splashing water, hose-directed water, and damage
from external ice formation.
Features
• High output LEDs provide 80+ CRI
• L70 is predicted to be greater than 120,000 hours
• Standard: Multi-volt (120 – 277V) input
• Suitable for ambient temperatures between -30°C to 55°C
• Driver standard with 0 – 10V dimming UL Listed
• 5 Year warranty
• System Designed, Manufactured, Tested, and Approved
in Mendenhall, Mississippi
*Foreign and domestic components.
Sample Ordering Information
VSL8F11040U
8-Foot LED Vaporproof Strip
Impact resistant frosted acrylic lens
15,400, Lumens, 109W, 4000K Color
No Factory Installed Options
Standard Disconnect
Project:
Catalog#:
Approved by:
Applications
Entrance Lighting Beverage Industry
Car Washes Food Processing
Public Access Construction Sites
Parking Structures Industrial Lighting
Marinas & Offshore Referigerator Storage
Benefits
• Energy saving compared to fluorescent systems
• Exceptional color rendering
• Available in multiple color options
• High system efficacy
• Long LED life
Specifications
• One-piece upper body; no seams to crack, break or leak
• Reinforced fiberglass body is rugged and corrosion
resistant
• 5VA Flammability rating (will not melt or burn)
• Closed cell polyester gasket
• High gasket compression recovery ensures solid seal over
life of fixture
• Knockouts on each end
Certifications
IP66
CERTIFIED
RoHS
Compliant
(f1)
Ordering Information
Model Length
VSL
1
Cord set options are not offered with emergency battery backup option due to an unswitched AC power source requirements for the emergency module. Lumen output is
dependent on lens configuration. 2Call factory for custom cord requirements
Specifications subject to change without
notice.
8:
8-Foot
Lens
A:
Impact
Resistant
Acrylic
F:
Impact
Resistant
Frosted
Acrylic
055: 7,700 Lumen, 55W
070: 9,150 Lumen, 67W
110: 15,400 Lumen, 109W
140: 18,300 Lumen, 134W
Configuration
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
CCT
40:
4000K
50:
5000K
www.HowardLightingProducts.com
Input
Voltage
U:
120-277V
Factory Installed
Options
(blank): White Plastic
Latches
B1: Emergency
Battery Backup
(1,100 lumens)
H: Chain Hanging
Bracket
S: Stainless Steel
Latches
Cordset
(blank): Standard Disconnect
01: 6’, no plug
02: 10’, no plug
03: 6’, twist lock 120v
04: 10’ twist lock 120v
05: 6’ non twist lock 120v
06: 10’ non twist lock 120v
07: 6’ twist lock 277v
08: 10’ twist lock 277v
09: 6’ non twist lock 277v
10: 10’ non twist lock 277v
2
Page 1 of 4
Rev: 5/28/2020
Specification Sheet
VSL8
Dimensions
4.13”
H1
L – Length (in.) 100”
W1 – Min Width (in.) 6.77”
W2 – Max Width (in.) 7.5”
H1 – Fixture Height (in.) 4.13”
H2 – Lens Height (in.) 2.23”
Installation
• Shipped fully wired
W1
6.77”
7.33”
W2
H2
2.23”
51.6”
L
Replacement Accessories
Category Model Name Description
VSA8-ACR-LENS Replacement acrylic lens part for VSL8 series fixtures.
Lens
• Easy access to wiring compartment and driver via removable gear
tray
• Gear tray tethered to housing by two lanyards for extra safety
• Knockouts on each end
• Spring-mount, stainless bracket allows for surface or chain mount
• Brackets Install first, then snap securely on fixture
• NEC compliant luminaire power dissconnect standard
Latch
Mounting
Bracket
VSL8-FRAC-LENS Replacement frosted acrylic lens part for VSL8 series fixtures.
VSA8-PC-L&P Polycarbonate Latch & Endplug kit (14 latches and 2 end plugs)
VSA8-SS-L&P Stainless Steel Latch & Endplug kit (14 latches and 2 end plugs)
VSAX-MB-2L-2 VSL Series stainless steel mounting bracket set
(2 brackets per set)
VSAX-MB-2L-2-45 VSL Series wall mounting bracket set, stainless steel, 45°
(2 bracket per set)
Hanging
Cable
Specifications subject to change without
notice.
VS-CB VSL stainless steel chain hanging bail (Qty 2)
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
Page 2 of 4
Rev: 5/28/2020
Hardware - Latches
White Plastic Stainless Steel
Specification Sheet
- withstands corrosive environments
VSL8
White Plastic Latch locks open during
maintenance
Keeper
Captive Keeper secures latch to housing
preventing accidental loss of latch
Latch Features:
Latches can be made Tamper Resistant with the addition of locking screws*
- White Plastic #4-32 x 1/2” Screws, 3/4” max. length
- Stainless Steel #6-32 x 3/8” Screws, 3/4” max. length
*Screws not included in fixture
Stainless Steel Mounting Brackets
(Model# VSAX-MB-2L-2)
Come standard with every fixture
VSL8 Performance Details
Model Lens Configuration
055
CCT Lumen Output
4000K 7296 54.57 133.7
5000K 7424 54.51 136.2
Input Power
(W)
Efficacy (Lm/W) DLC
A
VSL8
F
Specifications subject to change without
notice.
070
110
140
055
070
110
140
4000K 8662 66.82 129.6
5000K 8824 66.82 132.1
4000K 14592 109.14 133.7
5000K 14848 109.02 136.2
4000K 17325 133.64 129.6
5000K 17648 133.64 132.1
4000K 7713 54.57 141.3
5000K 7848 54.51 144.0
4000K 9157 66.82 137.0
5000K 9328 66.82 139.6
4000K 15426 109.14 141.3
5000K 15696 109.02 144.0
4000K 18315 133.64 137.0
5000K 18656 133.64 139.6
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
Premium
Page 3 of 4
Rev: 5/28/2020
Certifications for VSL8
Specification Sheet
VSL8
IP65
IP66
IP 67
(f1)
Low pressure water jets from 2.5 to 3 metres in all directions.
6.3mm dia. nozzle from 2.5 to 3 metresdistance,12.5 l/min. for 3 min.
Strong jets of water from all directions during and immediately after de-energizing the unit.
12.5mm dia. nozzle from 2.5 to 3 metres distance,100 l/min. for 3 min.
Protected against the effects of temporary immersion.
Immersed in tank with water 0.15 m above top and 1 m above bottom. For 30 min.
This indicates that the material has met both UV and water exposure or immersion
requirements as called out in UL746C.
The material is suitable for outdoor use, where parts are subject to frequent or extended periods
of exposure to sun light, exposure to water, and immersion in accordance with UL 746C.
Guardian Seal™ is a unique combination of our Injection
Molded lenses and high performance “poured in place”
gasket. This provides the most advanced sealing system
available.
Specifications subject to change without
notice.
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033 | (fax) 601.422.1652
www.HowardLightingProducts.com
Page 4 of 4
Rev: 5/28/2020
