Page 1
Lateral Turning Device
User Manual
TABLE OF CONTENTS
Intended Use and Precautions ........................................2
Part Identification - Q2Roller ...........................................2
Part Identification - Air Supply ........................................2
Air Supply Keypad Functions ..........................................3
Instructions for Use ........................................................3
Product Specifications/Required Accessories ..................3
Cleaning & Maintenance ...............................................4
Warranty Statement........................................................4
Returns and Repairs ........................................................4
Page 2
User Manual
Intended Use and Precautions
INDICATIONS FOR USE
The purpose of the Q2Roller is to laterally turn and position a patient, who
is lying in the supine position, without manual lifting.
CONTRAINDICATIONS
Patients who are experiencing thoracic, cervical or lumbar fractures that are
deemed unstable
INTENDED CARE SETTINGS
Hospitals, long-term or extended care facilities
PRECAUTIONS
• Ensure the Q2Roller meets the patient’s needs before using.
• Always use a minimum of two caregivers when operating the Q2Roller.
• Ensure valves are not in contact with the patient while on the Q2Roller.
• Product should only be used by trained personnel.
• Only use attachments and/or accessories that are authorized by
HoverTech International.
Part Identification - Q2Roller
Inflation Valve (2)
Center Line Indicator
• Use the Q2Roller according to instructions.
• Only for use with the HT-Air air supply adjustable button.
• Make sure patient is centered on the Q2Roller before inflating.
Reference Center Line Indicator on the Q2Roller.
• Caregivers must ensure patient is attended and stabilized during
Q2Roller inflation, deflation or when inflated at angles greater than
30 degrees.
• Do not launder.
PRECAUTIONS – HOVERTECH INTERNATIONAL
AIR SUPPLY
• Route the power cord in a manner to ensure freedom from hazard.
• Avoid blocking the air intakes of the air supply.
• Use this product only for its intended purpose as described in this
manual.
• CAUTION: Avoid electric shock. Do not open air supply.
Part Identification - Air Supply
Red Deflation Valve (2)
Securing Apron
Turning Chambers
Carrying Handle/
Power
Cord
Strap
Hose Release Button
Control Panel Label
Power
Cord
WARNING: The HT-Air is not compatible with DC power supplies.
The HT-Air is not intended for use with the HoverJack Battery Cart.
Attachment Hook
Hose
Nozzle
Hose
Air Filter
Cover
2 | HoverTech International Q2RollerManual Rev. C
Page 3
User Manual

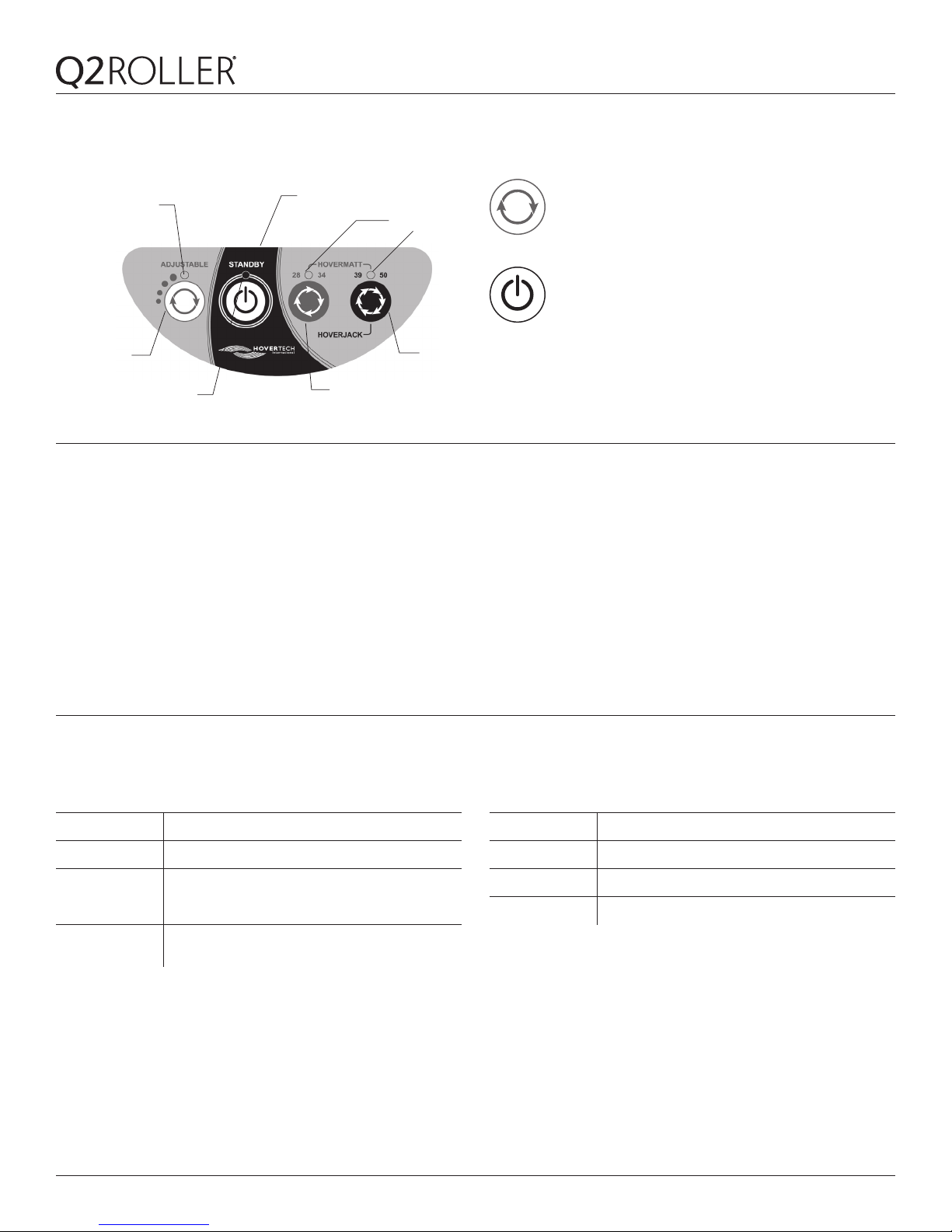

Air Supply Keypad Functions
(Green Flashing LED)
Indication
Adjustable/
Pressure
Setting
Standby (Amber LED)
Power IndicationAdjustable Speed
Green LEDs
Transfer
Speed
Low
Instructions for Use
1. Ensure the red valves are capped tightly before beginning inflation.
2. Place the Q
Line Indictor.
3. Tuck the securing apron of the Q
keep it in place during use.
4. Remove the backing from the adhesive strips on the Q
center it on top of the Q2Roller (if the patient is already on the
mattress, place the device and pad under the patient using a
log-rolling technique).
5. With the patient centered on the device, ensure all bed/stretcher
rails are up.
2Roller on the bed mattress, and center using the Center
2Roller under the bed mattress to
2R Pad, and
Transfer
Speed
High
The ADJUSTABLE keypad function has four dierent settings.
Each press of the button increases the air pressure and rate
of inflation. The Green Flashing LED will indicate the inflation
speed by the number of flashes (i.e. two flashes equals the
second inflation speed).
STANDBY: Used to stop inflation/air flow (Amber LED indicates
STANDBY mode).
6. Locate the inflation valve on the OPPOSITE side of the turn direction,
and place the air supply hose over the valve. Press the ADJUSTABLE
button on the HT-Air keypad to initiate air flow. If necessary, press this
button up to 3 more times to increase air flow and rate of inflation.
7. When the turn is complete, remove the hose from the valve and press
the STANDBY button on the air supply keypad to stop air flow. Chamber may not need to be fully inflated to achieve desired position.
8. To quickly deflate the Q
valve. To slowly deflate or adjust the pillow, depress the center of the
black inflation valve.
2Roller, remove the red cap from the deflation
Product Specifications/Required Accessories
Q2ROLLER® LATERAL TURNING DEVICE
Material: Non-Woven Polypropylene
Construction: Heat-Sealed
Width:
Length:
Model #: HTR-200
Patient Weight Limit: 600 lbs. (272 kg)
Single-Patient Use
Q2RollerManual Rev. C www.HoverMatt.com | 3
Chambers: 44" (112 cm)
(combined chamber width)
Apron: 72" (183cm)
Chambers: 44" (112 cm)
Apron: 44" (112 cm)
Q2R® PAD
Material: Non-Woven, Breathable PE, Wooden Paper
Construction: Thermal Bonding
Width: 39” (99 cm)
Length: 39” (99 cm)
Model #: HTR-CHX-5PACK (5 ea.)
Model #: HTR-CHX-CASE (50 ea.)
REQUIRED ACCESSORY:
Model #: HTAIR1200 (North American Version) – 120V~, 60 Hz, 10A
Model #: HTAIR2300 (European Version) – 230V~, 50 Hz, 6A
Model #: HTAIR1000 (Japanese Version) – 100V~, 50/60 Hz, 12.5A
Model #: HTAIR2356 (Korean Version) – 230V~, 50/60 Hz, 6A
All HoverTech International products are latex free.
Page 4
User Manual
Cleaning & Maintenance
CLEANING
The Q2Roller is a single-patient use device. If the device becomes soiled,
completely wipe it down using a germicidal cleaner (phenolic disinfectant,
quaternary solution or other intermediate level disinfectant according to
facility procedure) to disinfect. For best results, follow the cleaner manufacturer’s recommended dwell time and instructions for use. Apply germicidal
cleaner directly into hard-to-reach areas. Let air dry. Do not launder.
INFECTION CONTROL
The Q2R Pad is recommended to cover the Q2Roller to keep the device from
getting soiled (also available for separate purchase). Other materials, such as
pads or linens, may also be placed on top of the Q2Roller to keep it clean.
If the Q2Roller is used on an isolation patient, the hospital should employ
the same protocols/procedures it utilizes for the bed mattress and/or for
the linen in that patient room.
Warranty Statement
The Q2Roller is warranted to be free from defects in material and workmanship. In the unlikely event that a problem arises as a result of a defect in
materials or workmanship, we will promptly replace the Q2Roller within
ninety (90) days of purchase or date of in-service. We will do this at our
expense and discretion using current models or parts performing the
equivalent function upon receipt of the original item to our repair
department. Please refer to the Return and Repairs section of this Manual
for return instructions.
This warranty is not an unconditional guarantee for the life of the product.
Our warranty does not cover product damage that may result from use
contrary to Manufacturer’s instructions or specifications, misuse, abuse,
tampering, or damage due to mishandling. Warranty specifically does not
cover product damage that may result from using an air supply that produces more than 3.5 psi.
Equipment that has been neglected, improperly maintained, repaired or
altered by someone other than an authorized representative of Manufacturer, or operated in any way contrary to the operating instructions, shall
void this warranty.
This warranty does not cover normal “wear and tear.” Component parts,
particularly any optional equipment, valve caps, their attachments and
cords, will show wear with use over time and eventually may need to be
PREVENTIVE MAINTENANCE
Prior to use, a visual inspection should be performed on the Q2Roller to
ensure that there is no visible damage that would render the Q2Roller
unusable.
The Q2Roller should be periodically inspected to ensure the following:
• All inflation valves are self-sealing with no evidence of leakage
• There are no punctures or tears in the Q
If any damage is found that would cause the Q2Roller not to function as
intended, the Q2Roller should be removed from use.
refurbished or replaced. This normal type of wear is not covered by our
warranty, but we will provide prompt, high quality repair service and parts
at a nominal cost.
HoverTech International’s liability under this warranty and on any claim of
any kind for any loss or damage arising out of, connected with, or resulting
from the design, manufacture, sale, delivery, installation, repair or operation of its products, whether in contract or tort, including negligence, shall
not exceed the purchase price paid for the product and upon expiration of
the applicable warranty period, all such liability terminates. The remedies
which this warranty provides are exclusive and HoverTech International
shall not be liable for any incidental or consequential damages.
There are no warranties, express or implied, which extend beyond this
warranty statement. The provisions of these warranty clauses are in lieu of
all other warranties, expressed or implied, and of all other obligations or
liabilities on HoverTech International’s part and neither assumes nor authorizes any other person to assume for HoverTech International any other
liability in connection with Manufacturer sale or lease of said products.
HoverTech International makes no warranties of merchantability or fitness
for a particular purpose. By accepting the goods, the buyer acknowledges
that the goods are suitable for the buyer’s purposes.
MANUFACTURER’S SPECIFICATIONS ARE SUBJECT TO CHANGE.
2Roller
Returns and Repairs
All products being returned to HoverTech International must have a
Return Goods Authorization Number issued from the company. Please call
800-471-2776 for an RGA #. Any products returned without the necessary
RGA # may cause a delay in the repair time. If the product is not covered
under warranty, a minimum charge of $100 will be assessed for each repair.
Should a repair charge be assessed, HoverTech International will notify the
facility and a purchase order for the repair will need to be issued before the
repair can be completed. Lead-time for repairs is approximately 2 weeks.
All products should be sent to:
HoverTech International
4482 Innovation Way
Allentown, PA 18109
Attn: Repair Dept./RGA #___________________
Phone: 800-471-2776
Fax: 610-694-9601
