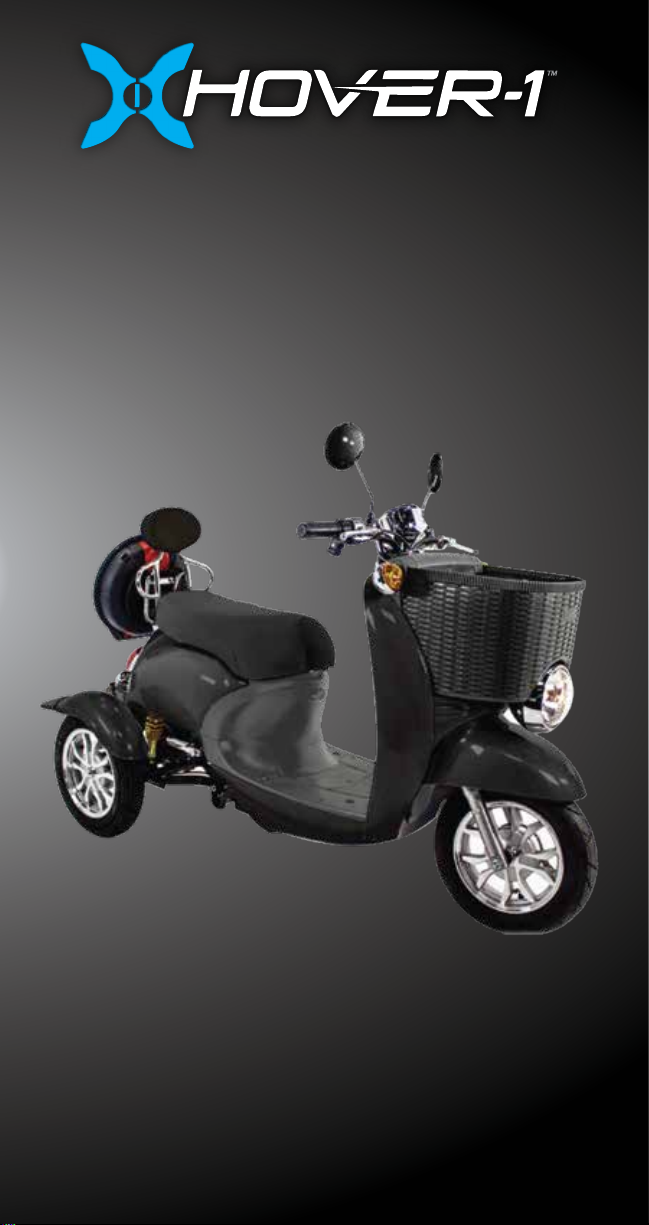

Hover-1 RIDER Operation Manual

RIDER

ELECTRIC SCOOTER

OPERATION MANUAL

HY-RIDR

HELMETS
SAVE
LIVES!

Always wear a properly tted helmet that
complies with CPSC or CE safety standards
when you ride your scooter.

Correct Fitting:

Make sure your helmet
covers your forehead.

Incorrect Fitting:

Forehead is exposed
and vulnerable to
serious injury.

1

WARNING

As with all mechanical components, the Hover-1
Rider is subjected to wear and high stresses.
Dierent materials and components may react to
wear or fatigue in dierent ways. If the design life of
a component has been exceeded, it may
suddenly fail possibly causing injuries to the rider.
Any form of crack, scratch or change of coloring in
highly stressed areas indicate that the life of the
component has been reached and it should be
replaced. Do not ride in an abusive manner.

CAUTION

In this manual, the CAUTION sign indicates a
hazardous situation which, if not avoided, can cause
minor or moderate injury.

WARNING

In this manual, the WARNING sign indicates a
hazardous situation which, if not avoided, can cause
death or serious injury.

2

INTRODUCTION

This manual is designed to give you the information you need for
the safe operation and maintenance of your Rider. Please read it
thoroughly before riding your Rider.

WARNING

Make sure you read this complete
manual before riding your Hover-1
Rider. Failure to do so, or failure to
follow its guidelines could lead to
serious injury or death.

The Hover-1 Rider is a personal transporter. Our technology and
production processes are developed with strict testing for each
Hover-1 Rider Electric Scooter. Operating the Hover-1 Rider
without following the contents of this manual may lead to
damage to your Hover-1 Rider, or bodily injury.

PACKAGE CONTENTS

• Hover-1 Rider Electric Scooter

• Key with Remote

• Charging Cable

• Operation Manual

• Rear View Mirrors

This item is not a toy. It is not recommended for riders under the
age of 18.

Your Hover-1 Rider's serial number is stamped respectively on
steering column and battery column as shown below. Record
the serial number for your reference.

ATTENTION

Use only the supplied charger with this scooter.
Charger Manufacturer:
JIN XIN YU POWER (SHENZHEN) SUPPLY CO., LTD
Model: XVE126-5840200

3

HOVER-1 RIDER DIAGRAM

1

2

3

4

5

6

7

FEATURES/PARTS

1. Rear-view Mirror

2. Throttle

3. Storage Compartment

4. Seat

5. License Plate Holder

6. Shock

7. Front Brake Lever

8. Turn Signal

9. Charge Port

10. Meter Display

11. Rear-view Mirror

12. Rear Brake Lever

13. Basket

14. Headlight

15. Tire

10

11

12

8

9

13

14

15

4

HANDLEBAR DIAGRAM

1

7

2

3

8

1. Rear Brake

2. Parking Brake

3. Low Beam/High Beam Switch

4. Meter Display

5. Forward / Reverse Switch

6. Front Brake

4

5

10

9

11

7. Turn Signal Switch

8. Horn

9. Ignition

10. Light Switch

11. Horn

12. Speed Adjustment Button

6

12

13

13. Throttle

SPECIFICATIONS

Model: Hover-1 Rider (HY-RIDR)
Load: 286.6 lbs (129 kg)
Max Speed: Up to 15 mph (24.1 km/h)
Max Distance Range: Up to 27.96 miles (45 km)
Max Incline Angle: 20° degrees
Min. Clearance: 4.72 Inches ( 12 cm)
Brake Type: Front Disk Brake and Rear Drum Brake
Shock Absorption: Front Frame Suspension Fork, Rear Two
Heavy-Duty Shock Absorbers
Hand Height: 37 Inches (93.98cm)
Tire Size: 3 Inches width (7.62cm)
90% Span ratio
10 Inches diameter (25.4cm)
Motor: 500W
Charge Time: Up to 13 hours
Battery Type: Lithium-ion
Battery Voltage: 51.2V
Battery Capacity: 20 Ah
Power Requirement: AC 100-240V, 50/60Hz

NOTE: Max speed and max distance may vary depending on, but not
limited to: user load, terrain of road, operation temperature, driving habits
and environmental temperatures.

5

IGNITION

1. TURNING ON SCOOTER

Turn key clockwise to “START” to
turn on scooter engine.

2. TURNING OFF SCOOTER

To turn scooter o, turn the key to
“OFF.”

3. OPEN SEAT

Turn key to “OPEN” to unlock seat
cover and open.

4. LOCK

Push key in and turn key to “LOCK”
to lock scooter.

CONTROLS & DISPLAY

1. SPEEDOMETER

Displays current speed in
mph.

2. TURN SIGNAL

Indicates left or right
turning signal.

3. LIGHT INDICATOR

Indicates if headlights are
on/o.

4. BATTERY LIFE INDICATOR

Displays your remaining
battery life.

1

2

3

4

11

2

3

4

20

30

10

0

40

50

mph

H L

REMOTE

1. LOCK

Press once to activate arm.

2. UNLOCK

Press once to disarm alarm.

3. ALARM

Press once to sound alarm.

4. REMOTE START

Press twice to remotely start scooter.
This will work within a 15 foot range
of your scooter.

6

SEAT COMPARTMENT

Your Rider comes with a seat compartment for extra storage
and to house your battery.

To access the seat compartment simply put the key in the
ignition and turn it to “OPEN.”

Beneath the storage area, you will nd the:

1. Main Circuit Breaker

2. Rechargeable Battery Compartment

1

2

7

ATTACHING REAR-VIEW MIRRORS

1. Remove the rear-view mirrors from the box.

2. Attach the rear-view mirrors by screwing the mirrors (with posts) into the
grommets shown in the diagram below.

CHARGING YOUR RIDER

• Locate the charging port underneath the front end of the seat.

• Lift the charging port ap to reveal the charging port.

8

CAUTION

Only use the enclosed charging
cable and charger to charge your
Rider. Using any other unauthorized
charger may damage your Rider.

• Make sure that there is no dust, debris or dirt inside the port.

• Locate the charge cable and plug the male end into a
grounded wall outlet.

• Plug the female end in the scooter’s charge port.

• The charging indicator light on your charger should change to
RED, indicating that your device is now being charged.

• When the RED indicator light on your charger turns to GREEN,
then your device is fully charged.

• A full charge may take up to 13 hours.

• After fully charging your scooter, unplug the charge cable from
the power outlet.

• Lift the charge port ap back up and push in to secure it back
into place.

9

BATTERY CARE

BATTERY MAINTENANCE

The lithium-ion battery is built into the device. Do not disassemble
the device to remove the battery or attempt to separate it from the
device.

• When charging the device, only use the enclosed Hover-1
charging cable assigned to this device.

• Do not connect or attach the device or the battery to a power
supply plug or directly to a car’s cigarette lighter.

• Do not place the device or batteries near a re, or into direct
sunlight. Heating the device and/or the battery can cause
additional heating, breaking, or ignition of the battery inside the
device.

• Do not continue charging the battery if it does not recharge
within the specied charging time. Doing so may cause the battery
to become hot, rupture, or ignite.

To preserve natural resources, please recycle or dispose of batteries
properly. This product contains lithium-ion batteries. Local, state, or
federal laws may prohibit disposal of lithium-ion batteries in ordinary
trash. Consult your local waste authority for information regarding
available recycling and/or disposal options.

WARNING

Failure to follow the safety precautions
listed below could lead to serious
bodily injury and/or death.

• Do not use your device if the battery begins to emit odor,
overheats, or begins to leak.

• Do not touch any leaking materials or breathe fumes emitted.

• Do not allow children and animals to touch the battery.

• The battery contains dangerous substances, do not open the
battery, or insert anything into the battery.

• Do not attempt to charge the device if the battery has discharge
or emits any substances. In that case, immediately distance yourself
from the battery in case of re or explosion.

10

• Lithium-ion batteries are considered to be hazardous materials.
Please follow all local, state and federal laws in regards to recycling,
handling and disposing of Lithium-ion batteries.

WARNING

SEEK IMMEDIATE MEDICAL ATTENTION IF
YOU ARE EXPOSED TO ANY SUBSTANCE
THAT IS EMITTED FROM THE BATTERY.

11

BEFORE RIDING

WARNING

Any Hover-1 Rider that does not work
properly can cause you to lose control
and fall. Inspect the entire device
thoroughly before every ride, and do
not ride it until any problems have been
corrected.

RIDER OPERATION

It is important that you fully understand all elements of your Hover-1
Rider. If these elements are not used correctly, you will not have full
control of your Hover-1 Rider. Before you ride fast, or outside of a
controlled environment, learn the functions of the various
mechanisms on your Hover-1 Rider.

PRE-RIDE HOVER-1 Rider CHECKLIST

Ensure that your Hover-1 Rider is in proper working order each and
every time you ride. If a part of the Hover-1 Rider does not function
correctly, please contact our Customer Support Center.

• Always wear a helmet that meets CPSC or CE safety standards. In
the event of an accident, a helmet can protect you from serious
injury and in some cases, even death.

WARNING

Any scooter that does not work
properly can cause you to lose control
and fall. Do not ride a Hover-1 Rider with
a part that is damaged; replace the
damaged part before riding.

• The owner shall only use and operate the unit after full
comprehension of all components and functions of the unit..

• Check with your doctor if you have a medical condition that
could aect your ability to use the Rider.

12

• Persons with a medical condition, heart condition, head, back, or
neck ailments or prior surgeries to those areas of the body are not
recommended to use the Rider.

• Persons with any mental or physical conditions that may make
them susceptible to injury or impair their physical or mental
capabilities to recognize, understand and perform all of the safety
instructions and to be able to assume the hazards inherent in unit
use, should not use the Rider.

• Ensure your tire pressure is at 30 psi (210kpa) before riding.

• Ensure the battery is fully charged before riding your Rider.

13

SAFETY PRECAUTIONS

• If the Hover-1 Rider is not to be used for an extended period of
time, you may need to recharge the battery every 2 months to
maintain the battery life.

• Ensure that the screws on the front and back tires are locked rmly
before each ride.

• Check to ensure the tires are not worn.

• Check to ensure all connections are maintained on the Hover-1
Rider.

• Ensure the brake cables are well lubricated. It is suggested you
lubricate brakes every 6 months.

• Ensure throttle moves smoothly. You should be able to turn it
forward and back,

• Make sure there are no frayed cables, loose connections, missing
fasteners or axle/lug nuts.

CHECKING BRAKES

A cable connects the brake lever to your brakes. The lever causes
the brake pads to apply pressure to the rotors on your wheels.

Pull the lever to ensure the brake moves freely and stops the Hover-1
Rider. If the lever can be pulled at to the handlebar, the brake is
too loose.

When brakes are not applied, brake pads should be 1 - 2mm from
the rotor. If brake pads are too close to the rotor, the brakes are too
tight. The brake pads should be in line with the rotor surface.

Adjust your brake lever to improve brake sensitivity. Brakes will
wear down over time. If after you have adjusted brake sensitivity,
you feel that the brakes are not performing well, you may need
to have brake pads or rotors replaced.

The rst rule in safe riding is to use common sense. A Hover-1 Rider is
vulnerable; it cannot protect you in a crash, against impact, or loss
of control the way driving a car can. A Hover-1 Rider can tip over
sideways or pitch you over the front wheel. It moves faster than a
typical scooter. It does not have bumpers or airbags as a car does.

This section is a guide of safe riding practices. Make sure you are
using your Hover-1 Rider properly.

14

CAUTION

Brake pads and rotors get very hot
during use and could burn skin. The
edges can also be very sharp and cut
skin. Do not touch the brake pads or
rotors directly after riding your
Hover-1 Rider.

Dierent localities and countries have dierent laws governing
riding on public roads, and you should check with local oicials to
ensure you are complying with these laws.

Hover-1 is not liable for tickets or violations given to riders who do not
follow these regulations.

• Always wear a helmet that meets CPSC or CE safety standards. In
the event of an accident, a helmet can protect you from serious
injury and in some cases, even death.

• Obey all local traic laws. Obey red and green lights, one-way
streets, stop signs, pedestrian crosswalks, etc.

• Ride with the traic, not against it.

• Ride defensively; expect the unexpected.

• Give pedestrians the right-of-way.

• Do not ride too close to pedestrians and alert them if you intend
to pass them from behind.

• Slow down at all street intersections and look to the left and right
before crossing.

•Obey all traic signals.

• Always use proper hand signals for turning and stopping. Give
signals before stopping or turning and always return both hands to
the handle bars before stopping or turning.

• Watch for cars pulling out into traic and for the sudden opening
of car doors.

• Avoid potholes, drainage grates or other road surface hazards.

• Never hitch onto other vehicles.

• Do not “stunt” ride or race in traic.

15

WARNING

Proper use of your brake is vital to
ensure safe, eicient stopping. To avoid
misuse and potential injury, do not
apply sudden or excessive force to your
brakes. Apply your brakes gradually
and give yourself enough room to
come to a complete stop safely.

• Do not weave in and out of traic or swerve from side to side.

• A crash can put extraordinary stress on Hover-1 Rider
components, possibly causing them to fatigue prematurely.
Components suering from stress fatigue can fail suddenly, causing
loss of control, or serious injury.

CAUTION: RIDING IN WET WEATHER

Brakes do not work as well under wet conditions as they do when
dry. It is recommended that you do not ride your Hover-1 Rider in
wet weather, as there are electronic components of your Hover-1
Rider that may be damaged if exposed to water.

If you are riding your scooter in low-visibility conditions, ensure your
headlight is turned on, and that you are wearing bright, reective
clothing.

Think about safety when you ride. You can prevent many accidents
if you think about safety. Below is a helpful checklist for Hover-1 Rider
riders.

SAFETY CHECKLIST

• Check your scooter before every ride, making sure brakes are
operating eectively and everything is in good working condition.

• Always keep both hands rmly on the handlebars.

• Do not ride “double” with more than one adult rider on the seat.

• Avoid riding in large groups, as this can force you to ride too close
to other riders, making it diicult to see other vehicles and road
hazards.

• Do not ride above your skill level. Ensure you have had enough
practice with all functions and features of your Rider.

• With increased speed comes increased risk. If you are moving at
a higher speed, small bumps can turn into large impacts, leading to
a higher risk of injury if an accident occurs.

16

WARNING

When you ride in low-visibility conditions
such as fog, dusk, or night, you might be
diicult to see, which could lead to a
collision. In addition to keeping your
headlight on, wear bright, reective
clothing when riding in poor lighting
conditions.

• Do not ride with loose objects attached to the handlebars or
other parts of the scooter.

• Do not ride while intoxicated or while taking medications which
can make you drowsy.

• When approaching a descent, decrease your speed.

• Do not abuse your Hover-1 Rider.

Always look ahead to avoid and anticipate any upcoming
obstacles. The distance of any upcoming obstacles will vary
according to your speed.

17

WARNING

There may be additional risk to injury if
you use your scooter incorrectly. This
includes, but is not limited to:

• Jumping your scooter

• Riding over debris or obstacles

• Performing stunts

• Riding in o-road terrain

• Racing other riders

• Riding in unusual manner

The aforementioned examples add
stress to each part of your scooter and
can lead to long term damage of the
device. Damage to your scooter can
lead to an accident or increase your
risk of injury. To decrease your risk of
injury, use your scooter correctly.

Use caution when you encounter road obstacles. If you are going
fast, even a small obstacle can create a signicant impact to both
you and your scooter. If you are unsure about your ability to safely
ride over an obstacle, it is best to either ride around it, or stop your
scooter, dismount, and walk your scooter around the obstacle.

The natural tendency of riders is to move where they are looking.
Avoid focusing on obstacles, even if you are trying to avoid them.
Instead, focus on the part of the road where you want to go.

18

OPERATING CONDITIONS

FAILURE TO FOLLOW ANY OF THE FOLLOWING SAFETY PRECAUTIONS
CAN AND MAY LEAD TO DAMAGE TO YOUR DEVICE, VOID YOUR
MANUFACTURER WARRANTY, LEAD TO PROPERTY DAMAGE, CAUSE
SERIOUS BODILY INJURY, AND CAN LEAD TO DEATH.

OPERATING YOUR DEVICE

Make sure the device is fully charged before the rst initial use.
Before turning on your scooter, sit on it like a normal bike to get
comfortable with the device before using it with the motor.

The scooter is equipped with a built-in 500 Watt Brushless Motor
which allows you to accelerate (up to 15 mph) and decelerate.

To turn, use the handlebar to turn in the direction you wish to turn.

Prepare to brace yourself if you encounter bumps or uneven
surfaces, then dismount and roll your scooter to a safe operating
surface.

WEIGHT AND SPEED LIMITATIONS

Speed and weight limits are set for your own safety. Please do not
exceed the limits listed here in the manual.

• Maximum Weight: 286.6 lbs

• Minimum Weight: 44 lbs

• Maximum Speed: Up to 15 mph

WARNING

Overweight exertion on product
may increase possibility of injury or
product damage.

OPERATING RANGE

The scooter can travel a distance up to 27.96 miles on a fully
charged battery in ideal conditions. The following are some of the
major factors that will aect the operating range of your device.

• Terrain: Riding distance is highest when riding on a smooth, at
surface. Riding uphill and/or on rough terrain will reduce distance
signicantly.

• Weight: A lighter user will have further range than a heavier user.

• Ambient temperature: Please ride and store the device under
recommended temperatures, which will increase driving distance;
battery life, and overall performance of your device.

19

• Speed and Riding Style: Maintaining a moderate and consistent
speed while riding produces maximum distance. Traveling at high
speeds for extended periods, frequent starts and stops, idling and
frequent acceleration or deceleration will decrease overall
distance.

WARNING

Any scooter that does not work
properly can cause you to lose control
and fall. Inspect the entire scooter
thoroughly before every ride, and do
not ride it until any problems have been
corrected.

WARNING

Do not turn sharply or at high speeds
to avoid danger. Do not turn or ride
quickly along slopes, as it may
cause injury.

20

RIDING YOUR RIDER

After reviewing the pre-ride checklist, follow the steps below to
begin riding your Rider.

1. Ensure parking brake is o. The Parking Brake is located on the
left-hand brake. The tab holds tension in the brake lines to keep
the unit stationary when not in use.

Activate your parking brake by pressing this tab towards the
brake handle while squeezing the left-hand brake. The tab will
click inwards.

To deactivate your parking brake, squeeze the left-hand brake
to release the Parking Brake tab.

2. Insert the key into the ignition and
turn clockwise to the “ON” position to
turn on your Rider.

3. The Meter Display will turn on.

4. Set your max speed by the three-position speed- switch.
“I” - max speed: 5 mph.
“II” - max speed: 10 mph.
“III” - max speed: 15 mph.

21

5. Turn the Throttle towards yourself slowly. The Hover-1 Rider will
begin to move forward.

6. When the Hover-1 Rider begins to move forward, put your feet in
front of you on the Foot Rest. Your speed will be determined by the
turn of the throttle and your speed level setting.

22

7. To stop your Rider, release the throttle and squeeze to apply your
Front & Rear Brakes with both hands slowly until you reach a
complete stop.

*Do not attempt to stop suddenly as this may lead to injury or
damage to your brake discs.

WARNING

Proper use of your brake is vital to
ensure safe, eicient stopping. To avoid
misuse and potential injury, do not
apply sudden or excessive force to your
brake. Apply the brake gradually and
give yourself enough room to come to
a complete stop safely.

Please follow all local, state and federal laws in regards to
recycling, handling and disposing of Lithium-ion batteries.

23

CARE & MAINTENANCE

• Do not expose the device to liquid, moisture, or humidity to
avoid damage to the product's internal circuitry.

• Do not use abrasive cleaning solvents to clean the device.

• Do not expose the device to extremely high or low
temperatures as this will shorten the life of the electronic device,
destroy the battery, and/or distort certain plastic parts.

• Do not dispose of the device in re as it may explode or
combust.

• Do not expose the device to contact with sharp objects as this
will cause scratches and damage.

• Do not let the device fall from high places, as doing so may
damage the internal circuitry.

• Do not attempt to disassemble the device.

• Use only the charger provided by Hover-1.

WARNING

Avoid using water or other liquids for
cleaning. If water or other liquids enter
the scooter, it will cause permanent
damage to the internal components.

24

WARRANTY

For warranty information, please visit us at:
www.hover-1.com

Affix Serial Number Label Here:

HOVER-1TM COPYRIGHT © ALL RIGHTS RESERVED.
DGL Group, Ltd. 195 Raritan Center Parkway. Edison, NJ 08837. USA.

25

DESIGN

Hover-1 Rider is designed to be easily controlled, providing
a safe, stable form of travel. The built-in rechargeable
battery allows you to power up whenever you travel . The
ultra bright LED headlight and brake lights provide safety
as you explore your surroundings. The Rider requires 13
hours of charging for a full charge.

PERFORMANCE

Hover-1 Rider is a modern electric scooter equipped with
a powerful motor responsive brakes, making it easier
and safer to control, allowing you to travel up to 27.96
miles at up to 15 mph.

• TRAVEL UP TO 27.96 MILES

• MAXIMUM SPEED OF UP TO 15 MPH

• SUPPORTS UP TO 286.6 LBS

• FULLY CHARGES IN UP TO 13 HOURS
