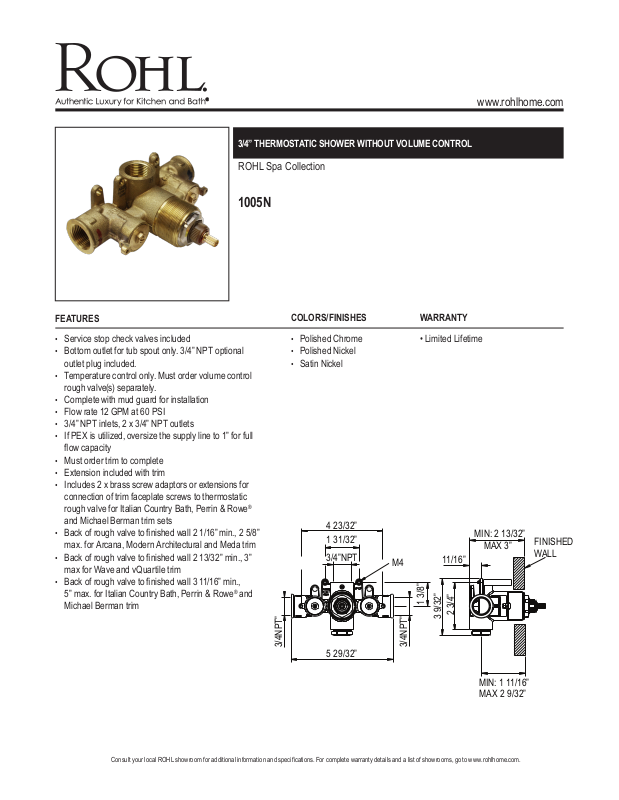

3/4” THERMOSTATIC SHOWER WITHOUT VOLUME CONTROL
3/4NPT”
FINISHED
ROHL Spa Collection
1005N
www.rohlhome.com
FEATURES
• Service stop check valves included
• Bottom outlet for tub spout only. 3/4” NPT optional
outlet plug included.
• Temperature control only. Must order volume control
rough valve(s) separately.
• Complete with mud guard for installation
• Flow rate 12 GPM at 60 PSI
• 3/4” NPT inlets, 2 x 3/4” NPT outlets
• If PEX is utilized, oversize the supply line to 1” for full
ow capacity
• Must order trim to complete
• Extension included with trim
• Includes 2 x brass screw adaptors or extensions for
connection of trim faceplate screws to thermostatic
rough valve for Italian Country Bath, Perrin & Rowe®
and Michael Berman trim sets
• Back of rough valve to nished wall 2 1/16” min., 2 5/8”
max. for Arcana, Modern Architectural and Meda trim
• Back of rough valve to nished wall 2 13/32” min., 3”
max for Wave and vQuartile trim
• Back of rough valve to nished wall 3 11/16” min.,
5” max. for Italian Country Bath, Perrin & Rowe® and
Michael Berman trim
COLORS/FINISHES WARRANTY
• Polished Chrome
• Polished Nickel
• Satin Nickel
4 23/32”
1 31/32”
3/4”NPT
M4
• Limited Lifetime
MIN: 2 13/32”
11/16”
1 3/8”
2 3/4”
3 9/32”
MAX 3”
WALL
5 29/32”
3/4NPT”
MIN: 1 11/16”
MAX 2 9/32”
Consult your local ROHL showroom for additional information and specications. For complete warrant y details and a list of showrooms, go to www.rohlhome.com.
