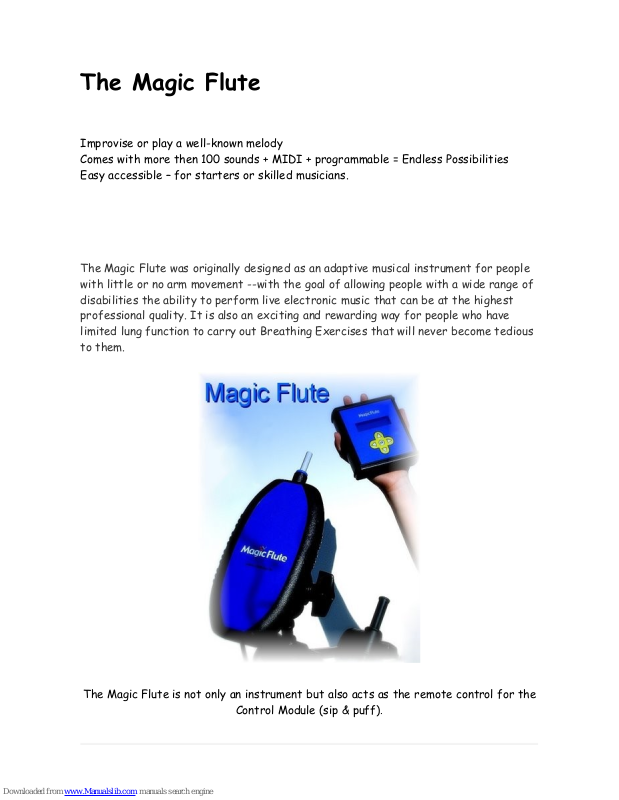

The Magic Flute
Improvise or play a well-known melody
Comes with more then 100 sounds + MIDI + programmable = Endless Possibilities
Easy accessible – for starters or skilled musicians.
The Magic Flute was originally designed as an adaptive musical instrument for people
with little or no arm movement --with the goal of allowing people with a wide range of
disabilities the ability to perform live electronic music that can be at the highest
professional quality. It is also an exciting and rewarding way for people who have
limited lung function to carry out Breathing Exercises that will never become tedious
to them.
The Magic Flute is not only an instrument but also acts as the remote control for the
Control Module (sip & puff).
Page 2
We want you either in your local school band or playing a professional gig with your
new group live on stage! We want you to be able to pursue music the way that you
have always dreamed no matter what physical condition you may have encountered in
your life's journey! You can play hundreds if not thousands of musical sounds from
saxophone, trumpet, pan flute and other breath instruments to guitar, drums, piano
for just starters -- and we challenge you to give this instrument a try. We are a new
community of users. We want our community to grow and you to be a part of it --we
want not only to share our instrument but your experiences and your ideas to make
this instrument better and better with your help.
How it works.
The flute swivels on top of a camera mount and can be moved up or down using the
mouth piece. An internal gyroscope detects the angular position and converts that
into a note or pitch. A keyboard, sound module, sampler,synthesiser, MIDI organ, a
software synthesiser or sampler on a computer can be used for sound but also there
is an internal sound card fitted in the Control Module. So you only need a set of small
computer speakers and you can start playing.
The strength of the breath into the mouth piece controls the volume of the note.
However, because we are interfaced with the computer we can also use several
adaptive switches and countless other adaptive strategies. We feel we are only a
limited by our imaginations. Breath pressure can be used to control volume as well as
pitch and other parameters. Multiple notes can be triggered in one breath. If you are
concerned that you are not physically able to access the instrument, we encourage
you to make inquiry and we will work toward making music happen for you. Please join
us.
Page 3
Getting started A quick start guide:
You must plug the flute into the control module BEFORE you connect the power
supply.
Connect the power supply and keep the flute still during the calibration. The flute has
to be in a horizontal position.
Connect the Audio output to external active loudspeakers or use a MIDI* cable to
connect the MIDI output of the Control Module to the MIDI input from your musical
instrument or computer**.
The Control Module -The Magic Flutes control centre.
Select this picture on the display with Sip and Puff (or use the display buttons)
and start playing. You can see on the display which notes you play.
That's all. Enjoy!!
*MIDI (short for Musical Instrument Digital Interface) is a music industry standard communications
protocol that lets MIDI instruments and sequencers (or computers running sequencer software) talk
to each other to play and record music.
**Keyboard, sound module, sampler,synthesiser, MIDI organ, a software synthesiser or sampler on a
computer.
Page 4
Getting into details -
When you power up the Magic Flute you'll see this hourglass. Make sure the flute
is in a fixed position. It must be steady during the turn-on sequence so that the
internal gyroscope can initialise. If the flute is moved during the turn-on sequence it
will not function correctly and the notes will "drift" rapidly. This symbol tells you
that you have to keep the Magic Flute still for 45 seconds. If 45 seconds looks long
then beware of the fact that the Magic Flute is using new technology and stands
really on the edge of what is possible today.
User settings.
One very important aspect of the Magic Flute is that you can adjust the flute to your
own personal needs.
You can set the following parameters:
► Sensitivity (1-8) - The sensitivity determines the amount of angular movement
necessary to choose a different note in the scale. This is the most important setting.
Sensitivity 8 is so fine that only a very little head movement is required to play the
magic flute.
► In breath (strong, normal, light, none) - 4 different settings for the sip function.
“None” allows you to disable the Sip.
► Attack (200 100 or 50 milliseconds) - 3 different settings for breath action.
► Note changes (slow, normal, fast) - 3 different setting for note behaviour.
► Correct drift (yes, no) – Best set to “Yes”
► Transpose (-12 ~ + 12) Transposes the pitch down or up in semitone steps over a
range of two octaves. “No Transpose” corresponds to standard pitch. This is a global
setting, meaning that it will affect all scales including “Chords” and “Drum kit”. You
can think of it as a kind of “master tune”.
Using an overall transpose won't affect the scale letters in the display. This allows
you to learn a song in a simple key and then transpose it to any key you want to.
►Semitone (-5 -3 -2 -1 +1 +2) – This enables you to use a switch to transpose a scale
to a different key. NB. Chords and Drum kit are excluded from this transpose.
The “Semitone” switch transpose
will
affect the scale letter in the display. When you
press the switch you will notice that the displayed scale letter will change to the new
note.
N.B To use this switch option you'll have to select “Semitone” in the ‘switch
behaviour’ settings (see below).
Page 5
To play the flute:
You can start playing the flute after you have selected this picto. You blow into
the mouth piece to play a note. The harder you blow the harder the sound will be.
This is because the magic flute sends breath control* data.
To select a different note rotate the flute up or down and blow into the
mouth piece again. In the display you'll see a bar and a letter which visualise the note
you are playing.
A dot will give you info on how close you are to the centre of each note.
To keep the flute well centred you have to breathe in now and then. It's best to
have the flute horizontal, and take a light sip till you see 2 arrows on the display. The
best way is to take a light sip frequently while keeping the flute horizontal. That way
it will quickly become part of your playing skill.
There is also a second way to achieve this. Therapists can use the "up" button.
There are 19 default scales and 4 memories for recording your own scales from simple (5 notes) to more complex and even a nice chord scale. For every
individual scale you can also program its MIDI channel number (1-16)** and its
(external) switch behaviour. These settings are memorised so the next time you turn
the flute on all your settings are kept.
You can plug in any external switch with a 1/8 mini jack. For every scale you
can set the switch behaviour.
The options are:
– Sharps/Flats
– Transpose Up
– Transpose Down
– Semitone
Page 6
– Extra note +5
– Extra note +7
– Change to Memory 1 scale
– Change to Memory 2 scale
– Play Memory 3 notes
- Play Memory 4 notes
Example
Let’s say you play the note G within a C Major scale (C D E F G A B C)
If you select “Sharps/Flats”, then pressing a switch will turn it in a G flat (G#) .
If instead you select “Extra note +5”, then pressing a switch will add an extra note.
If you select “Memory 4” then you play the recorded notes ( in a sequence) from
Memory 4 by tapping on the switch. This way you could play a small bass line or a
simple melody, note for note by using a single switch. Or trigger some drum sounds
and play on top of it with the flute. And of course it is a nice extra in a therapy
environment to have an option like this available.
The option “Change to Memory 1 or 2” is a powerful one, letting you toggle between
two completely different scales. For example you could first play a melody in C major,
then do a solo in a pentatonic blues scale.
This switch has a toggle action, ie pressing the switch once shifts every note, then
pressing it a second time sets everything back to normal.
NB. Each scale has its own setting for the switch action. Thus you first choose the
scale and then select the switch action you want for that scale (you can also select a
MIDI channel and instrument).
So in a blues scale, for example, the switch could be used to make a Semitone, but in
another scale it could be used to play the 5ths. This gives you great flexibility when
performing.
This part is for more advanced users. Most of the time MIDI channel 1 will be
selected but not necessarily
The keyboard MIDI channel 10 is often used for drums. You can give every scale its
own MIDI channel from 1 - 16 , meaning that you could give every scale a different
sound!
You can program your own scales! It sounds difficult but it is not. You need a
music keyboard that has MIDI out. You connect that to the MIDI in of the Control
Module. Then you select one of the 4 memories and play up to 15 notes on your
musical keyboard. After you're finished you return to Scale Select. Now go to the
memory scale that you just programmed.
Page 7

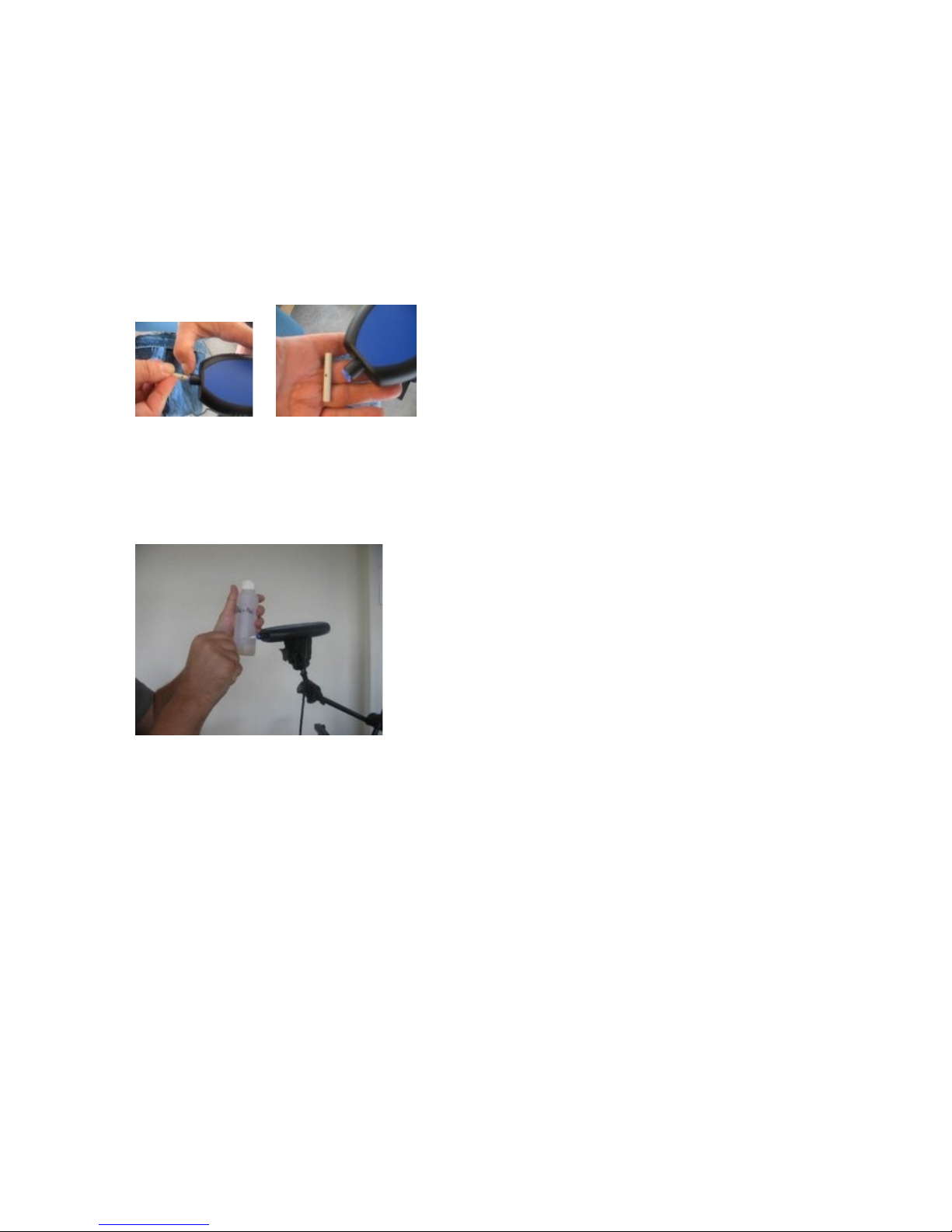

Cleaning the mouthpiece
If the Magic Flute is being used by more then one person then you have to clean the
mouthpiece after every session.
First use an alcohol-based hand sanitiser that contains at least 60% alcohol to clean
your own hands.
Press on the blue ring of the mouthpiece holder and take out the white mouthpiece.
Clean the white mouthpiece with boiling water.
I use an electric kettle to boil water.
Do not clean the mouthpiece holder with water!
It is best to clean the mouthpiece holder with a
cotton bud and a little bit of alcohol solution (70%) which you can pick up at your local
chemist.
* The Magic Flute always transmits Breath Controller (cc#2) messages in response to how hard you
blow. It samples your breath pressure at some set sampling rate. It digitizes that breath pressure to
a value between 1 and 127.
** In most cases you will use MIDI channel 1 !
Page 8
Display - The Magic Flute
The Magic Flute Menu.
► Go
► Select one of the 30 Default scales or
► Select one of the 4 Memory scales
► Select one of the instruments from the internall soundcard
► Select MIDI channel (1-16)
► Play Memory 4
► Play Memory 3
► Change to Memory 2
► Change to Memory 1
► Extra note +7
► Extra note +5
► Semitone
► Transpose Down
► Transpose Up
► Sharps / Flats
► None
► Chancel
► Reset memory
► Reset giro
Page 9
► Chancel
► Semitone
► Transpose
► Correct Drift ►Yes
►No
► Attack ►200 MS recommended when internal sound card is used
►100 MS (=milliseconds)
► 50 MS recommended when external MIDIdevice is used
► Note changes ►slow
►normal
►fast
► In breath ► None
► strong
► normal
►light
► Sensitivity (1-8)
► Memory 4
► Memory 3
► Memory 2
► Memory 1
Software version info
► Shut down
Page 10
A selection of useful TIPS from users www . mybreathmymusic . com
Setups - The Magic Flute
Which equipment to use with the Magic Flute

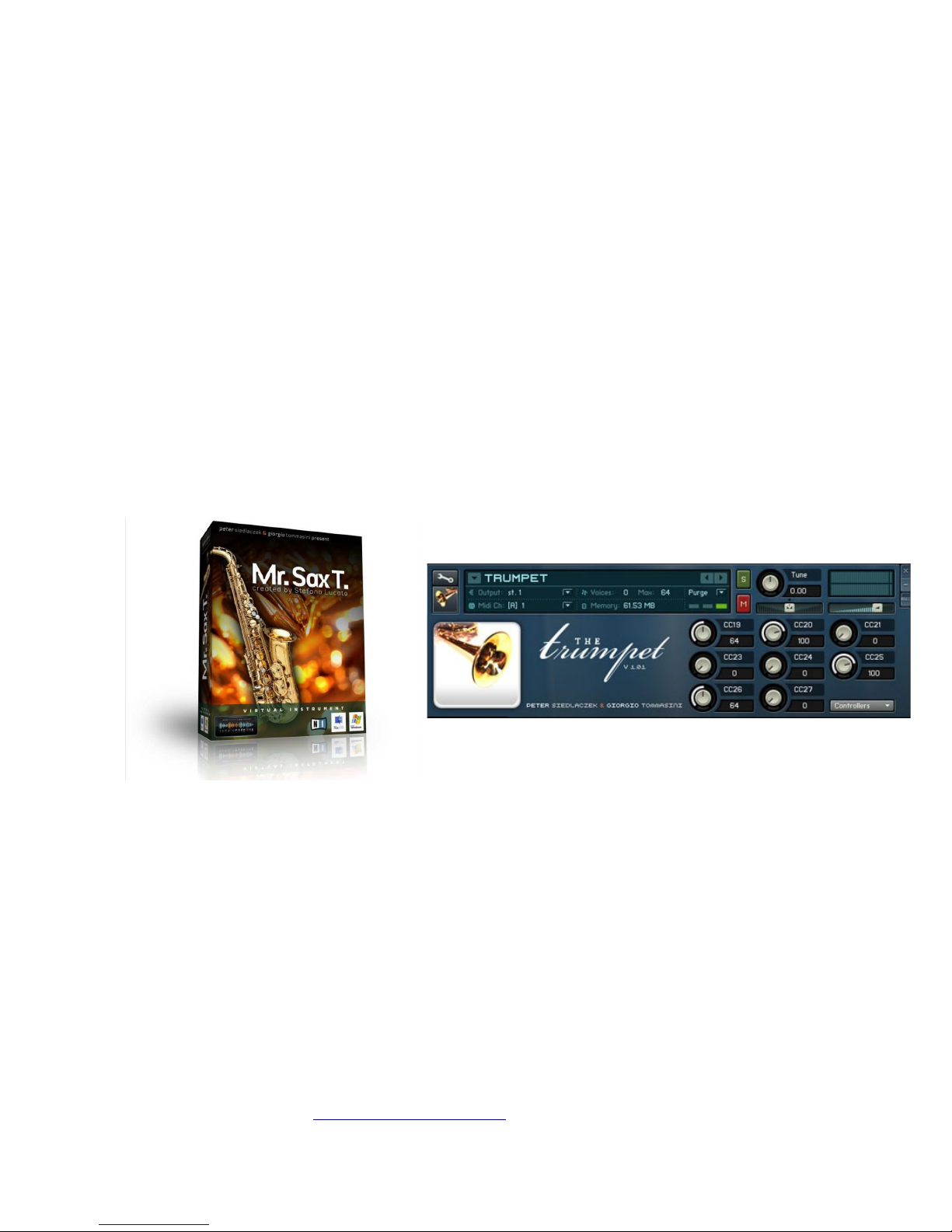

A keyboard, sound module, sampler, synthesiser, MIDI organ, a software synthesiser
or sampler on a computer - it can all be used as a sound source for the Magic Flute.
As long as it has got a MIDI input, you're in business.
This is a selection of gear that we use with the Magic Flute.
------------------------------------------------------------------------------------------------

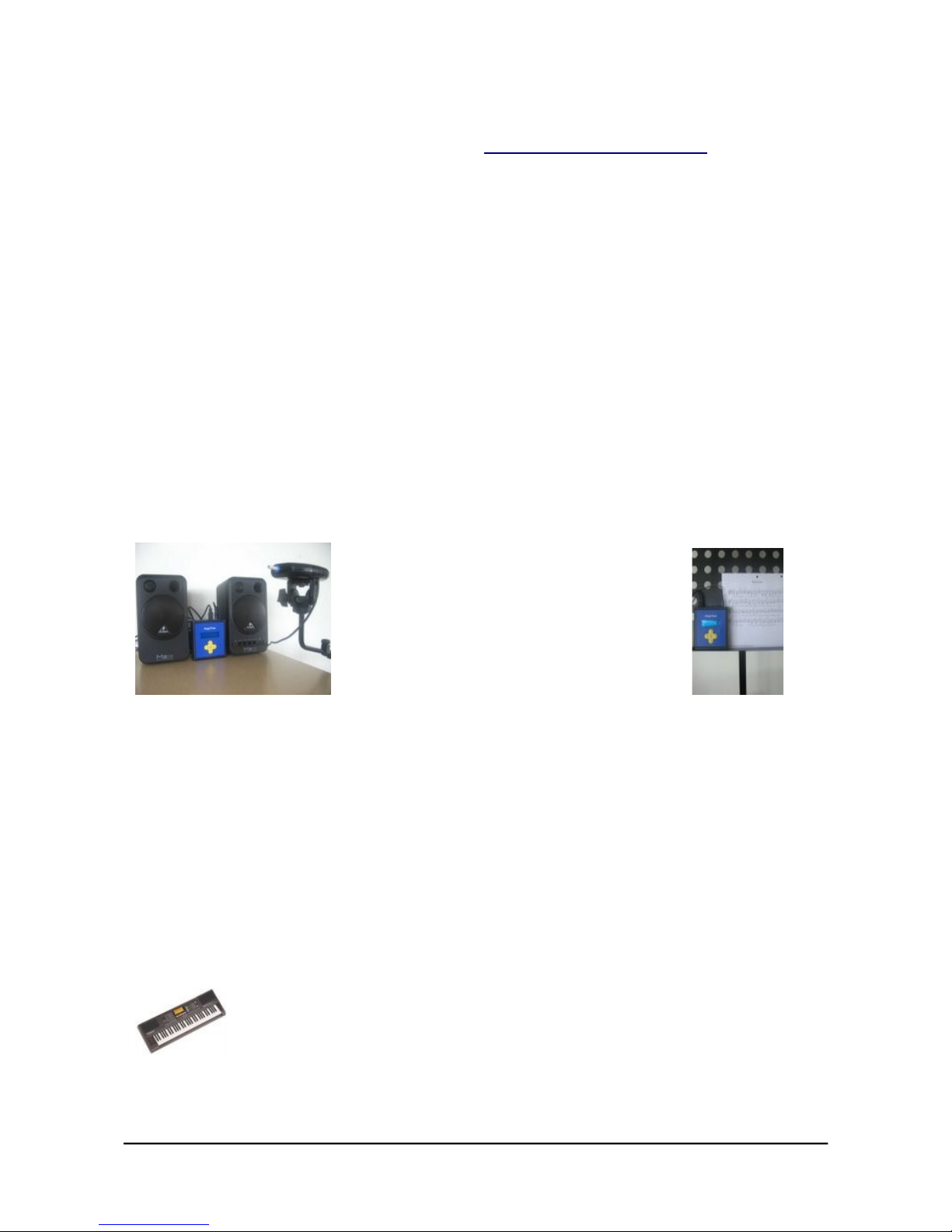

The simplest solution: use the Internal sound card that is fitted in the Control
Module.
For
With this set up you only need a set of small computer speakers and you can start
playing.
But you can also plug the Magic Flute “AUDIO out” direct into a mixer. No other
equipment is needed!
"TIP" small computer monitors: Behringer MS16
“TIP” use a heavy music stand for your Control Module
------------------------------------------------------------------------------------------------
KEYBOARD
A regular keyboard with build-in speakers. In this scenario you don't
need any other equipment.
"TIP" With my pupils I work a lot with a Yamaha DJX 2 Dance/Techno keyboard. This
old model has a hundred solo sounds and a lot of drum & sound loops. It is easy to use
Page 11
and you can buy this keyboard for very little on eBay.

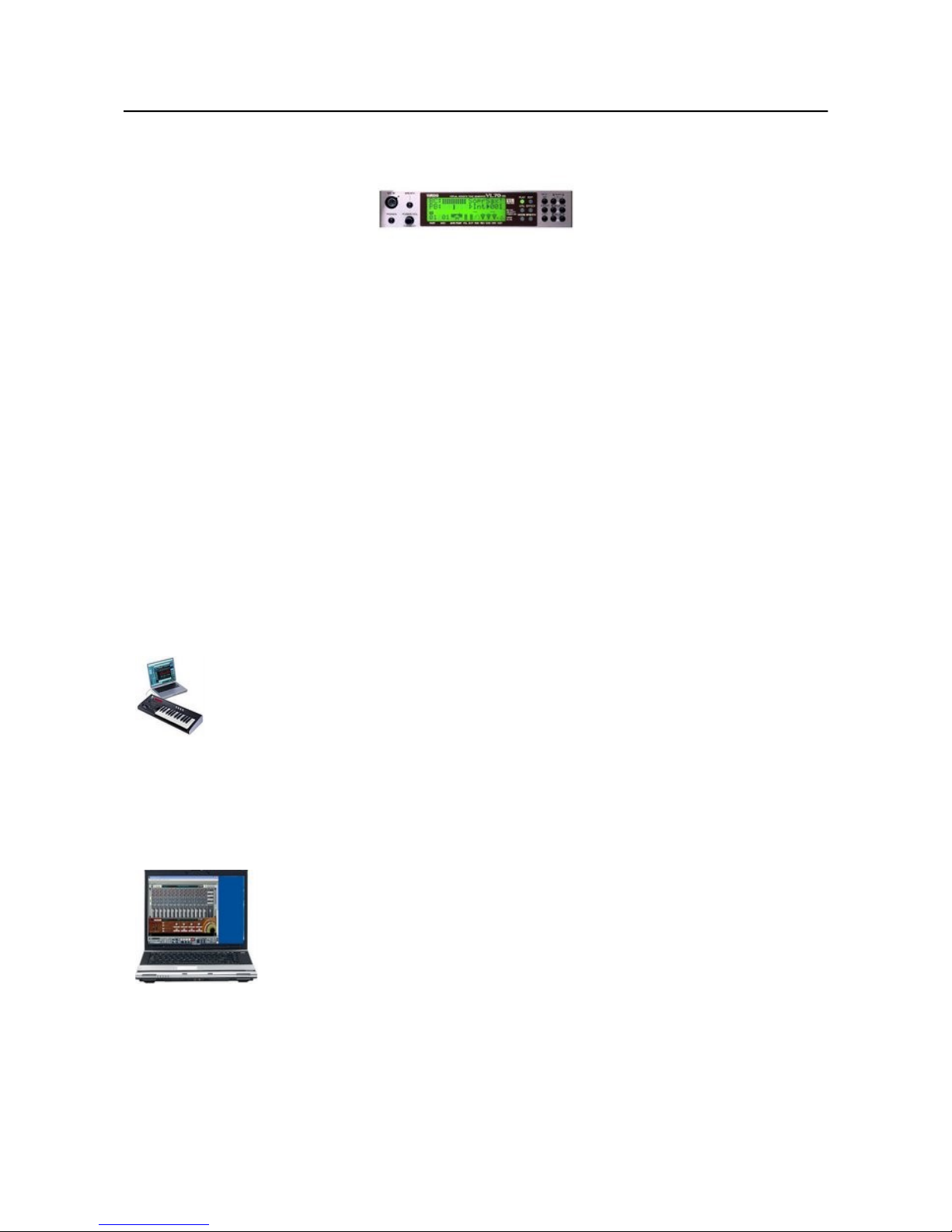

SOUND MODULE
A sound module (sometimes referred to as tone generator) is an electronic musical
instrument without a human-playable interface such as a keyboard. Sound modules
have to be "played" using an externally connected device. You also need speakers with
an amplifier. ("TIP" small computer monitors: Behringer MS16).
"TIP" the Yamaha VL70-m is perhaps the most expressive synth ever made when
coupled to a wind controller like the Magic Flute. It provides computer-based
"physical modeling" technology which accurately simulates the complex vibrations,
resonances, reflections and other acoustic phenomena that occur in real wind or
string instruments- to produce high quality monophonic (stereo but with 1 note
polyphony) voices. Of course, it responds very well to the breath control* that the
Magic Flute provides.
Unfortunately the VL70-m can only be bought outside Europe or on eBay.
-----------------------------------------------------------------------------------------------
Synthesiser
.
-----------------------------------------------------------------
Computer with sound card & MIDI interface
The great thing about a computer is that you will have access to
unlimited possibilities.
There is so much software available. I'm not going to explain a lot but I will present
you the programs that I tried and use. I work on a Windows computer that has a
sound card with a Low Latency Driver.
"TIP" I use a laptop with a USB audio/MIDI interface (EMU 0404)
Page 12
.
"TIP" Reason is a very nice standalone software music workstation. It is consumer
friendly and the sounds are very diverse and of an excellent quality.
PERFECT TRUMPET/SAX COMBO FOR MAGIC FLUTE
My Breath My Music is very proud to present:
Mr Sax & The Trumpet - The best sounding software saxophone and trumpet
of all time.
We hooked the Magic Flute to a computer to try this new music software and were totally amazed by the
sound of these virtual instruments. We'd never heard anything so realistic and expressive coming out of our
speakers. This software adds a totally new dimension to the Magic Flute. The sound quality is so good the
player feels like they are playing a real saxophone or trumpet.
We contacted the people of the company Samplemodelling. We told them who we are and what we stand
for, and what we hope to achieve in the future. They came up with this very nice gesture. Samplemodeling
will make their products available to organisations and private persons that bought a Magic Flute or will buy a
Magic flute in future, strictly for their own use, with a discount of 35%.
Question, what kind of set-up do I need for this?
You need a MAC or Windows computer with USB 2.0 ports. You need an external USB sound card and a
MIDI interface.
Question, do I need an external sound source for the Magic Flute?
The Magic Flute has a very good internal sound card with 128 different sounds. But in this case we use the
Magic Flute as a MIDI* controller and hook it up to a computer. We use the computer as the sound source.
Question, how easy is it to set up your computer for this?
You need to have experience with installing software on your computer. Or you could ask an experienced
person to help. Also we provide an online video tutorial about installing the software and the hardware.
Question, is it expensive to make this set-up?
No. The external sound card and the MIDI interface can be bought together for € 60,-
Without the 35% discount:
Mr Sax T (Tenor) cost € 119,- (+VAT)
The Trumpet cost € 149,- (+VAT)
The Sax Brothers (3 different instruments, Alto, Bari,Tenor) will be sold as a bundle for € 239,- (+VAT)
For more bundles, look at www.samplemodeling.com
Page 13
Question, do you need a host program for these virtual instruments.
Yes, but that is being taking care of. Mr Sax and The Trumpet are supplied with the 3.5 NI Kontakt Player,
the latest version of Native Instruments flagship Sampler.
Youtube Video: demo Mr Sax T & Magic Flute www.youtube.com/watch?v=tICPTmz1gfo
info: [email protected]
*MIDI (short for Musical Instrument Digital Interface) is a music industry standard communications protocol that lets MIDI instruments
and sequencers (or computers running sequencer software) talk to each other to play and record music.
-----------------------------------------------------------------------------------------------
Magic Flute Workshops, Play along music and free sheet music:
Vist our webpages on www.mybreathmymusic.com
***The Magic Flute always transmits Breath Controller (cc#2) messages in response to how hard you
blow. It samples your breath pressure at some set sampling rate. It digitizes that breath pressure to
a value between 1 and 127. If you want to get the most out of the Magic Flute, you'll need your sound
source tuned to understand these breath control messages. Some soft synths/MIDI sound modules
can be programmed to work, others cannot, others can to a certain degree. If your sound source
doesn't support breath control then it still will respond on the velocity, so you can play soft and loud
notes. But you can't vary the sound level on a single played note.
Page 14
The Magic Flute. Scales
The default pre-recorded scales.
C4 (060) = Middle C
Scale 1 Simple G4 A4 B4 C5 D5 E5
Scale 2 C Major G3 A3 B3 C4 D4 E4 F4, G4 A4 B4 C5 D5 E5 F5 G5
Scale 3 D Minor A3 Bb3 C4 D4 E4 F4, G4 A4 Bb4 C5 D5 E5 F5 G5 A5
Scale 4 Blues 1 G3 A3 C4 D4 E4 G4 A4 C5 D5 E5 G5 A5
Scale 5 Blues 2 G3 A3 C4 D4 Eb4 E4 G4 A4 C5 D5 Eb5 E5 G5 A5
Scale 6 Recorder C5 D5 E5 F5, G5 A5 B5 C6 D6 E6 F6 , G6 A6 B6 C7
Scale 7 G Major C4 D4 E4 F#4 Ga A4 B4 C5 D5 E5 F#5 G5 A5 B5 C6
Scale 8 Hava nagila G4 A4 Bb4 C5 D5 Eb5 Gb5, G5 A5 Bb5 C6 D6
Scale 9 Spanish E4 F4 G4 A4 B4 C5 D5 E5 F5 G5A5 B5 C6 D6 E6
Scale 10 Bass E Minor E2 F#2 G2 A2 B2 C3 D3 E3 F#3 G3 A3 B3 C4 D4 E4
Scale 11 Bass E Major E2 F#2 G#2 A2 B2 C#3 D#3 E3 F#3 G#3 A3 B3 C#4 D#4 E4
Scale 12 Whole step C4 D4 E4 F#4 G#4 A#4 C5 D5 E5 F#5 G#5 A#5 C6
Scale 13 ½ whole step C4 C#4 D#4 E4 F#4 G4 A4 A#4 C5 C#5 D5 D#5 E5 F#5 G5
Scale 14 Baritone Sax Eb2 F2 G2 Ab2 Bb2 C3 D3 Eb3 F3 G3 Ab3 Bb3 C4 Eb4
Scale 15 Tenor Sax Bb2 C3 D3 Eb3 F3 G3 A3 Bb3 C4 D4 Eb4 F4 G4 A4 Bb4
Scale 16 Alto Sax Eb3 F3 G3 Ab3 Bb3 C4 D4 Eb4 F4 G4 Ab4 Bb4 C5 D5 Eb5
Scale 17 Soprano Sax Bb3 C4 D4 Eb4 F4 G4 A4 Bb4 C5 D5 Eb5 F5 G5 A5 Bb5
Scale 18 Pent Minor 6 C3 D3 E3 F#3 A3 C4 D4 E4 F#4 A4 C5 D5 E5 F#5 A5
Scale 19 Pentatonic G G3 A3 B3 D4 E4 G4 A4 B5 D5 E5 G5 A5 B5 D6 E6
Scale 20 Gypsy D4 E4 F4 G#4 A4 A#4 C#5 D5 E5 F5 G#5 A5 A#5 B5 C#5
Scale 21 Dm Melodic A3 B3 C#4 D4 E4 F4 G4 A4 B5 C#5 D5 E5 F5 G5 A5
Scale 22 Raga Bhairav C3 Db3 E3 F3 G3 Ab3 B3 C4 Db4 E4 F4 G4 Ab4 B4 C5
Scale 23 Raga Todi C3 Db3 Eb3 Gb3 G3 Ab3 B3 C4 Db4 Eb4 Gb4 G4 Ab4 B4 C5
Scale 24 Japanese C3 Db3 F3 G3 Ab3 C4 Db4 F4 G4 Ab4 C5 Db5 F5 G5 Ab5
Scale 25 Egypt C3 D3 F3 G3 Bb3 C4 D4 F4 G4 Bb4 C5 D5 F5 G5 Bb5
Scale 26 Major Blues C3 Eb3 E3 G3 A3 Bb3 C4 Eb4 E4 G4 A4 Bb4 C5
Scale 27 Fourth C2 F2 Bb2 C3 F3 Bb3 C4 F4 Bb4 C5 F5 Bb5 C6 F6 Bb6
Scale 28 Augmented C4 D#4 E4 G4 G#4 B4 C5 D#5 E5 G5 G#5 B5 C6
Scale 29 Drum Kit C2 C#2 D2 D#2 F2 A#2 B2 D#3 F#3
Scale 30 Chords C Dm Em F G Am Bdim
Scale 31 Memory 1
Page 15
Scale 32 Memory 2
Scale 33 Memory 3
Scale 34 Memory 4
You can program your own scales!
Exsamples of other scales that you could program:
Black keys only Gb3 Ab3 Bb3 Db4 Eb4 Gb4 Ab4 Bb4 Db5 Eb5 Gb Ab5 Bb5 Db6 Eb6
Gypsy Em E3 G4 A4 A#4 B4 C5 D#5 E5 F#5 G5 A5 A#5 B5 C6 D#6 E6

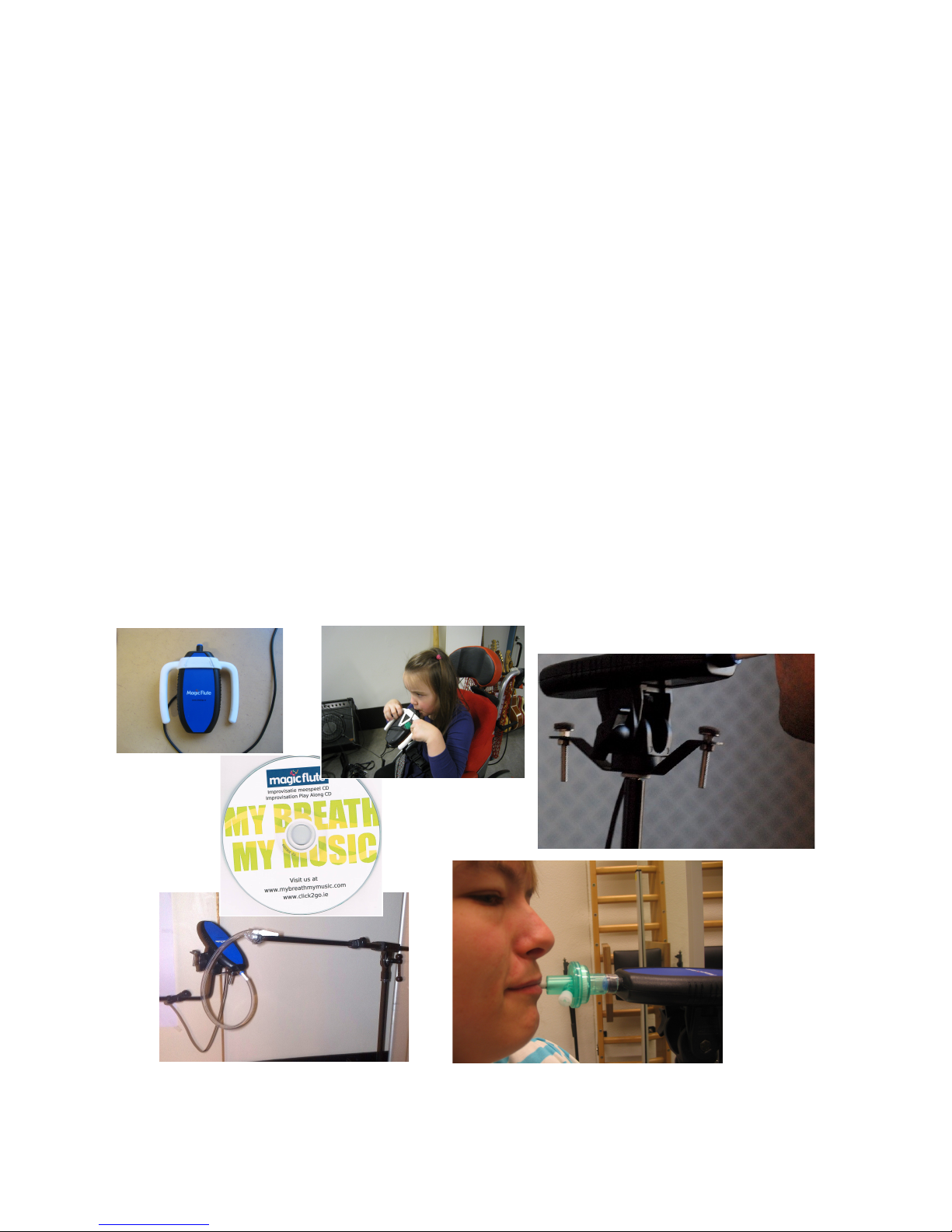

Additional accessories.
Mouth piece with Bacterial Filter
Tube extension mouth piece.
The Magic Flute stop.
The Magic Flute handles (designed for people with cerebral palsy).
Magic Flute High stand.
Improvisation Play along CD.
Loading...
