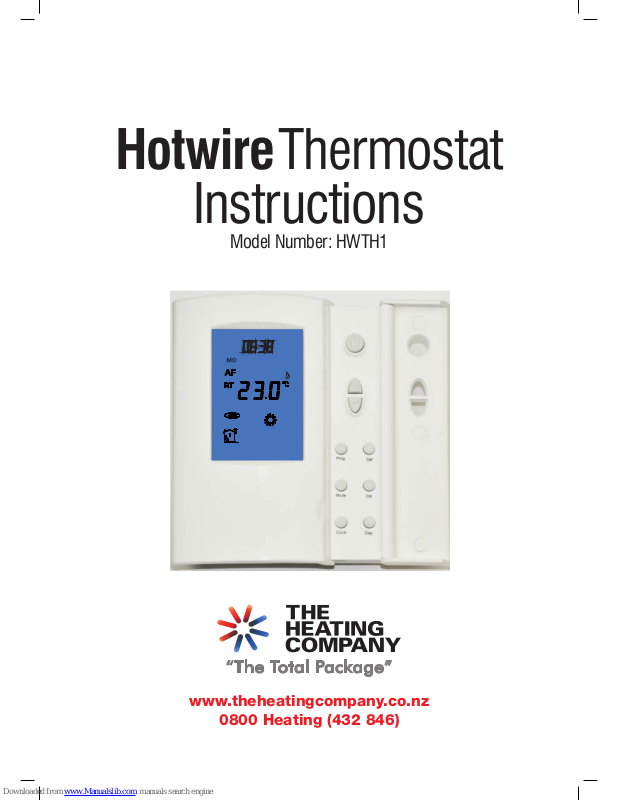

HotWire HWTH1 Instructions Manual

Hotwire Thermostat

Instructions

Model Number: HWTH1

Australia

Verve Dist ribution
6 Todd St
Port Adel aide SA 5015

www.verved istributio n.com.au

New Zealand

The Heati ng Company
PO BOX 420
Whitia nga NZ

www.hot wire.co.nz

Press clock button, and time display will start flashing

Use the up and down buttons to adjust .Holding the

Press the OK button once the time is set.

Press the day button to get to the current Day of the week.

Step One: Set The Time and Day:

Turning your heating on and off Automatically

buttons down will increase or decrease the time in 15 minutes increments.

Ensure that the thermostat is on Auto mode.

Step Two: Set the thermostat to Auto mode

Press OK button to exit.

Step Three: Programming your schedules

If you set your thermostat to 7 day programmable mode

If you set your thermostat to 5+2 day programmable mode

(1). Press Prog button.

(3). Press up or down buttons to adjust the time you wish the program 1 event to commence
for the currently selected day. and then press Prog button.

(2). Press up or down buttons to select the day you wish to start programming. then press Prog.

(hold up button to select all days of the week, to cancel, hold up button again.)

(4). Press up or down buttons to set the temperature for this time period,then press Prog.

(6). Press

OK to save and exit.

(8). Press OK to save and exit.

(5). Set time and temperature for the next time period. Repeat step(2) and (3) for each
time period.

(1). Press Prog button.
(2). Press up or down buttons to adjust the time you wish the program 1 event to commence

for the week days( from Monday to Friday). and then press Prog button.

(5). Press up or down buttons to adjust the time you wish the program 1 event to commence
for the week

ends( Saturday and Sunday). and then press Prog button.

(3). Press up or down buttons to set the temperature for this time period,then press Prog.
(4). Set time and temperature for the next time period. Repeat step(2) and (3) for each
time period. and then press Prog button.

(6). Press up or down buttons to set the temperature for this time period,then press Prog.
(7). Set time and temperature for the next time period. Repeat step(5) and (6) for each
time period.

icon will display.

Key Lock & Unlock

Press and hold to unlock the thermostat. The lock icon will disappear.

* Note no program changes are possible while the unit is locked.

Press and hold to lock the thermostat. A lock

In Auto mode, to temporary override the current setpoint temperature,

1. Press up or down button once, the set temperature starts flashing.

2. Press up or down button again to adjust the set temperature.

3. Press OK button to confirm the setting with OVERRIDE shown.
Now your thermostat will maintain the new set temperature until the next setpoint.
To cancel the override setting, press Del button once.

Temporary temperature override

In standby mode(when thermostat is turned off), press and hold Clock button and

Your thermostat has the ability to reset all settings to the factory defaults. If you
are certain you want to do this:

Day button for 5 seconds until --:-- is shown(shown for 5 seconds only)

Resetting factory defaults

To select Auto use the mode button

Australia

Verve Distribution

81 Brighton Rd

Glenelg SA 5045

www.vervedistribution.com.au

New Zealand

The Heating Company

International
PO Box 420

Whitianga NZ

www.hotwire.co.nz

HotwireThermostat
Instructions

Press clock button, and time display will start flashing

Use the up and down buttons to adjust .Holding the

Press the OK button once the time is set.

Press the day button to get to the current Day of the week.

Step One: Set The Time and Day:

Turning your heating on and off Automatically

buttons down will increase or decrease the time in 15 minutes increments.

Ensure that the thermostat is on Auto mode.

Step Two: Set the thermostat to Auto mode

Press OK button to exit.

Step Three: Programming your schedules

If you set your thermostat to 7 day programmable mode

(1). Press Prog button.

(3). Press up or down buttons to adjust the time you wish the program 1 event to commence
for the currently selected day. and then press Prog button.

(2). Press up or down buttons to select the day you wish to start programming. then press Prog.

(hold up button to select all days of the week, to cancel, hold up button again.)

(4). Press up or down buttons to set the temperature for this time period,then press Prog.

MO

MO

To select Auto use the mode button

www.theheatingcompany.co.nz

0800 Heating (432 846)

HotwireThermostat
Instructions

Turning your heating Off Manually:

Your thermostat and floor are both off and your floor will cool down. Any

settings you have entered into the Thermostat will be maintained

Australia

Verve Dist ribution
6 Todd St
Port Adel aide SA 5015

www.vervedistribution.com.au

New Zealand

The Heati ng Company
PO BOX 420
Whitian ga NZ

www.hotwire.co.nz

Program button

Confirm button

Set the clock

Set the day of the week

7

8

6

5

4

3

2

1

RT stands for “room temperature” and FT stands for “floor temperature”.

Power button, to turn on/off the thermostat9

Manu

Auto

Indicates the time frames available in Auto Mode.

Heating is turned on

“Manu” indicates manual mode, “Auto” indicates automatic mode. In

Auto mode, the thermostat executes the preprogrammed schedules.

While in Manu mode, the thermostat maintains a constant set temperature

manually set by the user.

Button and Descriptions

RT/FT

1

2

3

4

Press clock button, and time display will start flashing

Use the up and down buttons to adjust .Holding the

Press the OK button once the time is set.

Press the day button to get to the current Day of the week.

Step One: Set The Time and Day:

Turning your heating on and off Automatically

buttons down will increase or decrease the time in 15 minutes increments.

Ensure that the thermostat is on Auto mode.

Step Two: Set the thermostat to Auto mode

Turning your heating On Manually:

Press the up or down button to adjust to the required temperature

Around 23degC is an average but you can increase if required.

Press OK button to exit.

Step Three: Programming your schedules

If you set your thermostat to 7 day programmable mode

If you set your thermostat to 5+2 day programmable mode

(1). Press Prog button.

(3). Press up or down buttons to adjust the time you wish the program 1 event to commence
for the currently selected day. and then press Prog button.

(2). Press up or down buttons to select the day you wish to start programming. then press Prog.

(hold up button to select all days of the week, to cancel, hold up button again.)

(4). Press up or down buttons to set the temperature for this time period,then press Prog.

(6). Press OK to save and exit.

(8). Press OK to save and exit.

(5). Set time and temperature for the next time period. Repeat step(2) and (3) for each
time period.

(1). Press Prog button.
(2). Press up or down buttons to adjust the time you wish the program 1 event to commence

for the week days( from Monday to Friday). and then press Prog button.

(5). Press up or down buttons to adjust the time you wish the program 1 event to commence
for the weekends( Saturday and Sunday). and then press Prog button.

(3). Press up or down buttons to set the temperature for this time period,then press Prog.
(4). Set time and temperature for the next time period. Repeat step(2) and (3) for each
time period. and then press Prog button.

(6). Press up or down buttons to set the temperature for this time period,then press Prog.
(7). Set time and temperature for the next time period. Repeat step(5) and (6) for each
time period.

icon will display.

Key Lock & Unlock

Press and hold to unlock the thermostat. The lock icon will disappear.

* Note no program changes are possible while the unit is locked.

Press and hold to lock the thermostat. A lock

In Auto mode, to temporary override the current setpoint temperature,

1. Press up or down button once, the set temperature starts flashing.

2. Press up or down button again to adjust the set temperature.

3. Press OK button to confirm the setting with OVERRIDE shown.
Now your thermostat will maintain the new set temperature until the next setpoint.
To cancel the override setting, press Del button once.

Temporary temperature override

In standby mode(when thermostat is turned off), press and hold Clock button and

Your thermostat has the ability to reset all settings to the factory defaults. If you
are certain you want to do this:

Day button for 5 seconds until --:-- is shown(shown for 5 seconds only)

Resetting factory defaults

MO

MO

To select Auto use the mode button

Press the power button to turn on your thermostat.

Press the ok button. The reading will return to the ambient temperature

Press Power button to turn off your thermostat, you will see OFF on LCD.

Press the Mode button until the screen shows manual.

Delete mistakes during programming.

Up button. Also a long press (5 seconds ) will lock the keypad.

Down button. Also a long press (5 seconds ) will un lock the keypad.

Flame icon should now be shown on screen

Button and Descriptions

Program button

Delete mistakes during programming.

Select the Automatic or Manual operating mode.

Confirm button

To set the clock. Press the clock button press the up and down buttons

Press to select day of the week. Press repeatedly to select different

days

Up button. Also a long press (5 seconds ) will lock the keypad.

Down button. Also a long press (5 seconds ) will un lock the keypad.

Power button, to turn on/off the thermostat

RT stands for “room temperature” and FT stands for “floor temperature”.

Heating is turned on

“Manu” indicates manual mode, “Auto” indicates automatic mode. In

Auto mode, thermostat executes the preprogrammed schedules.

While in Manu mode, the thermostat maintains a constant set temperature

manually set by the user.

Indicates the time frames available in Auto Mode.

Prog

Del

Mode

Ok

Clock

Day

+

-

RT/FT

Manu

Auto

and then press Ok.

1

2

3

4

Turning your heating on and off Automatically
Step One: Set The Time and Day:

(1). Press the clock button and the time display will start flashing, use the up and

down buttons to adjust.

(2). Holding the buttons down will increase or decrease the time in 15 minutes

increments. Press the OK button once the time is set.

(3). Press the day button to get to the current Day of the week.

(4). Press OK button to exit.

Ensure that the thermostat is on Auto mode. To select Auto mode press the Mode

Step Two: Set the thermostat to Auto mode

button until Auto is displayed.Your thermostat has 4 events each day. An Event is

the moment at which the Thermostat will switch the heating on or off. For example

Event 1 is the moment at which your heating will be activated each morning. Event

2 is when it will switch off in the morning. Event 3 is the evening or afternoon

activation, Event 4 is the time in evening or afternoon at which the heating will

switch off.

Step Three: Programming your schedules

To set your thermostat to 5+2 day programmable mode (Your thermostat will do

the same thing Monday to Friday and can be programmed for different times on
the weekend)

(1). Press Prog button.

(2). Press up or down buttons to adjust the time you wish the Event 1 to com-

mence for the week days( from Monday to Friday). and then press Prog button.

(3). Press up or down buttons to set the temperature for this Event, then press

Prog.

(4). Set time and temperature for the next event. Repeat step(2) and (3) for each

time period. and then press Prog button.

(5). Press up or down buttons to adjust the time you wish Event to commence for

the weekends( Saturday and Sunday). and then press Prog button.

(6). Press up or down buttons to set the temperature for this event, then press

Prog.

(7). Set time and temperature for the next event. Repeat step(5) and (6) for each

event.
(8). Press OK to save and exit.

HotwireThermostat
Instructions

To set your thermostat to 7 day programmable mode use the following steps

(1). Press Prog button.

(2). Press up or down buttons to select the day you wish to start programming.

Or hold up button to select all seven days of the week. Then press Prog. (to

cancel all seven days programming hold up button down) Time will start

flashing.

(3). Press up or down buttons to adjust the time you wish Event 1 to commence

for the currently selected day. and then press Prog button, Temperature will

start flashing.

(4). Press up or down buttons to set the temperature for this time period,then press

Prog.

(5). Set time and temperature for the next event. Repeat step(2) and (3) for each

event.

(6). Press OK to save and exit.

(Your thermostat will do the same thing for all seven days of the week)
