HOT Watch ICON1, ICON2, ICON4, ICON3 User Manual

User Manual

Getting Started

For best user experience,

download the HOT Watch app

from the iTunes (iPhone) or

Google Play (Android phone)

or Windows store (Windows

phone). Install the app on your

phone before you turn the

watch On.

Turning On and Off

To turn on the HOT Watch, press and release
the power key. If it does not turn On, the
battery may be drained. Connect the watch to
the charger and the watch should work. The
watch comes with a magnetic USB charger
that pairs to the audio module of the watch.

To turn Off the HOT Watch, when the display
is active, press and hold down the power key
for 5 seconds
votre téléphone.

Power Key

Action Function

Press and hold for 6 seconds

Press once when off

Touch Calibration. Required when there is
an undesirable touch experience

Turn Off

Turn On

Backlight on

Press once

Press twice

When the watch is Powered On, the
Bluetooth discoverable mode is activated.
From your Watch Bluetooth menu, tap on
new icon. To go to Watch Bluetooth menu,

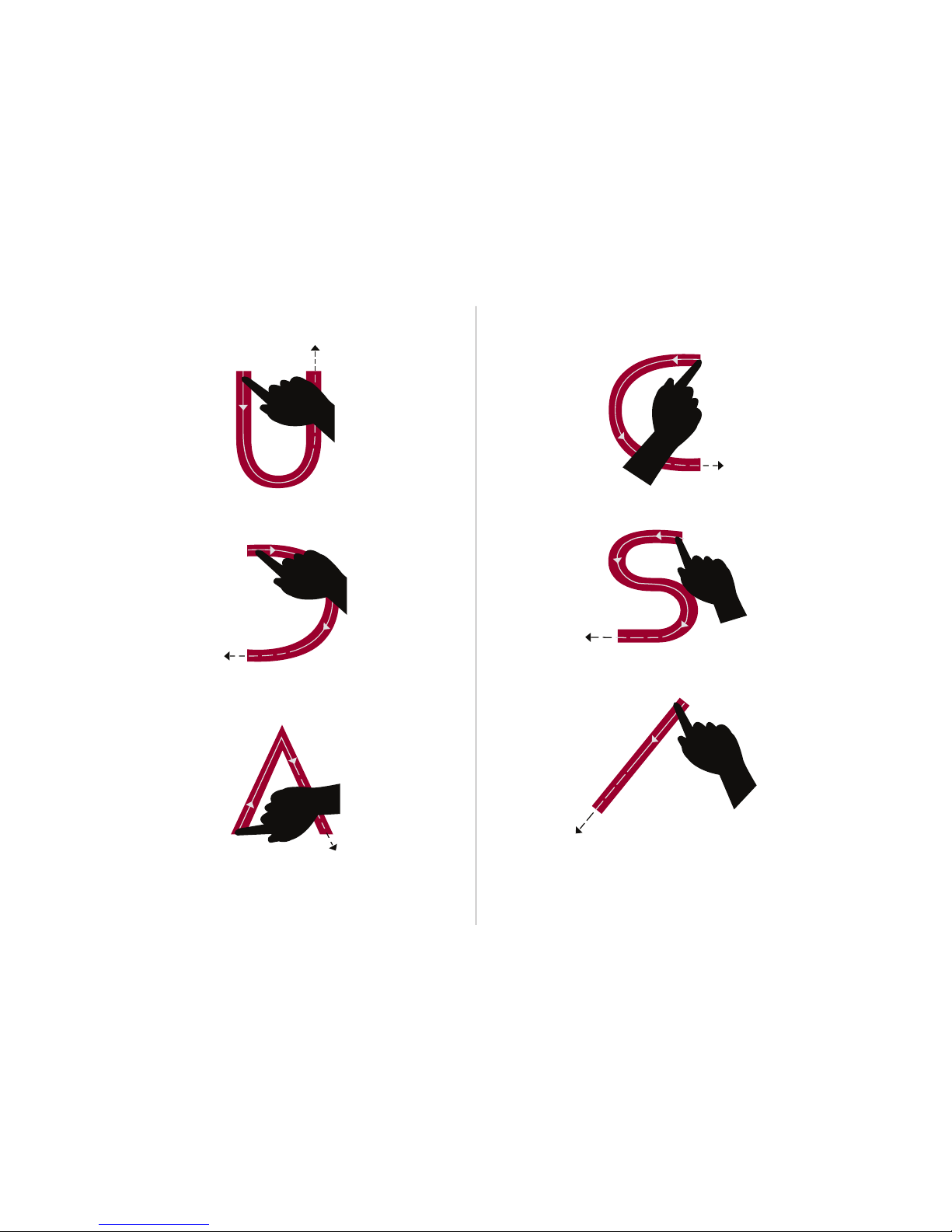

make a “U” gesture on the Home Screen.
Tap on Bluetooth icon. Watch displays the
Bluetooth name as HOT Watch-XXXXXX (6
digit Bluetooth ID of the watch). Select HOT

Watch-XXXXXX on the phone to pair the
watch to the phone. Once the watch is
paired, it will connect via phone audio
(HFP). The next time the watch is On, it will

automatically connect to your paired
phone.
If the watch Bluetooth is not in
discoverable mode, you can make it
discoverable with below steps.

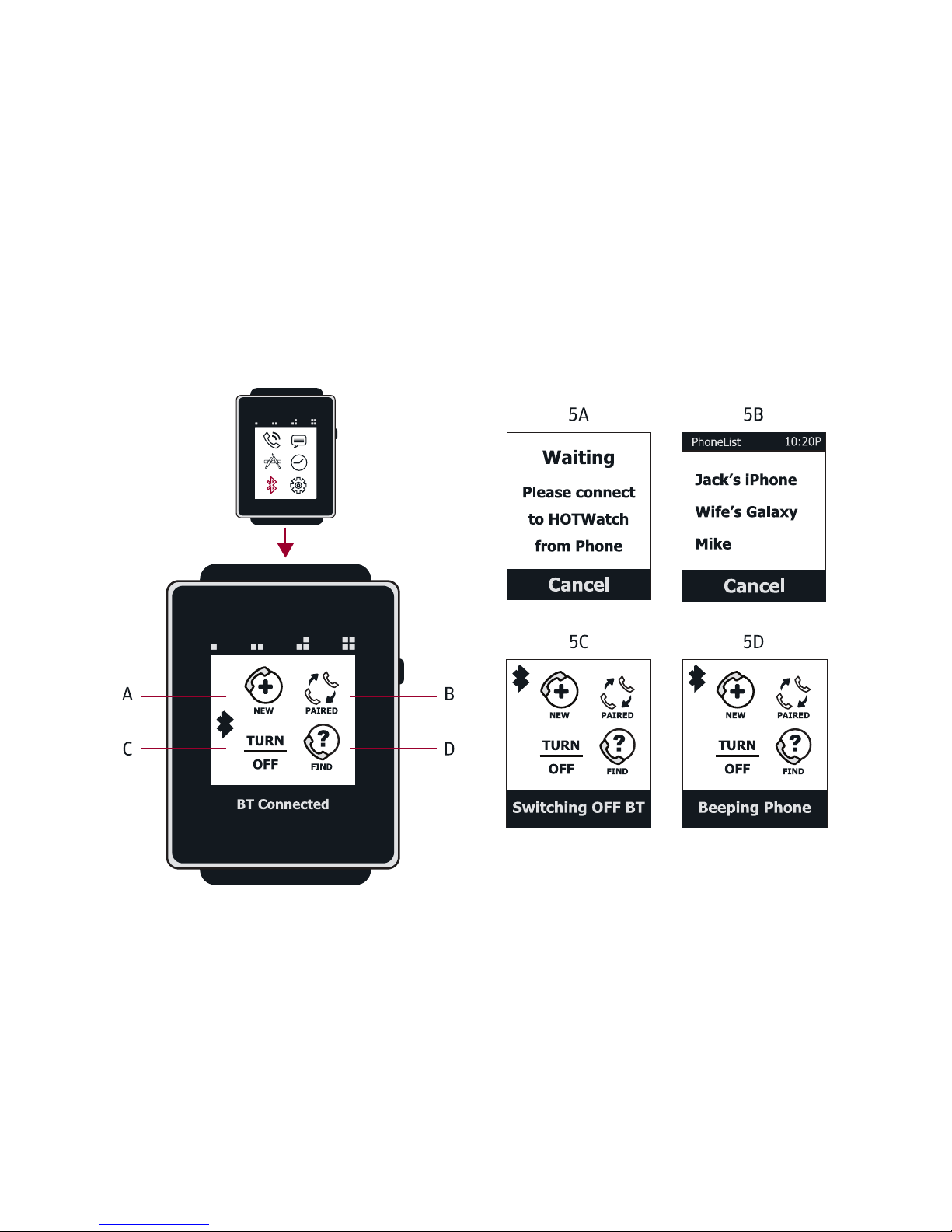

Go to Unlock menu with icon 4 touch or U
touch gesture
Select Bluetooth icon
Select New.
The watch will make Bluetooth
discoverable and will display Bluetooth id
of the watch

Hands-On Call Usage

The Hands-on Call feature is a unique
feature which provides a private call
experience. It is achieved by using a
directional speaker located at the bottom of
the wrist. The speaker projects the sound
from the watch strap when the user’s palm is
held to his/her ear. The palm redirects the
sound to the ear. Follow the steps below to
get the best experience.

Run the HOT Watch app in the Android
or iPhone or Windows phone. The app
opens the data connection (SPP).

● Wear the watch on
your wrist, close to
your palm. So that the
speaker is closer to
palm.

● Cusp the palm over the
ear. Make sure that
your palm is not
touching the ear:
otherwise the sound
will be blocked.

Energy Optimization

The HOT Watch is designed for maximum
energy efficiency. The watch defaults to the
energy saver mode. The Energy Saver or
Normal mode can be selected in the Settings
screens. Below are the differences between
the Energy Saver and Normal mode.

Function Energy Saver Mode Normal Mode

Frequency of information updated
from the phone app

5 minutes

Short

Off

After 30 minutes

1 minute

Long

On

Always On

Backlight during notification

Tactile vibration when icons are tapped

Bluetooth turns Off when watch is
not being worn

● Adjust the volume (scale of 1-15) if
required. The default volume level for
Hands-On is 5 and Hands Free is 13 for
the call, default can be changed from the
HOT Watch app in the phone. Adjust the
volume to the minimum required, for
audibility and for a better private call
experience.

● Volume can be further adjusted during call

with + - buttons on the screen. The watch
automatically adjusts volume in noisy
environments using auto gain.

Gestures

The HOT Watch detects hand gestures
using a 6-axis accelerometer and
gyroscope. The gyroscope is switched
Off by default to save battery power. It is

Action Gesture Gesture Detail

Answer call

Reject call

Mute call

End call

Raise hand to ear

Bye-Bye

Twist

Bye-Bye or Twist

During an incoming call, place your
hand cusped over your ear.

During an incoming call, wave the hand left
to right 3 times, similar to waving bye-bye.

During an incoming call,
Twist your wrist 3 times.

To end the call, twist your wrist thrice or do
bye-bye gesture.

switched On during a call or whenever
required. The gestures are categorized into
call and non-call gestures. The call
gestures are activated during a phone call
(ringing, dial-out, call in progress, etc).

Non-call gestures (off by default) are used to

get Recents, Favourites and Voice

response. Non-call gestures are initiated

by twisting the wrist two times. The
non-call gestures are described below.

Feature Action Gesture Detail

LED Backlight

Voice Response

Favorites

Horizontal watch reading

Watch reading +
tap two times

Raise hand to ear

Move hand to the horizontal watch reading
position, tilting towards you for one second.

Move the hand to the horizontal watch reading
position, tilting towards you for one second.
After the backlight is On, move your hand to ear

Move the hand to the horizontal watch reading
position, tilting towards you for one second.
After the backlight is On, rotate your hand so
that the audio module is facing you.

Miscellaneous

● To make a call, dial the number on the
dial screen and tap on the dialed
number to activate call.

● The text typing screen for SMS text
reply or Facebook comment reply uses
a T9 style keyboard. Type the desired

text using the keyboard touch the text to
send out. (Only Android and Windows users
can respond to texts using keypad, iOS
users can use Siri to respond to texts)

● The charger has a magnetic connector
and is attracted to steel surfaces.
When the charger cable is connected

Miscellaneous

● To make a call, dial the number on the
dial screen and tap on the dialed
number to activate call.

● The text typing screen for SMS text
reply or Facebook comment reply uses
a T9 style keyboard. Type the desired

text using the keyboard touch the text to
send out. (Only Android and Windows users
can respond to texts using keypad, iOS
users can use Siri to respond to texts)

● The charger has a magnetic connector
and is attracted to steel surfaces.
When the charger cable is connected

to a power source, make sure that the magnetic
side is not close to any metal surfaces. While teeth
are provided to prevent a short circuit on the
connector, the angular contact of the connector can
still create a short circuit.

● At Midnight 12 , HOTWatch
connections are cleaned up.

Phone Switching

When making or receiving a call from the watch, the
call stays on the watch. It can be transferred to the
phone by tapping on the headset button on the
phone. When making a call from the phone, the
default behavior of the phone is to push the call to a
Bluetooth device (HOT Watch in this case), but the
watch pushes the call back to phone (as user is not
using watch to dial-out). This will make sure that the
call will stay on the phone when the call is made
from or received from the phone. However, some
Android phones do not work well with this call
pushback. They tend to push the call back to watch.
This can cause automatic call switch to watch

during a normal phone call. To overcome this

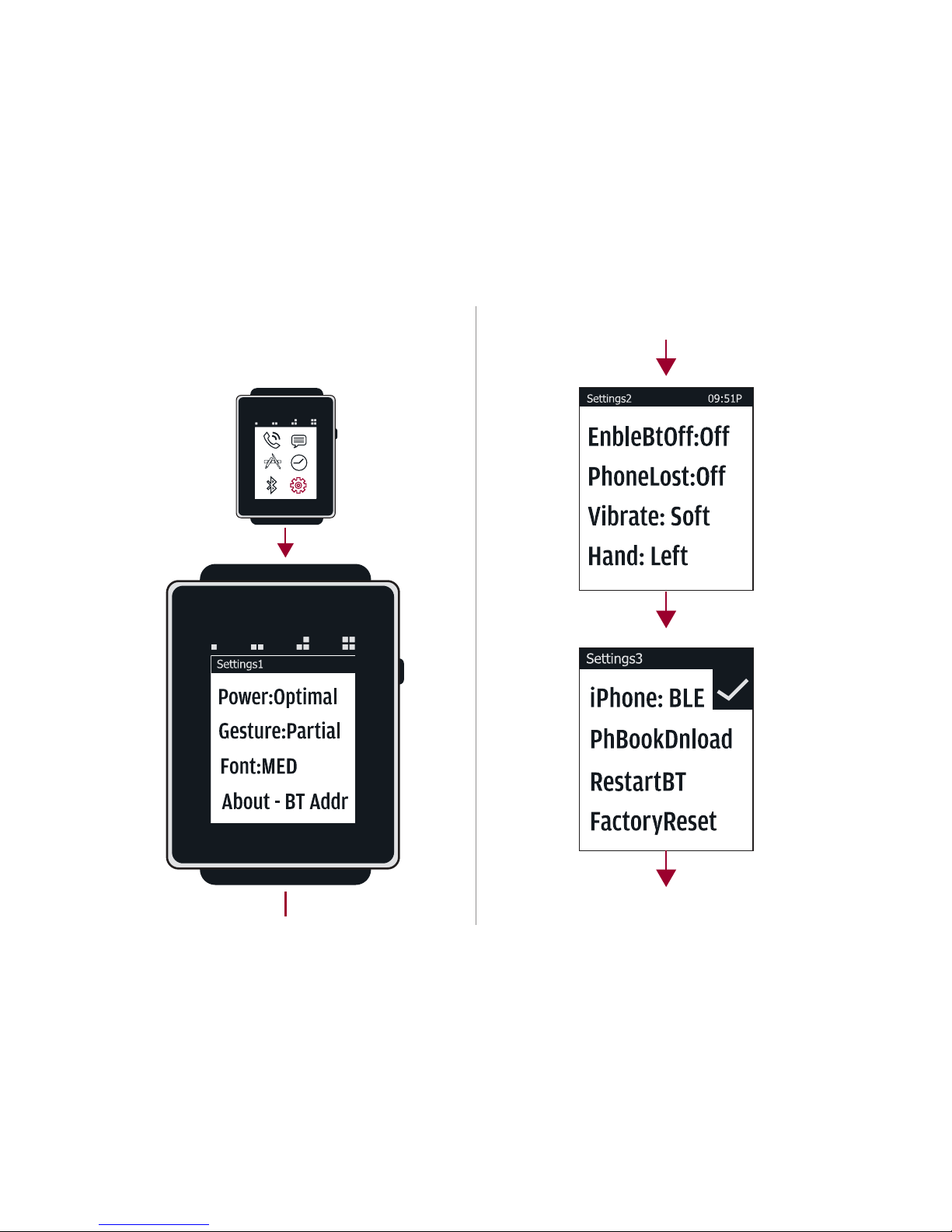

problem, a special setting “EnbleBtOff” is provided
on the watch’s Settings screen to switch off the
Bluetooth (only call audio - HFP) when a call is
made from the phone. The HFP is enabled again
when the call is made from the watch or when a
new call comes in. Make this setting On to
prevent call switching. When this option is
enabled, the HFP Bluetooth icon is changed from
signal level to BT icon when HFP is kept in
disconnected state.

Bluetooth Icons

The HOT Smart Watch uses a dual mode
Bluetooth device with Bluetooth Classic (2.1) and
Bluetooth Low Energy (BLE, 4.0) in one device.
The Classic Bluetooth is used for call audio, data
connection, and phonebook access and music
control. BLE is used for data connection on the
supported iOS phones (available only with iPhone
4S, iOS 7 and above). The table below lists the
Bluetooth profiles supported by the watch.

Icons

Bluetooth Profile Function

Hands Free Profile (HFP)

Call audio

Phone Book Access Profile
(PBAP)

Contacts and recent numbers from phone

Audio Video Remote
Control Profile (AVRCP)

Music control

Serial Profile (SPP)

Data connection with Android and Windows app

IAP

Data connection with iPhone

Message Access Profile
(MAP)

SMS messaging in iPhone 4 and above

Bluetooth Low Energy
(BLE) (GATT)

Global notifications in iPhone

or app fails to start or notifications stops coming.
The safest recovery at this time is to switch off
Bluetooth and switch it back on in Bluetooth menu
in the watch. In this condition it may help in
switching Bluetooth off and on in the phone also.

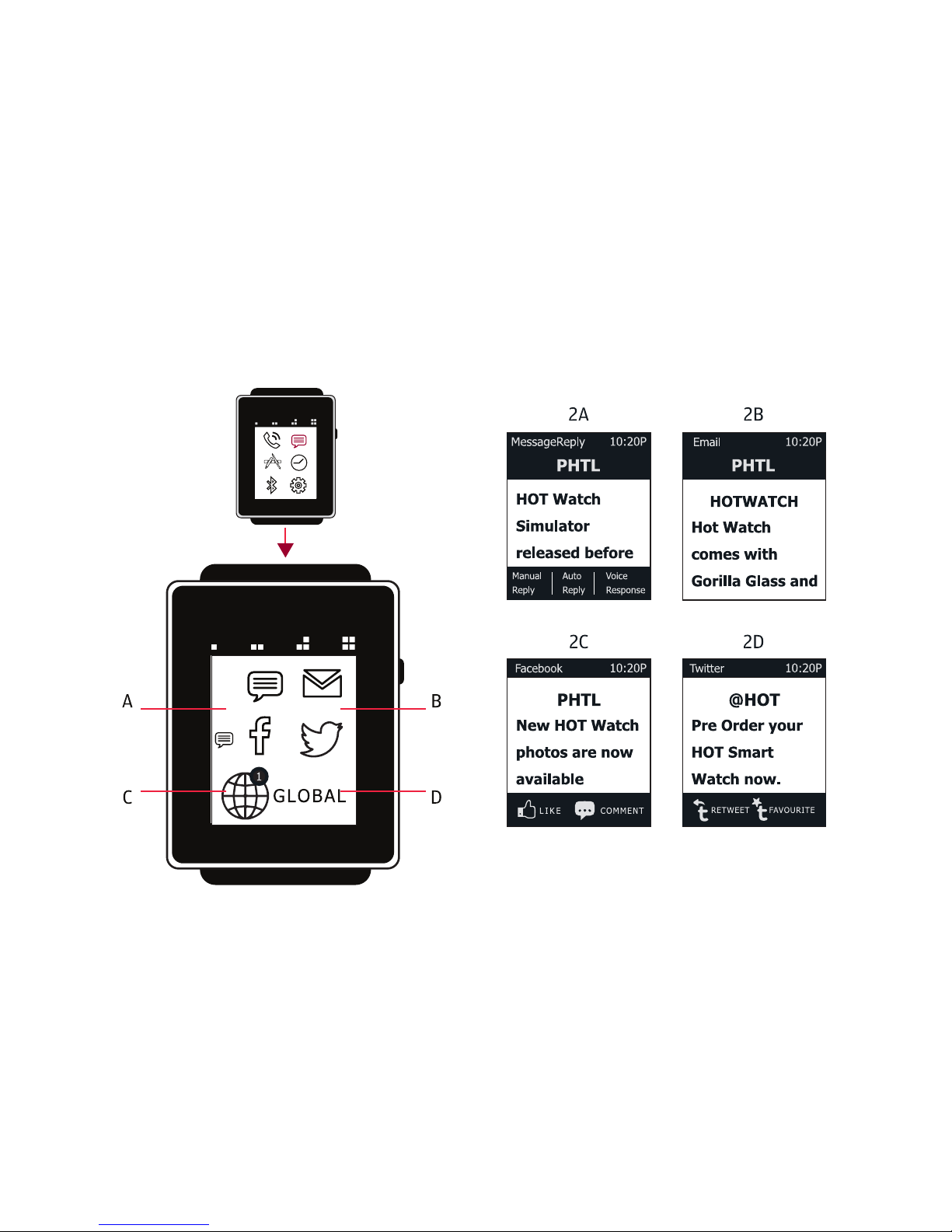

Notifications

HOTWatch supports SMS, Email, Facebook,
Twitter and other notifications.

In Android phone, the HOTWatch Application
forwards phone notifications to watch. By default,
Email, Facebook, Twitter, WhatsApp and WeChat
apps are enabled. The user can go to Settings and
enable other apps for global notifications. The
notification character size limit is 380 for Android.
The user can respond to SMS notifications from
the watch.

In iPhone, the HOTWatch receives notifications via
Bluetooth Low Energy (BLE) with GATT-ANCS
profile. Once the BLE is connected, these

When HFP is connected, Signal level is displayed
and when HFP is disconnected BT icon is
displayed. The Signal level and the battery level is
updated every 5 minutes. If any profile is
disconnected, touching this icon will try to
re-connect to that profile. If the re-connection fails,
the second touch will reset the Bluetooth.

“BattLow” is displayed, when battery level is at a
critical stage. Bluetooth is turned Off at this level.

Bluetooth Connection Issues

When Bluetooth connection is lost, watch tries to
reconnect automatically. In case it is not
successful, user can manually reconnect by
tapping the Bluetooth icon in main watchface
screen or tapping Reconnect in Bluetooth menu. If
connection fails first time, tap on the icon again
after the status message on this screen. Watch will
reset and connect Bluetooth in clean state.

Bluetooth (especially SPP or BLE) can sometimes
be in bad state. In this condition, it won’t reconnect

ICON1

ICON2

ICON3

ICON4

notifications are sent from the iOS to the watch
automatically (even when HOTWatch app is not
running). To connect BLE, bring the HOTWatch
app to foreground. BLE gets connected to the
watch. Once BLE connects, you will get BLE pair
request. It is very important to accept this pair
request for stable BLE connection.

BLE is supported in iPhone 4S or above with iOS
7 or above.

The notification size limit is 90 characters for
iPhone due to BLE limitation.

Please refer to advanced manual on iPhone
Bluetooth connection from www.hotsmart­watch.com/download for any BLE connection
issues.

Time and Information Screens

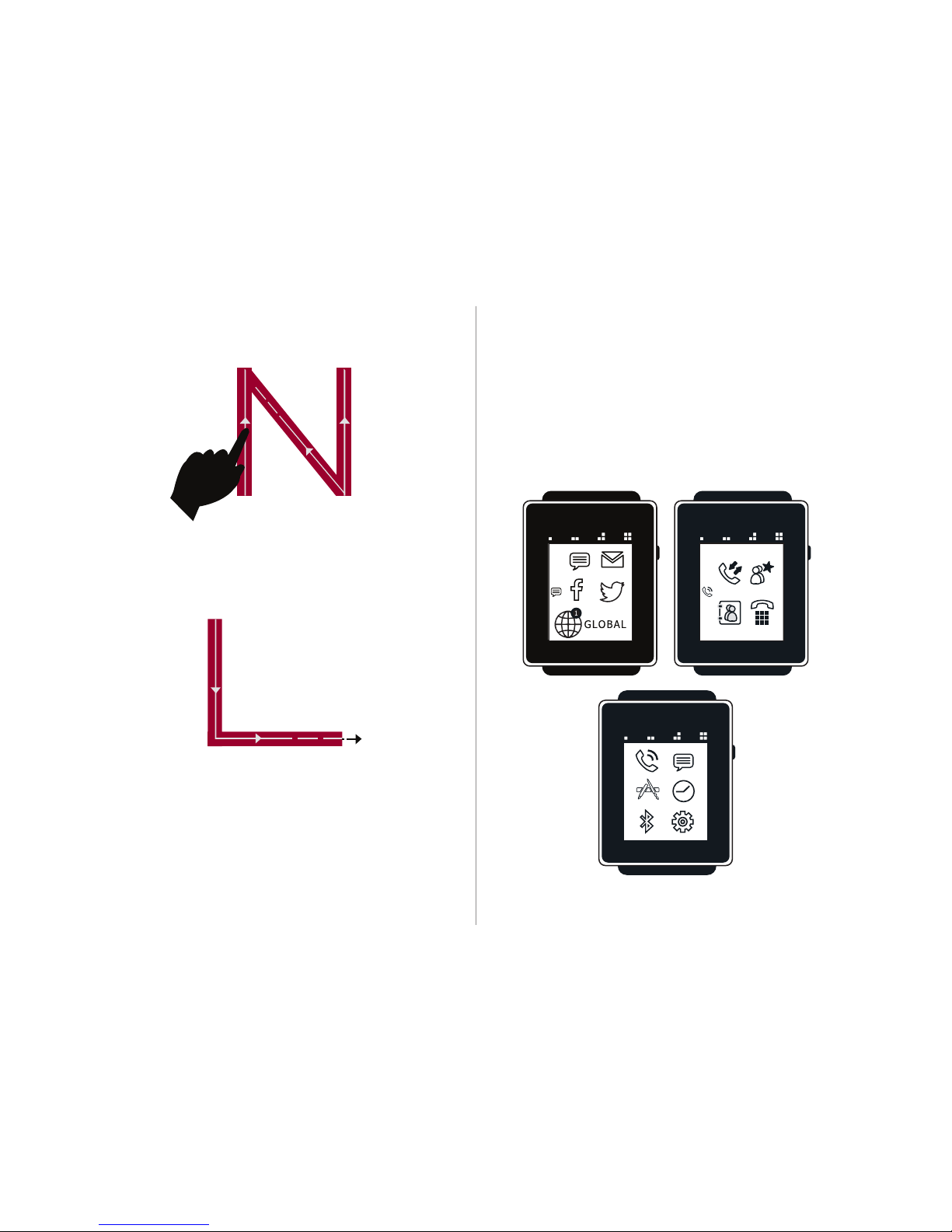

The user screens are divided into 4 main screens
(Time, Notifications, information Apps and custom

Apps) and Advanced Function Screens.

The Time and Information screens are divided into
4x6 sections as shown below. The 4 icons
represent 4 columns that have analog and digital
watch faces, notification screens, information and
custom apps. Within each column, there can be
up to 6 screens with different watch faces or
custom apps.

ICON1 ICON2

Bob Phtl :

1-F Book 01:33P

Today is Nina
Phtl's
birthday.

Emily

2-Whats.app 01:34P

Success isn't
something
that just
happens.

Taylor

3-Hike 01:35P

Most people
never run far
enough on
their first

5-Twitter 01:44P

@teamphtl hai
friends

5 Mails :

6-Email 01:45P

Nina phtl

Liz

4-viber 01:41P

One of the
secrets of life
is that all that
is really worth

ICON3 ICON4

No Meetings

Meeting 01:35P

For Today

FbookTwit 02.17P

PHTL
No FB Messages

@HOT
No Twitter Me

Info6 02:18P

MSFT : NA

GOOG : NA

AAPL : NA

PHTL

SMS 01:41P

No SMS
Messages

NativeApp 02:22P

App 3
Not LOADED

NativeApp 02:22P

App 5
Not LOADED

NativeApp 02:22P

App 4
Not LOADED

NativeApp 02:20P

Info 1 09:51P

02 : 13

80

92

F 42

SAT

88-45

SUN

96-33

App 2
Not LOADED

Info 1 09:51P

The icons in Sections 1 are pre-loaded with watch
faces that are optimized to be energy efficient. Six
Watch faces are available in Section 1. The watch
faces have a Time and Date display. The seconds’
hand (or seconds in digital display) is Off by
default. Touching the screen for more than two
seconds will switch the second needle On for 90
seconds (supported only on 1, 2 and 5th
watchface). The watch faces can be replaced with
custom watch faces from third party vendors.

● Digital1: Digital display using various font sizes
and 12/24 hour format with phone signal level and
watch battery level indication. Tapping on 12
toggles between the two formats. This watch face
displays seconds for long touch. This screen also
displays:

● Phone book download status

● Indicates Bluetooth Off, when watch is in

idle state.

● Analog1: Simple analog clock with phone signal

level and watch battery level indication. This has
second hand needle. This screen also displays:

● Phone book download status

● Indicates Bluetooth Off, when watch is in

idle state.

● Digital2: Hours in digital format and Minutes in
analog format.

● Digital3 : Seven segment style fonts with digital
display.

● Analog2: Clock with textured background. This
has seconds needle.

● Digital4: Dual city clock. Sun and moon are
displayed based on the time of day (6AM-6PM) or
night (6PM to 6AM). The second city is
customizable from the HOTWatch application.

The Icon section

Icon 2 displays the latest six notifications in order

of receive from the connected smart phone. Long
touch (for about 2 seconds) on any of the

notification will take the user to the advanced
screen of that particular application.

Icon 3 has selectable apps from the information
screens. The 6 screens in this section can have 1,
2 or 3 windows. Each window can have an
information app configured from a list of selectable
apps. The configuration is done in the connected
smart phone by selecting the information app into a
particular screen window.

The information screens are static screens that are
refreshed every minute (every 5 minutes in energy
saving mode) with data from the paired phone. In
Windows phone, it is refreshed once in every 30
minutes.

List of apps that can be added in Section 2 are

● Stock 1

● Stock 2

● Stock 3

● Stock 4

● Weather

● Second city time

● Fitness app - pedometer

● calendar

● Facebook

● Twitter

● Email

● SMS

● News

● Cortana (only for Windows)

When the SMS, Facebook, Twitter, Email, fitness
or calendar screen is touched for more than 2
seconds, the advanced screen for that particular
application will be opened.

Icon 4 has the Main Menu and can house custom
apps developed by third parties using our SDK.
The watch is pre-loaded with the Tic-Tac-Toe
game app.

Long touch on some information screens has
additional functionality listed below

Advanced Function Screens

The advanced function screens provide access to call, multi-messaging and other useful applications.
These screens can be accessed using the shortcuts. Writing U on screen unlocks the screen and takes
the user to Main menu. Other shortcuts opens different screens and apps. Below is a list of touch
shortcuts.

Screen Functionality

Watchface 1, 2 and 4

Watchface with custom watchface

Toggle between Centigrade (C)
and Fahrenheit (F)

Switch on the seconds display for 90 seconds

Toggle between regular watchface and custom
watchface. Watchface 1,2,4 will have 3 way
toggle including seconds display

Go to actual notification

Notification Screens in icon2

Weather Screen in icon3

Pedometer in icon3

Other information screens in Icon3

Advanced pedometer screen

Go to the actual information screen

U- Unlock and take to Main menu screen

C - Clock main screen

D (without vertical line)

Dial Main screen

A (without horizontal line)

Apps main screen

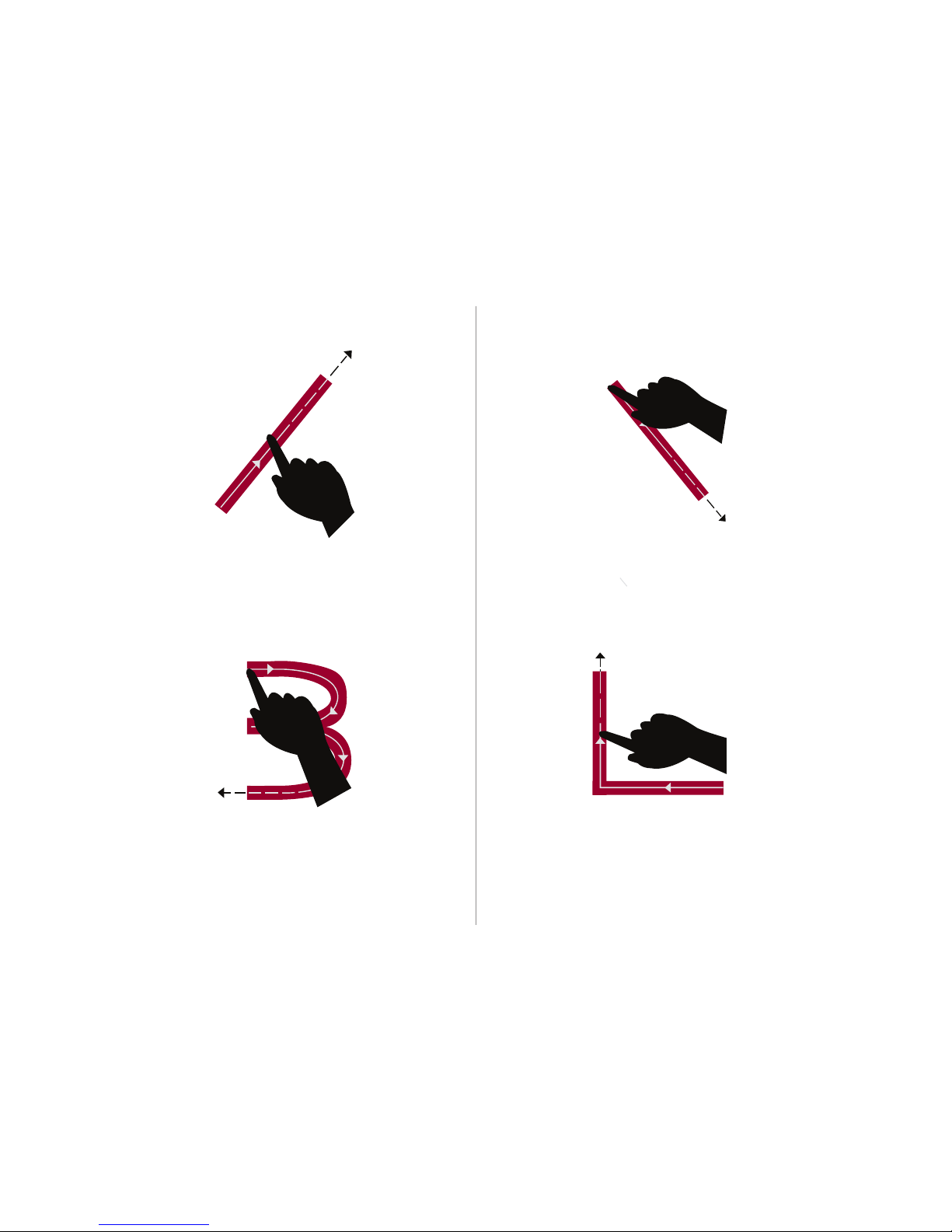

/ Diagonal slide from top right to bottom left

Music control screen

S - SMS and other messaging apps

/ Diagonal from bottom left to top right

Voice response

Reverse L or Reverse Diagonal

L: Backlight (bottom right to top left)

\: Flashlight on (Curve model only)

B (without vertical line)

Bluetooth main screen

\ Diagonal from top left to bottom right

Go to main watch faces screen If already in

watch face screen, activates the LCD color

L - Locks the watch face and it will not move by

touching it accidentally. The touch functionality is

disabled in this condition. Unlock watchface with

long power button press or double click on the

power button. The screen displays Lock icon at the

bottom right corner on all main screens

N - Note taker (For Future)

The chart below illustrates the advanced
function screen flow. The advanced screens
starts with the main unlock screen and branches
into the phone menu, SMS & Messaging, Apps,
Clock and Time, Bluetooth and Settings screens.

Phone Menu

To navigate between the screens, you must tap
the icons. Tapping any icon on the unlock screen
takes you to second level icons. The second
level screen also includes a sub-icon displaying
which group the screen belongs to. Touching this
sub-icon takes you back to main unlock screen.

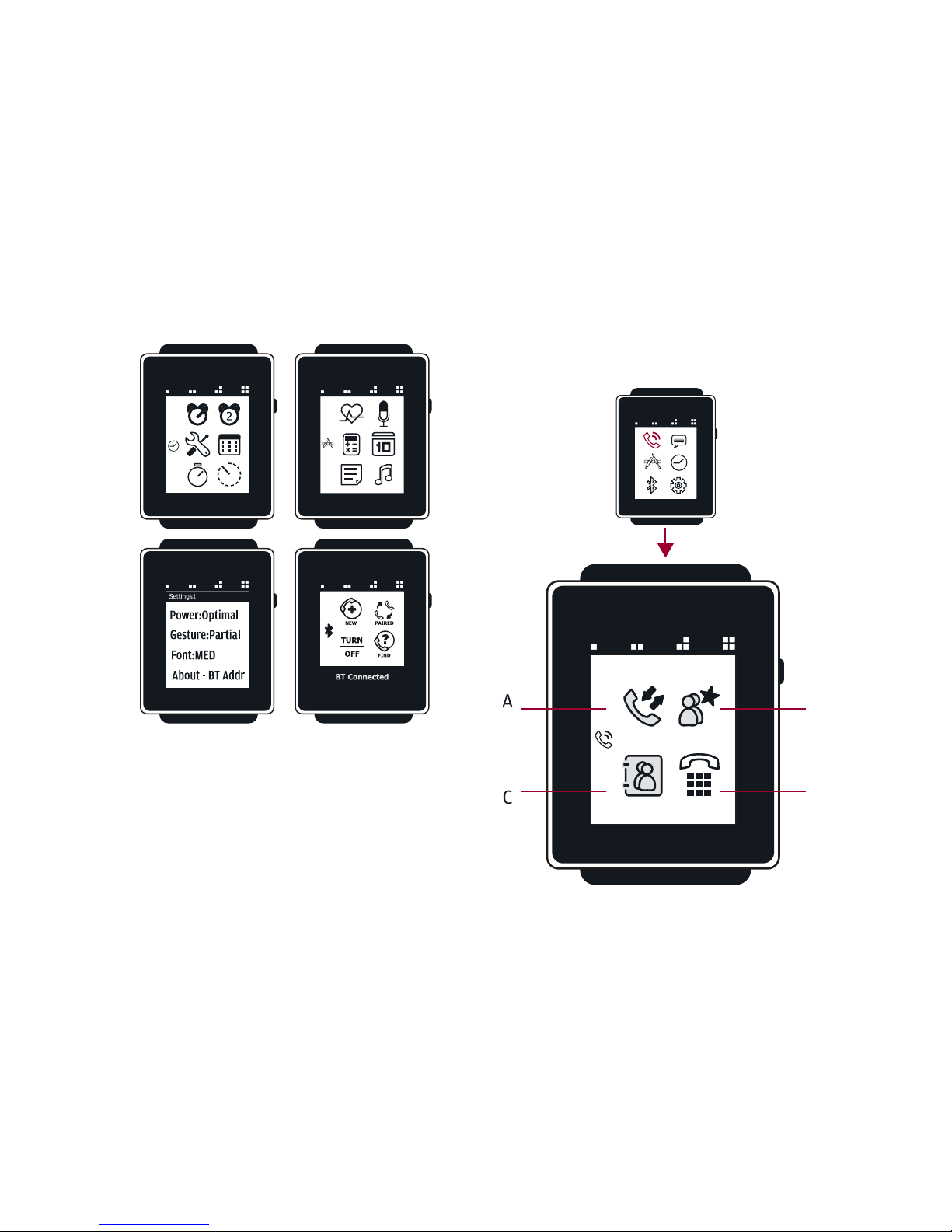

Phone Menu:

The Phone Menu has Recents, Favorites, Phone
Contacts and Dial pad. For Recents and
Contacts to be functional, the phone book
access profile (PBAP) has to be connected to a
phone via Bluetooth. Grant Permission to access
Phone book while pairing the watch. If not, the
Recents and Contacts feature will not be
available. Any issue with PBAP can be resolved
by un-pairing and re-paring the watch and
phone. Recents, Favorites and Contacts list cab
be scrolled by sliding the finger up or down on
the screen. Tapping a name and the number in
the Contacts list dials out a call.

Recents: The list of recently dialed numbers is
displayed. There may be a lag in the display of
the recent list depending on the transfer speed
from the phone to the watch.

Favorites: Displays the list of favorite phone
numbers from the paired phone. In an Android

paired phone, the Favorite name-numbers are

downloaded automatically by the HOTWatch
application on the phone. On the iPhone or
Windows app, the favorite phone contacts
have to be selected in the HOTWatch
application.

Contacts: Contacts are downloaded from the
paired phone at the first pairing of the phone to
the watch (maximum of 768 contacts). The
contacts are displayed in the alphabetical
order on the screen. Tapping any letter on the
list displays the contacts starting with the
selected letter. Further search can be done by
sliding the finger up or down. Once the name
is found and selected, the phone number can
be dialed out.

Dial pad: After dialing the number, touch the
numbers dialed to start the call. (Like in the
picture below touch “2145042263”).

13.2 SMS & Messaging Menu

13.2 SMS & Messaging Menu

The SMS and messaging menu includes SMS,
Email, Facebook, Twitter and Global notifications
(Other apps like WhatsApp, Skype, etc). A short
SMS reply can also be sent from the watch.
HOTWatch displays the last message received
in the phone. Longer text can be read by
scrolling the screen vertically.

SMS: Shows last SMS message from the
phone. The user can reply to the SMS from the
watch paired to an Android or Windows phone
using the T9 style keypad or send a pre-stored

message to the sender (Auto Reply). Voice

Response can also be used to send a reply to
message.
iPhone does not support this feature.

Email: Shows last Email message from the
phone. The subject, sender and message text
are displayed.

Facebook:

Displays last notification from

Facebook.

Twitter: Shows last tweet from Twitter.

Global: All other notifications (such as

Whatsapp, WeChat, etc) are grouped under
Global notifications.

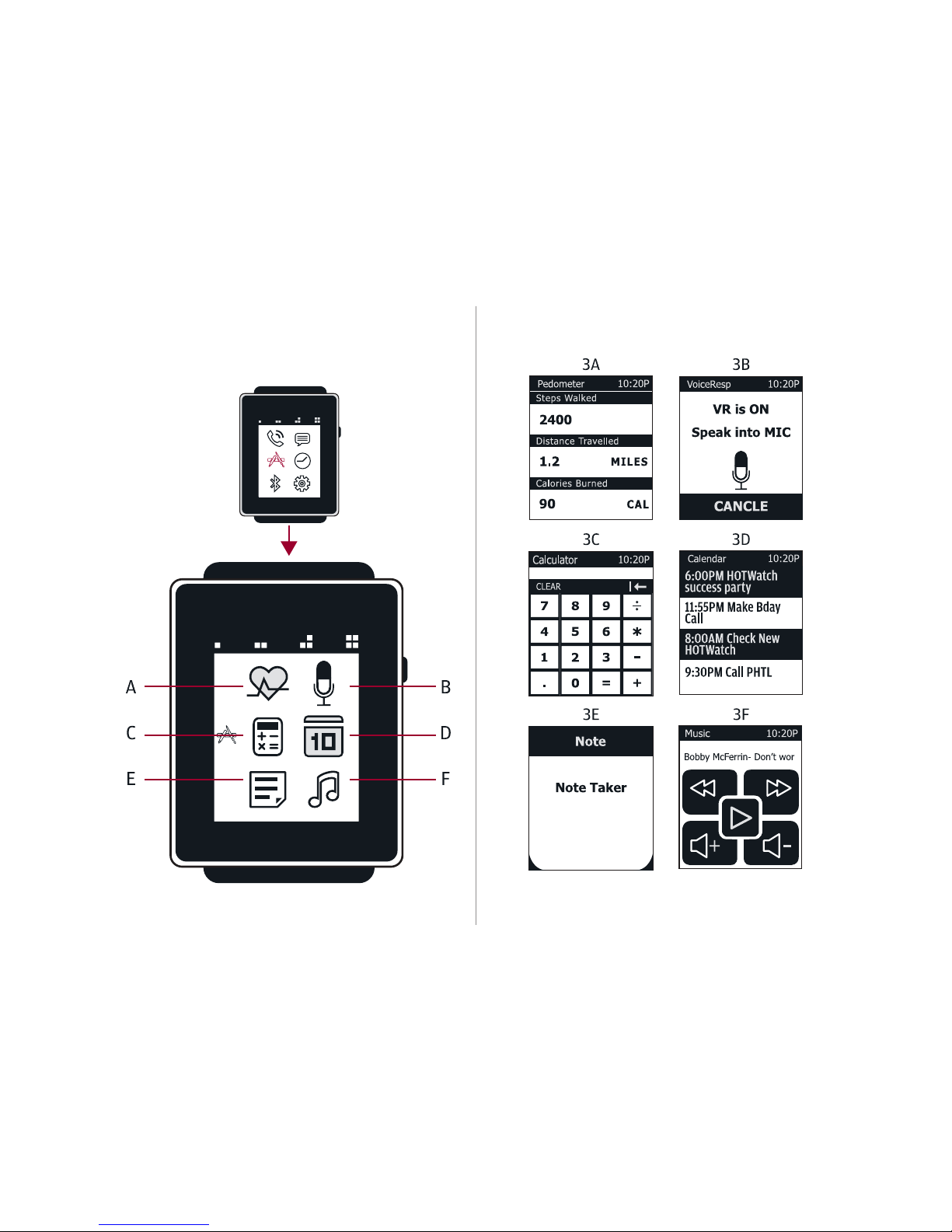

13.3 Apps

13.4 Clock Menu

13.4 Clock Menu

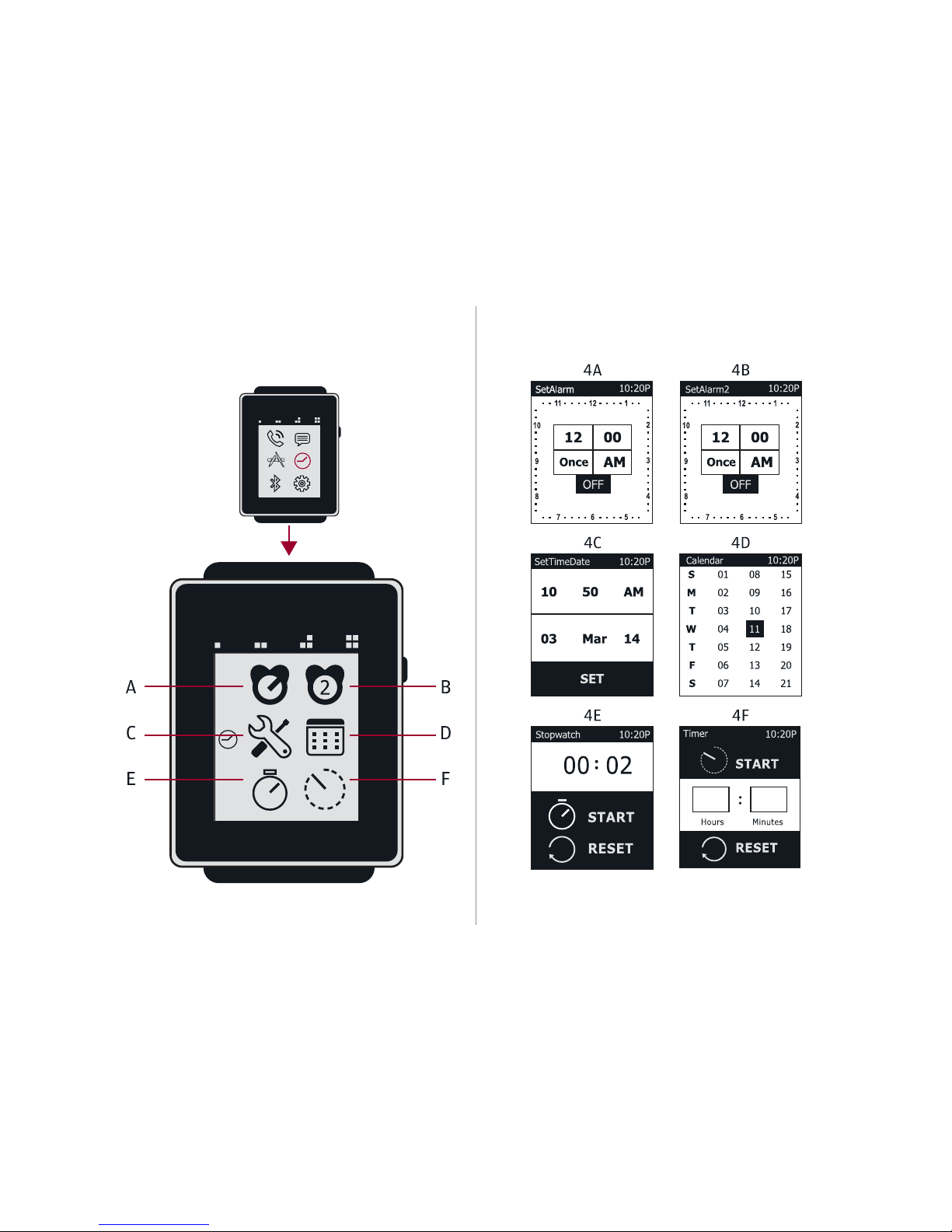

The Clock menu includes functions related
to time, alarm, etc.

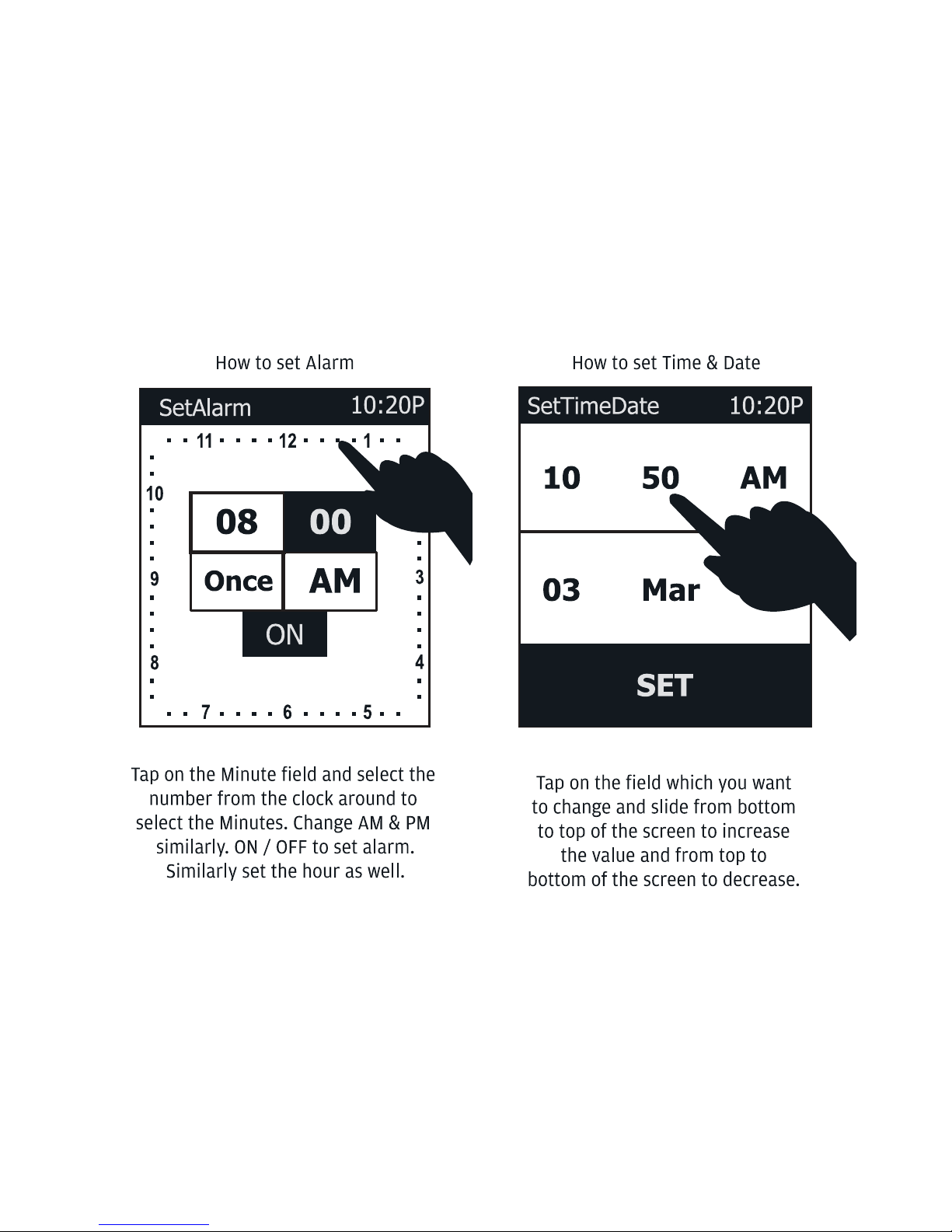

Alarm 1 : Alarm can be set once or daily. To
set time for alarm, tap the hour area and
then tap the circumference dial area to
select the hour. Repeat the procedure for
minute. Tap Once or Daily to select. Tap
AM/PM to select AM or PM. The alarm can
be turned On or Off. Tap the Set key to set
the alarm.

Alarm 2 : Second Alarm Similar to Alarm1.
Set Time : Time can be set here. Tap the

Hour area and slide finger up-down select
the hour. Repeat the same to set the Minute,
Day, Month, Year. AM/PM can be toggled by
a tap. To set the time and date, tap and hold
set for a few seconds. When the HOT Watch
app on phone is connected, the time is
synced with the phone and overrides the set
time.

Calendar : A simple calendar that displays
current, previous and next week dates of
the current month.

Stop Watch : A simple stop watch to display
time elapsed in seconds, minutes and hours.
Tap Start to start the timer. Reset will restart
the counter. The counts are updated live for
90 seconds. After 90 seconds, it runs in the
background and is updated every minute or
when the screen is touched.

Countdown Timer: Set the time in Hours,
Minutes and Seconds to start the timer. Tap

each segment and slide up or down to
change the hour, minute or seconds. Tapping
start will start the countdown. Watch vibrates
at the end of countdown. The display is
updated live for 90 seconds. After 90
seconds, it is updated every minute or when
the screen is touched.

13.5 Bluetooth Menu

13.5 Bluetooth Menu

Bluetooth related functions and Find phone
features are provided in this menu.
New Phone : This makes the watch
discoverable to the phone for about a
minute. The watch should be seen as
HotWatch in the phone Bluetooth scan.

Paired Phones: When multiple phones are
paired to the watch, the phones can be
switched using this menu. The screen
displays the paired phones (max of 4). The
paired phone is highlighted. Tapping any of
the phones from the screen will disconnect
the current phone and connect to a new
phone.

Bluetooth On/Off : Bluetooth can be
switched On or Off from this menu. With
Bluetooth Off, the watch conserves energy
and lasts much longer.

Find Phone : Beeps the connected phone.
Tapping Find Phone again will stop the beep.
The beep also can be stopped from the
phone. Find phone feature works only with
HOTWatch application running.

Bluetooth goes into Sleep mode when there
is no motion for 30 minutes. It wakes up with
motion or touch.

13.6 Settings

13.6 Settings

The settings menu is divided into three screens.

Settings1:
Energy : Saver-Normal

Explained under Energy Optimization section.

Gesture : Call-All-Off
Call gestures include Answering, Rejecting and
Ending call. They are enabled during the call. All
gestures include Call gestures and gesture for

Favorite numbers, Backlight and VR.

Off disables all gestures

Font : Tall-Med
Tall : Large font (Default)
Med : Normal size font

About : BT Add

Displays the software version and Bluetooth
name.

Settings2:
EnableBtOff : Off-On

Disconnects Call Audio Bluetooth (HFP),
when a call is made from phone. (For some
Android devices where audio keeps
switching, this feature can be used.)

PhoneLost : Off-On

On will notify the user when phone is out of
Bluetooth range.

Vibrate : Soft-Norm-Off

Vibration can be set to soft, normal or turned

off for all indications.

Hand : Left-Right

The watch can be worn on the right hand or
left hand. Mode can be set here. Right hand
mode is not optimized for energy efficiency.

13.7 Call Screens

The incoming call screen includes

● Answer call (Hands-On or Speaker mode)
button

● Mute button - stops vibration on watch

and mutes the phone ringer (only in Android)

● Reject call button

Call in progress screen includes Switch
speaker mode (Hands-On or Speaker
mode), Mic-Mute and End call.

The call screens are locked during the call
until the call is ended. Tapping the icons or
power key will not change the screen.

Settings 3:
iPhone:BLE-SMS

Enables BLE or SMS (MAP) for iPhone
notifications.

PhBookDnLoad

Downloads phone book from the phone. The
phonebook is downloaded with every new
Bluetooth connection.

RestartBT

Resets Bluetooth and un-pairs all paired
phones.

Factory Reset

Clears the phone book
Resets and un-pairs all Bluetooth

connections
Changes all the settings to factory default

FCC Statement

This device complies with Part 15 of the FCC
rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) This
device must accept any interference
received, including interference that may
cause undesired operation.

Any change or modification not expressly
approved by PH Technical Labs may void
the users’ authority to operate the
equipment. This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy, and
if not installed and used in accordance with
the instructions, may cause harmful

interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation.

Industry Canada Statement

This device complies with RSS-210 of
Industry Canada.

Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.

This Class B digital apparatus complies with
Canadian ICES-003.
