HOT Watch Classic User Manual

HOT Watch User Manual

The watch will be shipped in power off state.

Action

Function

Press and hold for 6 seconds
Press once when off

Turn Off
Turn On

Press once

Backlight on

Press twice

Touch Calibration. Required when there is an
undesirable touch experience

1. Getting Started

For best user experience, download the HOT Watch app from the iTunes (iPhone) or Google Play
(Android phone) or Windows store (Windows phone). Install the app on your phone before you turn the
watch On.

2. Turning On and Off

To turn on the HOT Watch, press and release the power key. If it does not turn On, the battery may be
drained. Connect the watch to the charger and the watch should work. The watch comes with a
magnetic USB charger that pairs to the audio module of the watch.

Please do not leave the magnetic end of the charger near metal surface when USB end of the cable is
plugged in. It can create short to the USB lines. While we provide teeth to prevent short, angled metal
surfaces can still create short.

To turn Off the HOT Watch, when the display is active, press and hold down the power key for 5
seconds

3. Power Key

When watch is powered on, it starts in Bluetooth discoverable mode so that phone can
connect to the watch. On the phone Bluetooth menu, scan for Bluetooth devices and select
HOT Watch-XXXXXX to connect to watch. Once the watch is paired to phone, it will connect
phone audio (HFP). The next time watch and phone are nearby, the watch automatically
connects to paired phone.

If the watch Bluetooth is not in discoverable mode, you can make it discoverable with below
steps.

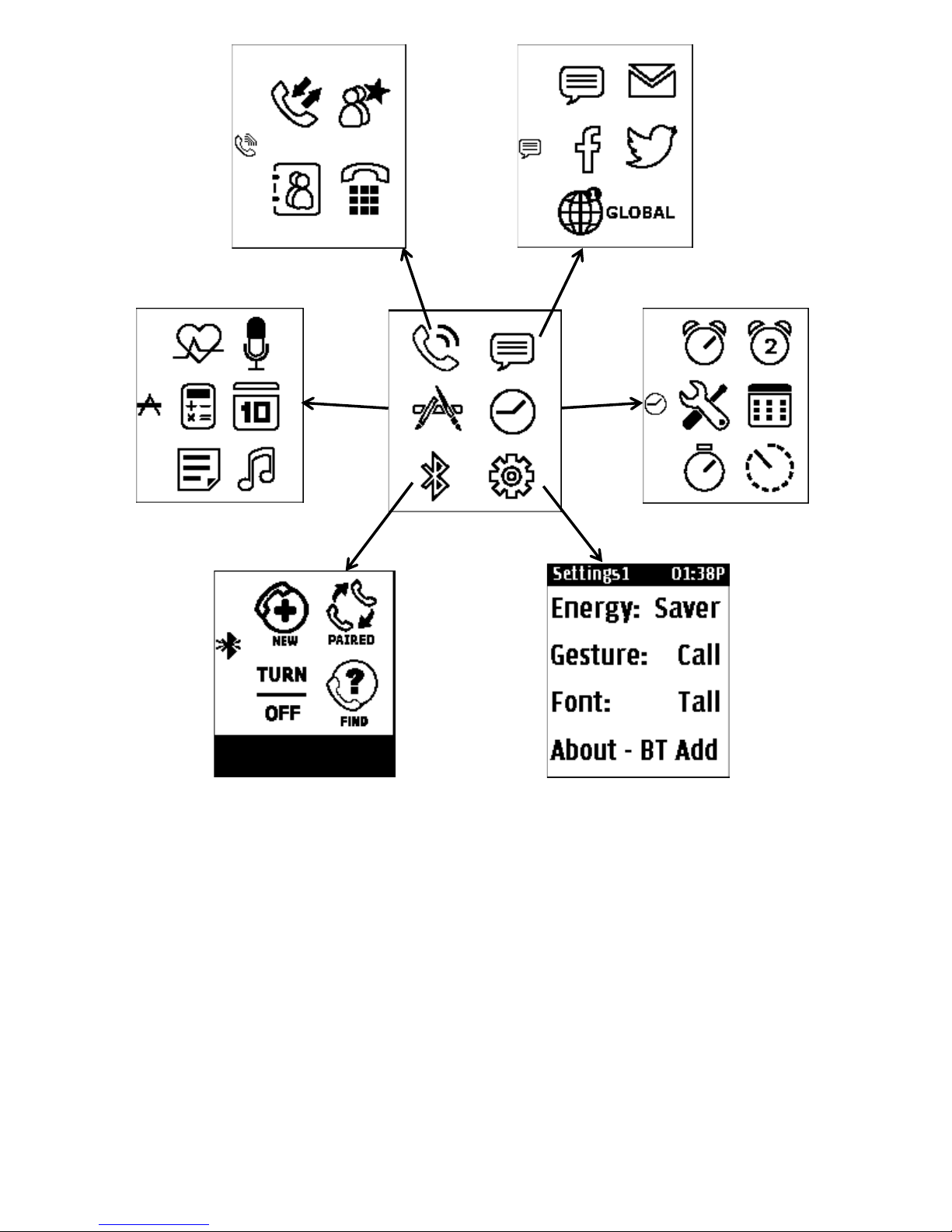

- Go to Unlock menu with shortcut icon 4 touch or U touch gesture

Function

Energy Saver Mode

Normal Mode

Frequency of information updated from the
phone app

5 minutes

1 minute

- Select Bluetooth icon

- Select New.

- The watch will make Bluetooth discoverable and will display Bluetooth id of the watch

Run the HOT Watch app in the Android or iPhone or Windows phone. The app opens the
Bluetooth data connection (SPP)

4. Hands-On Call Usage

The Hands-on Call feature is a unique feature which provides a private call experience. It is
achieved by using a directional speaker located at the bottom of the wrist. The speaker projects
the sound from the watch strap when the user’s palm is held to his/her ear. The palm redirects
the sound to the ear. Follow the below steps to get the best audio experience.

A. Wear the watch on your wrist, close to your palm. So that the speaker is closer
to palm.
B. Cusp the palm over the ear. Make sure that bottom of your palm is not
touching the ear: otherwise the sound will be blocked.
C. Adjust the volume (scale of 1-15) if required. The default volume level for
Hands-On is 5 and Hands Free is 13 for the call, default can be changed from the
HOT Watch app in the phone. Adjust the volume to the minimum required, for
audibility and for a better private call experience.
D.Volume can be further adjusted during call with + - buttons on the screen. The

watch automatically adjusts volume in noisy environments using auto gain.

5. Energy Optimization

The HOT Watch is designed for maximum energy efficiency. The watch default mode is energy
saver mode. The Energy Saver or Normal mode can be selected in the Settings screens. Below
are the differences between the Energy Saver and Normal mode.

Backlight during notification

Short

Long

Tactile vibration when icons are tapped

Off

On

Bluetooth turns Off when watch is not worn

After 30 minutes

Always On

6. Gestures

Action

Gesture

Gesture Detail

Answer
call

Raise hand to
ear

During an incoming call, place your hand cusped over your ear.

Reject call

Bye-Bye

During an incoming call, wave the hand left to right 3 times,
similar to waving bye-bye.

Mute call

Twist

During an incoming call, Twist your wrist 3 times.

End call

Bye-Bye or
Twist

To end the call, twist your wrist thrice or do bye-bye gesture.

Feature

Action

Gesture Detail

LED Backlight

Horizontal
watch reading

Twist your wrist twice. Move hand to the horizontal watch
reading position for one second.

Voice
Response

Watch reading
+
tap two times

Twist your hand twice and move the hand to the horizontal
watch reading position for one second. After the backlight is
On, tap the hand from top to bottom for two times.

Favorites

Raise hand to
ear

When there are no incoming calls, twist your wrist twice and
move the hand towards the ear. The favorite phone number
screen is displayed.

The HOT Watch detects hand gestures using a 6-axis accelerometer and gyroscope. The
gyroscope is switched Off by default to save battery power. It is switched On during a call or
whenever required. The gestures are categorized into call and non-call gestures. The call
gestures are activated during a phone call (ringing, dial-out, call in progress, etc).

Non-call gestures are used to get Recents, Favourites and Voice response. , Non-call gestures
are initiated by twisting the wrist two times. The non-call gestures are described below. The
non-call gestures are switched Off by default. They can be enabled in settings menu by
selecting All option for Gesture.

7. Miscellaneous

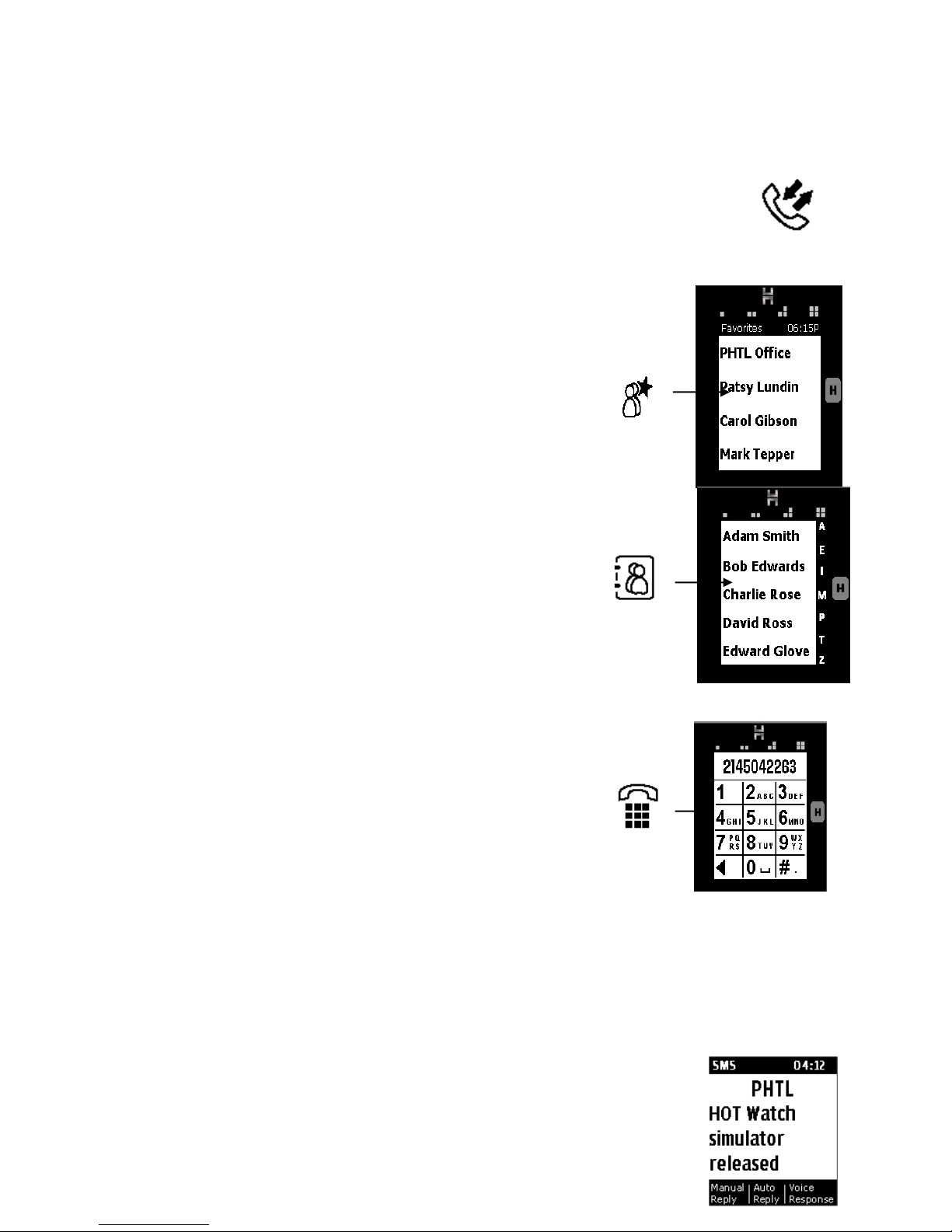

- To make a call from the watch, dial the number on the dial pad of dial-out screen and

touch on the dialed number to activate call. (There is no call button on this screen)

- The text typing screen for SMS text reply or Facebook comment reply uses a T9 style

keyboard. Type the desired text using the keyboard touch the text to send out. (Only
Android and Windows users can respond to texts using keypad, iOS users can use Siri to
respond to texts)

- The charger has a magnetic connector and is attracted to steel surfaces. When the

Bluetooth Profile

Function

Hands Free Profile (HFP)

Call audio

Phone Book Access Profile (PBAP)

Contacts and recent numbers from phone

Audio Video Remote Control Profile (AVRCP)

Music control

Serial Profile (SPP)

Data connection with Android and Windows
app

IAP

Data connection with iPhone

Message Access Profile (MAP)

SMS messaging in iPhone 4 and above

Bluetooth Low Energy (BLE) (GATT)

Global notifications in iPhone

charger cable is connected to a power source, make sure that the magnetic side is not
close to any metal surfaces. While teeth are provided to prevent a short circuit on the
connector, the angular contact of the connector can create a short circuit in the watch .

- At Midnight 12AM, HOTWatch connections are cleaned up.

8. Audio Switching b/w Phone and Watch during Call

When making or receiving a call from the watch, the call stays on the watch. It can be
transferred to the phone by tapping on the headset button on the phone. When making a call
from the phone, the default behavior of the phone is to push the call to a Bluetooth device
(HOT Watch in this case), but the watch pushes the call back to phone (as user is not using
watch to dial-out). This is done to ensure that the call will stay on the phone when the call is
made from or received from the phone. However, some Android phones do not work well with
this call pushback. They tend to push the call back to watch. This can cause automatic call
switch to watch during a normal phone call. To overcome this problem, a special setting

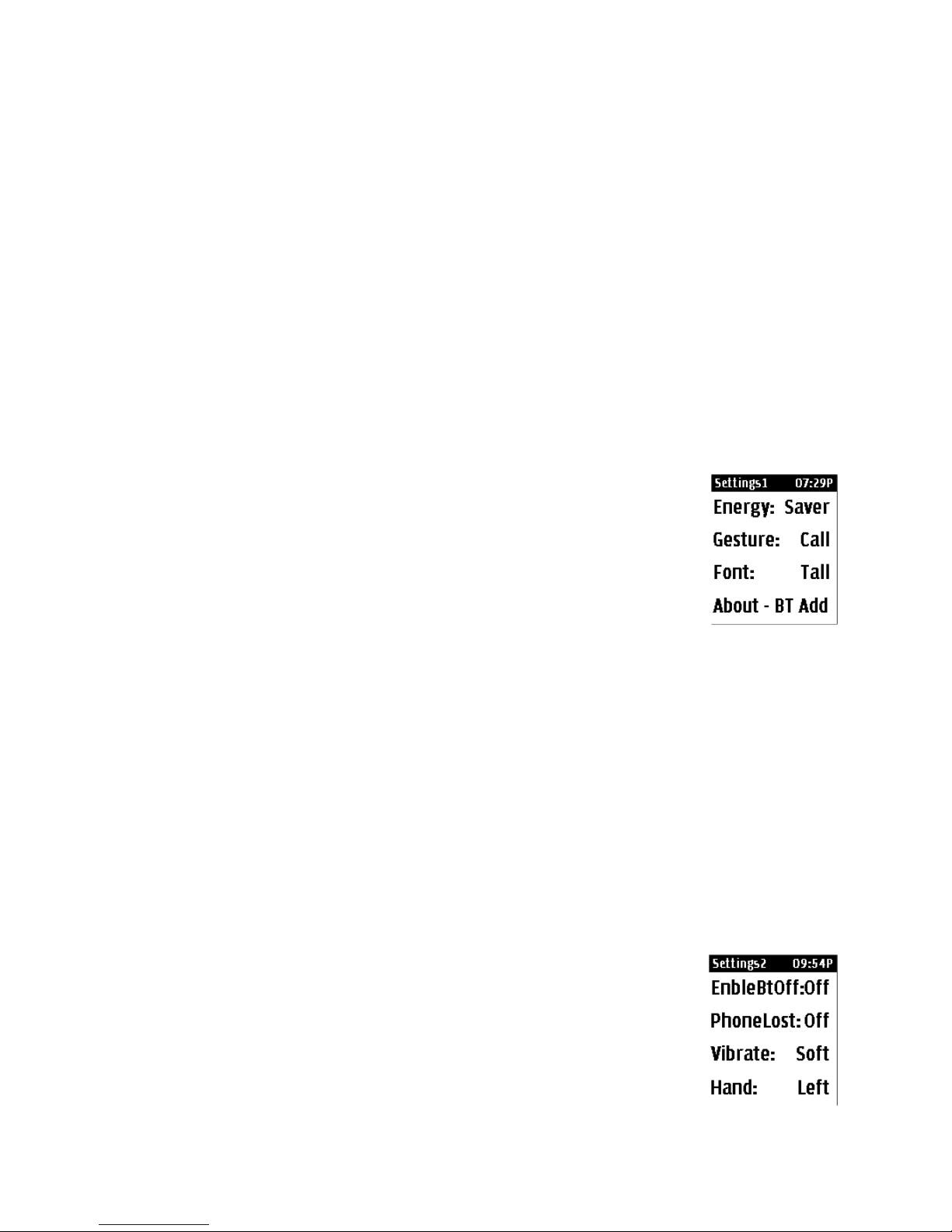

“EnbleBtOff” is provided on the watch’s Settings screen to switch off the Bluetooth (only call
audio - HFP) when a call is made from the phone. The HFP is enabled again when the call is
made from the watch or when a new call comes in. Make this setting On to prevent call
switching.

9. Bluetooth Icons

The HOT Smart Watch uses a dual mode Bluetooth device with Bluetooth Classic (2.1) and
Bluetooth Low Energy (BLE, 4.0) in one device. The Classic Bluetooth is used for call audio, data
connection, phone book access and music control. BLE is used for data connection on the
supported iOS phones (available only with iPhone 4S, iOS 7 and above). The table below lists
the Bluetooth profiles supported by the watch.

BLE Connected BLE Connected

Network Signal level

icon when HFP (Call

Audio) connected

Network Signal level

Audio) connected

Data Serial Profile (SPP
or IAP) Connected

Data Serial Profile (SPP
or IAP) Connected

Battery Level Battery Level

icon when HFP (Call

When HFP is connected, connected Phone’s signal level is displayed. The Signal level and the
battery level are updated every 5 minutes. If any profile is disconnected, touching this icon will
try to re-connect to that profile. If the re-connection fails, the second touch will reset the
Bluetooth with fresh reconnection attempt.

“BattLow” is displayed, when battery level is at a critical stage. Bluetooth is turned Off at this
level.

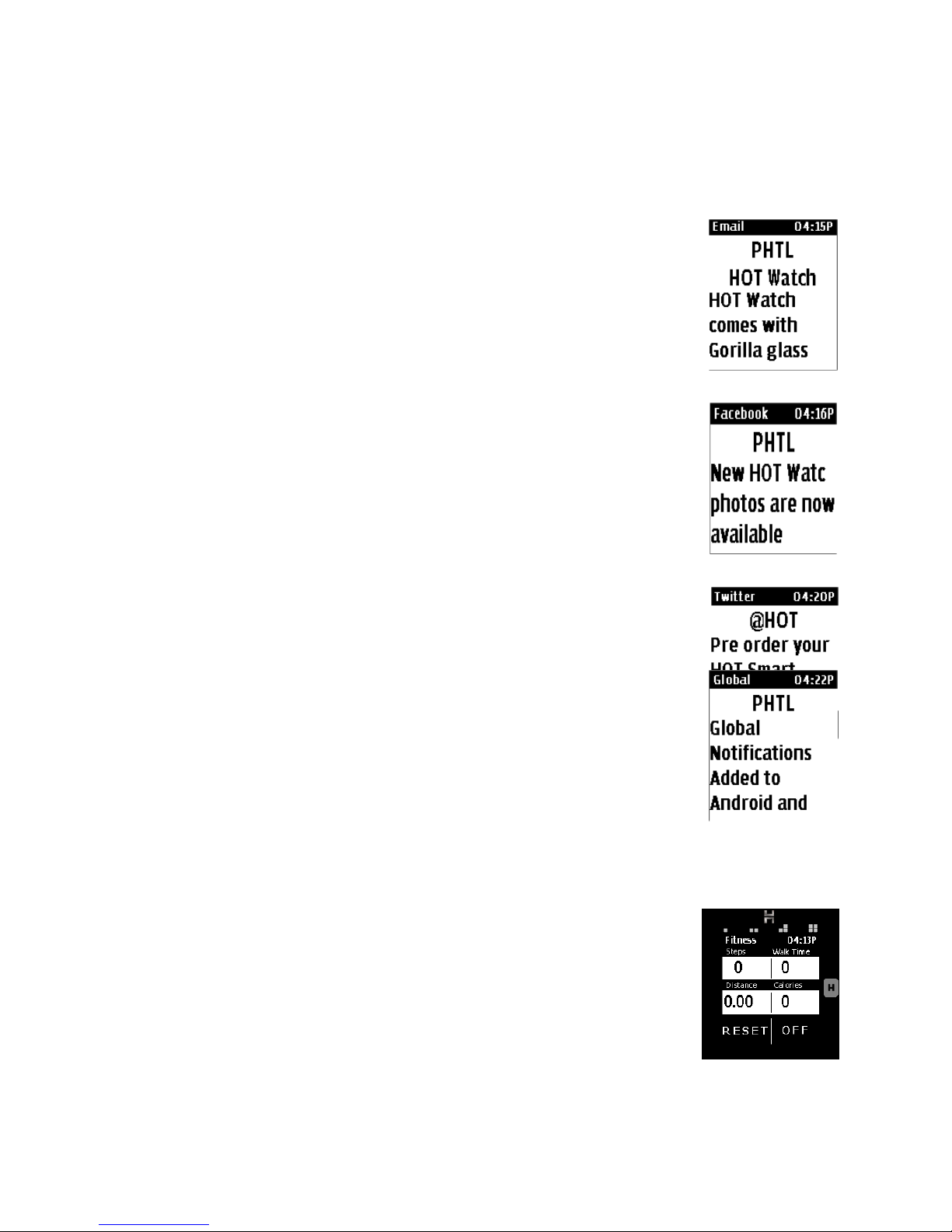

10. Notifications

HOTWatch supports SMS, Email, Facebook, Twitter and other notifications.

In Android phone, the HOTWatch Application forwards phone notifications to watch. By
default, Email, Facebook, Twitter, WhatsApp and WeChat apps are enabled. The user can go to
Settings and enable other apps for global notifications. The notification size limit is 380
characters for Android. The user can respond to SMS notifications from the watch.

In iPhone, the HOTWatch receives notifications via Bluetooth Low Energy (BLE) with GATT-ANCS
profile. Once the BLE-GATT-ANCS is connected, these notifications are sent from the iOS to the
watch (even when HOTWatch appis not running). To connect BLE, bring the HOTWatch app to
foreground. The app will connect the BLE with watch. Accept BLE pair request from the
HOTWatch Application.

BLE is supported in iPhone 4S or above with iOS 7 or above. For older phone models/iOS only
SMS notification is supported with Bluetooth Message Access Profile (MAP). Select MAP on the
settings iPhone menu. Touching the SMS or MAP will toggle this selection.

To connect to MAP, tap on the tick adjacent to SMS. In Phone Bluetooth menu, navigate to the
connected device info and enable “Show Notifications”.

The notification size limit is 90 characters for iPhone due to BLE limitation.
