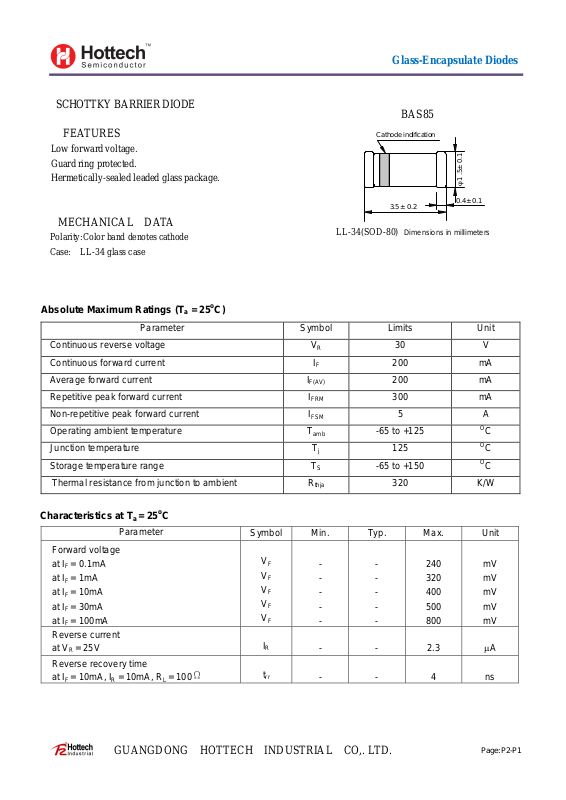

Page 1
SCHOTTKY BARRIER DIODE
BAS85
Glass-Encapsulate Diodes
FEATURES
Cathode indification
Low forward voltage.
Guard ring protected.
Hermetically-sealed leaded glass package.
3.5
±
0.2
0.1
±
φ1 .5
0.4±0.1
MECHANICAL DATA
Polarity:Color band denotes cathode
LL-34(SOD-80)
Case: LL-34 glass case
Absolute Maximum Ratings (Ta = 25oC)
Parameter Symbol Limits Unit
Continuous reverse voltage VR 30 V
Continuous forward current IF 200 mA
Average forward current I
Repetitive peak forward current I
Non-repetitive peak forward current I
Operating ambient temperature T
200 mA
F(AV)
300 mA
FRM
5 A
FSM
-65 to +125
amb
Junction temperature Tj 125 OC
Storage temperature range TS -65 to +150
Dimensions in millimeters
O
O
C
C
Thermal resistance from junction to ambient
Characteristics at Ta = 25oC
Parameter
Forward voltage
at IF = 0.1mA
at IF = 1mA
at IF = 10mA
at I
= 30mA
F
at IF = 100mA
Reverse current
at VR = 25V
Reverse recovery time
at IF = 10mA, IR = 10mA, RL = 100Ω
GUANGDONG HOTTECH INDUSTRIAL CO,. LTD.
R
thja
320 K/W
Symbol Min. Typ. Max. Unit
V
V
V
V
VF
IR
t
rr
F
F
F
F
-
-
-
-
-
-
-
-
-
-
-
-
-
-
240
320
400
500
800
2.3
4
mV
mV
mV
mV
mV
μA
ns
Page:P2-P1
Page 2
Glass-Encapsulate Diodes
BAS85

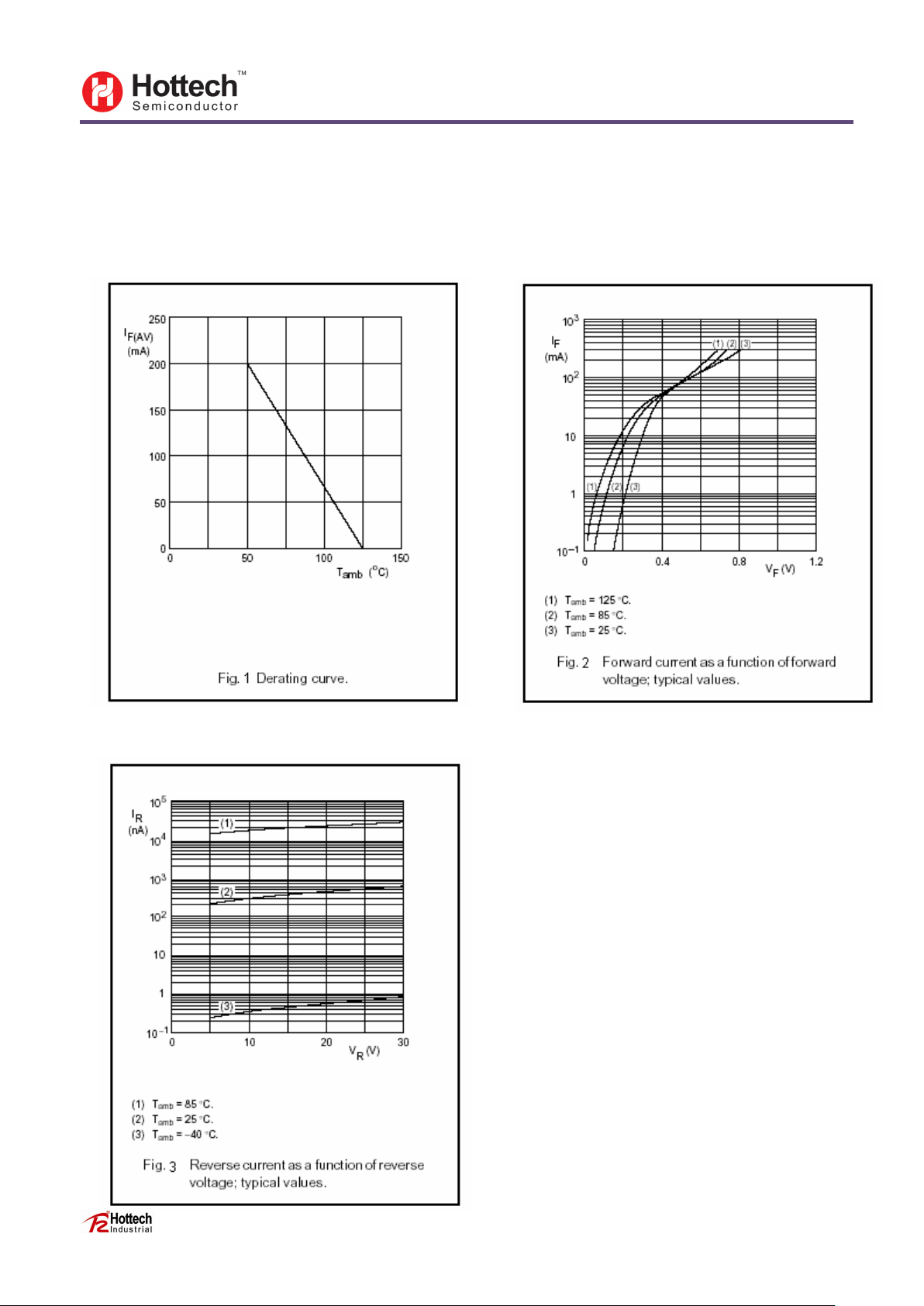

Typical Characteristics
GUANGDONG HOTTECH INDUSTRIAL CO,. LTD.
Page:P2-P2
