Before using your air conditioner, please read this manual carefully and keep it
for future reference.
ACDC12B
INVERTER SPLIT-TYPE ROOM AIR CONDITIONER
User and Remote Control Manual
Read This Manual
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventative care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review the chart of troubleshooting
tips first, you may not need to call for service.
The design and specifications are subject to change without prior notice for
product improvement. Consult with the sales agency or manufacturer for details.
1
CONTENTS
SAFETY PRECAUTIONS
Warning .....................................................................................................................................3
Caution ......................................................................................................................................4
NAMES OF PARTS
Indoor unit ..................................................................................................................................5
Outdoor unit ..............................................................................................................................5
Indication lamp ..........................................................................................................................5
OPERATING INSTRUCTIONS
Special functions .........................................................................................................................6
Operating temperature ..............................................................................................................7
Manual operation ......................................................................................................................7
Airflow direction control ...........................................................................................................8
How the air conditioner works ..................................................................................................9
CARE AND MAINTENANCE
Before maintenance ..................................................................................................................10
Cleaning the unit .......................................................................................................................10
Cleaning the air filter and air freshening filter .........................................................................10
Replacement of the air filter and air freshening filter ..............................................................11
Preparation for extended non-operation .................................................................................11
Pre-season inspection ...............................................................................................................11
TROUBLESHOOTING TIPS
Normal function of the air conditioner .....................................................................................12
Troubleshooting guide .............................................................................................................14
REMOTE CONTROLLER
Handling the remote controller ............................................................................................. 16
Remote controller Specifications............................................................................................ 17
Function buttons ..................................................................................................................... 18
Indicators on LCD .................................................................................................................... 21
Auto operation ........................................................................................................................ 22
Cooling/Heating/Fan operation .............................................................................................. 22
Dehumidifying operation ........................................................................................................ 23
Adjusting air flow direction ..................................................................................................... 23
Timer operation ...................................................................................................................... 24
2
3
4
The ECO feature allows the system to operate at a lower speed, using less wattage when solar
insolation is low the unit will lower the compressor speed until the solar insolation increases.
5
Special Functions
Refrigerant Leak Detection
With this new technology, if the outdoor unit detects refrigerant leakage the display
area will show code “ EC”, the indication lamps continue flashing until the problem is
resolved.
Louver Angle Memory Function
Within the scope of safety, the unit will memorize the open angle of the horizontal
louver. If it exceeds it, the unit will return to the standard angle by pressing the manual
switch, or removing power to the unit. We strongly suggest that the open angle of the
horizontal louver should not be set too small, condensed water could form and drip from
the horizontal louver.
Anti-mildew function
When the unit is turned off in Cool, Dry, or Auto (Cool) mode, the air conditioner will
continue operating for about 7-10 minutes at low fan speed. If it turns off in HEAT
mode, the unit will continue operating for about 30 seconds at LOW fan speed. This
will help dry the condensed water inside the evaporator, and prevent the growing of
mildew. Under Anti-mildew operation, do not restart the air conditioner until the unit
is completely off.
Vertical swing function
After the AC starts up, users can control the vertical louver swing by using the
remote controllers swing direct button.
6
7
8
9
10
11
12
13
14
ACDC12B AIR CONDITIONER

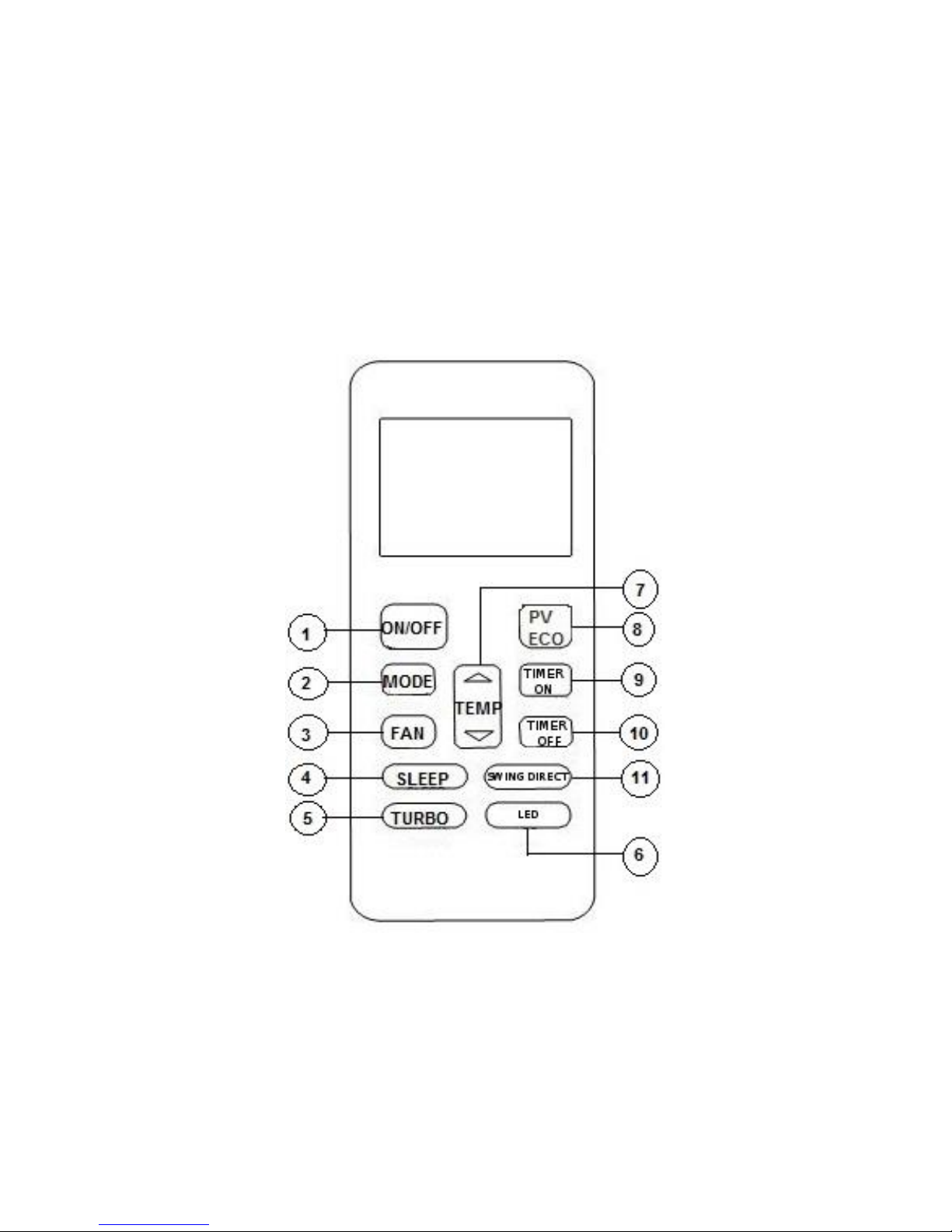

REMOTE CONTROLLER ILLUSTRATION
Thank you very much for purchasing our air conditioner.
Please read this owner's manual carefully before using
your air conditioner.
15
16
17
FUNCTION BUTTONS
18
19
20
21
22
23
24
25
26
27
