Hotronix MAXX Operator's Manual
DIGITAL CLAM
Available models: MAXX® Clam
11" x 15", 16" x 16", 16" x 20" (shown)
THE MAXX® PRESS
OPERATOR’S MANUAL
®
HOTRONIX
THE MAXX® PRESS
When using your heat press, basic precautions should always be
followed, including the following:
1. Read all instructions.
2. Use heat press only for its intended use.
3. To reduce the risk of electric shock, do not immerse the heat press in water or other liquids.
4. Never pull cord to disconnect from outlet, instead grasp plug and pull to disconnect.
5. Do not allow cord to touch hot surfaces, allow heat press to cool completely before storing.
6. Do not operate heat press with a damaged cord or if the equipment has been dropped or damaged. To
reduce the risk of electric shock, do not disassemble or attempt to repair the heat press. Take it to a
qualified service person for examination and repair. Incorrect assembly or repair could increase the
risk of fire, electric shock, or injury to persons when the equipment is used. Power supply cord must be
disconnected before cleaning or servicing press.
Safety Instructions
7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
8. Close supervision is necessary for any heat press being used by or near children. Do not leave equipment
unattended while connected.
9. To avoid burns, do not touch hot metal parts or the heated platen during use.
10. To reduce the likelihood of circuit overload, do not operate other high voltage equipment on the same circuit.
11. If an extension cord is necessary, then a 20-amperage rated cord should be used. Cords rated for less
amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped
over.
12. Keep hands clear of the upper heat press platen during lock down as the pressure may cause injury.
13. Heat press should be placed on a sturdy, suitable stand at least 36"L x 24"W x 29"H.
14. Work area must be kept clean, tidy and free of obstructions.
Product Warranty Registration
You must provide the Hotronix® heat press serial number and model information.
SERVICE HOTLINE: 800.727.85202
Log onto www.Hotronix.com/registration
Table Of Contents
Safety Instructions 2
Machine View 4
Control Panel Guide 5
Operating Instructions 6–8

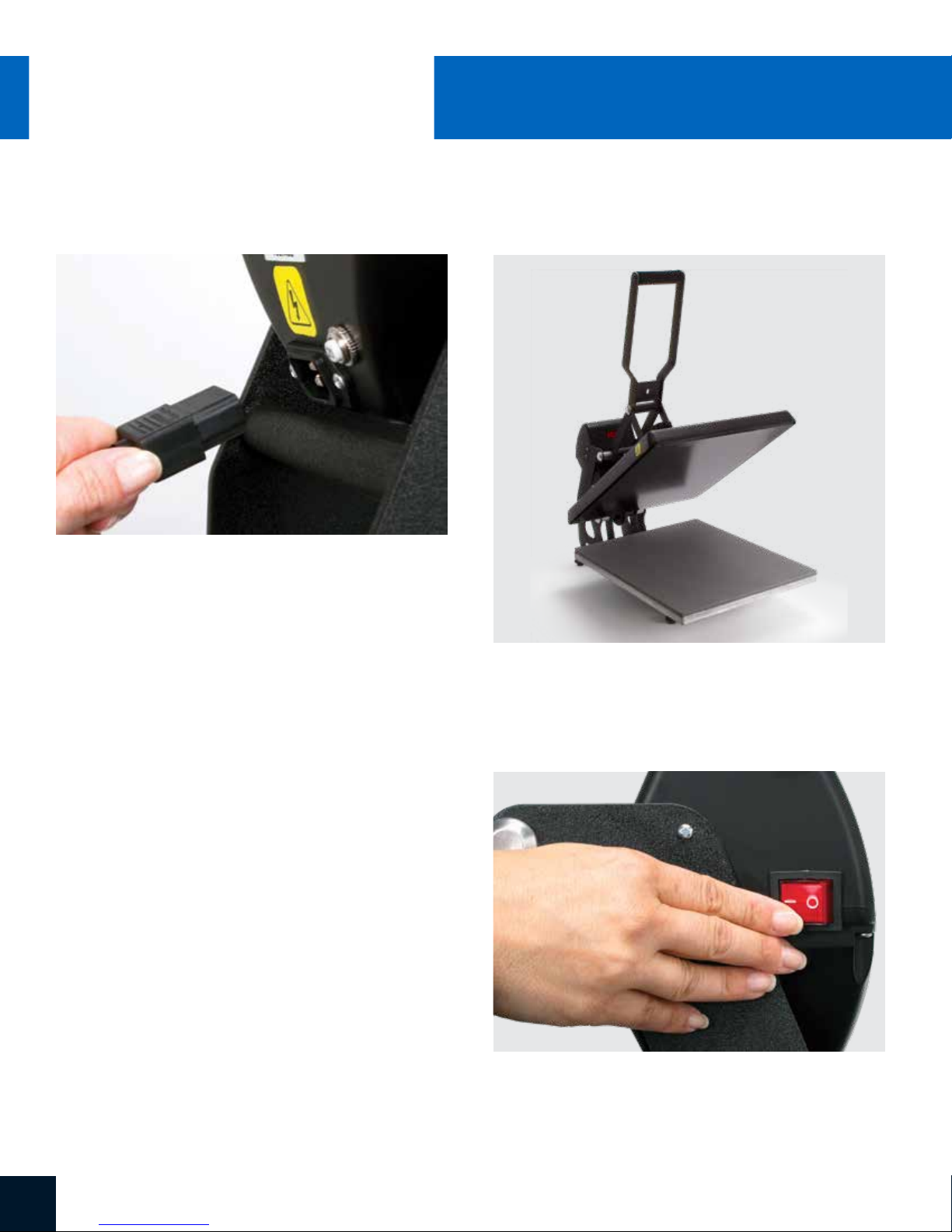

Connecting the System 6
Start Up/Shut Down 6
Adjusting Temperature 7
Adjusting Time 7
Adjusting Pressure 8
Printing/Pressing 8

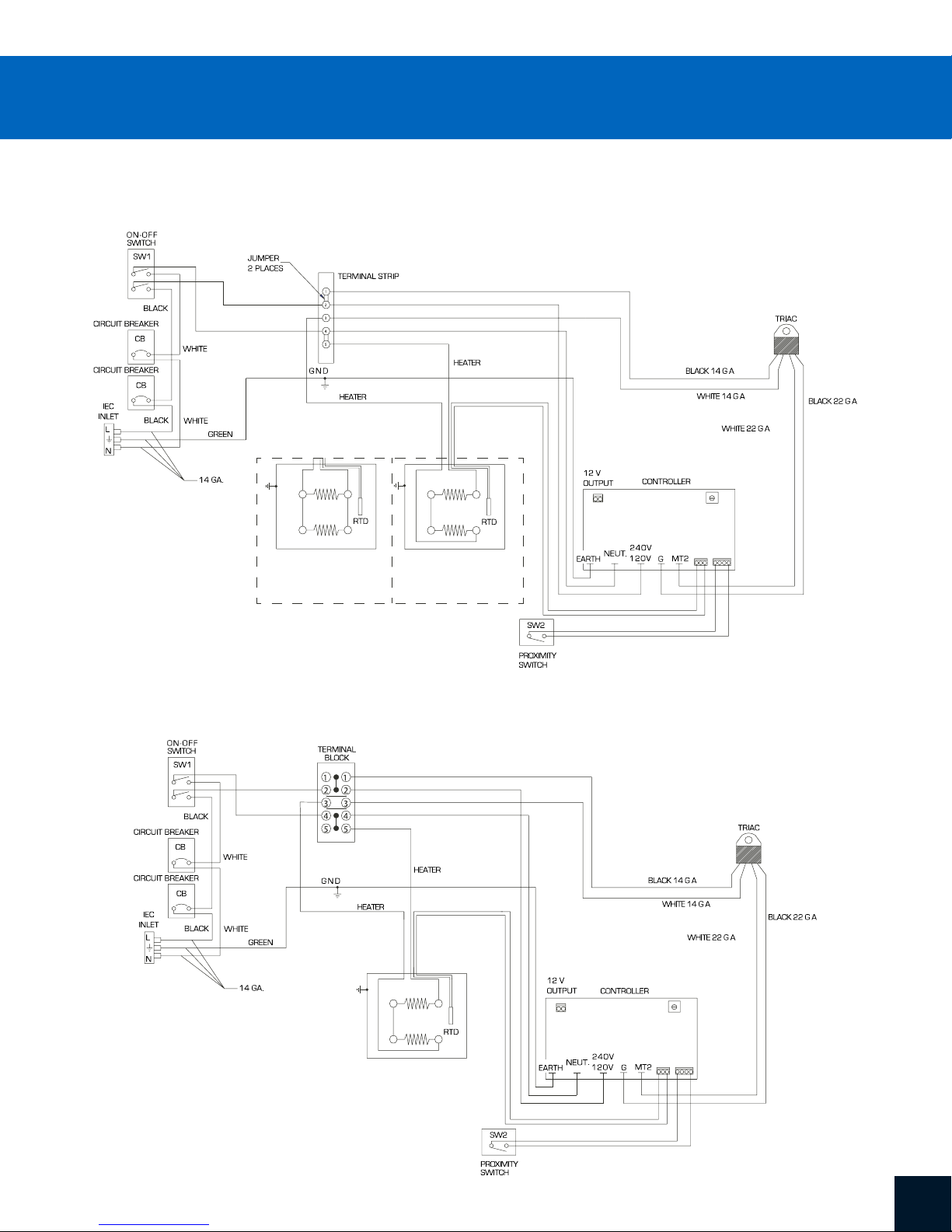

Electrical Schematic 9

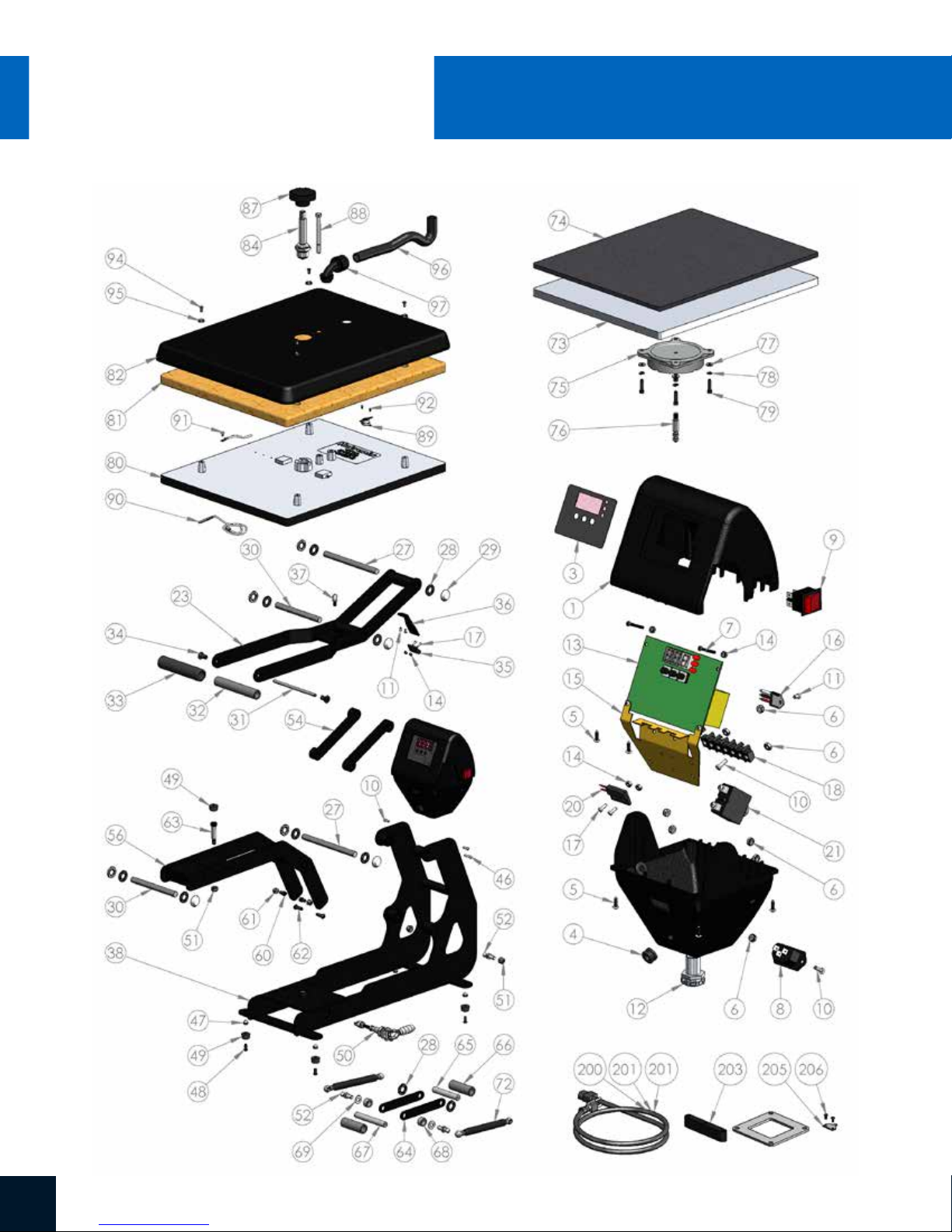

Parts Location Guide 10
Replacement Parts List 11
Contact 12
3WWW.HOTRONIX.COM
®
HOTRONIX
THE MAXX® PRESS
Over-the-Center

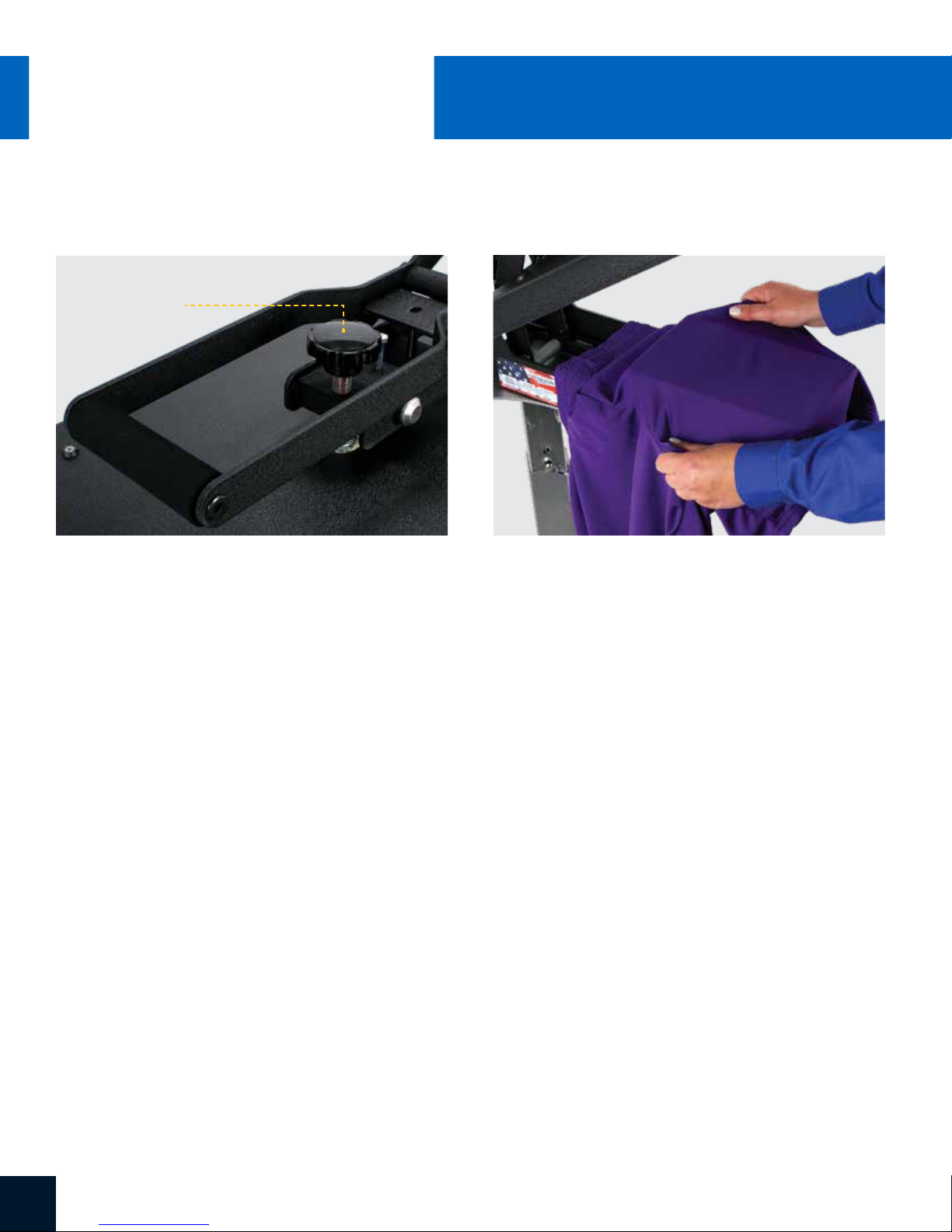

Adjustment Knob
Lift Handle
Upper Platen
Pressure
Machine View
ON/OFF Switch

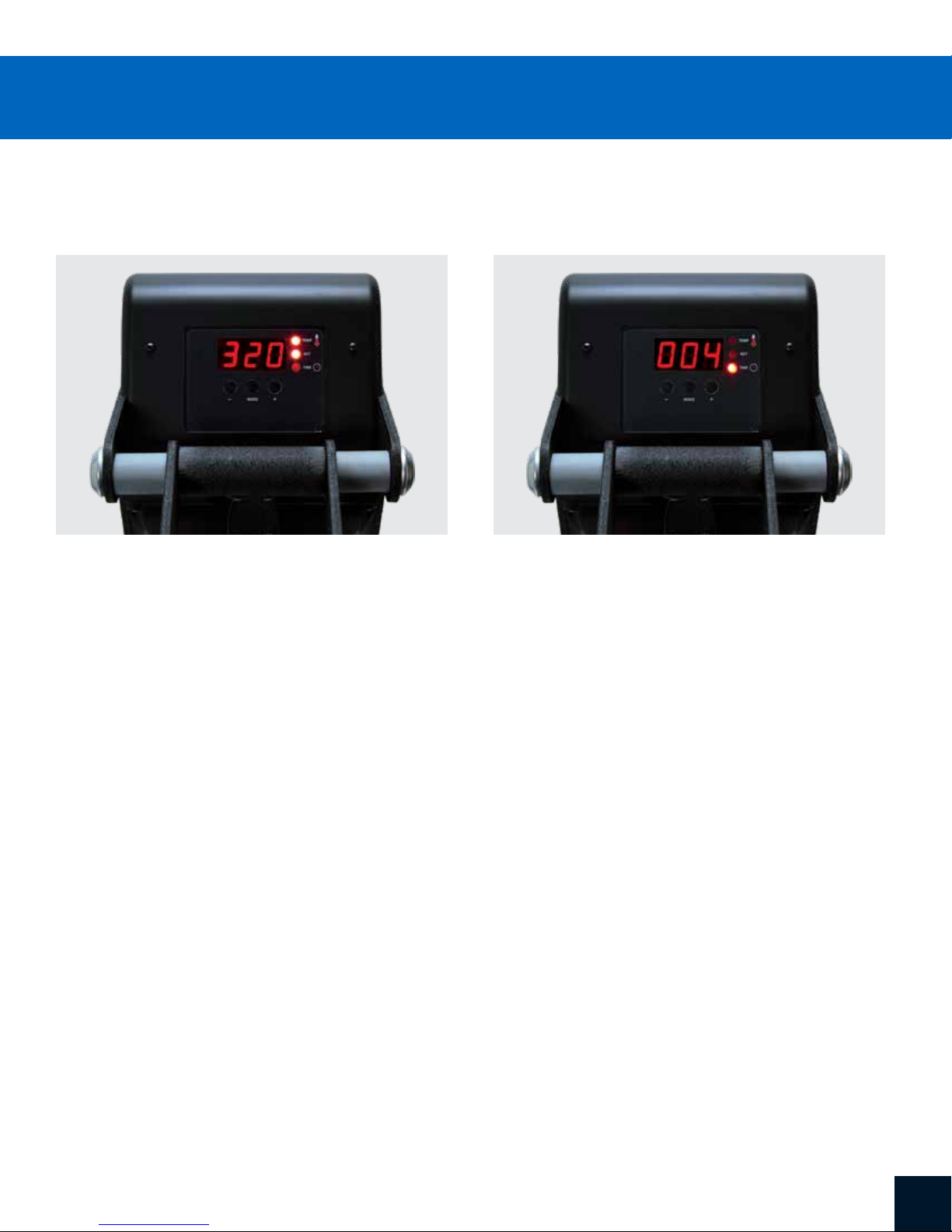

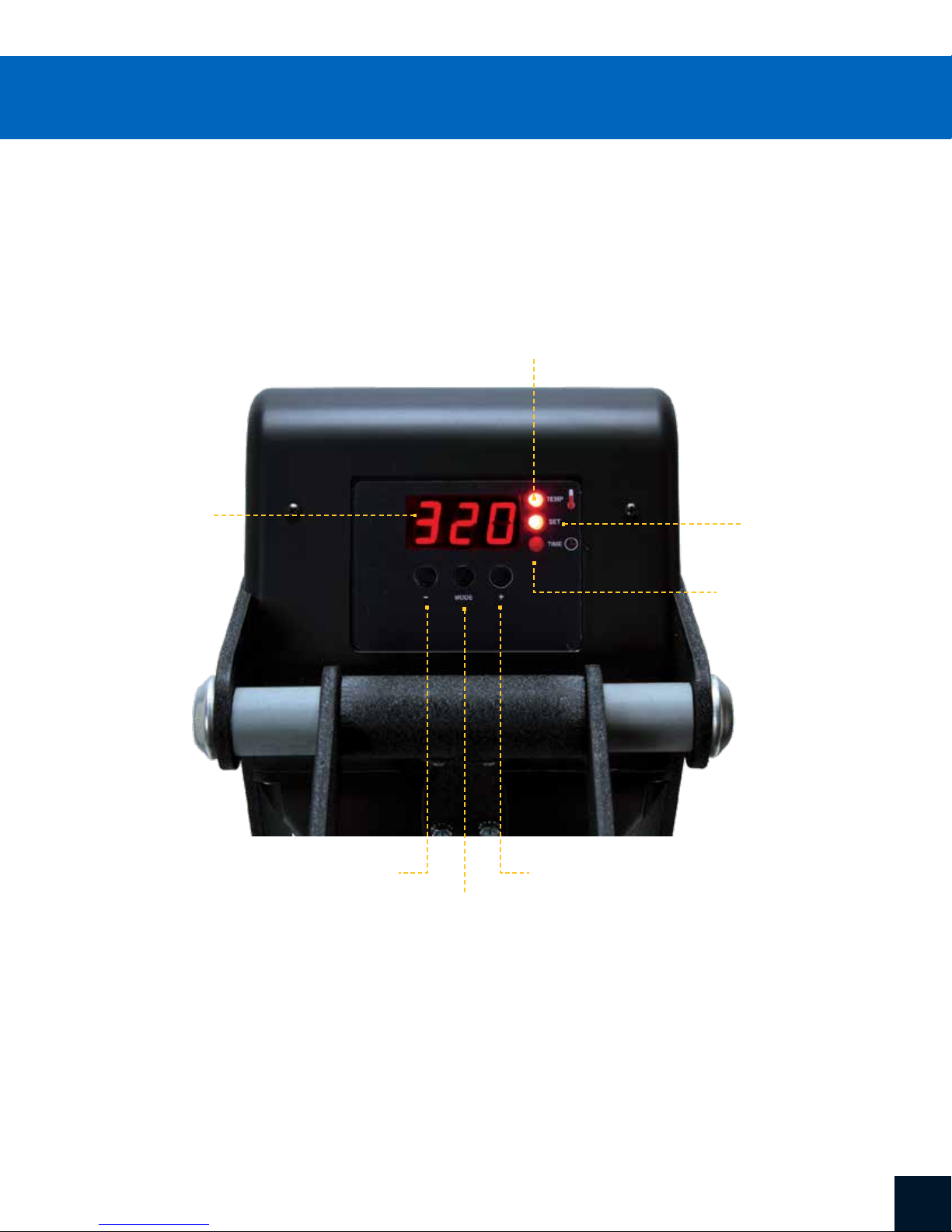

LED Display
Power
Supply
Lower Platen
Circuit
Breaker
Platen
Release
Located under the press
Located on the back of the press
SERVICE HOTLINE: 800.727.85204
