Operating Instructions

FREEZER

Contents

GB

						Installation, 2
	GB				AR
						Positioning and connection
						Reversible doors
	English, 1 9			1
						Description of the appliance, 3
						Overall view
						Start-up and use, 4
						Starting the appliance
						Using the freezer to its full potential
						Maintenance and care, 5
						Switching the appliance off
						Cleaning the appliance
						Avoiding mould and unpleasant odours
						Defrosting the appliance
	UPS 1711 (EX)					Precautions and tips, 6

General safety

Disposal

Respecting and conserving the environment

Troubleshooting, 7

Assistance, 8

Installation

! Before placing your new appliance into operation GB please read these operating instructions carefully.

They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1.Place the appliance in a well-ventilated humidity-free room.

2.Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.

3.Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.

4.Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).

5.In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1.Install the appliance on a level and rigid floor.

2.If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the rear feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

•The appliance is earthed and the plug is compliant with the law.

•The socket can withstand the maximum power of the appliance, which is indicated on the data plate located inside the freezer (e.g. 150 W).

•The voltage is in the range of values indicated on the data plate located inside the freezer (e.g. 220-240V).

•The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

!Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

!The cable must not be bent or compressed.

!The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

!The manufacturer declines any liability should these safety measures not be observed.

Reversible door

1

2

3

4

5

2

Description of the appliance

Overall view

GB

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased.

SUPER FREEZE					POWER				TEMPERATURE
Button									CONTROL Knob
					Indicator light

SUPER FREEZE	ALARM
Indicator light	Indicator light

FREEZER and

STORAGE

compartment

STORAGE

compartment

Levelling FEET

3

Load limit indicator

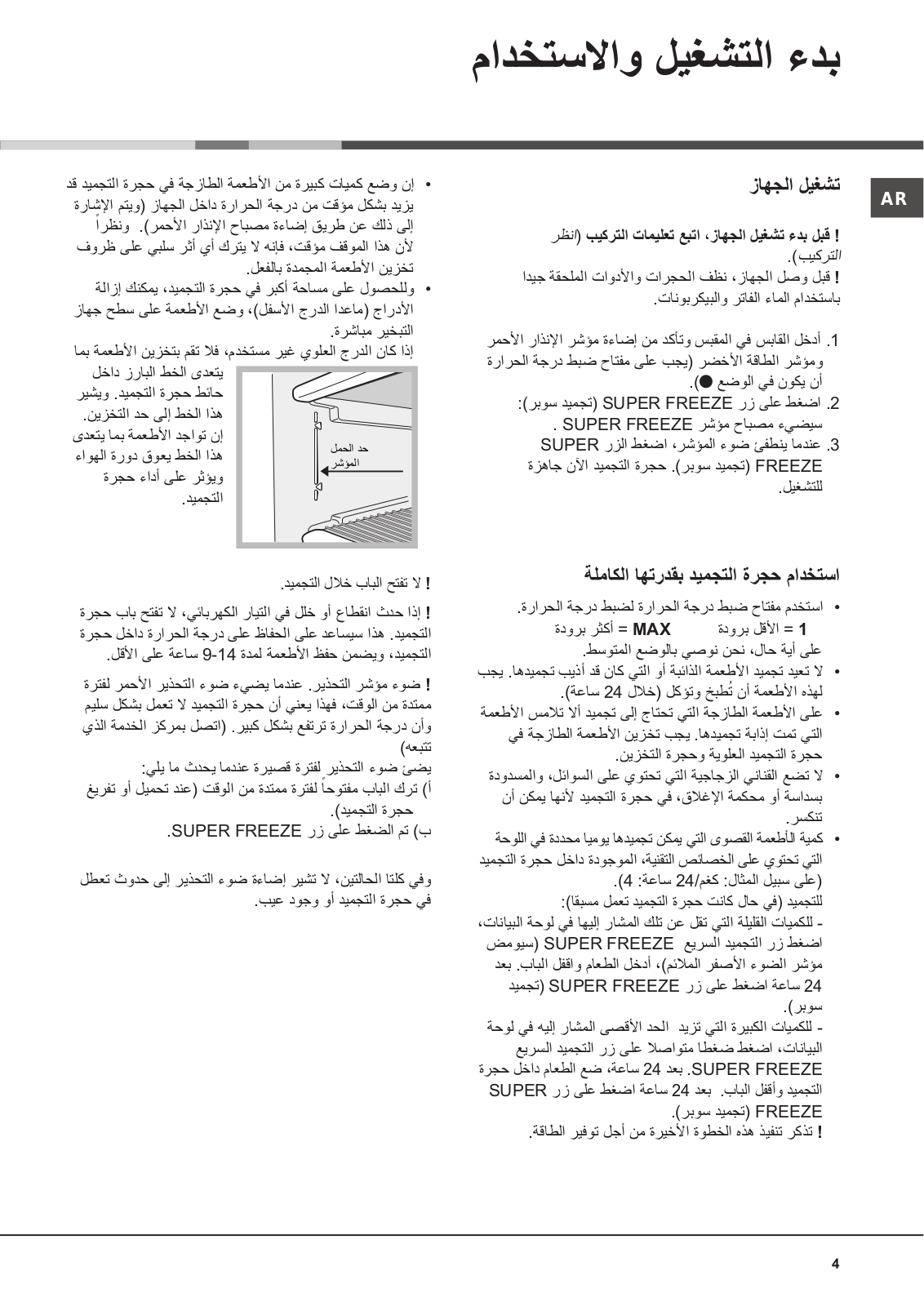

Start-up and use

Starting the appliance

GB

!Before starting the appliance, follow the installation instructions (see Installation).

!Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

1.Insert the plug into the socket and ensure that the red ALARM and green POWER indicator lights illuminate (the TEMPERATURE CONTROL knob must not be on ).

2.Press the SUPER FREEZE button (rapid freezing): the SUPER FREEZE indicator light will illuminate.

3.When the indicator light switches off, press the SUPER FREEZE button. The freezer is now ready to be used.

Using the freezer to its full potential

•Use the TEMPERATURE CONTROL knob to adjust the temperature.

1 = warmest MAX = coldest

We recommend, however, a medium position.

•Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).

•Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored in the top FREEZER and STORAGE compartment.

•Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.

•The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located within the freezer (for example: Kg/ 24h: 4).

•To freeze (if the freezer is already operating):

-for small quantities which are less than those indicated on the data plate, press the rapid freezing SUPER FREEZE button (the corresponding yellow indicator light illuminates), place the food inside and close the door. After 24 hours press the SUPER FREEZE button.

-for large quantities which are greater than the maximum load indicated on the data plate, hold down the rapid freezing SUPER FREEZE button. After 24 hours place the food inside thr freezer and close the door. After another 24 hours press the SUPER FREEZE button.

! Remember to carry out this last step in order to save energy.

•Placing large amounts of fresh food in the freezer may temporarily increase the temperature inside the appliance (this is indicated when the red ALARM light illuminates). This situation, as it is only temporary, does not adversely affect the storage conditions of food that is already frozen.

•In order to obtain a greater amount of space in the freezer compartment, you may remove the bins (except the lowest bin) and place the food directly onto the evaporator plates.

If the top drawer is not used DO NOT store food

beyond the line embossed in the interior of the freezer cabinet wall. This indicates the load limit. Food beyond this line will limit the air circulation and affect the performance of the freezer.

!Do not open the door during freezing.

!If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours.

!Warning Indicator Light. When this red warning light comes on for a prolonged period of time, it means that the freezer is not functioning properly and the temperature is rising too much. (Call your Service Centre)

This warning light might come on for a brief period when:

a) the door is left open for an extended period of time (when the freezer is being loaded or unloaded).

b) the SUPER FREEZE button has been pressed.

In these two cases, the fact that the warning light comes on does not indicate that the freezer is malfunctioning or there is a defect.

4

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

1.set the TEMPERATURE CONTROL Knob on ;

2.pull the plug out of the socket.

Cleaning the appliance

•The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.

•The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.

•The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

•The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.

•If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Defrosting the appliance

GB

! Follow the instructions below.

Do not use objects with sharp or pointed edges to defrost the appliance as these may damage the refrigeration circuit beyond repair.

If the frost layer is greater than 5 mm, it is necessary to defrost manually:

1.The day before defrosting, press the SUPER FREEZE button (the yellow SUPER FREEZE indicator light illuminates) to further cool the food.

2.After 24 hours, turn the TEMPERATURE CONTROL knob to , which will switch the refrigerator off.

3.Wrap frozen foods in newspaper and place them in another freezer or in a cool place.

4.Leave the door open until the frost has melted completely. This can be made easier by placing containers with lukewarm water in the freezer compartment..

5.Certain appliances are fitted with the DRAIN SYSTEM to lead the water outside. Let the water flow into a container (see diagram).

6.Clean and dry the freezer compartment carefully before switching the appliance on again.

7.Wait for approximately 2 hours, i.e. until the ideal storage conditions have been restored, before placing food in the freezer compartment.

5

Precautions and tips

! The appliance was designed and manufactured in GB compliance with international safety standards. The

following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following

Community Directives:

-73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments;

-2002/96/CE..

General safety

•The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

•The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.

•The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

•Do not touch the appliance with bare feet or with wet or moist hands and feet.

•WARNING: do not damage the refrigerant circuit.

•Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.

•When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

•Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature

adjustment knobs on (appliance off) to eliminate all electrical contact.

•In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.

•Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.

•Do not put ice cubes taken directly from the freezer into your mouth.

•This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

•Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

•Observe local environmental standards when disposing packaging material for recycling purposes.

•The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

•Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.

•Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.

•Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.

•Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.

•Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.

•Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

6

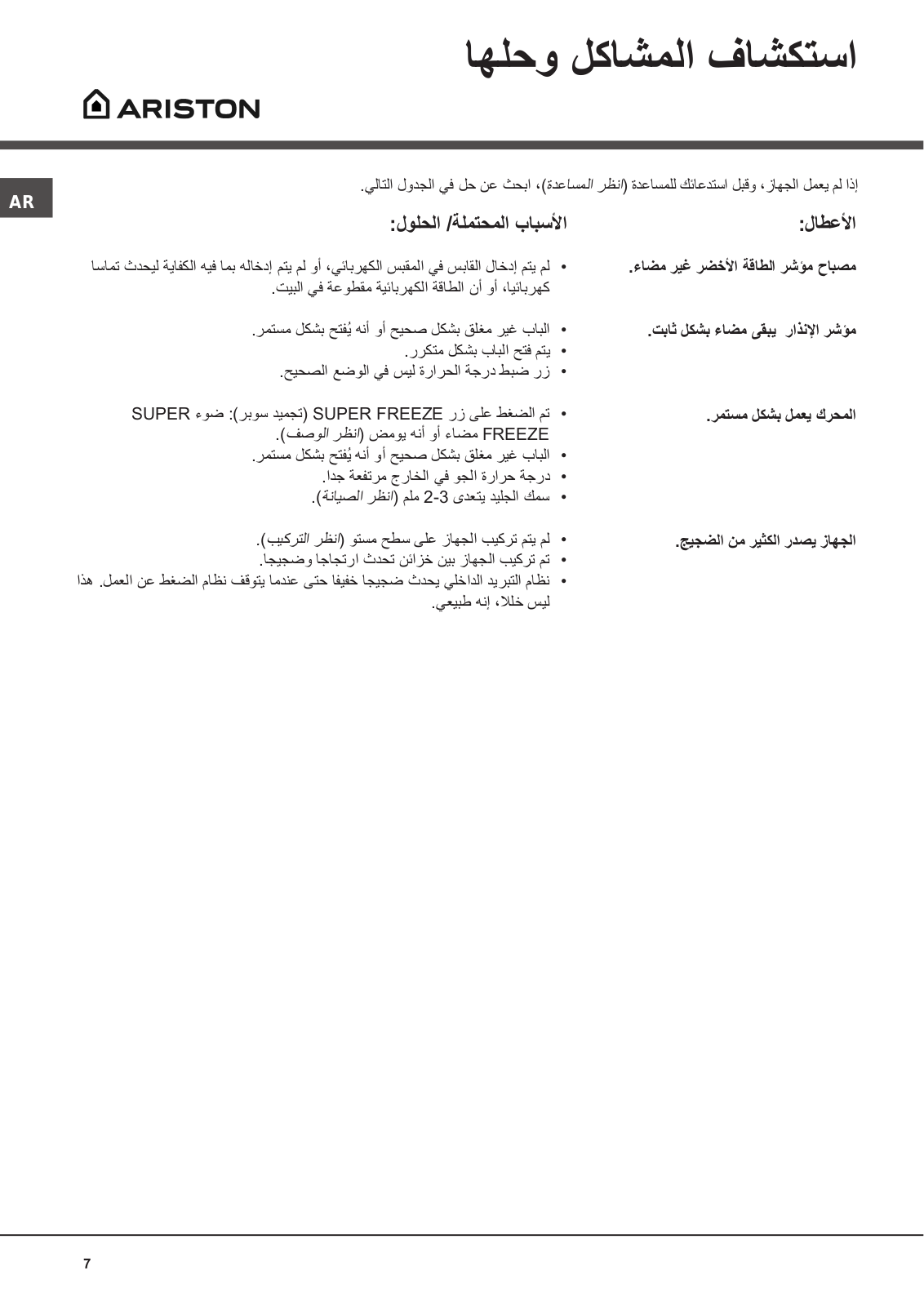

Troubleshooting

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

GB

Malfunctions:

Possible causes / Solutions:

The green POWER indicator light does not illuminate.

The ALARM indicator light remains illuminated constantly.

The motor runs continuously.

The appliance makes a lot of noise.

•The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.

•The door is not closed properly or has been open continuously.

•The door has been opened too frequently.

•The TEMPERATURE CONTROL knob is not in the correct position.

•The SUPER FREEZE button has been pressed (rapid freezing): the yellow SUPER FREEZE light is on or flashing (see Description).

•The door is not closed properly or is continuously opened.

•The outside ambient temperature is very high.

•The thickness of the frost exceeds 2-3 mm (see Maintenance).

•The appliance has not been installed on a level surface (see Installation).

•The appliance has been installed between cabinets that vibrate and make noise.

•The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

7

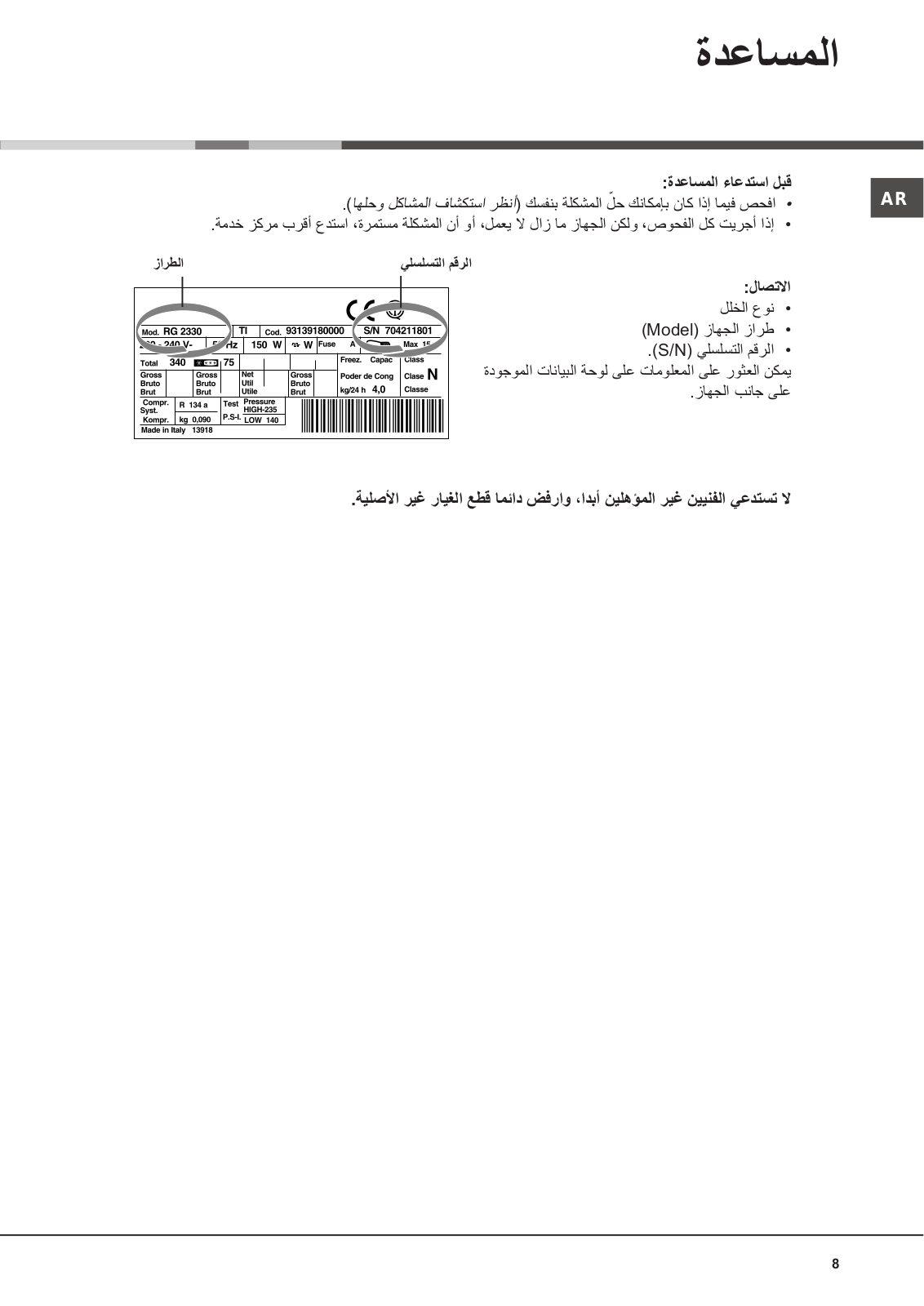

Assistance

19512796300

09/2014

		Before calling for Assistance:
	GB
		•	Check if the malfunction can be solved on your own (see Troubleshooting).
		•	If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service
			Centre

Communicating:

•type of malfunction

•appliance model (Model)

•serial number (S/N)

Information can be found on the rating plate located inside the appliance.

model

serial number

Never call on unauthorized technicians and always refuse spare parts which are not originals.
