THANK YOU FOR PURCHASING A HOTPOINT-ARISTON PRODUCT.
To receive more comprehensive help and support, please register your product at:
www.hotpoint.eu/register
Before using the appliance carefully read Health and Safety guide.
PRODUCT DESCRIPTION
APPLIANCE
1. Upper rack
2.
Cutlery rack
3. Foldable flaps
4. Upper rack height adjuster
5. Upper spray arm
6. Lower rack
7. Space Zone
8. Lower spray arm
9. Filter Assembly
10. Salt reservoir
11. Detergent and Rinse Aid dispensers
12. Rating plate
13. Control panel
EN
CONTROL PANEL
1. ON/OFF button
2. PREVIOUS button
3. NEXT button
4. Tablet Detergent (All-in-one) button
5. Zone Wash button
6. Zone Wash
7. Display
8. Eco program indicator light
9. Start Delay indicator light
10. Program number and remaining time indicator
indicator ligh
11. Active Oxygen indicator light
12. Closed water tap indicator light
13. Rinse Aid refill indicator light
14. Salt refill indicator light
15. Tablet Detergent (All-in-one) indicator light
16. Zone Wash 3D button with indicator light
17. Turbo button with indicator light
18. Extra Dry button with indicator light / Active Oxygen
19. Start Delay button with indicator light
20. START button with indicator light
1
FIRST TIME USE
SETTING MENU AND SALT
ADVICE REGARDING THE FIRST TIME USE
After installation, remove the stoppers from the racks and the retaining
elastic elements from the upper rack.
SETTING MENU
1. Switch on the appliance by pressing the ON/OFF button.
2. Switch off the appliance by pressing the ON/OFF button.
3. Hold down START button for 5 seconds, until you hear a beep.
4. The display shows the first available setting (letter "A"), followed by
its value (for example: 3).
5. Press PREVIOUS/NEXT to scroll the list of the available settings
and to see their value (see the below table), then press START if
you want to change the value of the displayed setting: its value will
start blinking.
6. Use PREVIOUS/NEXT buttons to change the blinking value of the
selected settings, then press START to save the new value: it will
stop blinking.
7. To change another settings repeat steps 5-6.
8. To exit settings menu - press ON/OFF button.
LETTER SETTING
Water Hardness Level
(see “Setting the Water Hardness”
and “Water Hardness Table”)
Rinse Aid Level
(see “Adjusting the dosage of Rinse Aid”)
Start Program
To set the cycle to show at switch on of the
appliance.
“E”= Eco, “L”= Last cycle run
Brightness Level
To a d just the br i ghtness
level of the display.
“Lo”=Low, “Hi”= High
Sound Level
To adjust the volume of the sounds.
“OF” = sounds off, “Lo” = low volume,
“Hi” = high volume.
Factory Settings
To restore to the factory default all the
values of the settings included in the
settings menu. After the activation of this
setting (ON), the machine switches OFF and
restores the factory settings.
“On” = On, “OF” = Off
ActivE co
(see “Options And Functions”)
“On” = On, “OF” = Off
VAL UES
(Default - in bold)
1 | 2 | 3 | 4 | 5
1 | 2 | 3 | 4 | 5
E | L
Lo | Hi
OF | Lo | Hi
On | OF
On | OF
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and
on the machine’s functional components.
• It is important that the salt reservoir be never empty.
• It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher (see
PRODUCT DESCRIPTION) and should be filled when the SALT REFILL
indicator light in the control panel is lit.
1.Remove the lower rack and unscrew
the reservoir cap (anticlockwise).
2.Only the first time you do this: fill the
salt reservoir with water.
3.Position the funnel
the salt reservoir right up to its edge
(approximately 1 kg); it is not unusual
for a little water to leak out.
4.Remove the funnel and wipe any salt
residue away from the opening.
Make sure the cap is screwed on tightly, so that no detergent can get
into the container during the wash program (this could damage the
water softener beyond repair).
As soon as this procedure is complete, run a program without loading.
The “Pre-Wash” program alone is not sufficient.
Residual saline solution or grains of salt can lead to corrosion,
irreparably damaging the stainless steel components.
The guarantee is not applicable if faults are caused by such
circumstances.
After the salt has been poured into the machine, the SALT REFILL
indicator light switches off.
Only use salt that has been specifically designed for dishwashers.
If the salt container is not filled, the water softener and the heating
element may be damaged as a result.
Whenever you need to add salt, it is mandatory to complete the
procedure before the beginning of the washing cycle.
SETTING THE WATER HARDNESS
To allow the water softener to work in a perfect way, it is essential that
the water hardness setting is based on the actual water hardness in
your house. This information can be obtained from your local water
supplier.
The factory setting is “3” for average water hardness.
To change, follow instructions in section “SETTING MENU”.
Water Hardness Table
Level
1 Soft 0 - 6 0 - 10
2 Medium 7 - 11 11 - 20
3 Average 12 - 17 21 - 30
4 Hard 18 - 34 31 - 60
5 Very hard 35 - 50 61 - 90
°dH
German degrees
(see figure)
°fH
French degrees
and fill
2
FIRST TIME USE
M
A
X
A
B
35
25
A
B
RINSE AID AND DETERGENT
EN
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse aid dispenser A should
be filled when the RINSE AID REFILL indicator light in the control
panel is lit.
1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Carefully introduce the rinse aid as far as the maximum (110 ml)
reference notch of the filling space - avoid spilling it. If this happens,
clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.
NEVER pour the rinse aid directly into the tub.
ADJUSTING THE DOSAGE OF RINSE AID
If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.
To change, follow instructions in section “SETTING MENU”.
If the rinse aid level is set to 1, no rinse aid will be supplied. The LOW
RINSE AID indicator light will not be lit if you run out of rinse aid.
A maximum of 5 levels can be set according to the dishwasher model.
The factory setting is “5”.
• If you see bluish streaks on the dishes, set a low number (2-3).
• If there are drops of water or limescale marks on the dishes, set a
high number (4-5).
FILLING THE DETERGENT DISPENSER
Only use detergent which has been specifically designed for
dishwashers.
To achieve the best washing and drying results, the combined use
of detergent, rinse aid liquid and refined salt is required.
We recommend using detergents that do not contain phosphates
or chlorine, as these products are harmful to the environment.
Good washing results also depend on the correct amount
of detergent being used.
Exceeding the stated amount does not result in a more effective
wash and increases environmental pollution.
The amount can be adjusted to the soil level. In the case of normally soiled items, use approximately either 35g (powder detergent)
or 35ml (liquid detergent) and additional tea spoon of detergent
directly inside the tub. If tablets are used, one tablet will be enough.
If the crockery is only lightly soiled or if it has been rinsed with
water before being placed in the dishwasher, reduce the amount
of detergent used accordingly (minimum 25 g/ml) e.g. skip the
powder/gel putted inside the tub.
To open the detergent dispenser
press button A. Introduce the
detergent into the dry dispenser B
only. Place the amount of detergent
for pre-washing directly inside the
tub.
1. When measuring out the detergent
refer to the mentioned earlier
information to add the proper
quantity.
Inside the dispenser
2. Remove detergent residues from the edges of the dispenser and
close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the
closing device is secured in place.
The detergent dispenser automatically opens up at the right time
according to the program.
If all-in-one detergents are used, we recommend using the
DETERGENT
washing and drying results are always achieved.
If you are using a all-in-one detergents, we recommend that you
add salt in any case, especially if the water is hard or very hard
(follow the instructions given on the packaging).
button, because it adjusts the program so that the best
B
there are indications to help the detergent dosing.
TAB L ET
3
PROGRAMS TABLE
Program
Drying
phase
ActivEco
Available options
Detergent
*)
dispenser
B Tub
Duration of
wash program
(h:min)
**)
Wate r
consumption
(litres/cycle)
Energy
consumption
(kWh/cycle)
P1 Eco 50° 3:10 9.5 0.93
Auto
P2
Intensive
65° - - 2:00 - 3:10 14.0 - 17.0 1.50 - 1.85
P3 Auto Normal 55° 1:30 - 2:30 14.5 - 16.0 1.15 - 1.30
P4 Auto Fast 50° - - - 0:55 - 1:20 13.0 - 14.5 1.15 - 1.25
P5 Delicates 45° - - 1:40 11.5 1.20
P6 Express 30’ 50° - - - 0:30 9.0 0.55
P7 Good Night 50° - - 3:30 15.0 1.15
P8 Sanitizing 65° - - 1:40 10.0 1.30
P9 Soak - - - - - 0:12 4.5 0.01
P10 Self- Clean 65° - - - 0:50 8.0 0.85
ECO program data is measured under laboratory conditions according to European Standard EN 50242. Note for Test Laboratories: for information on
comparative EN testing conditions, please send an email to the following address: assistenza_en_lvs@indesitcompany.com
Pre-treatment of the dishes is not needed before any of the programs.
*) Not all options can be used simultaneously.
**) The duration of the program shown on the display or in the booklet is an estimate calculated on standard conditions. The actual time may vary
depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load,
load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.
Standby consumption: Left-on mode consumption: 6 W - Off mode consumption: 0.5 W
PROGRAMS DESCRIPTION
P1 ECO
Normally soiled crockery. Standard program, the most efficient in terms
of its combined energy and water consumption.
P2 AUTO INTENSIVE
Automatic program for heavily soiled dishes and pans (not to be used
for delicate items).
P3 AUTO NORMAL
Automatic program for normally soiled pans and dishes.
P4 AUTO FAST
Automatic program for limited quantity of normally soiled crockery.
Ensures optimal cleaning performance in shorter time.
P5 DELICATES
Program for delicate items, which are more sensitive to high
temperatures, for example glasses and cups.
P6 EXPRESS 30’
Program to be used for lightly-soiled dishes with no dried food residues.
P7 GOOD NIGHT
Suitable for night-time operation of the appliance. Optimum
performance ensured.
P8 SANITIZING
Normally or heavily soiled crockery, with additional antibacterial wash.
P9 SOAK
Crockery to be washed later. No detergent to be used with this
program.
P10 SELF-CLEAN
Program to be used to perform maintenance of the dishwasher.
It cleans the interior of the appliance using hot water.
Notes:
Please note that cycles like Express or Fast are most effective for lightly
soiled dishes.
To reduce consumption even further, only run the dishwasher
when it is full.
4
EN
OPTIONS AND FUNCTIONS
OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).
If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps
will sound. The option will not be enabled.
TABLET DETERGENT (All-in-one)
This setting allows you to optimize the performance of
the program according to the type of detergent used.
Press the TABLET DETERGENT button (the indicator light
will light up) if you use
(rinse aid, salt and detergent in 1 dose).
If you use powder or liquid detergent, this option
should be off.
All-in-one detergents
in tab let form
ZONE WASH
If there are not many dishes to be washed, a half loading may
be used in order to save water, electricity and detergent.
Select a compatible program (see “Programs table”),
and then press the ZONE WASH button: the symbol of the
chosen rack will appear on the display:
(only lower rack selected)
(only upper rack selected)
(only cutlery rack selected)
By default the appliance washes dishes in all racks.
Option is OFF.
ZONE WASH 3D
Option works with one rack at once. In particular, we
recommend to use it with Normal and Intensive cycles thanks to the additional 3D water jets placed on the
bottom o the cavity, ZONE WASH 3D option allows to save
energy or to increase the washing performance of the
dishwasher
• 3D ZONE WASH + NORMAL CYCLE: it allows to reduce
energy consumption up to 40%.
• 3D ZONE WASH + INTENSIVE CYCLE: it increases the
washing performances up to 40%. Ideal for very soiled
mixed loads, e.g. pans and saucepans, dishes with
heavy encrustation or difficult-to-clean crockery
(grater, vegetable mill, dirty cutlery).
How to activate the option:
1. Select a compatible cycle (Normal or Intensive)
2.Press 3D button to activate the option: a basket icon will
blink for a few seconds.
3.It is possible to change the selected rack pressing the
ZONE WASH button.
Remember to load the crockery in the selected rack only.
TURBO
This option can be used to reduce the duration of the
main programs while maintaining the same washing and
drying performance levels.
Select a compatible program (see “Programs table”), press
the TURBO button and the indicator light will switch on.
To deselect the option, press the same button again.
EXTRA DRY
To improve the drying of the dishes, after selecting the
program, press the EXTRA DRY button and the indicator
light comes on.
A higher temperature during the final rinse and an extended drying phase allow for improving drying. To deselect the option, press the same button again. The EXTRA
DRY option results in the lengthening of the wash cycle.
ACTIVE OXYGEN
This device releases ozone molecules into the
dishwasher, i.e. a natural substance that reduces
unpleasant odours.
It should be used between two different wash cycles and
ONLY after soiled crockery has been loaded.
To start the ACTIVE OXYGEN option press and hold for 3
seconds the button (EXTRA DRY / O3), confirm by pressing
START button and close the door within 3 seconds.
The option will stay active either for 24 hours or until the
wash cycle is started. More items can be introduced at
any time until full load. After loading, to continue ACTIVE
OXYGEN, confirm by pressing START button and close
the door within 3 seconds.
The typical faint odour that can be smelt inside the
dishwasher - the same as you sometimes get with storms
- is due to the ozone produced by lightning discharges.
This is normal. The device produces just a small quantity,
which soon decays.
START DELAY
The start of the program may be delayed for a period of
time between 0:30 and 24 hours.
1. Select the program and any desired options. Press the
DELAY button (repeatedly) to delay the start of the
program. Adjustable from 0:30 to 24 hours. When 24
is setting has been reached, press the START DELAY
another time to deactivate the START DELAY function.
2. Press the START button and close the door within 4 sec.:
the timer will begin counting down;
3. Once this time has elapsed, the indicator light switches
off and the program begins automatically.
The START DELAY function cannot be set once a
program has been started.
hours
ActivEco
ActivEco is a convection drying system which automatically opens the
door during/after drying phase to ensure exceptional drying
performance every day. Door opens at the temperature that is safe to
your kitchen furniture, thus door will not be opened when the option
of SANI RINSE or TURBO are on.
As additional steam protection, special designed protection foil is
added together with the dishwasher.
To see how to mount protection foil please refer to (INSTALLATION GUIDE).
This feature is active by default, but it is possible to deactivate it in the
“SETTINGS MENU”.
5
DAILY USE
1. CHECK WATER CONNECTION
Check that the dishwasher is connected to the water supply and
that the tap is open.
2. LOAD THE RACKS
(see LOADING THE RACKS)
3. FILLING THE DETERGENT DISPENSER
(see PROGRAMS TABLE).
4. SWITCH ON THE DISHWASHER
Open the door and press the ON/OFF button.
Please note that buttons are deactivated while door is opened
more then 3/4 from vertical (closed) position.
5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE
Select the most appropriate program in accordance with the type
of crockery and its soiling level (see PROGRAMS DESCRIPTION).
The display shows the letter “P” followed by the number of the
program (e.g. “P 1”). Pressing the buttons PREVIOUS / NEXT
changes the program.
Select the desired options (see OPTIONS AND FUNCTIONS).
6. START
Start the wash cycle by pressing START button (led is lit) and
closing the door within 4 sec. When the program starts you hear a
single beep. If the door was not closed within 4sec., the alarm
sound will be played. In this case, open the door, press START
button and close the door again within 4 sec.
7. END OF WASH CYCLE
The end of the wash cycle is indicated by beeps and the display
shows “END”. Open the door and switch off the appliance by
pressing the ON/OFF button.
Wait for a few minutes before removing the crockery - to avoid burns.
Unload the racks, beginning with the lower one.
The machine will switch off automatically during certain extended
periods of inactivity, in order to minimise electricity consumption.
If the crockery is only lightly soiled or if it has been rinsed with
water before being placed in the dishwasher, reduce the amount
of detergent used accordingly.
MODIFYING A RUNNING PROGRAM
If a wrong program was selected, it is possible to change it, provided
that it has only just begun: open the door, press and hold the ON/OFF
button, the machine will switch off.
Switch the machine back on using the ON/OFF button and select the
new wash cycle and any desired options; start the cycle by pressing the
START button and closing the door.
ADDING EXTRA CROCKERY
Without switching off the machine, open the door (the “:” stop blinking
and START led starts blinking) (beware of HOT steam!) and place the
crockery inside the dishwasher. Press the START button and close the
door within 4 sec., the cycle will resume from the point at which it was
interrupted.
ACCIDENTAL INTERRUPTIONS
If the door is opened during the wash cycle, or if there is a power cut,
the cycle stops. To resume the cycle from where it was interrupted,
press the START button and close the door.
ADVICE AND TIPS
TIPS
Before loading the baskets, remove all food residues from the crockery
and empty the glasses. You do not need to rinse beforehand under
running water.
Arrange the crockery so that it is held in place firmly and does not tip
over; and arrange the containers with the openings facing downwards
and the concave/convex parts placed obliquely, thus allowing the
water to reach every surface and flow freely.
Warning: lids, handles, trays and frying pans do not prevent the
sprayer arms from rotating.
Place any small items in the cutlery basket.
Very soiled dishes and pans should be placed in the lower basket
because in this sector the water sprays are stronger and allow a higher
washing performance.
After loading the appliance, make sure that the sprayer arms can rotate
freely.
HYGIENE
To avoid odour and sediment which can be accumulated in the
dishwasher please run a high temperature program at least once a
month. Use a tea spoon of detergent and run it without the loading to
clean your appliance.
UNSUITABLE CROCKERY
• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique
crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high
temperatures.
• Copper and tin crockery.
• Crockery soiled with ash, wax, lubricating grease or ink.
The colours of glass decorations and aluminium/silver pieces can
change and fade during the washing process. Some types of glass (e.g.
crystal objects) can become opaque after a number of wash cycles too.
DAMAGE TO GLASS AND CROCKERY
• Only use glasses and porcelain guaranteed by the manufacturer as
dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the
wash cycle is over.
6
LOADING THE RACKS
2
3
1
1
3
2
A
B
EN
CUTLERY RACK
The third rack was designed to
house the cutlery.
Arrange the cutlery as shown in
the figure.
A separate arrangement of the
cutlery makes collection easier
after washing and improves
washing and drying performance.
Knives and other utensils with sharp edges must be positioned
with the blades facing downwards.
The geometry of the rack makes it
possible to place such small items
as coffee cups in the area in the
middle.
The cutlery basket is equipped
with two sliding side trays to
make the most of the height of
the space below and enable the
loading of high items into upper
rack.
FOLDABLE FLAPS WITH ADJUSTABLE POSITION
The side foldable flaps can be positioned at
three different heights to optimize the
arrangement of crockery inside the rack.
Wine glasses can be placed safely in the foldable
flaps by inserting the stem of each glass into the
corresponding slots.
For optimum drying results incline the foldable
flaps more. To change the inclination, pull up
the foldable flap, slide it slightly and position it
as you wish.
LOWER RACK
For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should
ideally be placed at the sides to avoid interferences with the spray arm.
The lower rack has tip-up supports which can be used in a vertical
position when arranging plates or in a horizontal position (lower) to
load pans and salad bowls easily.
The lower rack has a Space Zone (A), a special pull-out support in the
rear of the rack that can be used to support frying pans or baking pans
in upright position, thus taking up less space.
In order to use it, just get hold of the coloured grip and pull it upwards
(B) while rotating it forward. The supports can slide right and left to fit
the size of the crockery.
A
B
UPPER RACK
Load delicate and light dishes:
glasses, cups, saucers, low salad
bowls.
The upper rack has tip-up
supports which can be used in a
vertical position when arranging
tea/ dessert saucers or in a lower
position to load bowls and food
containers.
(loading example for the upper rack)
ADJUSTING THE HEIGHT OF THE UPPER RACK
The height of the upper rack can be adjusted: high position to place
bulky crockery in the lower basket and low position to make the most
of the tip-up supports by creating more space upwards and avoid
collision with the items loaded into lower rack.
The upper rack is equipped with a Upper
Rack height adjuster (see figure), without
pressing the levers, lift it up by simply
holding the rack sides, as soon as the rack is
stable in its upper position.
To restore to the lower position, press the
levers A at the sides of the rack and move
the basket downwards.
We strongly recommend that you do not
adjust the height of the rack when it is
loaded.
NEVER raise or lower the basket on one side only.
(loading example for the lower rack)
ZONE WASH 3D
Zone Wash 3D uses additional water jets
located both: in the lower and upper part of
the dishwasher (marked with orange color) to
wash more intensively heavily soiled items by
increasing water coverage on dishes.
Example: Load pots and casseroles facing
lower part of Zone Wash 3D components and
activate the Zone Wash 3D option on the
panel.
GLASS CARE
Dedicated accessory
that allows you to
safely store different
types of stem glasses
in the lower rack.
It enables cleaning &
drying results by
allowing an
optimised and stable
positioning of the
glasses.
7
CARE AND MAINTENANCE
A
A
B
C
12
34
ATTENTION: Always unplug the appliance when cleaning it and when performing maintenance work.Do not use flammable liquids to clean the machine.
CLEANING THE DISHWASHER
Any marks on the inside of the appliance may be
removed using a cloth dampened with water and a
little vinegar.
The external surfaces of the machine and the control
panel can be cleaned using a non-abrasive cloth
which has been dampened with water. Do not use
solvents or abrasive products.
PREVENTING UNPLEASANT ODOURS
Always keep the door of the appliance ajar in order to avoid moisture
from forming and being trapped inside the machine.
Clean the seals around the door and detergent dispensers regularly
using a damp sponge. This will avoid food becoming trapped in the
seals, which is the main cause behind the formation of unpleasant
odours.
CHEKING THE WATER SUPPLY HOSE
Check the inlet hose regularly for brittleness and cracks. If damaged,
replace it by a new hose available through our After-Sales Service or
your specialist dealer. Depending on the hose type:
After several washes, check the filter assembly and if necessary clean it
thoroughly under running water, using a non-metallic brush and
following the instructions below:
1. Turn the cylindrical filter A in an anti-clockwise direction and pull it
out
(Fig 1)
.
2. Remove the cup filter
(Fig 2)
flaps
3. Slide out the stainless-steel plate filter
4. Inspect the trap and remove any food residues.
wash-cycle pump protection (black detail)
.
B
by exerting a slight pressure on the side
C
(Fig 3)
.
NEVER REMOVE
(Fig 4)
.
the
If the inlet hose has a transparent coating, periodically check if the
colour intensifies locally. If yes, the hose may have a leak and should be
replaced.
For water stop hoses: check the small safety valve inspection window
(see arrow). If it is red, the water stop function was triggered, and the
hose must be replaced by a new one.
For unscrewing this hose, press the release button while unscrewing
the hose.
CLEANING THE WATER INLET HOSE
If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is
not taken, the water inlet could become blocked and damage the dishwasher.
CLEANING THE FILTER ASSEMBLY
Regularly clean the filter assembly so that the filters do not clog and
that the waste water flows away correctly.
The filter assembly consists of three filters which remove food residues
from the washing water and then recirculate the water: to obtain the
best washing results, you need to keep them clean.
The dishwasher must not be used without filters or if the filter is
loose.
After cleaning the filters, re-place the filter assembly and fix it in
position correctly; this is essential for maintaining the efficient
operation of the dishwasher.
CLEANING THE SPRAY ARMS
On occasions, food residue may
become encrusted onto the spray
arms and block the holes used to
spray the water. It is therefore
recommended that you check the
arms from time to time and clean
them with a small non-metallic
brush. To remove the upper spray
arm, turn the plastic locking ring in
an anti-clockwise direction. The upper spray arm should be replaced so
that the side with the greater number of holes is facing upwards.
The lower spray arm may be
removed by pulling it upwards.
8
EN
MIN 40 cm
MAX 80 cm
INSTALLATION
ATTENTION: If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.
CONNECTING THE WATER SUPPLY
Adaptation of the water supply for installation should only be
performed by a qualified technician.
The water inlet and outlet hoses may be positioned towards the right
or the left in order to achieve the best possible installation.
Make sure the dishwasher does not bend or squash the hoses.
CONNECTING THE WATER INLET HOSE
• Run the water until it is perfectly clear.
• Screw the inlet hose tightly into position and turn on the tap.
If the inlet hose is not long enough, contact a specialist store or an
authorised technician.
The water pressure must be within the values indicated in the Technical
Data table - otherwise the dishwasher may be function properly.
Make sure the hose is not bent or compressed.
SPECIFICATIONS FOR THE CONNECTION OF THE WATER SUPPLY
HOSE:
WATER SUPPLY cold or hot (max. 60°C)
WATER INTAKE 3/4”
POWER OF WATER PRESSURE 0,05 ÷ 1 MPa (0.5 ÷ 10 bar)
7,25 – 145 psi

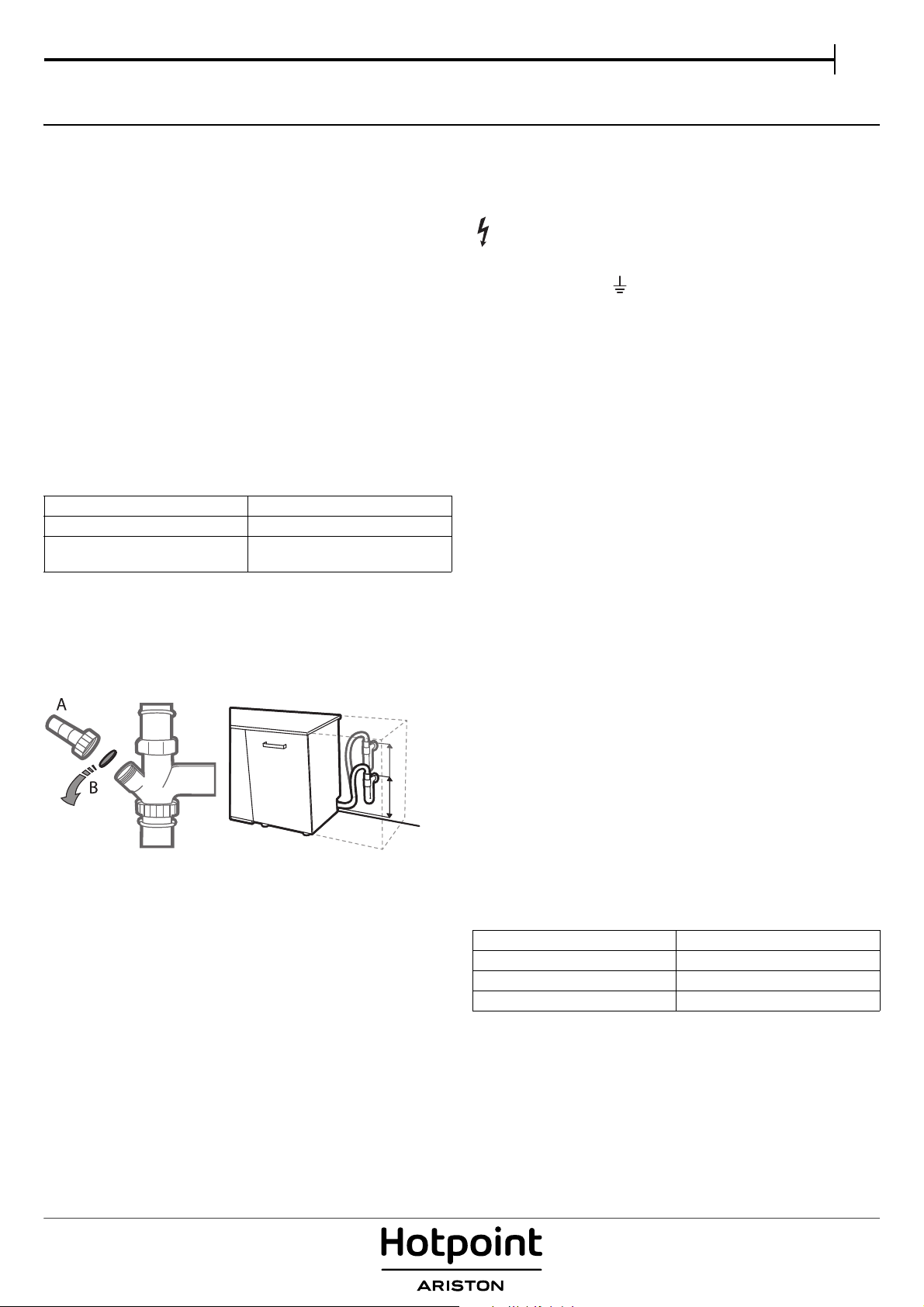

CONNECTING THE WATER OUTLET HOSE
Connect the outlet hose to a drain duct with a minimum diameter of
2cm A.
The outlet hose connection must be at a height ranging from 40 to
80 cm from the floor or surface where the dishwasher rests.
Before connecting the water outlet hose to the sink drain, remove the
plastic plug B.
ELECTRICAL CONNECTION
WARNING: Under no circumstances should the water inlet
hose be cut as it contains live electrical parts.
Before inserting the plug into the electrical socket, make sure that:
•The socket is earth and complies with current regulations;
• The socket can withstand the maximum load of the appliance as
shown on the data plate located on the inside of the door (see
PRODUCT DESCRIPTION).
• The power supply voltage falls within the values indicated on the
data plate on the inside of the door.
• The socket is compatible with the plug of the appliance.
If this is not the case, ask an authorised technician to replace the plug
(see AFTER-SALES SERVICE). Do not use extension cables or multiple
sockets. Once the appliance has been installed, the power supply cable
and the electrical socket should be easily accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, have it replaced by the
manufacturer or its authorised Technical Assistance Service in order to
prevent all potential hazards.
The Company shall not be held responsible for any incidents, if these
regulations are not observed.
POSITIONING AND LEVELLING
1. Position the dishwasher on a level sturdy floor. If the floor is uneven,
the front feet of the appliance may be adjusted until it reaches a
horizontal position. If the appliance is levelled correctly, it will be
more stable and much less likely to move or cause vibrations and
noise while it is operating.
2. Before recessing the dishwasher, stick the adhesive transparent strip
under the wooden shelf in order to protect it from any condensation
which may form.
3. Place the dishwasher so that its sides or back panel are in contact
with the adjacent cabinets or the wall. This appliance can also be
recessed under a single worktop.
4. To adjust the height of the rear foot, turn the red hexagonal bushing
on the lower central part at the front of the dishwasher using a
hexagonal spanner with an opening of 8 mm. Turn the spanner in a
clockwise direction to increase the height and in an anticlockwise
direction to decrease it.
ANTI-FLOODING PROTECTION
Anti-flooding protection. To ensure floods do not occur, the
dishwasher:
- is provided with a special system which blocks the water supply in the
event of anomalies or leaks from inside the appliance.
Some models are also equipped with the supplementary safety device
New Aqua Stop, which guarantees anti-flooding protection even in
the event of a supply hose rupture.
Under no circumstances should the water inlet hose be cut as it
contains live electrical parts.
DIMENSIONS AND CAPACITY:
WIDTH 598 mm
HEIGHT 820 mm
DEPTH 555 mm
CAPACITY 14 standard place-settings
9
TROUBLESHOOTING
Your dishwasher may not work properly.
Before contacting the Service Centre check if the problem can be solved by going through the following list.
PROBLEMS POSSIBLE CAUSES SOLUTIONS
The dishwasher won’t
start or does not
respond to commands.
The door doesn’t lock. Racks are not fit to the end. Verify that racks are fit to the end.
The dishwasher
makes excessive
noise.
The dishes have not
been dried.
The dishes are not
clean.
The dishwasher does
not fill the water,
shows "H2O" Warning
or "F06"
The dishes and
glasses show calcination or a whitish film.
The dishes and
glasses are blue
streaked or have a
bluish tinge.
The appliance has not been plugged in properly. Inse rt th e plug i nto th e soc ket.
Power outage. The dishwasher starts automatically when the power returns.
The dishwasher door is not closed. Vigorously push the door until you hear the “click”.
It does not respond to commands. Switch off the appliance by pressing the ON/OFF button, switch it back on after
The door is not lock. Vigorously push the door until you hear the “clack” sound.
The dishes are rattling against each. Arrange the crockery correctly (see LOADING THE RACKS).
An excessive amount of foam has been produced.
The selected program hasn’t any drying
phase.
The rinse aid has run out or the resolution is
not adequate.
The dishes are made of non-stick or plastic. It is normal the presence of drops of water (see TIPS).
The crockery has not been arranged properly. Arrange the crockery correctly (see LOADING THE RACKS).
The spray arms cannot rotate freely, being
hindered by the dishes.
The wash cycle is too gentle and/or detergent
efficiency is low.
An excessive amount of foam has been produced.(see AFTER-SALES SERVICE)
The cap on the rinse aid compartment has
not been shut correctly.
The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).
There is no salt. Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
No water in the water supply or the tap is
closed.
The inlet hose is bent. Make sure the drain hose is not bent (see INSTALLATION) reprogram the dish-
The sieve in the water inlet hose is clogged; it
is necessary to clean it
The salt level is too low. Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
The adjustment of the water hardness is not
adequate.
The cap of the salt reservoir is not properly
closed.
The rinse aid is used up or the dosage is insufficient.
The rinse aid dosage is excessive. Adjust the dosage rates below.
approximately one minute and reset the program.
The detergent has not been measured out correctly or it is not suitable for use in
dishwashers (see FILLING THE DETERGENT DISPENSER). Reset the current cycle by
switching OFF the dishwasher, then switch it on again, select a new program,
press START and close the door. Please do not add any detergent.
Verify on the programs table if the selected program has the drying phase.
Add the rinse aid or adjust the dosage levels higher (see FILLING THE RINSE AID
DISPENSER).
Arrange the crockery correctly (see LOADING THE RACKS).
Select an appropriate wash cycle (see PROGRAMS TABLE).
The detergent has not been measured out correctly or it is not suitable for use in
dishwashers (see FILLING THE DETERGENT DISPENSER). Reset the current cycle by
switching OFF the dishwasher, then switch it on again, select a new program,
press START and close the door. Please do not add any detergent.
Make sure the cap of the rinse aid dispenser is closed.
Make sure there is water in the water supply or the tap running.
washer and reboot.
After having carried out the verification and cleaning, turn off and turn on the
dishwasher and restart a new program.
Increase the values (see WATER HARDNESS TABLE).
Check to have properly closed the salt reservoir cap.
Add the rinse aid or adjust the dosage levels higher.
10
EN
IEC 436
:
TECHNICAL DATASHEET
The technical data containing the energy consumption data can be
downloaded from the website: docs.hotpoint.eu

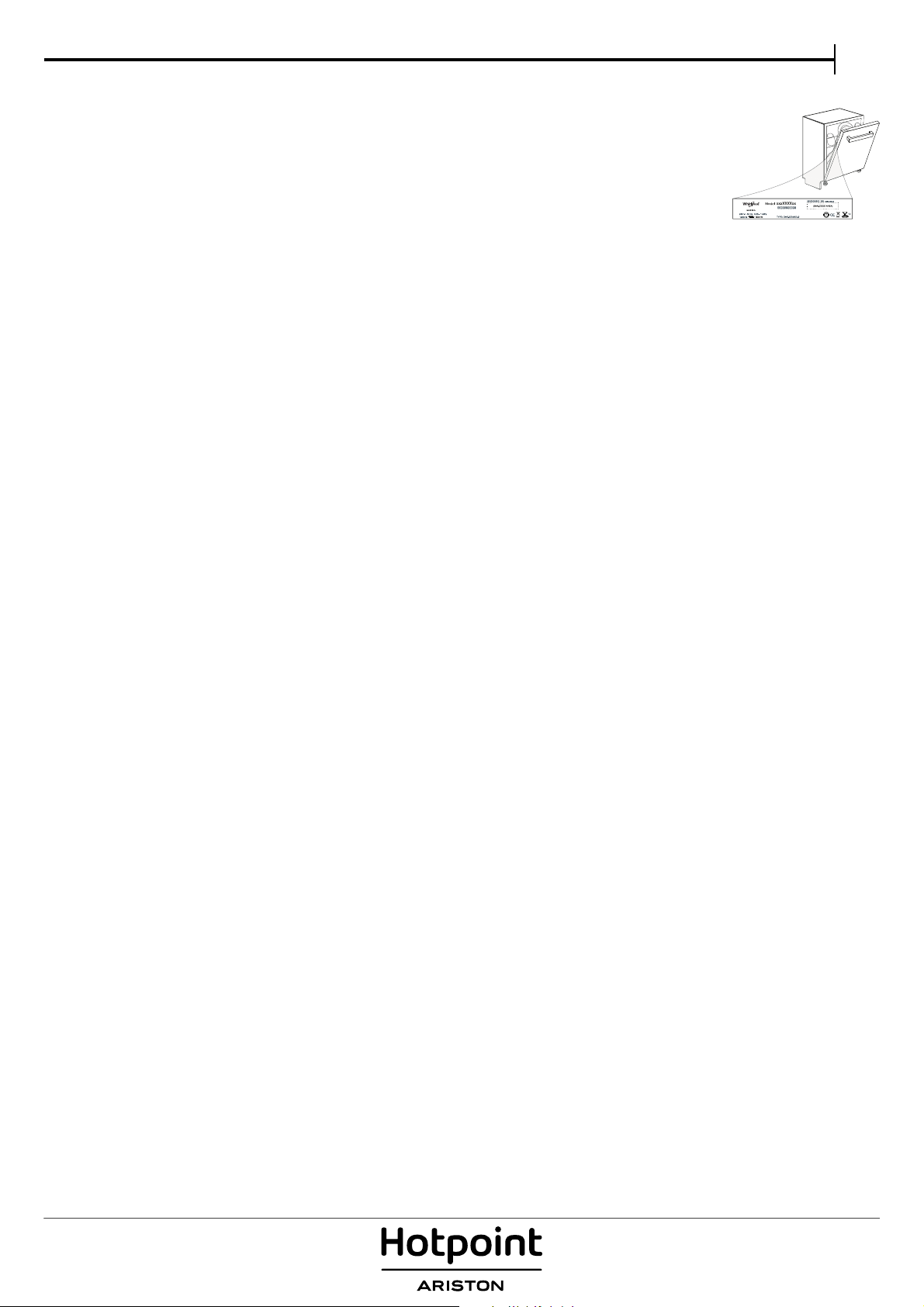

CONTACTING AFTER-SALES SERVICE
You can find our contact details in the
warranty manual. When contacting our
Client After-sales Service, please state the
codes provided on your product's
plate.
rating
11
12
400011337329
01/2019 as - Xerox Fabriano
Loading...
