Instructions for installation and use

WASHING MACHINE

English,1

italiano,13

Български,37

AQUALTIS

AQ8F 292 U

Polski,25

Contents

Installation, 2-3

Unpacking and levelling Connecting the electricity and water supplies Technical data

Description of the machine, 4-5

Control panel

Running a wash cycle, 6

Wash cycles and options, 7

Table of wash cycles Wash options

Detergents and laundry, 8

Detergent Preparing the laundry Washing recommendations

Precautions and advice, 9

General safety Load balancing system Disposal Opening the porthole door manually

Care and maintenance, 10

Cutting off the water and electricity supplies Cleaning the machine Cleaning the detergent dispenser drawer Caring for your appliance drum Cleaning the pump Checking the water inlet hose

Trouble shooting, 11

Assistance, 12

Installation

! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it. ! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance. ! Inside the pack containing this manual, you will also find the guarantee and all the details necessary for installation.

Unpacking and levelling

Unpacking

1. Once you have removed all the packaging from the washing machine, make sure it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

2. Remove the 4 protective screws (used during transportation) and the corresponding spacer, located on the rear part of the appliance (see figure).

! If the appliance is levelled correctly, it will be more stable and much less likely to cause vibrations and noise while it is operating, particularly during the spin cycle. ! If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

! Before connecting the inlet hose to the water supply, run the water until it is perfectly clear.

1. Connect the inlet hose to the machine by screwing it onto the cold water inlet of the appliance, which is situated on the top righthand side of the rear part of the appliance (see figure).

2. Connect the inlet hose by screwing it to a cold water tab using a 3/4 gas threaded connection (see figure).

3. Close off the holes using the plastic plugs supplied in the pack.

4. Keep all the parts in a safe place; they will be needed again if the washing machine is moved to another location, to prevent the inside of the appliance being damaged. ! Packaging materials should not be used as toys for children.

Levelling

1. Place the washing machine on a flat sturdy floor, without resting it up against walls or cabinets.

2. If the floor is uneven, the front feet of the machine may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees).

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values indicated in the Technical data table (see next page).

! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.

! Never use second-hand or old inlet hoses; use the products supplied with the machine.

65 - 100 cm

Connecting the drain hose

Connect the drain hose to drain duct piping or a wall drain located between 65 and 100 cm above the floor, making sure it is not bent at all.

Alternatively, rest the drain hose on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable and plug must only be replaced

by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• thesocketisearthedandcomplieswithallapplicable

laws;

• thesocketisabletowithstandthemaximumpowerload

of the appliance as indicated in the Technical data table (see opposite);

• thepowersupplyvoltagefallswithinthevaluesindicated

in the Technical data table (see opposite);

• thesocketiscompatiblewiththeplugoftheappliance.

If this is not the case, have the socket or the plug replaced.

! The appliace must only be installed indoor in a frost free and dry room, to prevent it from electronic damage due to frost or condensation.

! The mains socket must remain within easy reach after the washing machine has been installed.

Technical data

Model

Dimensions

Capacity

Electrical

connections

Water connections

Spin speed

Test Program-

mes according to

2010/1061

AQ8F 292 U

width 59.5 cm height 85 cm depth 64,5 cm

from 1 to 8 kg

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 62 litres

up to 1200 rotations per minute

programme temperature 60°C and 40°C.

This appliance conforms to the following EC Directives:

- 2004/108/EC (Electromagnetic Compatibility)

- 2006/95/EC (Low Voltage)

- 2002/96/EC

;

Description of the machine

PORTHOLE DOOR

PORTHOLE DOOR HANDLE

KICK STRIP

CONTROL PANEL

ADJUSTABLE FEET

PORTHOLE DOOR

Always use the handle to open the porthole door (see

figure).

DETERGENT DISPENSER DRAWER

The detergent dispenser drawer is located inside the machine and can be accessed by opening the door. For more information on detergent measures, please refer to the chapter entitled

“Detergents and laundry”. Note: stick the label showing

the wash cycle descriptions and options on the front of the detergent dispenser drawer. You will find the sticker in the pack containing this manual.

1. pre-wash compartment: use powder detergent.

2. main wash compartment: use powder or liquid detergent. If using the latter type of detergent, we recommend it is poured into the drawer immediately before you start the washing machine.

washing additives compartment: for fabric softener or liquid additives. We recommend that the maximum level indicated by the grille is not exceeded, and that concentrated fabric softeners are diluted.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF wait for the machine to start up again.

button briefly and

Control panel

WASH CYCLE

SELECTOR knob

TEMPERATURE

display

OPTION buttons with

indicator lights

SPIN display

DELAYED START/CYCLE DURATION display

ECO indicator light

OPTION buttons with

indicator lights

START/PAUSE

button with indicator

light

WASH

CYCLE PHASE

icons

Button with

indicator light

ON/OFF

TEMPERATURE button

SPIN button

Button with ON/OFF indicator light: press this briefly to switch the machine on or off. The green indicator light indicates that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 3 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR knob: may be turned in either direction. To select the most suitable wash cycle, please refer to the “Table of wash cycles”. The knob will not move during the wash cycle.

TEMPERATURE

button: press to modify or exclude the temperature setting; the value selected will appear on the display above (see “Running a wash cycle”).

SPIN CYCLE

button: press to modify or exclude the spin cycle; the value selected will appear on the display above (see “Running a wash cycle”).

DELAYED START

button: press to set a delayed start for the selected wash cycle; the set delay time will appear on the display above (see “Running a wash cycle”).

OPTION buttons with indicator lights: press to select the available options. The indicator light corresponding to the selected option will remain lit (see “Running a wash cycle”).

DELAYED START

button

DOOR LOCKED

indicator light

CONTROL PANEL LOCK button with

indicator light

START/PAUSE button with indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the “Door locked”

indicator light is switched off, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

DOOR LOCKED

indicator light: indicates that the porthole door is locked. To open the door, pause the wash cycle (see “Running a wash cycle”).

CONTROL PANEL LOCK

button with indicator light: to activate or deactivate the control panel lock, press and hold the button for approximately 2 seconds. when the indicator light is illuminated, the control panel is locked. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home.

ECO indicator light: the

icon lights up when, after altering the washing parameters, an energy saving of at least 10% is made. Furthermore, before the machine enters “Standby” mode, the icon will light up for a few seconds; when the machine is switched off the estimated energy saving will be around the 80% mark.

WASH CYCLE PHASE icons: these illuminate to indicate the progress of the wash cycle (Wash

– Rinse – Spin

– Drain ).

The text

lights up when the cycle is complete.

Running a wash cycle

WARNING: before you use the washing machine for the

first time, run a wash cycle with detergent and no laundry, using the 90° cottons cycle without pre-wash.

1. SWITCH THE MACHINE ON. Press the All the indicator lights will illuminate for 1 second; the indicator light corresponding to the remain lit in a fixed manner and the START/PAUSE indicator light will flash slowly.

2. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of wash cycles on the following page.

3. MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in “Description

of the machine”.

4. CLOSE THE PORTHOLE DOOR.

5. SELECT THE PROGRAMME. Turn the WASH CYCLE SELECTOR KNOB right or left, until you have selected the desired wash cycle. A temperature and spin speed is set for each wash cycle; these may be adjusted.

6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons on the control panel:

Modify the temperature and/or spin

speed.

The machine automatically displays the maximum

temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the cold wash ( be progressively reduced by pressing the until it is completely excluded ( pressed again, the maximum values are restored.

) setting is reached. The spin speed may

button will then

button, until the

). If these buttons are

button.

button,

! Exception: if the “Cottons” programme is selected, the

temperature can be increased up to a value of 90°C.

Set a delayed start.

Press the button until you have reached the desired

delay time. During the setting process, the delay time is shown on the display and the

After selecting a delayed start time, the fixed

and the cycle duration will appear on the display. Press the button once to display the selected delay time.

To remove the delayed start option, press the button

until the display shows the text OFF; the disappear.

! Once the START/PAUSE button has been pressed, the

time delay may only be decreased.

symbol flashes.

symbol

symbol will

 •Pressthebuttonagaintodisabletheoption;the

indicator light will switch off.

! If the selected option is not compatible with the

selected wash cycle, this incompatibility will be signalled by the flashing of the indicator light and a sound alert (3 beeps); the option will not be activated.

! If the selected option is not compatible with another

option that has been selected previously, the indicator light corresponding to the first option selected will flash and only the second option will be activated; the indicator light corresponding to the button will remain lit in a constant manner.

7. START THE PROGRAMME. Press the START/PAUSE button. The corresponding indicator light remains lit in a fixed manner and the porthole door locks (the DOOR LOCKED indicator light illuminates). The icons corresponding to the wash cycle phases will light up during the cycle to indicate which phase is currently in progress.

To change a wash cycle once it has already started,

pause the washing machine by pressing the START/ PAUSE button; then select the desired cycle and press the START/PAUSE button again.

To open the door during a wash cycle, press the START/

PAUSE button; if the DOOR LOCKED light is switched off you may open the door. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

8. THE END OF THE WASH CYCLE. This is indicated by the illuminated text END. The porthole door may be opened immediately. If the START/PAUSE indicator light is flashing, press the button to end the cycle. Open the door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun, press and hold the machine switches off.

Bag for quilts, curtains and delicate garments

The Aqualtis washing machine makes it easier for you to wash even the most valuable and delicate garments in complete confidence thanks to the special bag which protects the laundry (this is supplied with the machine). We recommend that the bag is used every time you wash quilts and padded items with an outer layer made using synthetic material.

button until the cycle stops and the

indicator

Modify the cycle settings.

Press the OPTION buttons to customise the wash cycle

in accordance with your own requirements.

 •Pressthebuttontoactivatetheoption;the

corresponding indicator light will switch on.

Wash cycles and options

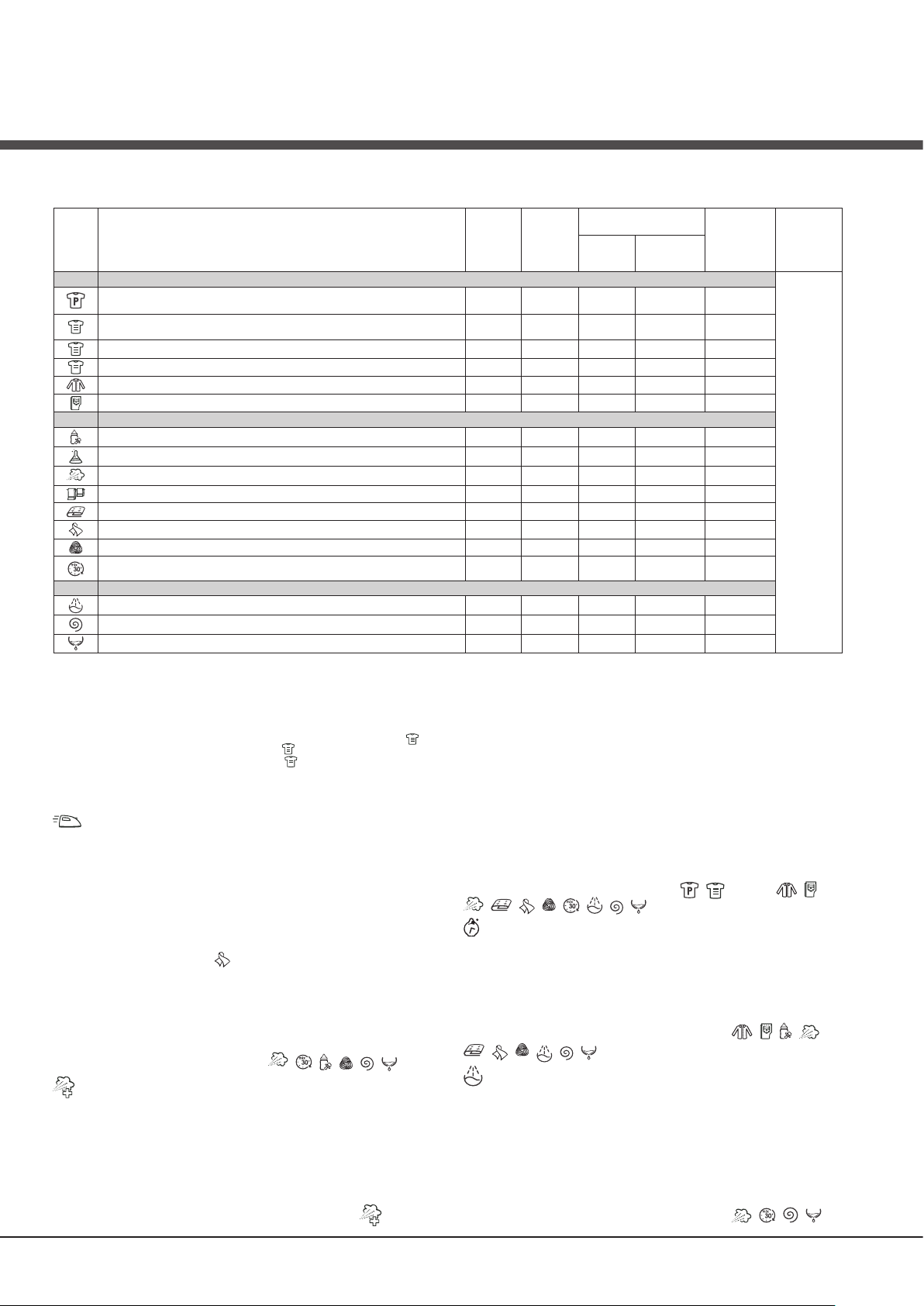

Table of wash cycles

Icon Description of the wash cycle

Cottons wash cycles Cottons with pre-wash

(Add detergent to the relevant compartment).

Cotton (1): heavily soiled whites and resistant colours.

Cotton (1-2): heavily soiled whites and delicate colours. 40° 1200

Coloured Cotton (3) 40° 1200

Shirts

Jeans

Specials wash cycles

Baby: heavily soiled delicate colours. 40° 800

Durable Synthetics 60° 800

** Steam Refresh (see next page). - - - - 1,5

"Bed & Bath" for bedlinen and towels. 60° 1200 Duvets: for down-stuffed garments. 30° 1000

Silk: for garments in silk and viscose, lingerie. 30° 0

Wool: for wool, cashmere, etc. 40° 600 Mix 30': to refresh lightly soiled garments quickly (not suitable for

wool, silk and clothes which require washing by hand)

Partials wash cycles

Rinse - 1200 -

Spin - 1200 - - 8

Drain - 0 - - 8

Max. temp.

(°C)

90° 1200

60°

(Max. 90°C)

40° 600

40° 800

30° 800

Max.

speed

(rpm)

1200

Detergent and

additives

Detergent

for wash

 

   

 

Fabric

softener



Max.

load

(kg)

3,5

Cycle

duration

(*) The duration of the wash cycles can be checked on the display.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

(*) Note: 10 minutes after the START, the machine will recalculate the time remaining until the end of the wash cycle on the basis of the load inside it; this value will then be shown on the display.

For all Test Institutes:

1) Test wash cycle in compliance with regulation 2010/1061: set wash cycle with a temperature 60°C and 40°C.

2) Long wash cycle for cottons: set wash cycle with a temperature of 40°C.

3) Short wash cycle for cottons: set wash cycle with a temperature of 40°C.

Wash options

Easy Iron

By selecting this option, the wash and spin cycles will be modified in order to reduce the formation of creases.

At the end of the cycle the washing machine drum will rotate slowly; the “Easy Iron” and START/PAUSE indicator

lights will flash. To end the cycle press the START/PAUSE button or the “Easy Iron” button. For the Silk while the laundry is soaking and the “Easy Iron” indicator light will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the “Easy Iron” button. ! It cannot be used in conjunction with

Steam Hygiene

This option enhances washing performance by generating steam during the wash cycle that eliminates any bacteria from fibres while treating them at the same time. Place the laundry in the drum, choose a compatible programme and select option “

wash cycle, the machine will end the cycle

, , , , , .

“.

! The steam generated during washing machine operation may cause the porthole door to become hazy.

! It cannot be used in conjunction with , (90°C), , ,

, , , , , , , .

Time Saver

If you select this option, the wash cycle duration will be reduced by 30%-50%, depending on the selected cycle, thereby guaranteeing simultaneous water and energy saving. Use this cycle for lightly soiled garments.

! It cannot be used in conjunction with

, , , , .

Extra rinse

By selecting this option, the efficiency of the rinse is increased and optimal residual detergent removal is guaranteed. It is particularly useful for skin which is sensitive to detergents. We recommend this option is used with a full load of washing, or when a large amount of detergent is required.

! It cannot be used in conjunction with

, , , , ,

, , , .

Detergents and laundry

Detergent

The type and quantity of detergent required depend on the type of fabric you are washing (cotton, wool, silk, etc.), as well as its colour, the washing temperature, the level of soiling and the hardness of the water in the area. Measuring out the detergent carefully will avoid wastage and help to protect the environment: although they are biodegradable, detergents still contain ingredients which alter the balance of nature. We recommend the following:

• usepowderdetergentsforwhitecottongarmentsand

pre-washing.

• useliquiddetergentsfordelicatecottongarmentsand

for all low-temperature wash cycles.

• usegentleliquiddetergentsforwoolandsilkgarments.

The detergent should be poured into the relevant compartment

- or the dispenser placed directly inside the drum - before the wash cycle begins. In the latter case, it will not be possible to select the Cottons with pre-wash cycle. ! Do not use hand washing detergents because these create too much foam.

Preparing the laundry

• Shakeoutthegarmentsbeforeloadingthemintothe

machine.

• Dividethelaundryaccordingfabrictype(symbolonthe

washing instruction label) and colour, making sure you separate the coloured garments from the white ones;

• Emptyallpocketsandcheckthebuttons;

• Donotexceedthevalueslistedinthe“Table of wash cycles”,

which refer to the weight of the laundry when dry.

How much does your laundry weigh?

1 sheet 400-500 g 1 pillowcase 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g 1 pair of jeans 400-500 g 1 shirt 150-200 g

Shirts: use the special “Shirts” wash cycle to wash shirts in different fabrics and colours to guarantee they receive the best possible care. Jeans: use the special “Jeans” garments; turn inside out before washing and use a liquid detergent. Baby: use the special “Baby” the remove the soiling typically caused by babies, while removing all traces of detergent from nappies in order to prevent the delicate skin of babies from suffering allergic reactions. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent. At the end of the wash cycle, the machine will slowly rotate the drum; to end the cycle press the START/PAUSE button. Silk: use the special “Silk” garments. We recommend the use of special detergent which has been designed to wash delicate clothes. Curtains: use the “Silk” folded and placed inside the bag provided. Wool: Hotpoint is the only washing machine brand to have been awarded the prestigious Woolmark Platinum Care endorsement (M.0508) by the Woolmark Company, which means that all woollen garments may be washed in the washing machine, even those which state “hand wash only” to wash all woollen garments in the washing machine while guaranteeing optimum performance. Duvets: to wash double or single duvets (the weight of which should not exceed 3,5 kg), cushions or clothes padded with goose down such as puffa jackets, use the special “Duvets” duvets are placed in the drum with their edges folded inwards (see figure) and that no more than ¾ of the total volume of the drum is used. To achieve the best results, we recommend that a liquid detergent is used and placed inside the detergent dispenser drawer.

on the label. The “Wool” wash cycle can be used

wash cycle. We recommend that

wash cycle for all denim

wash cycle to remove

wash cycle to wash all silk

wash cycle. These should be

Washing recommendations

** Steam Refresh

This programme refreshes garments by removing bad odours and relaxing the fibres (1.5 kg, roughly 3 items). Insert dry items only (that are not dirty) and select programme “ cycle is completed, so we recommend hanging them to dry. The “ Moreover, with the “Steam Perfume” laundry balls, your favourite perfume can be added to your laundry. Place a few drops of perfume on the sponge contained inside the laundry ball, close it and insert it into the drum together with the laundry. Then launch the specific programme “

“. At the end of the cycle, garments will be relaxed and

fragrant.

! Not recommended for wool or silk garments. ! Do not add too much perfume to the sponge in order to

avoid it dripping. ! Do not add softeners or detergents.

“. The garments will be damp once the

“ programme makes ironing easier.

Quilts: to wash quilts with a synthetic outer layer, use the bag provided and set the wash cycle to “Duvets” Bedlinen and towels: use the “Bed & Bath” wash laundry from all over the house; this optimises fabric softener performance and helps you save time and energy. We recommend the use of powder detergent. Stubborn stains: it is wise to treat stubborn stains with solid soap before washing, and to use the Cottons with pre-wash cycle.

cycle to

Precautions and tips

! The machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• Thisappliancewasdesignedfordomesticuseonly.

• Thisapplianceisnotintendedforusebypersons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• themachinemustonlybeusedbyadults,inaccordance

with the instructions given in this manual.

• Donottouchthemachinewhenbarefootorwithwetor

damp hands or feet.

• Donotpullonthepowersupplycablewhenunplugging

the appliance from the electricity socket. Hold the plug and pull.

• Donottouchthedrainedwaterasitmayreach

extremely high temperatures.

• Neverforcetheportholedoor.Thiscoulddamagethe

safety lock mechanism designed to prevent accidental opening.

• Iftheappliancebreaksdown,donotunderany

circumstances access the internal mechanisms in an attempt to repair it yourself.

• Alwayskeepchildrenwellawayfromtheappliancewhile

it is operating.

• Ifitmustbemoved,proceedwiththehelpoftwoor

three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

• Beforeloadinglaundryintothewashingmachine,make

sure the drum is empty.

Load balancing system

Before every spin cycle, to avoid excessive vibrations before every spin and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.

For more information relating to the correct disposal of

household appliances, owners should contact their local authorities or appliance dealer.

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

1. remove the plug from the electrical socket.

2. make sure the water level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

3. remove the cover panel on the lower front part of the washing machine (see overleaf).

4. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards until you hear a “click”, which indicates that the door is now unlocked.

5. open the door; if this is still not possible repeat the procedure.

Disposal

• Disposingofthepackagingmaterials:observelocal

regulations so that the packaging may be re-used.

• TheEuropeanDirective2002/96/ECrelatingtoWaste

Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of

6. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Care and maintenance

Cutting off the water and electricity supplies

• Turnoffthewatertapaftereverywashcycle.Thiswill

limit wear on the hydraulic system in the machine and help to prevent leaks.

• Unplugtheappliancewhencleaningitandduringall

maintenance work.

Cleaning the machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

To remove the drawer, press lever (1) and pull the drawer outwards (2) (see figure). Wash it under running water; this procedure should be repeated frequently.

To access the pre-chamber:

1. take off the cover panel on the front of the machine by

first pressing it in the centre and then pushing downwards on both sides until you can remove it (see figures);

2. position a container so that it will collect the water which flows out (approximately 1.5 l) (see figure);

3. unscrew the lid by rotating it in an anti-clockwise direction (see figure);

4. clean the inside thoroughly;

5. screw the lid back on;

6. reposition the panel, making sure the hooks are securely

in place before you push it onto the appliance.

Caring for your appliance drum

• Alwaysleavethedoorajartopreventunpleasantodours

from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump.

Make sure the wash cycle has finished and unplug the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

Trouble shooting

Your washing machine could occasionally fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure that the problem cannot be not solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not fill with water.

The washing machine door remains locked.

The machine continuously fills with water and drains.

The washing machine does not drain or spin.

The machine vibrates a lot during the spin cycle.

The washing machine leaks.

The icons corresponding to the “Phase in progress” flash rapidly at the same time as the ON/OFF

Possible causes / Solutions:

• Theapplianceisnotpluggedintothesocketfully,ornotenoughtomake

contact.

• Thereisnopowerinthehouse.

• Thedoorisnotclosedproperly.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Thewatertaphasnotbeenopened.

• Adelayedstarthasbeenset.

• Thewaterinlethoseisnotconnectedtothetap.

• Thehoseisbent.

• Thewatertaphasnotbeenopened.

• Thereisnowatersupplyinthehouse.

• Thepressureistoolow.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Ifyouhaveselectedthe“Baby

the wash cycle has finished the machine will slowly rotate the drum; to end the cycle press the START/PAUSE button or the “Easy iron have selected the “Silk the laundry is soaking; to drain the water so that the laundry may be removed, press the START/PAUSE button or the “Easy iron

• Thedrainhoseisnotfittedataheightbetween65and100cmfromthefloor

(see “Installation”).

• Thefreeendofthehoseisunderwater(see “Installation”).

• Ifthedwellingisononeoftheupperfloorsofabuilding,theremaybe

problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to prevent this inconvenience.

• Thewalldrainagesystemisnotfittedwithabreatherpipe.

• Thewashcycledoesnotincludedraining:Somewashcyclesrequirethedrain

phase to be started manually (see “Wash cycles and options”).

• The“Easyiron”optionisenabled:tocompletethewashcycle,pressthe

START/PAUSE button (“Wash cycles and options”).

• Thedrainhoseisbent(see Installation).

• Thedrainageductisclogged.

• Thedrumwasnotunlockedcorrectlyduringinstallation(see “Installation”).

• Themachineisnotlevel(see “Installation” ).

• Themachineistrappedbetweencabinetsandwalls(see “Installation”).

• Theloadisunbalanced(see “Detergents and laundry”).

• Thewaterinlethoseisnotscrewedonproperly(see“Installation”).

• Thedetergentdispenserisblocked(tocleanit,see “Care and maintenance”).

• Thedrainhoseisnotfixedinplaceproperly(see“Installation”).

• Switchoffthemachineandunplugit,waitforapproximately1minuteand

then switch it back on again. If the problem persists, contact the Technical Assistance Service.

” cycle or the “Easy iron ” option, when

” button. If you

” wash cycle, the machine will end the cycle while

” button.

indicator light.

There is too much foam.

The washing machine door

• Thedetergentisnotsuitableformachinewashing(itshoulddisplaythetext

“for washing machines” or “hand and machine wash”, or the like).

• Toomuchdetergentwasused.

• Performthemanualunlockingprocedure(see “Precautions and tips”).

remains locked.

Note: To exit “Demo mode”, press and hold the two “ON/OFF” and “START/PAUSE” buttons simultaneously for 3 seconds.

Assistance

Before calling for Assistance:

• Checkwhetheryoucansolvetheproblembyyourself(see“Trouble shooting”);

• Restartthewashcycletocheckwhethertheproblemhasbeensolved;

• Ifithasnot,contacttheAuthorisedTechnicalAssistanceService.

! If the washing machine has been installed or used incorrectly, you will have to pay for the call-out service. ! Always request the assistance of authorised technicians.

Please have the following information to hand:

• thetypeofproblem;

• theappliancemodel(Mod.);

• theserialnumber(S/N).

The above information can be found on the data plate located on the appliance itself.

Istruzioni per l’installazione e l’uso

Sommario

Installazione, 14-15

Italiano

AQUALTIS

Disimballo e livellamento Collegamenti idraulici ed elettrici Dati tecnici

Descrizione della macchina, 16-17

Pannello comandi

Come effettuare un ciclo di lavaggio, 18

Programmi e opzioni, 19

Tabella Programmi Le opzioni di lavaggio

Detersivi e biancheria, 20

Detersivo Preparare la biancheria Consigli di lavaggio

LAVABIANCHERIA

AQ8F 292 U

Precauzioni e consigli, 21

Sicurezza generale Sistema bilanciamento del carico Smaltimento Apertura manuale della porta oblò

Manutenzione e cura, 22

Escludere acqua e corrente elettrica Pulire la macchina Pulire il cassetto dei detersivi Curare il cestello Pulire la pompa Controllare il tubo di alimentazione dell’acqua

Anomalie e rimedi, 23

Assistenza, 24

Assistenza Attiva 7 giorni su 7

Installazione

! E’ importante conservare questo libretto per poterlo

consultare in ogni momento. In caso di vendita, di cessione o di trasloco, assicurarsi che resti insieme alla lavabiancheria.

! Leggere attentamente le istruzioni: ci sono importanti

informazioni sull’installazione, sull’uso e sulla sicurezza.

! Nella busta contenente questo libretto troverete, oltre alla

garanzia, dei particolari che serviranno per l’installazione.

Disimballo e livellamento

Disimballo

1. Una volta disimballata la lavabiancheria, controllare che non abbia subito danni durante il trasporto. Se fosse danneggiata non collegarla e contattare il rivenditore.

2. Rimuovere le 4 viti di protezione per il trasporto ed il relativo distanziale posti nella parte posteriore (vedi figura).

! In caso sia posizionata su moquette o tappeti, regolare

i piedini in modo da conservare sotto la lavabiancheria lo spazio necessario per la ventilazione.

Collegamenti idraulici ed elettrici

Collegamento del tubo di alimentazione dell’acqua

! Prima di collegare il tubo di alimentazione alla rete

idrica, far scorrere l’acqua finché non sia limpida.

1. Collegare il tubo di alimentazione alla macchina avvitandolo all’apposita presa d’acqua, nella parte posteriore in alto a destra

(vedi figura).

2. Collegare il tubo di alimentazione avvitandolo a un rubinetto d’acqua fredda con bocca filettata da 3/4 gas (vedi figura).

3. Chiudere i fori con i tappi di plastica contenuti nella busta.

4. Conservare tutti i pezzi; qualora la lavabiancheria dovesse essere trasportata, dovranno essere rimontati per evitare danneggiamenti interni.

! Gli imballaggi non sono giocattoli per bambini.

Livellamento

1. Posizionare la lavabiancheria su un pavimento piano e rigido, senza appoggiarla a muri o mobili.

2. Compensare le irregolarità svitando o avvitando i piedini finchè la macchina non sia orizzontale (non deve essere inclinata più di 2 gradi).

! Un accurato livellamento dà stabilità ed evita vibrazioni e

rumorosità soprattutto nella fase di centrifuga.

3. Fare attenzione che nel tubo non ci siano né pieghe né strozzature.

! La pressione idrica del rubinetto deve essere compresa

nei valori della tabella Dati tecnici

(vedi pagina a fianco).

! Se la lunghezza del tubo di alimentazione non fosse

sufficiente, rivolgersi a un negozio specializzato o a un tecnico autorizzato.

! Non utilizzare mai tubi di carico usati o vecchi, ma quelli

in dotazione alla macchina.

Collegamento del tubo di scarico

65 - 100 cm

Collegare il tubo di scarico a una conduttura di scarico o a uno scarico a muro posti tra 65 e 100 cm da terra evitando assolutamente di piegarlo.

In alternativa, appoggiare il tubo di scarico al bordo di un lavandino o di una vasca, legando la guida in dotazione al rubinetto

(vedi figura).

L’estremità libera del tubo di scarico non deve rimanere immersa nell’acqua.

! Non usare prolunghe e multiple.

! Il cavo non deve subire piegature o compressioni.

! Il cavo di alimentazione e la spina devono essere

sostituiti solo da tecnici autorizzati.

Attenzione! L’azienda declina ogni responsabilità qualora queste norme non vengano rispettate.

! È sconsigliato usare tubi di prolunga; se indispensabile,

la prolunga deve avere lo stesso diametro del tubo originale e non superare i 150 cm.

Collegamento elettrico

Prima di inserire la spina nella presa della corrente, accertarsi che:

• la presa abbia la messa a terra e sia a norma

di legge;

• la presa sia in grado di sopportare il carico

massimo di potenza della macchina, indicato nella tabella Dati tecnici (vedi a fianco);

• la tensione di alimentazione sia compresa nei

valori indicati nella tabella Dati tecnici (vedi a fianco);

• la presa sia compatibile con la spina della

macchina. In caso contrario far sostituire la presa o la spina.

! La macchina non va installata all’aperto, nemmeno se

lo spazio è riparato, perché è molto pericoloso lasciarla esposta a pioggia e temporali.

! A macchina installata, la presa della corrente deve

essere facilmente raggiungibile.

Dati tecnici

Modello AQ8F 292 U

larghezza cm 59,5

Dimensioni

Capacità da 1 a 8 kg

Collegamenti

elettrici

Collegamenti idrici

Velocità di

centrifuga

Programmi di con-

trollo secondo la

norma 2010/1061

altezza cm 85 profondità cm 64,5

vedi la targhetta caratteristiche tecniche applicata sulla macchina

pressione massima 1 MPa (10 bar) pressione minima 0,05 MPa (0,5 bar) capacità del cesto 62 litri

sino a 1200 giri al minuto

programma ; temperatura 60°C e 40°C.

Questa apparecchiatura è conforme alle seguenti Direttive Comunitarie:

- 2004/108/CE (Compatibilità Elettromagnetica)

- 2002/96/CE

- 2006/95/CE (Bassa Tensione)

+ 33 hidden pages
