Instructions for use

WASHING MACHINE

English,1

WMF 700

ΕΛΛΗΝΙΚΑ,13GRMagyar,25

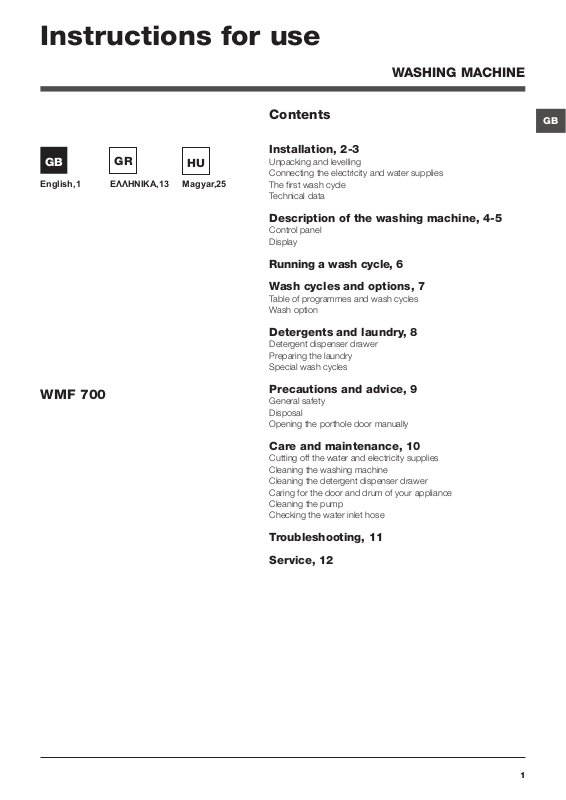

Contents

Installation, 2-3

Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data

Description of the washing machine, 4-5

Control panel Display

Running a wash cycle, 6

Wash cycles and options, 7

Table of programmes and wash cycles Wash option

Detergents and laundry, 8

Detergent dispenser drawer Preparing the laundry Special wash cycles

Precautions and advice, 9

General safety Disposal Opening the porthole door manually

Care and maintenance, 10

Cutting off the water and electricity supplies Cleaning the washing machine Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose

Troubleshooting, 11

Service, 12

Installation

! This instruction manual should be kept in a safe place for

future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.

! Read these instructions carefully: they contain vital

information relating to the safe installation and operation of the appliance.

Unpacking and levelling

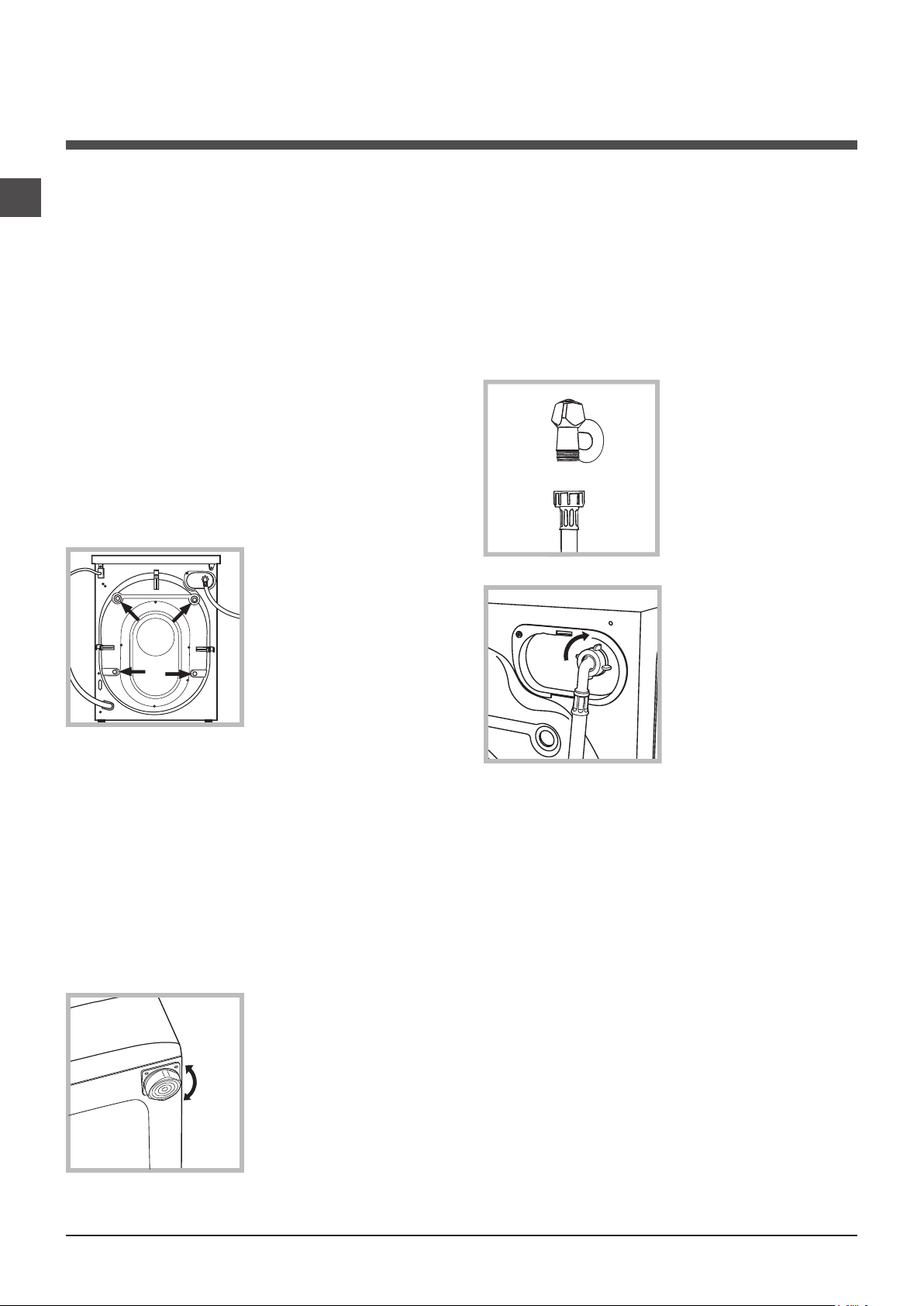

Unpacking

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

3. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

1. Connect the inlet hose by screwing it to a cold water tap using a 3/4 gas threaded connection (see

figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top righthand side of the rear part of the appliance (see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.

! Packaging materials should not be used as toys for

children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2°.

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the range

of values indicated in the Technical data table (see next page).

! If the inlet hose is not long enough, contact a specialised

shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

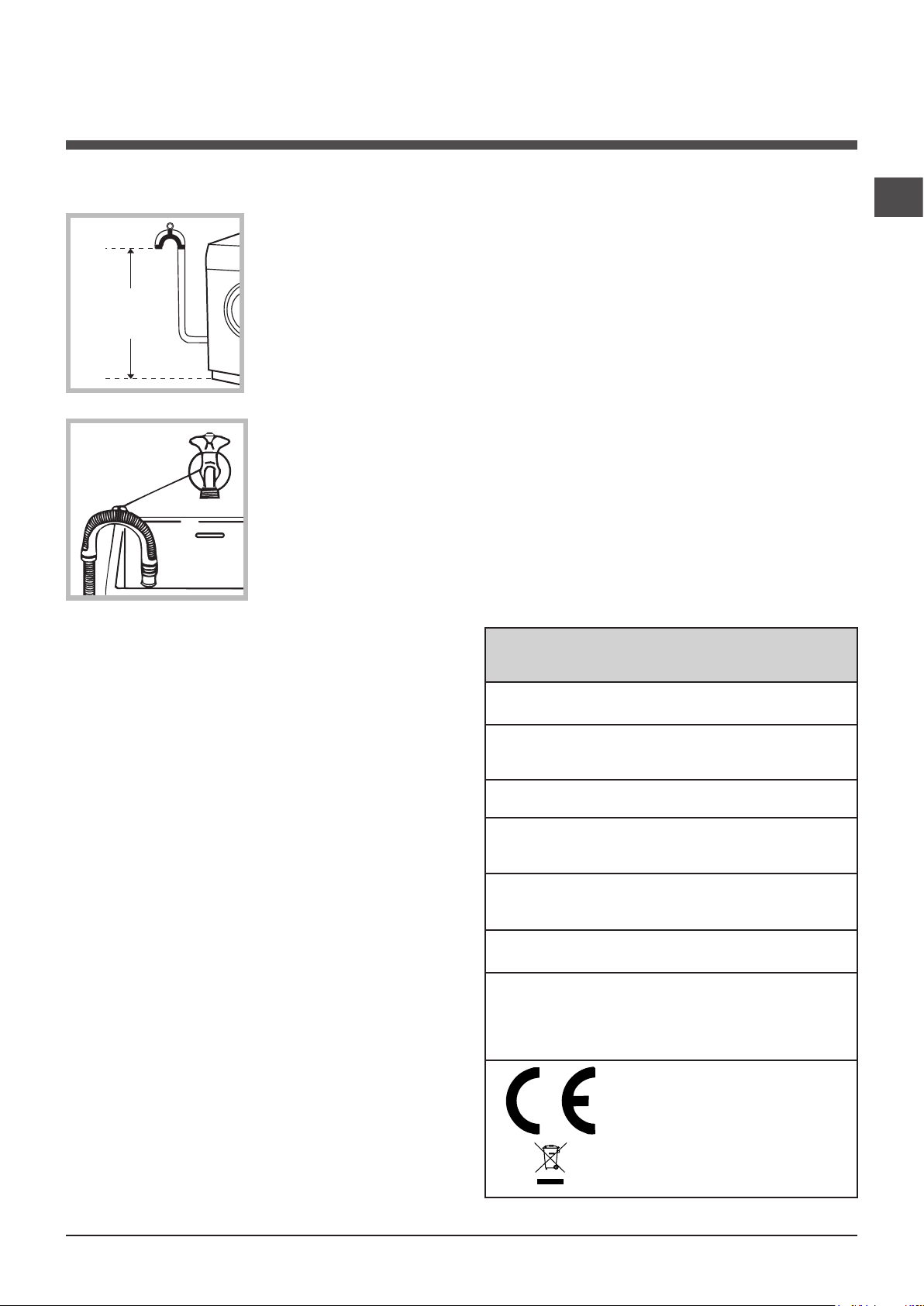

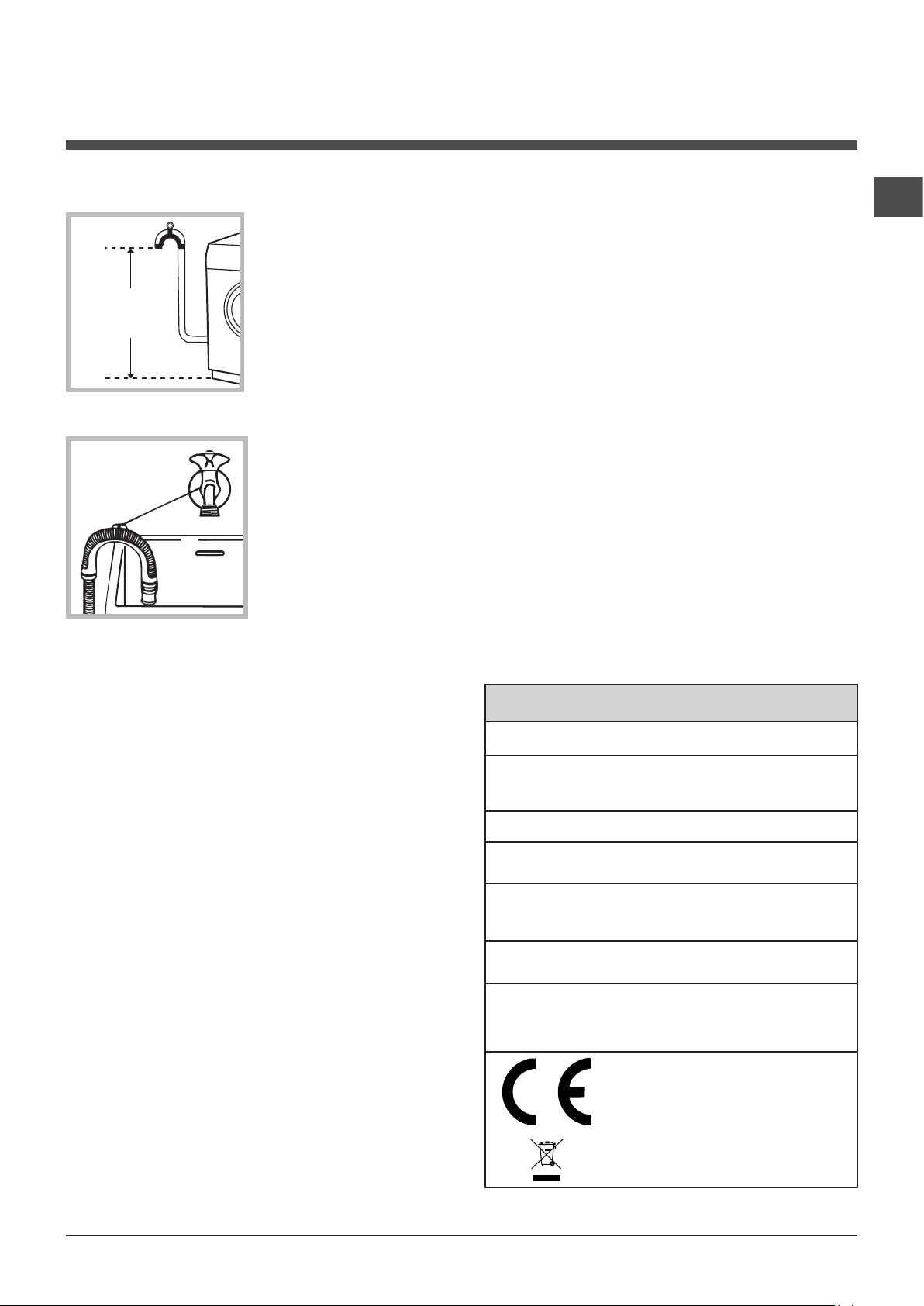

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a drain duct or a wall drain situated between 65 and 100 cm from the floor;

alternatively, placed it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• thesocketisearthedandcomplieswithallapplicable

laws;

! The cable should not be bent or compressed.

! The power supply cable must only be replaced by

authorised technicians.

Warning! The company shall not be held responsible in the event that these standards are not observed.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using wash cycle number 2.

Technical data

Model

Dimensions

Capacity

WMF 700

width 59.5 cm height 85 cm depth 54 cm

from 1 to 7 kg

• thesocketisabletowithstandthemaximumpower

load of the appliance as indicated in the Technical data table (see opposite);

• thepowersupplyvoltagefallswithinthevalues

indicated in the Technical data table (see opposite);

• thesocketiscompatiblewiththeplugofthewashing

machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors,

even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the

electricity socket must remain within easy reach.

! Do not use extension cords or multiple sockets.

Electrical

connections

Water connections

Spin speed

Test Program-

mes according to

2010/1061

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 52 litres

up to 1000 rotations per minute

programme 4; temperature 60°C. programme 5; temperature 40°C.

This appliance conforms to the following EC Directives:

- 2004/108/EC (Electromagnetic Compatibility)

- 2006/95/EC (Low Voltage)

- 2002/96/EC

Description of the washing machine

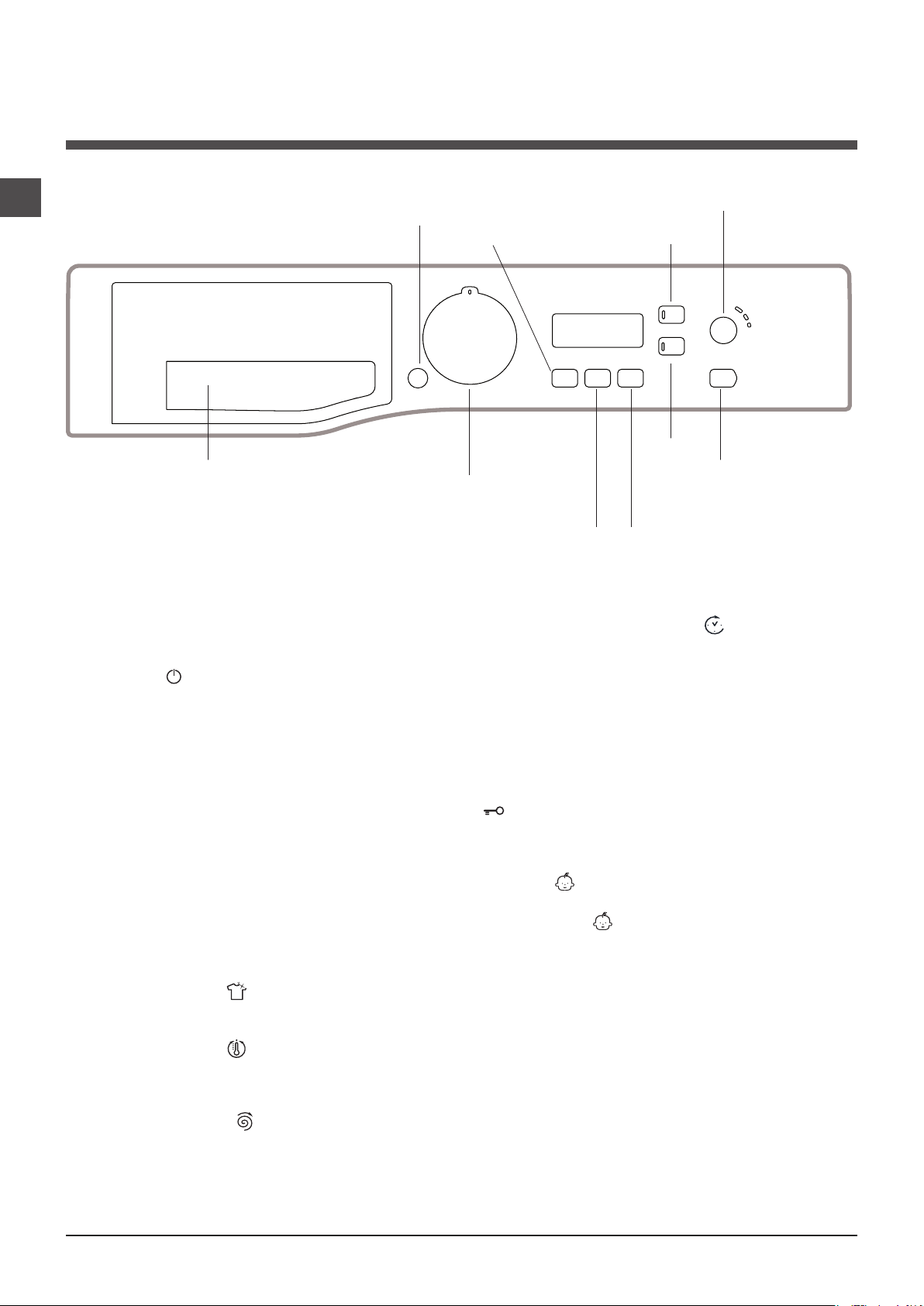

Control panel

Detergent dispenser drawer

ON/OFF

button

SELECTOR

TEMPERATURE

button

WASH

CYCLE

KNOB

DISPLAY

SPIN

button

CHILD LOCK

button

OPTION

button and indicator light

DELAY TIMER

button

CLEANING ACTION

button

START/PAUSE

button and indicator light

Detergent dispenser drawer: used to dispense detergents and washing additives ( see “Detergents and laundry”).

ON/OFF button: press this briefly to switch the machine on or off. The START/PAUSE indicator light which flashes slowly in a green colour shows that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 3 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR KNOB: used to set the desired wash cycle (see “Table of programmes and wash cycles”).

OPTION button and indicator light: press to select the available options. The indicator light corresponding to the selected option will remain lit.

CLEANING ACTION

wash intensity.

TEMPERATURE button: press to reduce or completely exclude the temperature; the value appears on the display.

button : to select the desired

DELAY TIMER button: press to set a delayed start for the selected wash cycle; the delay period appears on the display.

START/PAUSE button and indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an amber colour. If the symbol is not illuminated, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

CHILD LOCK button : to activate the control panel lock, press and hold the button for approximately 2 seconds. When the symbol is illuminated, the control panel is locked. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

SPIN button: press to reduce or completely exclude the spin cycle; the value appears on the display.

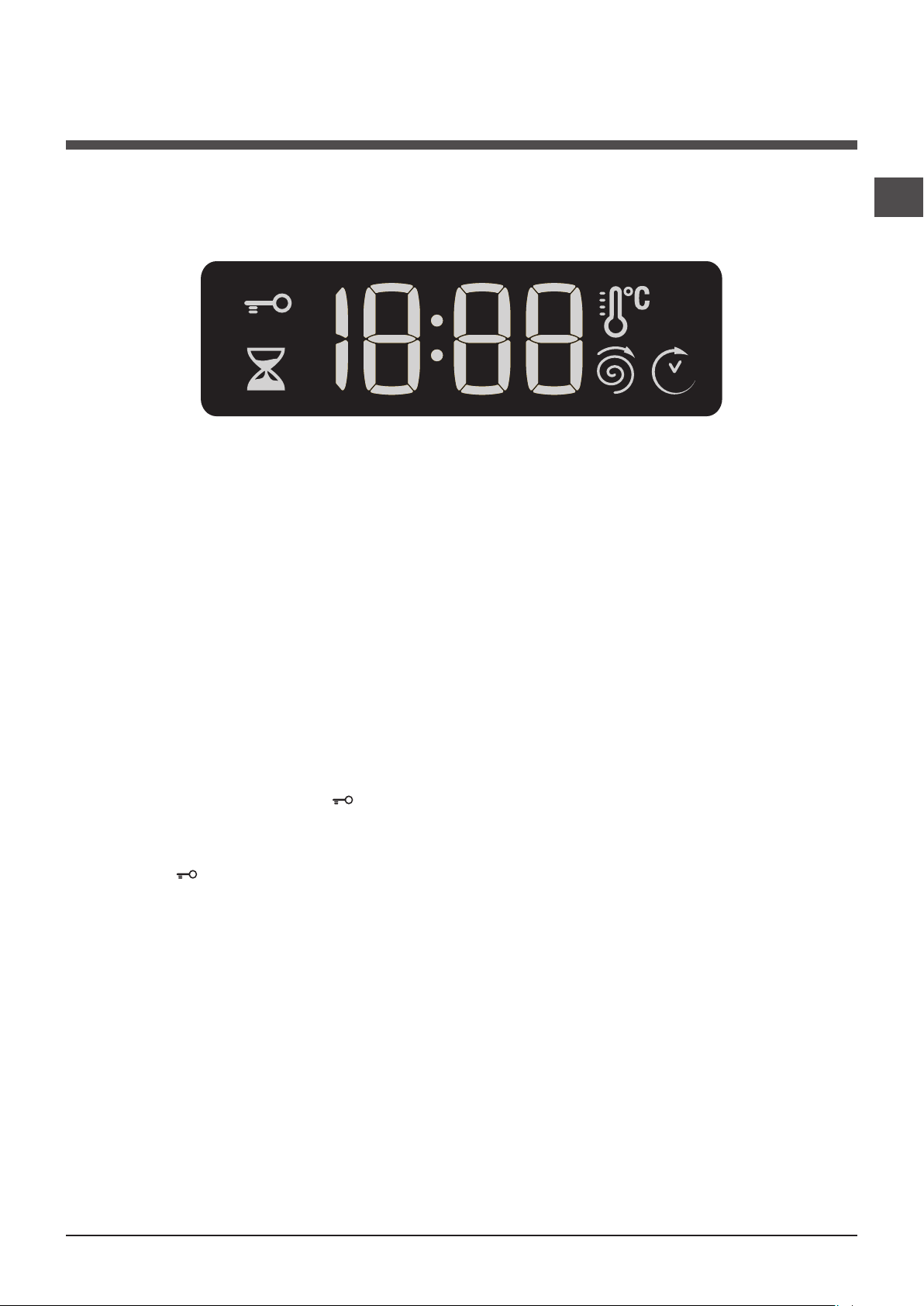

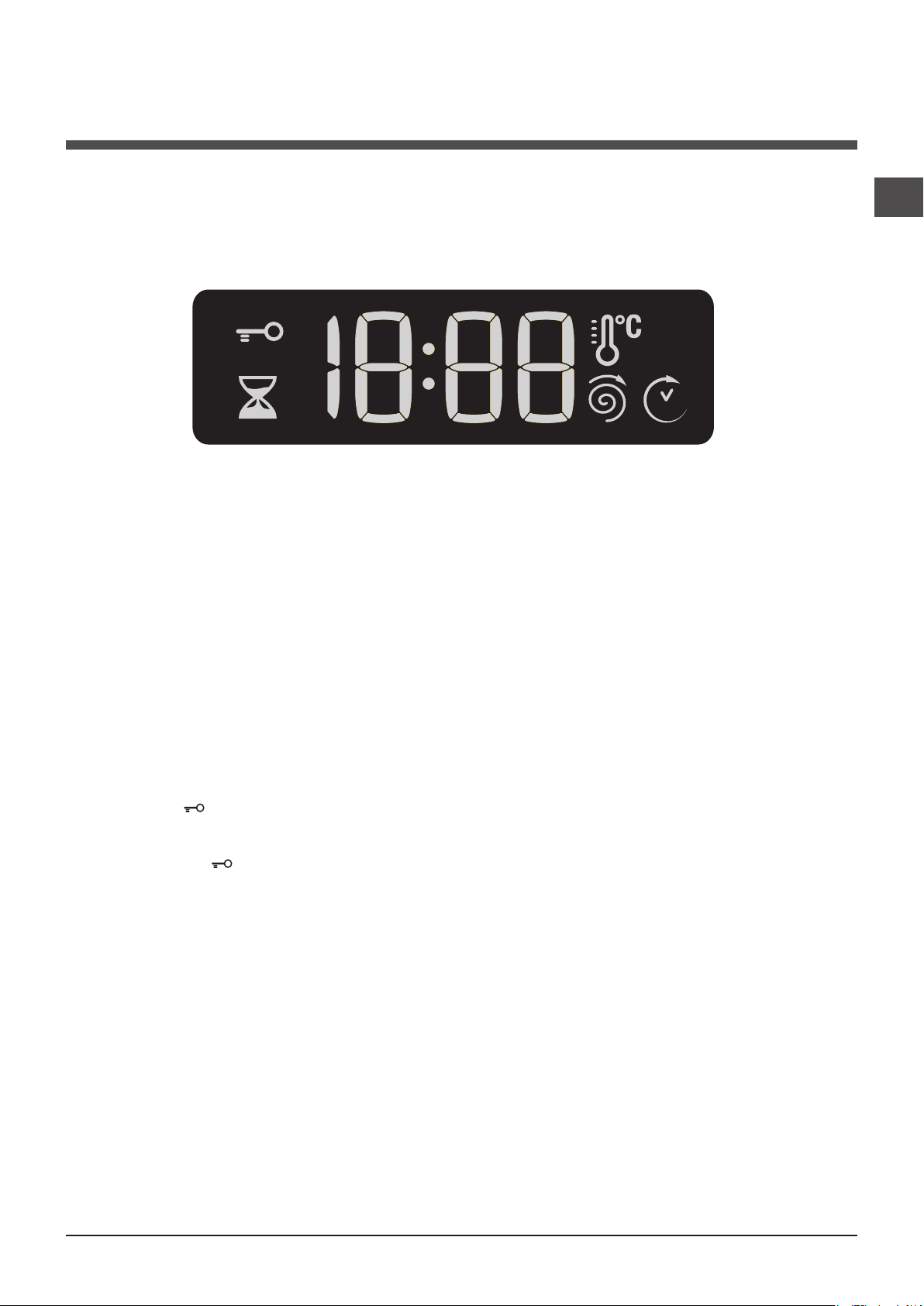

Display

The display is useful when programming the machine and provides a great deal of information.

The duration of the available wash cycles and the remaining time of a running cycle appear; if the DELAY TIMER option has been set, the countdown to the start of the selected wash cycle will appear. Pressing the corresponding button allows you to view the maximum spin speed and temperature values attained by the machine during the set wash cycle, or the values selected most recently, if these are compatible with the set wash cycle.

DOOR LOCKED indicator light: The lit symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the door. To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened.

Running a wash cycle

1. SWITCH THE MACHINE ON. Press the button; the START/PAUSE indicator light will flash slowly in a green colour.

2. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes and wash cycles on the following page.

3. MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in “Detergents and laundry”.

4. CLOSE THE DOOR.

5. SELECT THE WASH CYCLE. Use the WASH CYCLE SELECTOR knob to select the desired wash cycle. A temperature and spin speed is set for each wash cycle; these values may be adjusted. The duration of the cycle will appear on the display.

6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modify the temperature and/or spin

speed. The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the button, until the cold wash “OFF” setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded (the “OFF” setting). If these buttons are pressed again, the maximum values are restored.

Setting a delayed start.

To set a delayed start for the selected cycle, press the corresponding button repeatedly until the required delay period has been reached. When this option has been activated, the symbol lights up on the display. To remove the delayed start setting, press the button until the text “OFF” appears on the display.

Set the desired wash intensity.

Option makes it possible to optimise washing based on the level of soil in the fabrics and on desired wash cycle intensity. Select the wash programme: the cycle will be automatically set to “Normal” as optimised for garments with an average level of soil (this setting is not applicable to the “Wool” cycle, which is automatically set to “Delicate”). For heavily-soiled garments press button until the “Intensive” level is reached. This level ensures a high-performance wash due to a larger quantity of water used in the initial phase of the cycle and due to increased drum rotation. It is useful when removing the most stubborn stains.

It can be used with or without bleach. If you desire bleaching, insert the extra tray compartment (4) into compartment 1. When pouring in the bleach, be careful not to exceed the “max” level marked on the central pivot (see figure pag. 8). For lightly-soiled garments or a more delicate treatment of the fabrics, press button until the “Delicate” level is reached. The cycle will reduce drum rotation to ensure washing results that are perfect for delicate garments.

Modify the cycle settings.

• Pressthebuttontoenabletheoption;theindicator

light corresponding to the button will switch on.

• Pressthebuttonagaintodisabletheoption;the

indicator light will switch off. ! If the selected option is not compatible with the set wash cycle, the indicator light will flash and the option will not be activated. ! The options may affect the recommended load value and/or the duration of the cycle.

7. START THE WASH CYCLE. Press the START/ PAUSE button. The corresponding indicator light will turn green, remaining lit in a fixed manner, and the door will be locked (the DOOR LOCKED symbol will be lit). To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an amber colour); then select the desired cycle and press the START/PAUSE button again. To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

8. THE END OF THE WASH CYCLE. This will be indicated by the text “END” on the display; when the DOOR LOCKED symbol switches off the door may be opened. Open the door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun, press and hold the button. The cycle will be stopped and the machine will switch off.

Load balancing system

Before every spin cycle, to avoid excessive vibrations before every spin and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Wash cycles and options

Table of programmes and wash cycles

Description of the wash cycle

Wash cycles

Anti Stain

Whites

Cotton + Prewash: extremely soiled whites.

Cotton (1): heavily soiled whites and resistant colours.

Cotton (2-3): lightly soiled resistant colours.

Synthetics: heavily soiled resistant colours.

Synthetics (4): heavily soiled resistant colours.

Anti allergy

Baby

Wool: for wool, cashmere, etc.

Delicates

Fast Wash 60’: to refresh normal soiled garments quickly (not

suitable for wool, silk and clothes which require washing by hand).

Cottons

Synthetics

Fast Wash 30’

Rinse - 1000 - - -

Spin and Pump out - 1000 - - - -

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

For all Test Institutes:

1) Test wash cycle in compliance with regulation 2010/1061: set wash cycle 4 with a temperature of 60°C.

2) Test wash cycle in compliance with regulation 2010/1061: set wash cycle 5 with a temperature of 40°C.

3) Long wash cycle for cottons: set wash cycle 5 with a temperature of 40°C.

4) Long wash cycle for synthetics: set wash cycle 6 with a temperature of 40°C.

Max.

temp.

Cold

Water

Cold

Water

Cold

Water

Max.

speed

(°C)

(rpm)

Prewash Wash Bleach

40° 1000 -

60° 1000 -

90° 1000

60° 1000 -

40° 1000 -

60° 800 -

40° 800 -

60° 1000 -

40° 1000 -

40° 800 -

30° 0 -

60° 1000 -

1000 -

800 -

 

Detergents

Fabric

softener



  



Max.

Cycle

load

duration

(kg)



The duration of the wash cycles can be checked on the display.

4 7 7 7 3 3 4 4



1,5



3.5

Wash option

Timer Saver

If you select this option, the wash cycle duration will be reduced by up to 50%, depending on the selected cycle, thereby guaranteeing simultaneous water and energy saving. Use this cycle for lightly soiled garments.

! It cannot be used in conjunction with wash cycles 1, 2, 7, 8, 9, 10, 11, 12, 13, 14, , .

Detergents and laundry

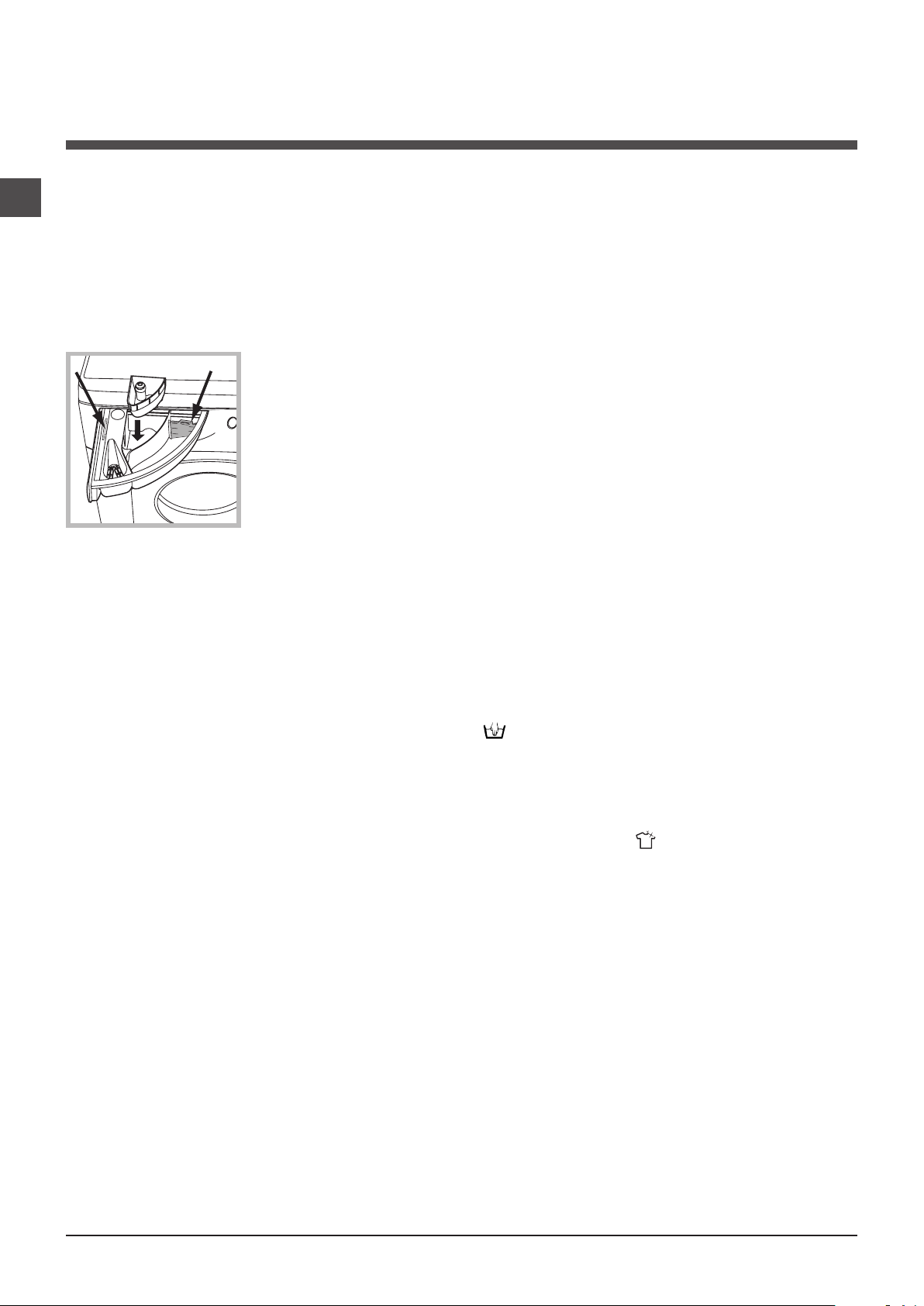

Detergent dispenser drawer

Successful washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Do not use hand washing detergents; they create too much foam.

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

compartment 1: Pre-wash detergent (powder)

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

If liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage. If powder detergent is used, place the partition into slot B.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Preparing the laundry

• Dividethelaundryaccordingto:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.

• Emptyallgarmentpocketsandcheckthebuttons.

• Donotexceedthelistedvalues,whichrefertothe

weight of the laundry when dry: Durable fabrics: max. 7 kg Synthetic fabrics: max. 3 kg Delicate fabrics: max. 2 kg Wool: max. 1,5 kg

Silk: max. 1 kg

How much does your laundry weigh?

1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1,200 g 1 towel 150-250 g

Special wash cycles

Anti Stain: the programme 1 is suitable to heavily-soiled garments with resistant colours. It ensures a washing class that is higher than the standard class (A class). When running the programme, do not mix garments of different colours. We recommend the use of powder detergent. Pre-treatment with special additives is recommended if there are obstinate stains. Whites: use this cycle 2 to wash white clothes. The programme is designed to maintain the brightness of white clothes over time. Use powder detergent for best results. Anti allergy: use programme 7 to remove major allergens such as pollen, mites, cat’s and dog’s hair. Baby: use the special wash cycle 8 to remove the remove the soiling typically caused by babies, while removing all traces of detergent from nappies in order to prevent the delicate skin of babies from suffering allergic reactions. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent. Wool: is the only washing machine manufacturer to have been awarded the prestigious Woolmark Platinum Care endorsement (M.0508) by the Woolmark Company, which means that all woollen garments may be washed in the washing machine, even those which state “hand wash only” on the label. Wash cycle 9 therefore offers complete peace of mind when washing woollen garments in the washing machine (max. load 1,5 kg) and guarantees optimal performance. Delicates: use programme 10 to wash very delicate garments having strasses or sequins. To wash silk garments and curtains select the cycle 10 and set the “Delicate” level from option . We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates. Use liquid detergent on delicate garments for best results.

Eco cycles

The Eco Cycles assure energy saving by eliminating the need of heating water and it’s an advantage both to your energy bill and the environment! These innovative Eco programmes (Cottons 12, Synthetics 13 and Fast Wash 30’ 14) are available for various fabrics and different quantity of garment; they have been designed to guarantee a high cleaning action even at low temperature and can be used for lightly to medium soiled loads. Eco Cycles give the best results thanks to an intensified wash action, water optimization and are carried out in the same average time of a standard cycle. For the best washing results with Eco Cycles we recommend the usage of a liquid detergent.

Precautions and tips

! This washing machine was designed and constructed

in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• Thisappliancewasdesignedfordomesticuseonly.

• Thisapplianceisnotintendedforusebypersons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Donottouchthemachinewhenbarefootorwithwetor

damp hands or feet.

• Donotpullonthepowersupplycablewhenunplugging

the appliance from the electricity socket. Hold the plug and pull.

• Donotopenthedetergentdispenserdrawerwhilethe

machine is in operation.

• Donottouchthedrainedwaterasitmayreach

extremely high temperatures.

• Neverforcetheportholedoor.Thiscoulddamagethesafety

lock mechanism designed to prevent accidental opening.

• Iftheappliancebreaksdown,donotunderany

circumstances access the internal mechanisms in an attempt to repair it yourself.

• Alwayskeepchildrenwellawayfromtheappliancewhile

it is operating.

• Thedoorcanbecomequitehotduringthewashcycle.

• Iftheappliancehastobemoved,workinagroupoftwo

or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

• Beforeloadinglaundryintothewashingmachine,make

sure the drum is empty.

Disposal

•Disposingofthepackagingmaterials:observelocal

regulations so that the packaging may be re-used.

•TheEuropeanDirective2002/96/EConWasteElectrical

and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

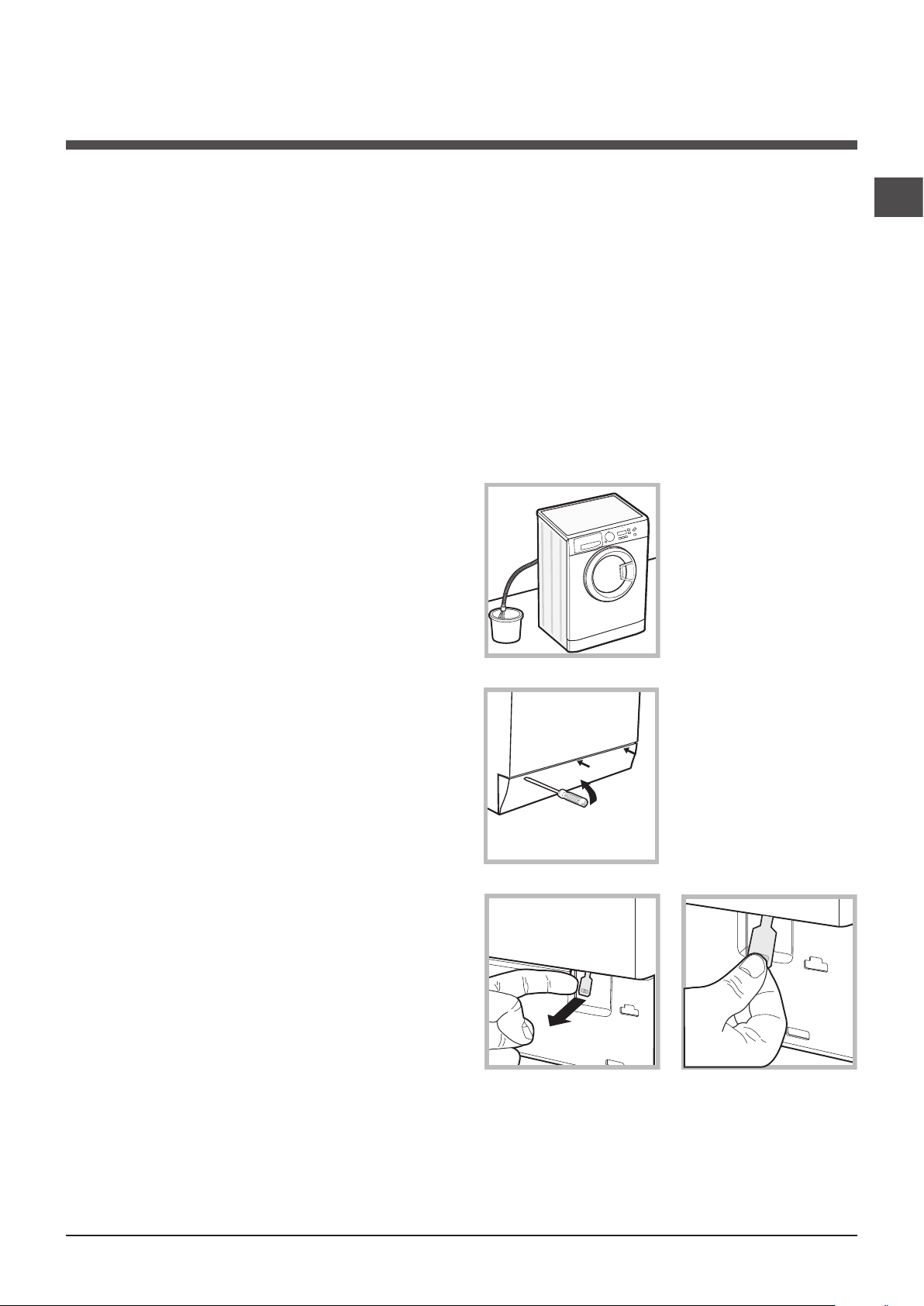

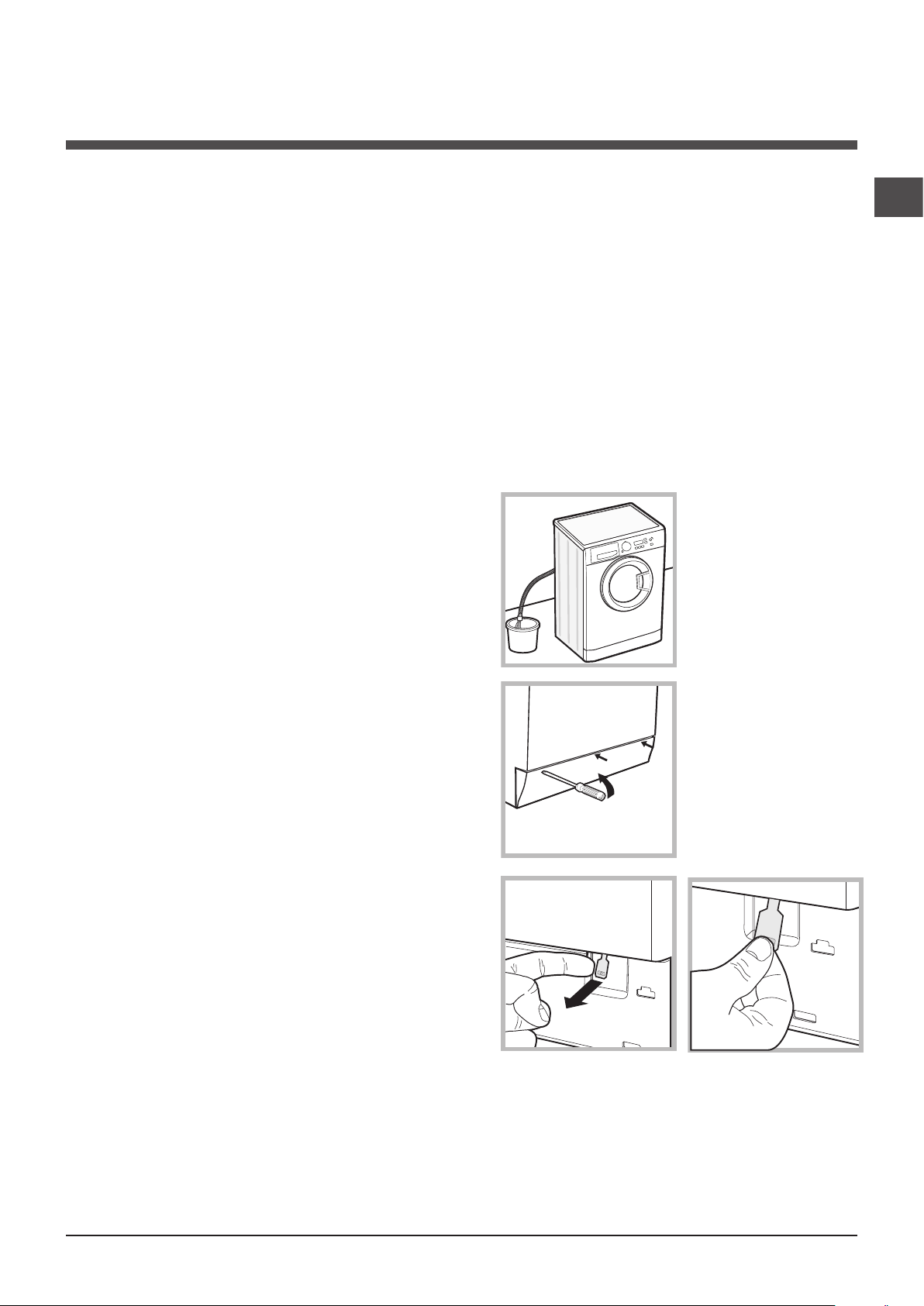

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

1. remove the plug from the electrical socket.

2. make sure the water level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

3. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure).

4. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards and open the door at the same time.

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Care and maintenance

Cutting off the water and electricity supplies

• Turnoffthewatertapaftereverywashcycle.Thiswilllimit

wear on the hydraulic system inside the washing machine and help to prevent leaks.

• Unplugthewashingmachinewhencleaningitand

during all maintenance work.

Cleaning the washing machine

•Theouterpartsandrubbercomponentsofthe

appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

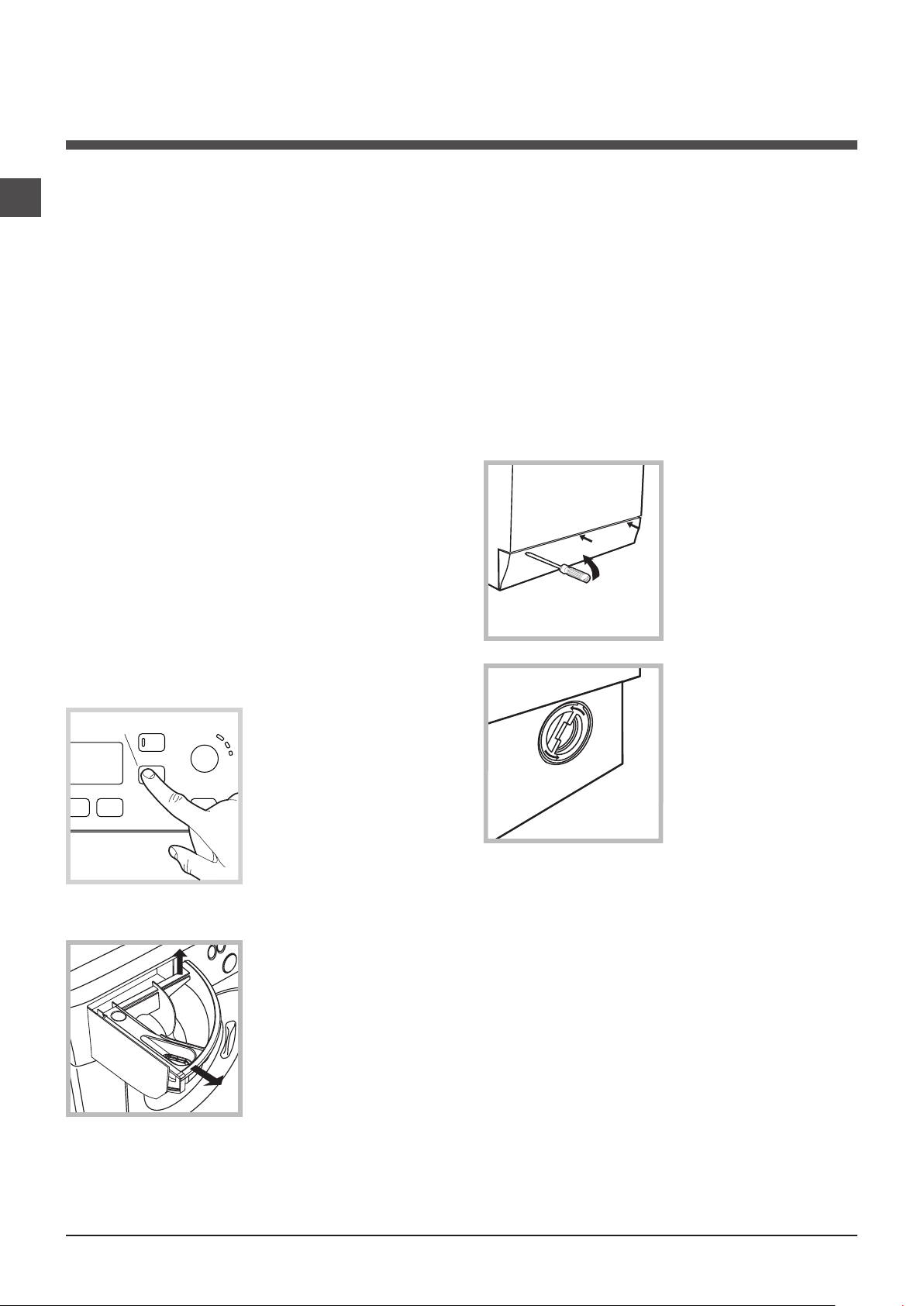

•Thewashingmachinehasa“AutoClean”programme

for its internal parts that must be run with no load in the drum.

To help the wash cycle you may want to use either the detergent (i.e. a quantity 10% the quantity specified for lightly-soiled garments) or special additives to clean the washing machine. We recommend running a cleaning programme every 40 wash cycles. To start the programme press button A for 5 seconds

(see figure).

The programme will start automatically and will run for about 70 minutes. To stop the cycle press the START/ PAUSE button.

Caring for the door and drum of your appliance

• Alwaysleavetheportholedoorajarinordertoprevent

unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the prechamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the

appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see

figure);

Cleaning the detergent dispenser drawer

Remove the dispenser by raising it and pulling it out

(see figure).

Wash it under running water; this operation should be repeated frequently.

2. unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

Troubleshooting

Your washing machine could occasionally fail to work. Before contacting the Technical Assistance Service (see “ Service”), make sure that the problem cannot be not solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not fill with water (the text “H2O” flashes on the display).

The washing machine continuously takes in and drains water.

The washing machine does not drain or spin.

Possible causes / Solutions:

• Theapplianceisnotpluggedintothesocketfully,ornotenoughtomake

contact.

• Thereisnopowerinthehouse.

• Thewashingmachinedoorisnotclosedproperly.

• TheON/OFFbuttonhasnotbeenpressed.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Thewatertaphasnotbeenopened.

• Adelayedstarthasbeenset.

• Thewaterinlethoseisnotconnectedtothetap.

• Thehoseisbent.

• Thewatertaphasnotbeenopened.

• Thereisnowatersupplyinthehouse.

• Thepressureistoolow.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Thedrainhoseisnotfittedataheightbetween65and100cmfromthefloor

(see “Installation”).

• Thefreeendofthehoseisunderwater(see “Installation”).

• Thewalldrainagesystemisnotfittedwithabreatherpipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Technical Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special antidraining valves are available in shops and help to prevent this inconvenience.

• Thewashcycledoesnotincludedraining:somecyclesrequirethedraining

process to be enabled manually.

• Thedrainhoseisbent(see “Installation”).

• Thedrainageductisclogged.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

The “option” and START/PAUSE indicator lights flash rapidly and an error code appears on the display (e.g.: F-01, F-..).

There is too much foam.

• Thedrumwasnotunlockedcorrectlyduringinstallation(see “Installation”).

• Thewashingmachineisnotlevel(see “Installation”).

• Thewashingmachineistrappedbetweencabinetsandwalls(see “Installation”).

• Thewaterinlethoseisnotscrewedonproperly(see “Installation”).

• Thedetergentdispenserdrawerisblocked(forcleaninginstructions,see “Care

and maintenance”).

• Thedrainhoseisnotfixedproperly(see “Installation”).

• Switchoffthemachineandunplugit,waitforapproximately1minuteandthen

switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• Thedetergentisnotsuitableformachinewashing(itshoulddisplaythetext“for

washing machines” or “hand and machine wash”, or the like).

• Toomuchdetergentwasused.

+ 25 hidden pages
