Instructions for use
WASHING MACHINE
GB
English,1

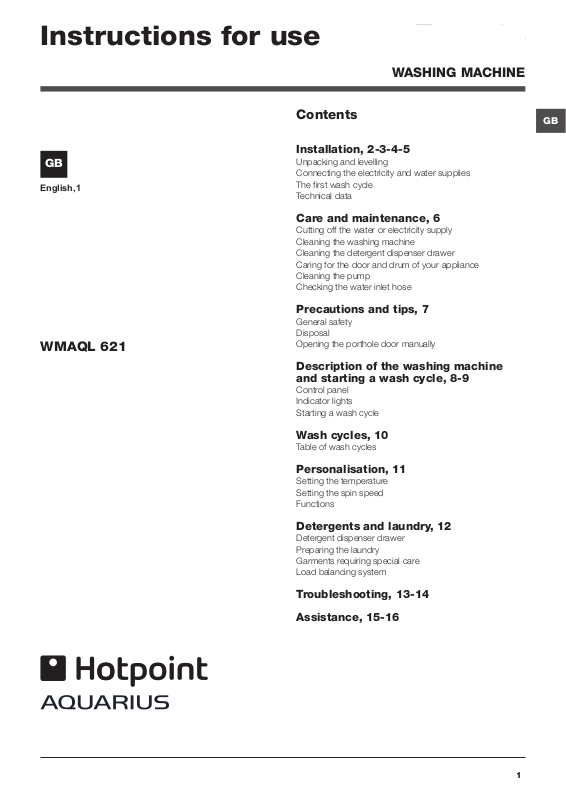

Contents |
GB |
|
Installation, 2-3-4-5
Unpacking and levelling
Connecting the electricity and water supplies
The first wash cycle
Technical data

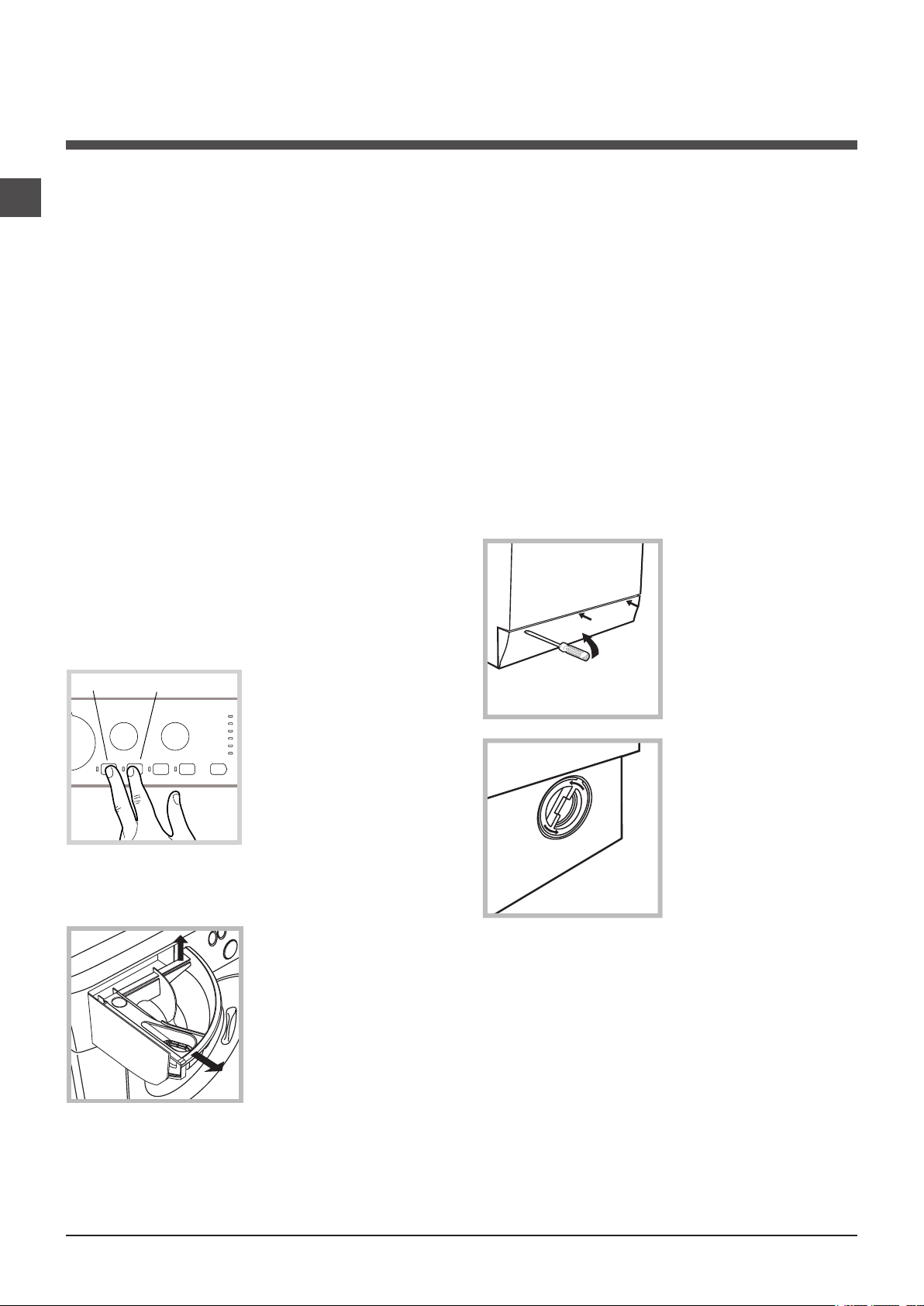

Care and maintenance, 6
Cutting off the water or electricity supply Cleaning the washing machine Cleaning the detergent dispenser drawer
Caring for the door and drum of your appliance Cleaning the pump
Checking the water inlet hose
WMAQL 621
Precautions and tips, 7
General safety
Disposal

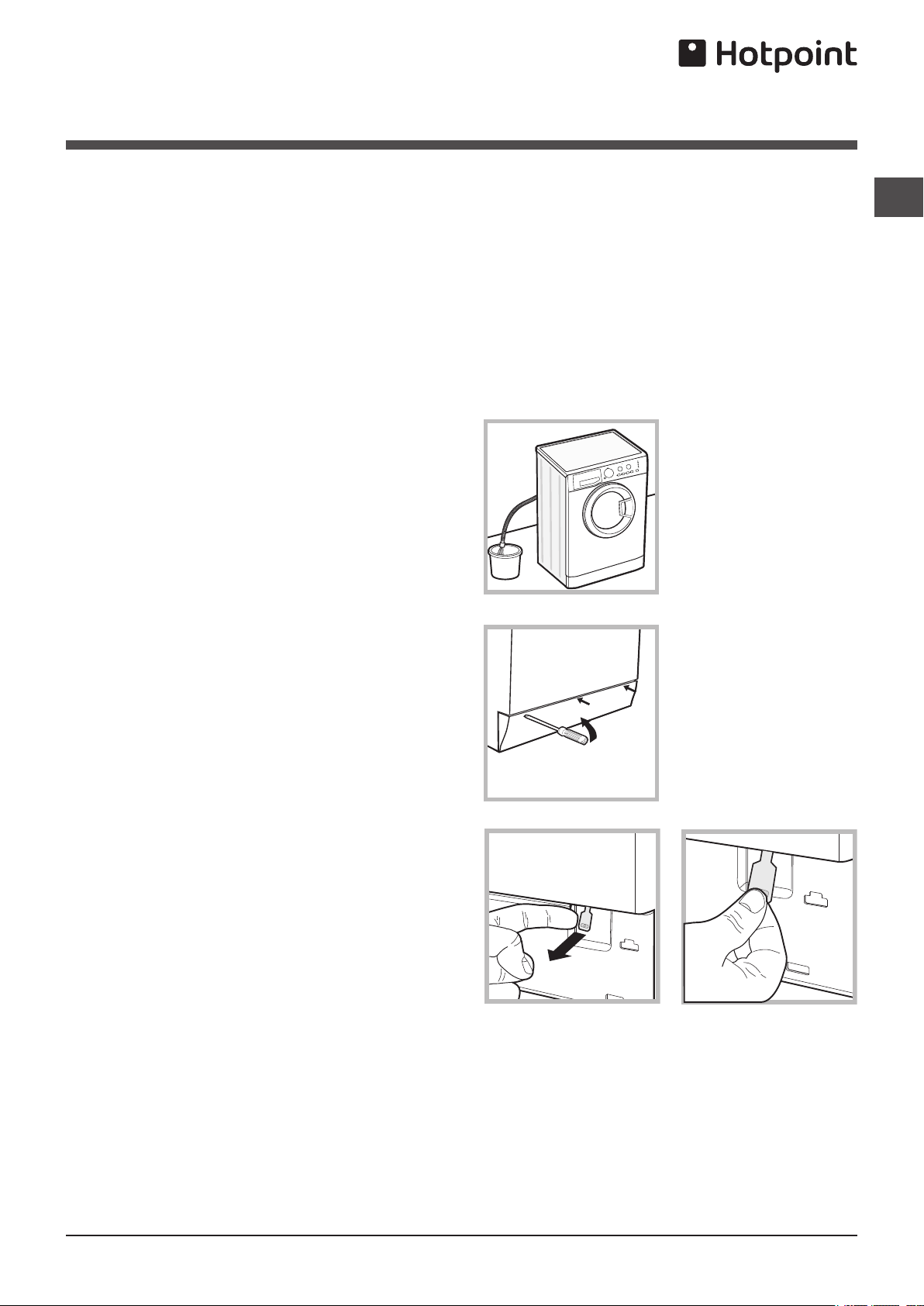

Opening the porthole door manually

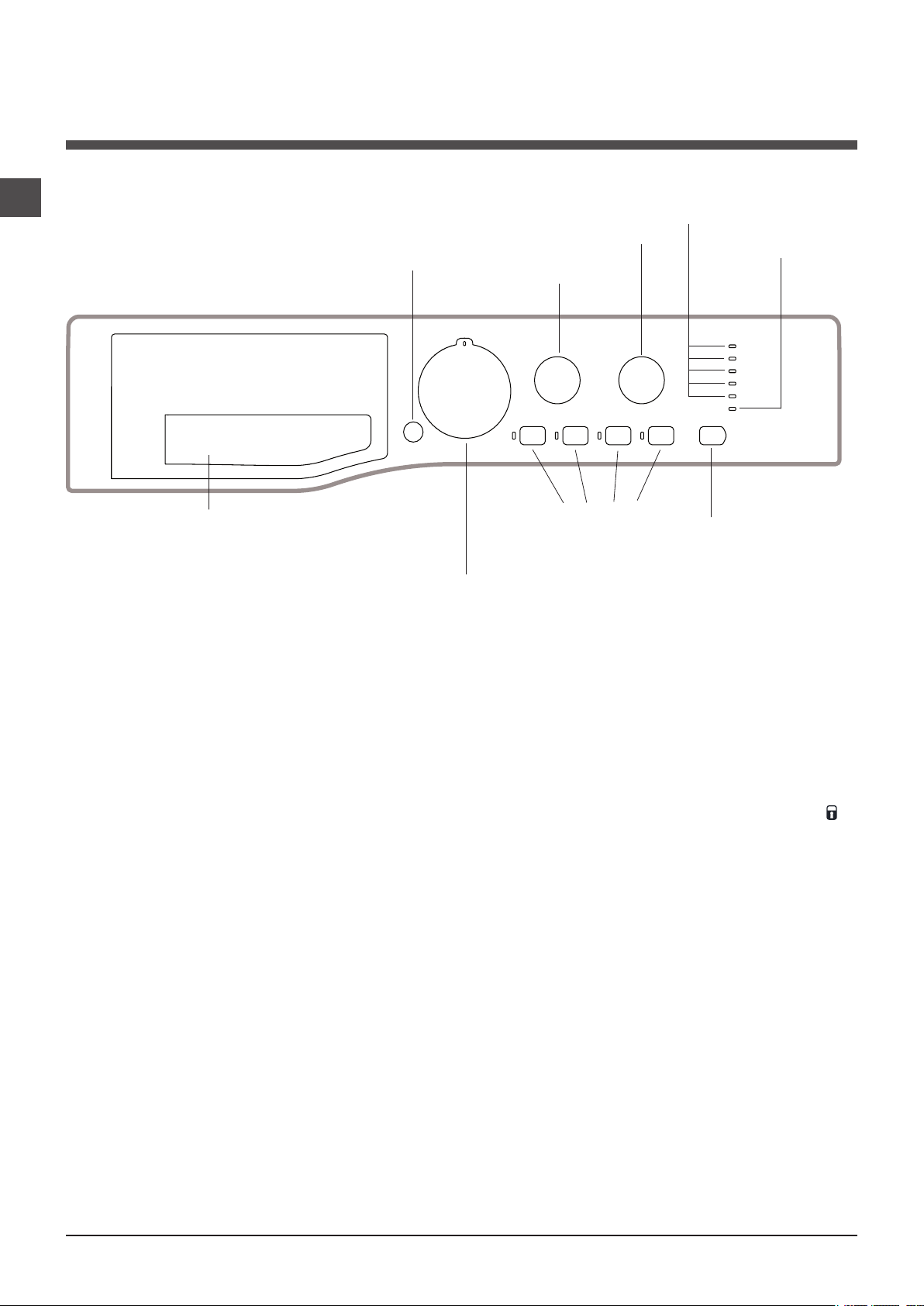

Description of the washing machine and starting a wash cycle, 8-9
Control panel Indicator lights Starting a wash cycle
Wash cycles, 10
Table of wash cycles
Personalisation, 11
Setting the temperature
Setting the spin speed
Functions

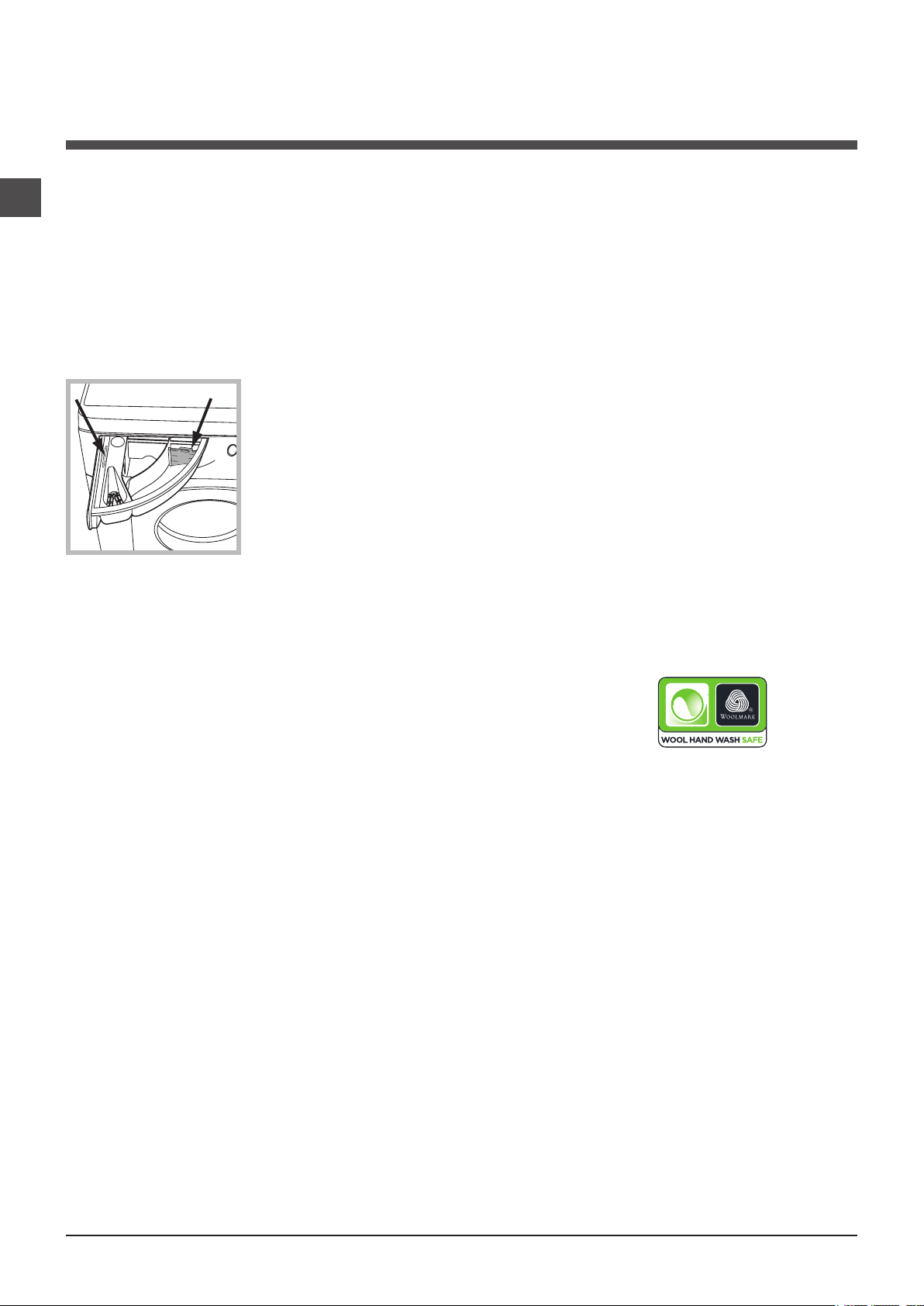

Detergents and laundry, 12
Detergent dispenser drawer Preparing the laundry Garments requiring special care Load balancing system
Troubleshooting, 13-14
Assistance, 15-16
1
Installation
! Keep this instruction manual in a safe place GB for future reference. Should the appliance be
sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.
!Read these instructions carefully: they contain vital information on installation, use and safety.
Unpacking and levelling
Unpacking |
!This is a separate part of the polystyrene base and should be removed with the base.
!IMPORTANT check when unpacking your machine.
1. Unpack the washing
machine.
2. Check whether the
washing machine has been damaged during transport. If this is the
case, do not install
it and contact your
retailer.
3. Remove the protective screws and the rubber bush with the respective spacer, situated on the rear of the appliance (see also the installation leaflet).
4.Seal the gaps using the plastic plugs provided.
5.Keep all the parts: you will need them again if the washing machine needs to be moved to another location.
! Packaging materials are not children’s toys.
Levelling
Your machine may make a considerable amount of noise if the two front feet have not
been adjusted correctly. 1. Install the washing machine on a flat sturdy floor, without resting it up against walls, cabinets or anything else.
2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.
Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.
Electric and water connections
Connecting the water inlet hose
1. Connect the supply pipe by screwing it to a cold water tap using
a 3/4 gas threaded
connection (see figure).
Before performing the connection, allow the water to run freely until it is perfectly clear.
2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance’s cold water inlet, situated on the top
right-hand side on the rear of the appliance (see figure).
3. Make sure there are no kinks or bends in the hose.
!The water pressure at the tap must be within the values indicated in the Technical details table (on the page 5).
!If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.
!Ensure that the supply taps are allowing water through. Old taps may seize in the closed position and thus prevent water reaching the machine.
!Never use second-hand or old inlet hoses; use the products supplied with the machine.
2
Connecting the drain hose
65 - 100 cm |
Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;
Where it connects to the waste water pipe cut end off spigot or remove the blanking cap
The drain hose may be connected to an under-sink trap. Before connecting the drain hose from the machine ensure that any blanks or removable ends have been taken off the spigot.
If it is placed over the edge of a basin or sink be sure the free end of the hose should not be underwater.
! We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Ensure that if the drain hose is pushed into
a standpipe, that the end does not go down more than 15cms (6 inches). If the hose is pushed down too far, this may cause the machine to self -syphon ie. continuously empty as it is filling.
Electric connection
Before plugging the appliance into the mains socket, make sure that:
•the socket is earthed and in compliance with the applicable law;
•the socket is able to sustain the appliance’s maximum power load indicated on the Technical Data Plate fixed on the machine;
• the supply voltage is included within the |
|
||
GB |
|||
values indicated on the Technical Data Plate |
|||
|
|||
fixed on the machine. |
|
||
• the socket is compatible with the washing |
|
||
machine’s plug. If this is not the case, repla- |
|
||
ce the socket or the plug. |
|
||
Your appliance is now supplied with a 13 amp |
|
||
fused plug it can be plugged into a 13 amp |
|
||
socket for immediate use. Before using the |
|
||
appliance please read the instructions below. |
|
||
WARNING - THIS APPLIANCE MUST BE |
|
||
EARTHED. |
|
|
|
THE FOLLOWING OPERATIONS SHOULD |
|
||
BE CARRIED OUT BY A QUALIFIED ELECTRI- |
|
||
CIAN. |
|
|
|
Replacing the fuse: |
|
|
|
When replacing a faulty fuse, a 13 amp ASTA |
|
||
approved fuse to BS 1362 should always be |
|
||
used, and the fuse cover re-fitted. If the fuse |
|
||
cover is lost, the plug must not be used until a |
|
||
replacement is obtained. |
|
||
Replacement fuse covers: |
|
||
If a replacement fuse cover is fitted, it must be |
|
||
of the correct colour as indicated by the colou- |
|
||
red marking or the colour that is embossed in |
|
||
words on the base of the plug. Replacements |
|
||
can be obtained directly from your nearest |
|
||
Service Depot. |
|
|
|
Removing the plug: |
|
|
|
If your appliance has a non-rewireable moul- |
|
||
ded plug and you should wish to re-route the |
|
||
mains cable through partitions, units etc., |
|
||
please ensure that either: |
|
||
the plug is replaced by a fused 13 ampere |
|
||
rewireable plug bearing the BSI mark of ap- |
|
||
proval. |
|
|
|
or: |
|
|
|
the mains cable is wired directly into a 13 |
|
||
amp cable outlet, controlled by a switch, (in |
|
||
compliance with BS 5733) which is accessible |
|
||
without moving the appliance. |
|
||
Disposing of the plug: |
|
||
Ensure that before disposing of the plug itself, |
|
||
you make the pins unusable so that it cannot |
|
||
be accidentally inserted into a socket. |
|
||
Instructions for connecting cable to an alternati- |
|
||
ve plug: |
|
|
|
Important: the wires in the mains lead are co- |
|
||
loured in accordance with the following code: |
|
||
Green & Yellow |
Earth |
|
|
Blue |
Neutral |
|
|
Brown |
Live |
|
|
3
As the colours of the wires in the lead may not GB correspond with the coloured markings iden-
tifying the terminals in your plug, proceed as follows:
Connect Green & Yellow wire to terminal marked E or
or coloured Green or Green & Yellow.
Connect Brown wire to terminal marked L or coloured Red.
Connect Blue wire to terminal marked N or coloured Black.
If a 13 amp plug (BS 1363) is used it must be fitted with a
13 amp fuse, either in the plug or adaptor or at the distribution board.
If you are in any doubt regarding the electrical supply to your machine, consult a qualified electrician before use.
How to connect an alternative plug:
The wires in this mains lead are coloured in accordance with the following code:
BLUE |
|
NEUTRAL (N) |
BROWN |
|
LIVE (L) |
GREEN & YELLOW |
EARTH (E) |
|
|
|
|
GREEN & |
|
|
YELLOW |
|
|
BROWN |
13 ampere fuse |
|
|
|
|
BLUE |
CROSS-BAR |
|
|
CORD GRIP |
|
|
|
|
Disposing of the appliance:
When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described on the previous page.
!The washing machine should not be installed in an outdoor environment, not even where the area is sheltered, because it may be very dangerous to leave it exposed to damp, rain and thunderstorms.
!When the washing machine is installed, the mains socket must be within easy reach.
!Do not use extensions or multiple sockets.
!The power supply cable must never be bent or dangerously compressed.
! The power supply cable must only be replaced by an authorised serviceman.
Warning! The company denies all liability if and when these norms are not respected.
The first wash cycle
Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the programme “Auto Clean” (see “Cleaning the washing machine”).
Technical data
Model |
WMAQL 621 |
||
|
|
|
|
|
|
|
width 59.5 cm |
Dimensions |
height 85 cm |
||
|
|
|
depth 42,5 cm |
Capacity |
from 1 to 6 kg |
||
|
|
|
|
Electrical |
please refer to the technical |
||
connections |
data plate fixed to the machine |
||
|
|
|
|
|
|
|
maximum pressure |
Water con- |
1 MPa (10 bar) |
||
minimum pressure |
|||
nections |
0.05 MPa (0.5 bar) |
||
|
|
|
drum capacity 40 litres |
Spin speed |
up to 1200 rotations per |
||
minute |
|||
Test wash |
|
||
cycles in |
Programme 3; |
||
accordan- |
|||
ce with |
Cotton Standard 60°. |
||
directives |
Programme 4; |
||
1061/2010 |
Cotton Standard 40°. |
||
and |
|
||
1015/201 |
|
||
|
|
|
This appliance conforms to |
|
|
|
the following EC Directives: |
|
|
|
- 2004/108/EC (Electroma- |
|
|
|
gnetic Compatibility) |
|
|
|
- 2006/95/EC (Low Voltage) |
|
|
|
- 2012/19/EU |
|
|
|
|
|
|
|
|
4
GB
