Page 1

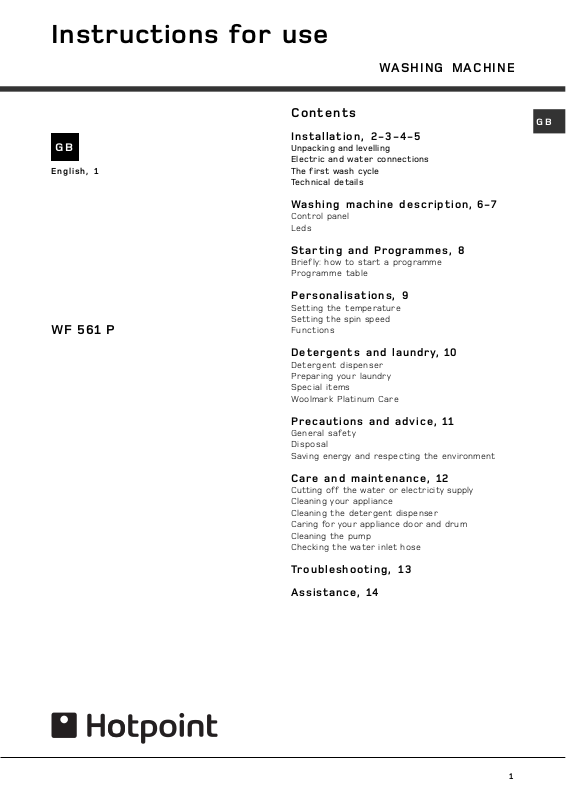

Instructions for use

WASHING MACHINE

English, 1

WF 561 P

Contents

Installation, 2-3-4-5

Unpacking and levelling Electric and water connections The first wash cycle Technical details

Washing machine description, 6-7

Control panel Leds

Starting and Programmes, 8

Briefly: how to start a programme Programme table

Personalisations, 9

Setting the temperature Setting the spin speed Functions

Detergents and laundry, 10

Detergent dispenser Preparing your laundry Special items Woolmark Platinum Care

Precautions and advice, 11

General safety Disposal Saving energy and respecting the environment

Care and maintenance, 12

Cutting off the water or electricity supply Cleaning your appliance Cleaning the detergent dispenser Caring for your appliance door and drum Cleaning the pump Checking the water inlet hose

Troubleshooting, 13

Assistance, 14

Page 2

Installation

 Keep this instruction manual in a safe place for

future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

 Read these instructions carefully: they contain

vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.

2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

3. Remove the 4 protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded

mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

 Packaging materials are not children's toys.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.

3. Make sure there are no kinks or bends in the hose.

 The water pressure at the tap must be within

the values indicated in the Technical details table (on the page 5);

 If the water inlet hose is not long enough,

contact a specialist store or an authorised serviceman.

Page 3

Connecting the drain hose

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm

65 - 100 cm

from the floor;

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

 We advise against the use of hose extensions; in

case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

 the socket is earthed and in compliance with the applicable law;

 the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the page 5);

 the supply voltage is included within the values indicated on the Technical details table (on the page 5);

 the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

Your appliance is now supplied with a 13 amp fused plug it can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instructions below.

WARNING - THIS APPLIANCE MUST BE EARTHED. THE FOLLOWING OPERATIONS SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained. Replacement fuse covers: If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and you should wish to re-route the mains cable through partitions, units etc., please ensure that either: the plug is replaced by a fused 13 ampere rewearable plug bearing the BSI mark of approval. or: the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket.

Instructions for connecting cable to an alternative plug: Important: the wires in the mains lead are coloured in accordance with the following code:

Green & Yellow Earth Blue Neutral Brown Live

Page 4

As the colours of the wires in the lead may not

correspond with the coloured markings identifyng the terminals in your plug, proceed as follows: Connect Green & Yellow wire to terminal marked E

or coloured Green or Green & Yellow.

or Connect Brown wire to terminal marked L or coloured Red. Connect Blue wire to terminal marked N or coloured Black. If a 13 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse, either in the plug or adaptor or at the distribution board. If you are in any doubt the electrical supply to your machine, consult a qualified electrician before use. How to connect an alternative plug: The wires in this mains lead are coloured in accordance with the following code:

BLUE NEUTRAL (N) BROWN LIVE (L) GREEN & YELLOW EARTH (E)

Disposing of the appliance:

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the A programme without a pre-wash cycle.

GREEN & YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR CORD GRIP

 The washing machine should not be installed in an

outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

 When the washing machine is installed, the mains

socket must be within easy reach.

 Do not use extensions or multiple sockets.

 The power supply cable must never be bent or

dangerously compressed.

 The power supply cable must only be replaced by

an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

Page 5

Technical details

Model

Dimensions

Capacity

Electric connections

Water connections

Spin speed

Control programmes according to EN 60456 directive

WF 561 P

59.5 cm wide 85 cm high

53.5 cm deep

from 1 to 6 kg

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 52 litres

up to 1600 rpm

programme 3; temperature 60°C; run with a load of 6 kg.

This appliance is compliant with the following European Community Directives:

- 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments

- 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments

- 2002/96/CE

Page 6

Washing machine description

Control panel

Detergent dispenser

Detergent dispenser: to add detergent and

fabric softener (see page 10).

VARIABLE

SPIN SPEED

Knob

VARIABLE TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 9).

Leds

FUNCTION

Buttons

ON/OFF

Button

ON-OFF/DOOR LOCKED

Led

START

Button

VARIABLE TEMPERATURE

Knob

WASH PROGRAMME

Knob

LEDS: to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated

(see page 7).

VARIABLE SPIN SPEED knob: to set the spin speed or exclude the spin cycle completely (see

page 9).

FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on.

ON/OFF button: to turn the washing machine on and off.

STA RT button: to start the programmes or cancel any incorrect settings.

ON-OFF/DOOR LOCKED Led: to find out whether the washing machine is on and if the appliance door can be opened (see page 7).

WASH PROGRAMME knob: to select the wash programmes. The knob stays still during the cycle.

Page 7

Leds

The LEDS provide important information. This is what they can tell you:

Delay set:

If the Delay Start function has been enabled (see page. 11), once you have started the programme,

the LED corresponding to the delay set will begin to flash:

As time passes, the remaining delay will be displayed, and the corresponding LED will flash:

Cycle phase under way:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way:

Prewash

Wash

Rinse

Spin

Note: during draining, the LED corresponding to the Spin cycle phase will be turned on.

Function buttons

The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

Once the set delay is complete, the flashing LED will turn off and the programme set will start.

ON-OFF/DOOR LOCKED led:

If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door.

 The rapid flashing of the ON-OFF/DOOR LOCKED Led together with the flashing of at least one other LED

indicates there is an abnormality (see page 13).

Page 8

Starting and Programmes

Briefly: starting a programme

1. Switch the washing machine on by pressing ON/OFF button . All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCKED Led will begin to flash.

2. Load your laundry into the washing machine and shut the appliance door.

3. Set the WASH PROGRAMME knob to the programme required.

4. Set the wash temperature (see page 9).

Programme table

Type of fabric and degree of soil

Programmes

Wa sh temp.

Detergent

Pre-

wash

5. Set the spin speed (see page 9).

6. Add the detergent and any fabric softener (see page 10).

7. Start he programme by pressing the START button. To cancel it, keep the START button pressed for at least 2 seconds.

8. When the programme is finished, the ON-OFF/ DOOR LOCKED Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing ON/OFF button.

Cycle length (minutes)

Description of wash cycle

Wash

Fabri c

softener

Cottons

Extremely soiled whites (sheets, tablecloths, etc.)

Heavily soiled whites and fast colours

Slightly soiled whites and delicate colours (shirts, jumpers, etc.)

Max   

Max  

60°C  

40°C  

30°C  

Pre-wash, wash cycle, rinse cycles,

155

intermediate and final spin cycles Wash cycle, rinse cycles, intermediate

150

and final spin cycles Wash cycle, rinse cycles, intermediate

130

and final spin cycles Wash cycle, rinse cycles, intermediate

and final spin cycles

Synthetics

Heavily soiled fast colours (baby linen, etc.)

Delicate colours (all types of slightly soiled garments)

60°C  

50°C  

40°C  

30°C  

Wash cycle, rinse cycles, anti-crease

or delicate spin cycle Wash cycle, rinse cycles, anti-crease

or delicate spin cycle Wash cycle, rinse cycles and delicate

spin cycl

Delicates

Wool

Very delicate fabrics (curtains, silk, viscose, etc.)

artial Programmes

Rinses & Fast Spin

Rinses &

Fast Spin Draining and heavy duty spin cycle

Spin

Slow

Pump Out

Slow

Spin

40°C  

30°C  



Wash cycle, rinse cycles and delicate

spin cycle Wash cycle, rinse cycles, anti-crease

or draining cycle

Rinse cycles and spin cycle

Rinse cycles, anti-crea se or draining

Draining and delicate spin cycle

Draining

Notes

For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Special programme

Daily wash 30 (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.

Page 9

Personalisations

Setting the temperature (Variable Temperature )

Turn the VARIABLE TEMPERATURE knob to set the wash temperature (see Programme table on page 8). The temperature can be lowered, or even set to a cold wash (Cold).

Setting the spin speed (Variable Spin speed)

Turn the VARIABLE SPIN SPEED knob to set the spin speed for the programme selected. The maximum spin speeds for each programme are as follows: Programmes Maximum spin speed Cottons 1600 rpm Synthetics 800 rpm Wool 600 rpm Silk no

The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting No Spin. The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for each programme.

Note: to avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating the drum at a speed which is slightly faster than the normal washing speed. When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set frequency. If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning. The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Function Effect Comments

Press the button repeatedly until the LED corresponding to the desired delay is turned on. The fifth time the button is pressed, the function will be disabled. N.B.: Once you have pressed the START button, the delay can only be decreased if you wish to modify it.

When this function is set, programmes 6, 7, 8, 11 and "

Spin

Slow

and the Rinse cycle phase LED will flash.

- to conclude the cycle, press the START button;

- to run the draining cycle alone, set the knob to the relative programme and press the START button.

Recommended when the appliance has a full load or with large quantities of detergent.

" will end with the laundry left to soak (Anti-crease)

Delay Timer

Super Wash

Easy Iron

Extra Rinse

Delays the start of the wash by up to 9 hours.

Allows for an impeccable wash, visibly whiter than a standard Class A wash.

This option reduces the amount of creasing on fabrics, making them easier to iron.

Increases the efficiency of the rinse.

Rinses

Enabled with programmes:

All

1, 2, 3, 4, 5, 6, 7, 8.

All programmes except for 1, 2, 9, 10 and Pump Out.

1, 2, 3, 4, 5, 6, 7, 8 and Rinses.

Page 10

Detergents and laundry

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Open up the detergent dispenser and pour in the detergent and fabric softener, as

compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the wash cycle start.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow from the grid.

follows.

 Do not use hand wash detergent because it may

form too much foam.

Preparing your laundry

Special items

Curtains: fold curtains and place them in a pillow

case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1,5 kg.

Woolmark Platinum Care

As gentle as a hand wash.

Hotpoint sets a new standard of superior

performance that has been endorsed by The Woolmark Company with the prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash" (M.0303): Set programme 10 for all "Hand wash" (max 1,5 kg) garments, using the appropriate detergent.

 Divide your laundry according to:

- the type of fabric/the symbol on the label.

- the colours: separate coloured garments from whites.

 Empty all pockets and check for loose buttons.  Do not exceed the weight limits stated below,

which refer to the weight when dry: Sturdy fabrics: max 6 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1,5 kg

How much does your laundry weigh?

1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1.200 g 1 towel 150-250 g

Page 11

Precautions and advice

 The washing machine was designed and built in

compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

 This appliance has been designed for non-

professional, household use and its functions must not be changed.

 This washing machine should only be used by

adults and in accordance with the instructions provided in this manual.

 Never touch the washing machine when

barefoot or with wet or damp hands or feet.

 Do not pull on the power supply cable to unplug

the appliance from the electricity socket. Pull the plug out yourself.

 Do not open the detergent dispenser while the

appliance is in operation.

 Do not touch the drain water as it could reach

very high temperatures.

 Never force the washing machine door: this

could damage the safety lock mechanism designed to prevent any accidental openings.

 In the event of a malfunction, do not under any

circumstances touch internal parts in order to attempt repairs.

 Always keep children well away from the

appliance while in operation.

 The appliance door tends to get quite hot during

the wash cycle.

 Should it have to be moved, proceed with the

help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

 Before loading your laundry into the washing

machine, make sure the drum is empty.

Disposal

 Disposing of the packaging material:

observe local regulations, so the packaging can be re-used.

 The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the

recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest Hotpoint technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

 To avoid wasting resources, the washing

machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.

 The pre-wash cycle is only necessary on

extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.

 Treating stains with a stain remover or leaving

them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.

 Use the correct quantity of detergent

depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.

 If you use your washing machine from late in the

afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 9) helps to organise your wash cycles accordingly.

 If your laundry has to be dried in a tumble dryer,

select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Page 12

Care and maintenance

Cutting off the water or electricity supply

 Turn off the water tap after every wash. This

will limit the wear of your appliance's water system and also prevent leaks.

 Unplug your appliance when cleaning it and

during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

 Make sure the wash cycle has ended and unplug

the appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front of the washing machine (see figure);

2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

Caring for your appliance door and drum

 Always leave the appliance door ajar to prevent

unpleasant odours from forming.

3. clean the interior thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

 Never use hoses that have already been used.

Page 13

Troubleshooting

Your washing machine could fail to work. Before calling for Assistance (see page 14), make sure the problem can't easily be solved by consulting the following list.

Problem

The washing machine won't start.

The wash cycle won't start.

The washing machine fails to load water.

The washing machine continuously loads and unloads water.

Possible causes/Solution:

 The appliance is not plugged into the socket, or not enough to

make contact.

 There has been a power failure.

 The appliance door is not shut properly.  The ON/OFF button has not been pressed.  The START button has not been pressed.  The water tap is not turned on.  A delayed start has been set (using the Delay Timer, see page 9).

 The water inlet hose is not connected to the tap.  The hose is bent.  The water tap is not turned on.  There is a water shortage.  The water pressure is insufficient.  The START button has not been pressed.

 The drain hose is not fitted between 65 and 100 cm from the floor

(see page 3).

 The free end of the hose is underwater (see page 3).  The wall drainage system doesn't have a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special antidrain trap valves are available in shops.

The washing machine does not drain or spin.

The washing machine vibrates too much during the spin cycle.

The washing machine leaks.

The ON-OFF/DOOR LOCKED Led flashes rapidly at the same time as at least one other LED.

There is too much foam.

 The programme does not foresee the draining: some programmes

require enabling the draining manually (see page 8).

 The Easy Iron function is enabled: to complete the programme,

press the START button (see page 9).

 The drain hose is bent (see page 3).  The drain duct is clogged.

 The drum was not unblocked correctly during installation (see page 2).  The washing machine is not level (see page 2).  The washing machine is closed in between furniture cabinets and

the wall (see page 2).

 The water inlet hose is not screwed on correctly (see page 2).  The detergent dispenser is obstructed (to clean it, see page 12).  The drain hose is not secured properly (see page 3).

 Switch off the machine and unplug the appliance; wait for

approximately 1 minute then switch it on again.

If the problem persists, contact Assistance.

 The detergent is not suitable for machine washing (it should bear

the definition "for washing machines" or "hand and machine wash", or the like).

 You used too much detergent.

Page 14

Assistance

12 Months Parts and Labour Guarantee

Your appliance has the benefit of our manufacturers guarantee, which covers the cost of

breakdown repairs for twelve months from the date of purchase.

This gives you the reassurance that if, within that time, your appliance is proven to be defective

because of either workmanship or materials, we will, at our discretion, either repair or replace the

This guarantee is subject to the following conditions:

- The appliance has been installed and operated correctly and in accordance with our operating and maintenance instructions.

- The appliance is used only on the electricity or gas supply printed on the rating plate.

- The appliance has been used for normal domestic purposes only.

- The appliance has not been altered, serviced, maintained, dismantled, or otherwise

interfered with by any person not authorised by us.

- Any repair work must be undertaken by us or our appointed agent.

- Any parts removed during repair work or any appliance that is replaced become our property.

- The appliance is used in the United Kingdom or Republic of Ireland.

The guarantee does not cover:

Guarantee

appliance at no cost to you.

- Damage resulting from transportation, improper use, neglect or interference or as a result of improper installation.

- Replacement of any consumable item or accessory . These include but are not limited to: plugs, cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.

- Replacement of any removable parts made of glass or plastic.

THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR NON-DOMESTIC PREMISES.

5 Year Parts Guarantee

Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on

you registering your appliance with us and the parts being fitted by one of our authorised engineers.

There will be a charge for our engineer's time. To activate the extra parts warranty on your

appliance, simply call our registration line on 0870 6092094 (ROI 01 230 0800).

Extended Guarantees

We offer a selection of repair protection plans that enable you to fully cover yourself against the expense

of repair bills for the life of your policy. To find the ideal plan for you please call our advice line on

08709 088 088 (ROI 01 230 0233).

Free Helpdesk Service

We have a dedicated team who can provide free advice and assistance with your appliance if you

experience any technical difficulties within the first 90 days of ownership. Simply call our Hotpoint

Service Hotline on 08709 066 066 (ROI 0818 313 413) for telephone assistance, or, where

necessary, to arrange for an engineer to call. If we cannot resolve the technical problem we will

replace your machine or, if you prefer, give you your money back.

Page 15

After Sales Service

No one is better placed to care for your Hotpoint appliance during the course of its

working life than us - the manufacturer.

Essential Contact Information

Hotpoint Service

We are the largest service team in Europe offering you access to 400 skilled telephone advisors and

1100 fully qualified engineers on call to ensure you receive fast, reliable, local service.

UK: 08709 066 066

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Please note: Our advisors will require the following information:

Model number:

Serial number:

Parts and Accessories

We supply a full range of genuine replacement parts as well as accessory products that protect and

hygienically clean your appliance to keep it looking good and functioning efficiently throughout its life.

UK: 08709 077 077

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Appliance Registration

We want to give you additional benefits of Hotpoint ownership. To activate your free 5 year parts

guarantee you must register your appliance with us.

UK: 0870 6092094

Republic of Ireland: 01 230 0800

www.hotpointservice.co.uk

Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB

Indesit Company Unit 49 Airways Industrial Estate,Dublin 17

 Recycling & Disposal Information

As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to use quality, recycled components to keep down customer costs and minimise material wastage.

Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children, remove the door, plug and cut the mains cable off flush with the appliance. Dispose of these parts separately to ensure that the appliance can no longer be plugged into a mains socket, and the door cannot be locked shut.

Page 16

195066637.00

09/2007 - Xerox Business Services
