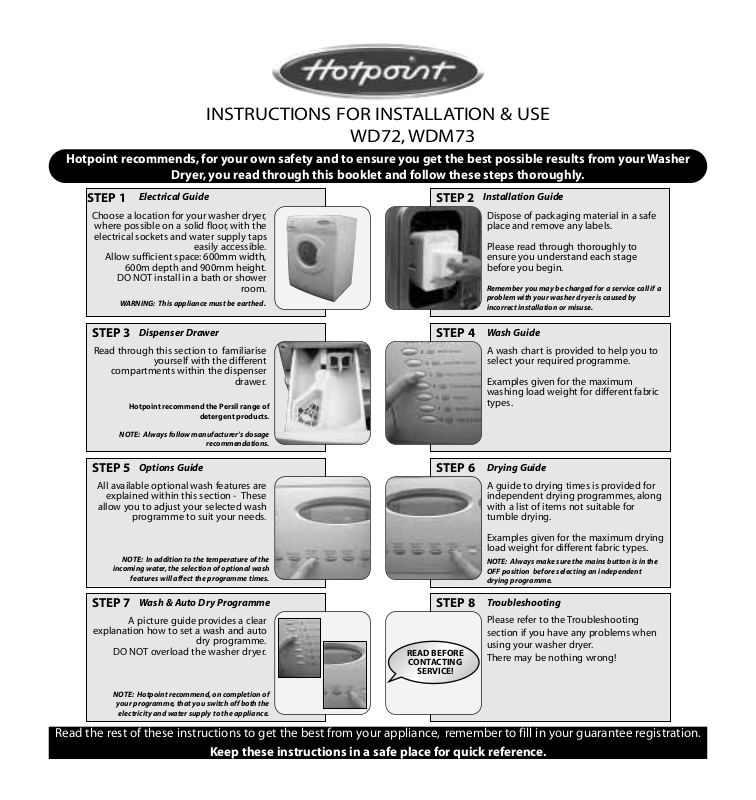

Hotpoint WD72 User Manual

INSTRUCTIONS FOR INSTALLATION & USE

WD72,WDM73

Hotpoint recommends,for your own safety and to ensure you get the best possible results from your Washer

Dryer,you read through this booklet and follow these steps thoroughly.

STEP 1 STEP 2

Choose a location for your washer dryer,

where possible on a solid floor,with the
electrical sockets and water supply taps

Electrical Guide Installation Guide

easily accessible.

Allow sufficient space: 600mm width,

600m depth and 900mm height.

DO NOT install in a bath or shower

room.

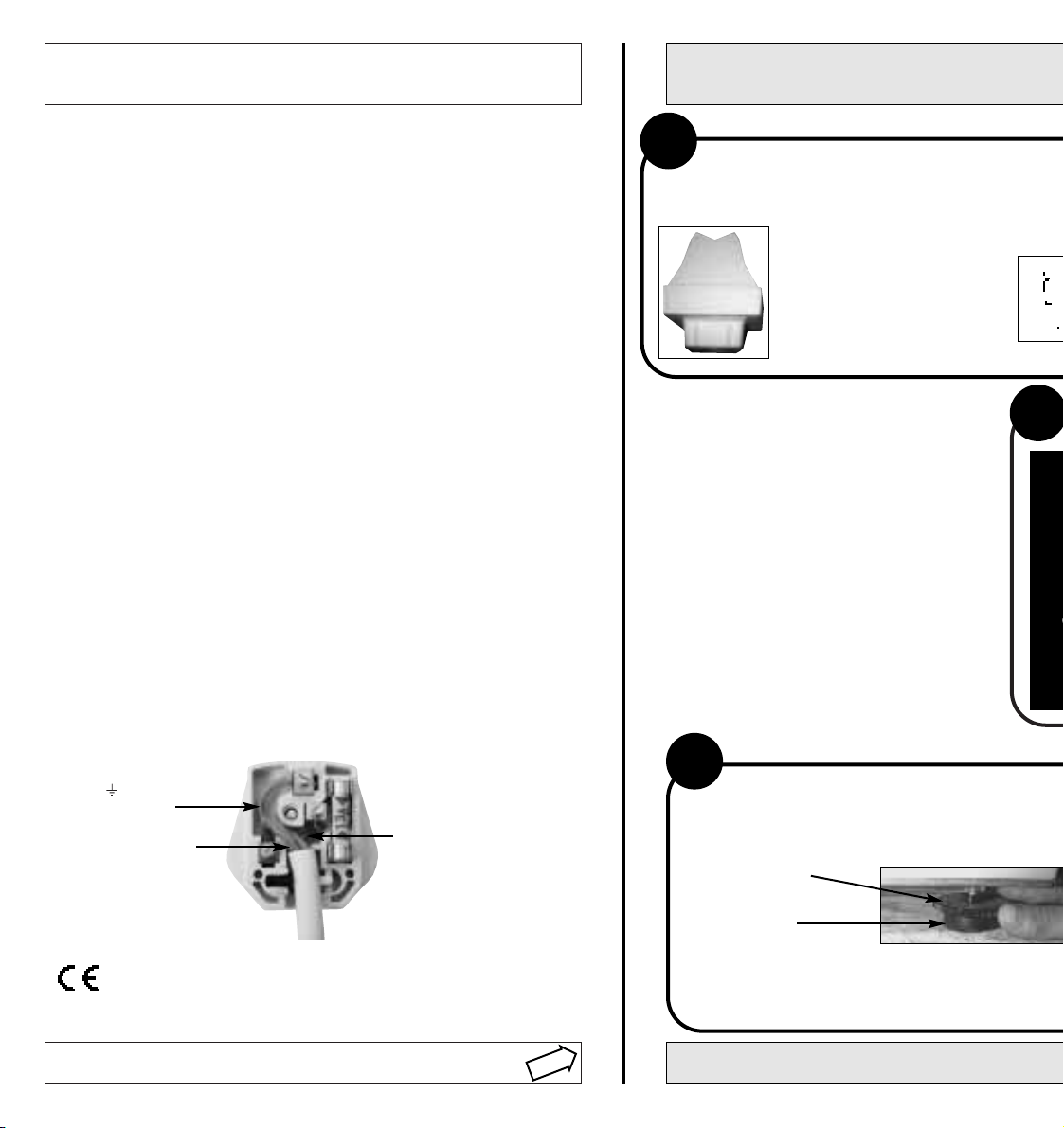

WARNING: This appliance must be earthed.

Dispose of packaging material in a safe
place and remove any labels.

Please read through thoroughly to
ensure you understand each stage
before you begin.

Remember you may be charged for a service call if a
problem with your washer dryer is caused by
incorrect installation or misuse.

STEP 3

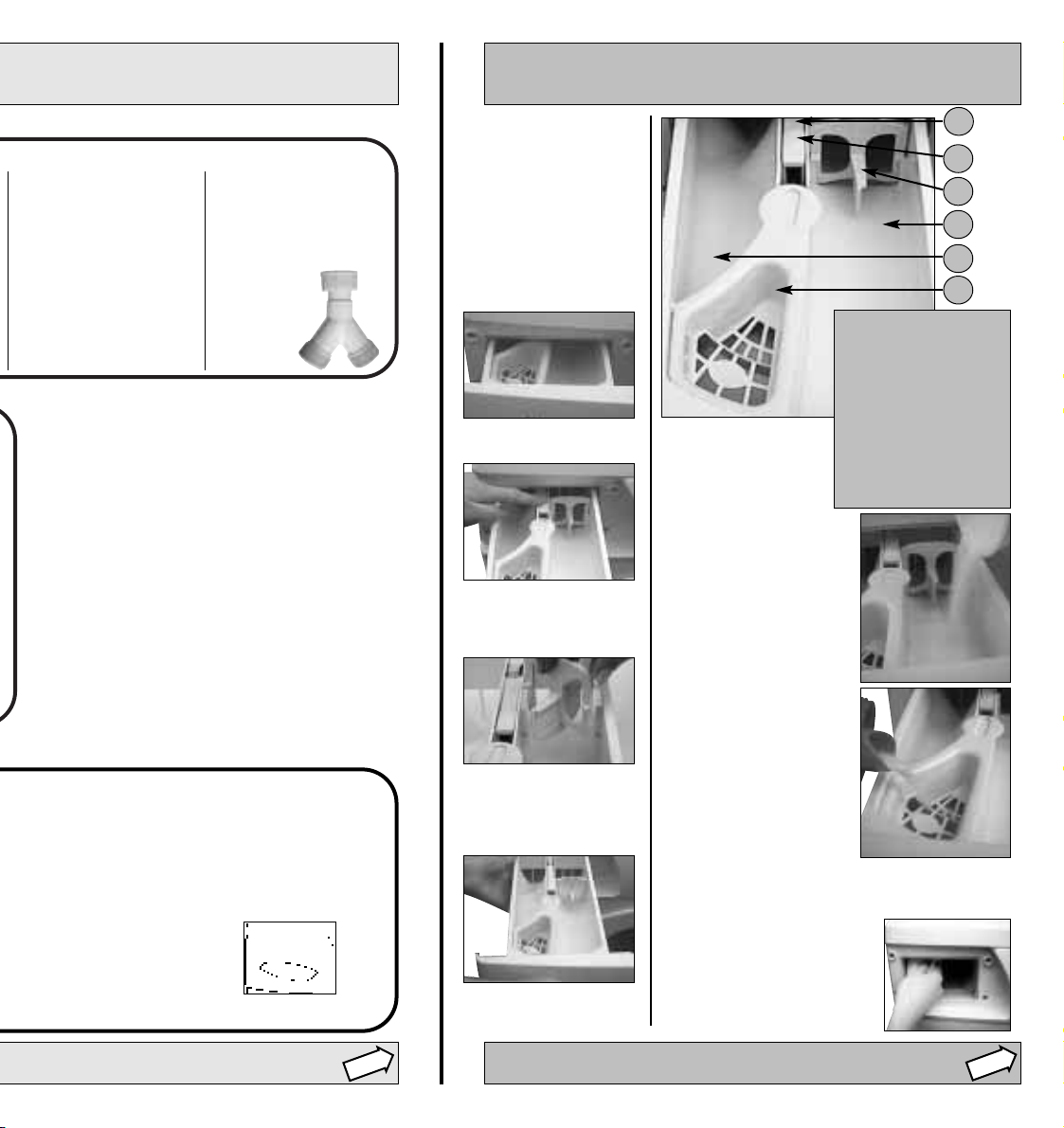

Dispenser Drawer

Read through this section to familiarise

yourself with the different

compartments within the dispenser

drawer.

STEP 4

Wash Guide

A wash chart is provided to help you to
select your required programme.

Examples given for the maximum
washing load weight for different fabric

Hotpoint recommend the Persil range of

NOTE: Always follow manufacturer’s dosage

STEP 5

Options Guide

detergent products.

recommendations.

All available optional wash features are

explained within this section - These

allow you to adjust your selected wash

programme to suit your needs.

STEP 6

types.

Drying Guide

A guide to drying times is provided for
independent drying programmes, along
with a list of items not suitable for
tumble drying.

Examples given for the maximum drying
load weight for different fabric types.

NOTE: In addition to the temperature of the

incoming water,the selection of optional wash

features will affect the programme times.

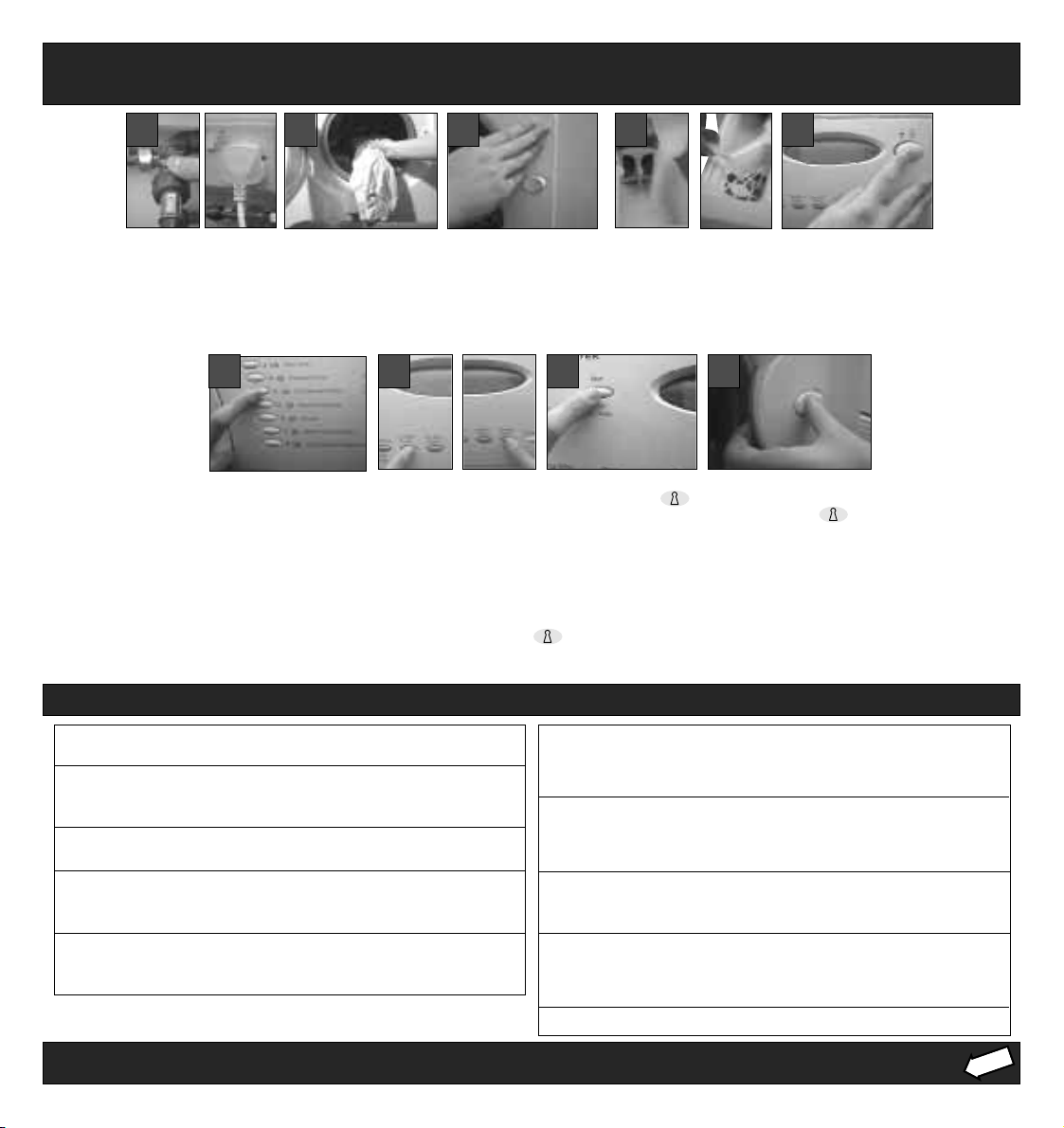

STEP 7

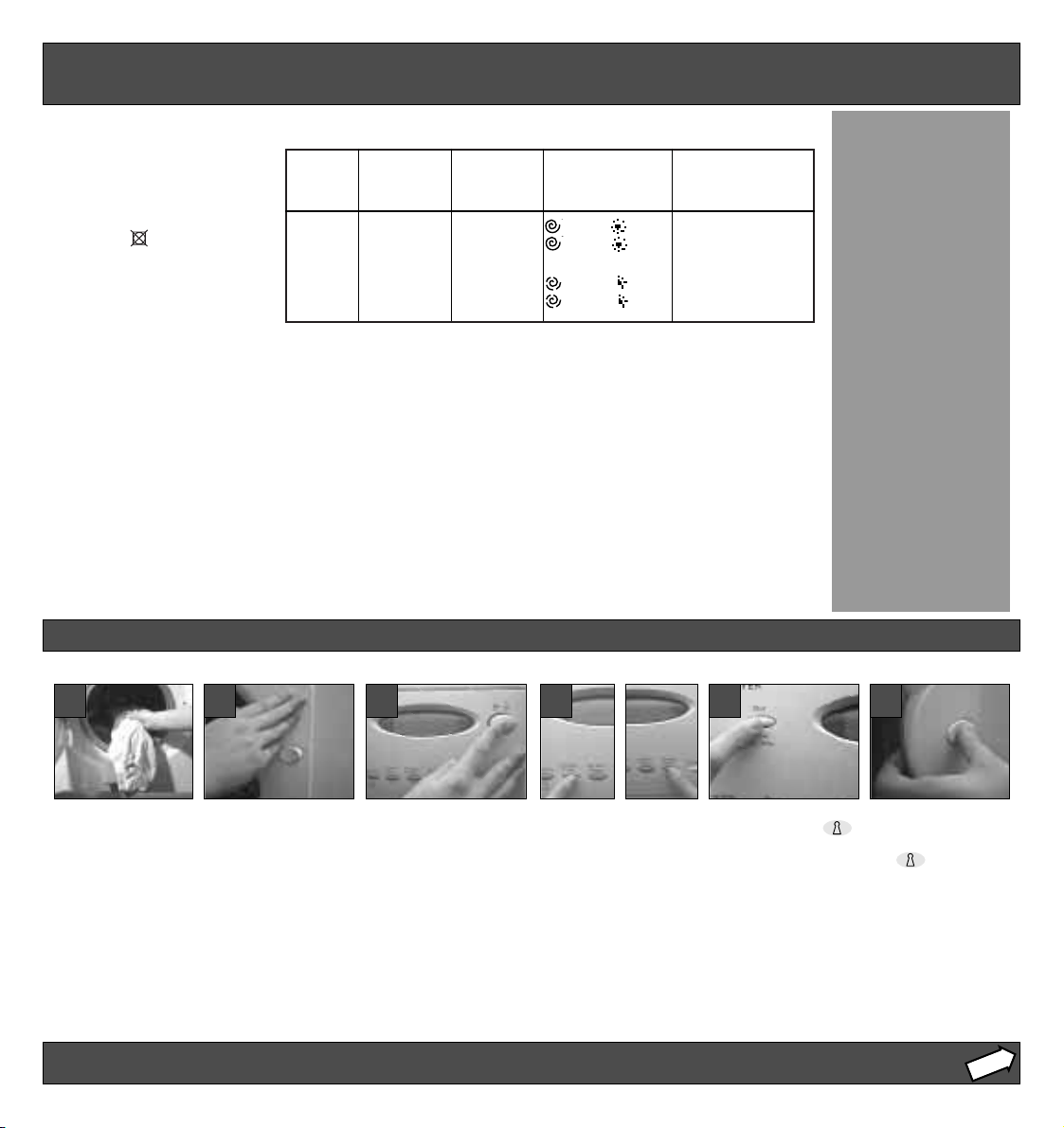

Wash & Auto Dry Programme

A picture guide provides a clear

explanation how to set a wash and auto

dry programme.

DO NOT overload the washer dryer.

NOTE: Hotpoint recommend, on completion of

your programme, that you switch off both the

electricity and water supply to the appliance.

STEP 8

READ BEFORE

CONTACTING

SERVICE!

NOTE: Always make sure the mains button is in the
OFF position before selecting an independent
drying programme.

Troubleshooting

Please refer to the Troubleshooting
section if you have any problems when
using your washer dryer.
There may be nothing wrong!

Read the rest of these instructions to get the best from your appliance, remember to fill in your guarantee registration.

Keep these instructions in a safe place for quick reference.

Hotpoint guarantee

“Satisfaction guaranteed or your money back”

We give you a unique ‘satisfaction guaranteed’promise - valid

for 90 days - after you have purchased your Hotpoint

appliance. If there is a technical problem simply call Hotpoint

www.theservicec

arrange for an engineer to call. If the technical problem is not

resolved under this guarantee, we will replace your machine

All Hotpoint appliances carry a fully inclusive 12 month parts
and labour guarantee as well as free replacement parts for the
first 5 years (except microwaves, selected integrated
appliances and cooker hoods, which have a one year
guarantee) provided that they are fitted by a Hotpoint
engineer.

Guarantee terms and conditions

Your guarantee is only applicable in the United
Kingdom or Republic of Ireland and is subject to the
following provisions that your appliance:

● Has been installed and used correctly in accordance with
this instruction booklet.

● Has been used solely for domestic purposes and is located
on domestic premises (ie. not for commercial or trade
use).

● Has been properly connected to a suitable electrical
supply voltage as stated on the appliance rating plate.

● Has not been subject to misuse, accident, modified or
repaired by anyone other than one of our own service
engineers.

As part of Hotpoint’s continued commitment to helping the environ­ment, Hotpoint reserves the right to use quality recycled components
to keep down customer costs and minimise material wastage.

Please dispose of packaging and old appliances carefully.
To minimise risk of injury to children, remove the door, plug and cut

mains cable off flush with the appliance. Dispose of these parts sepa­rately to ensure that the appliance can no longer be plugged into a
mains socket, and the door cannot be locked shut.

Repair service or visit our web-site at

entre.co.uk and where necessary, we will

or,if you prefer, give you your money back.

For pre purchase information on any other Hotpoint
product,

call: 08701 50 60 70 or visit:www

.hotpoint.co.uk

Recycling & Disposal

Information

After Sales Service

“No company is better positioned to offer an after sales service on
a Hotpoint appliance than us - the manufacturer”.

As part of our commitment to you, all Hotpoint appliances have the

added benefit of a fully inclusive parts and labour guarantee for the first

12 months. In addition to this you also have the advantage of free
replacement parts for the first 5 years when fitted by a Hotpoint

engineer. When the 12 months parts and labour guarantee expires we

Note: Our operators will require the Model number and the Serial number

Available 364 days a year with a fast,effective and value for money

service.We have the largest white goods repair service in the UK with over

1200 of our own fully trained engineers. All repairs include a parts and

If you require any information or have any questions about your

All this ensures that you will receive the best available after sales service

Whether you have just one or a number of Hotpoint appliances in your

kitchen, we offer two service cover plans to give you total peace of mind.

● Repair Protection Plan - FREE service repairs for a single Hotpoint

● Kitchen Cover - FREE service repairs for all your Hotpoint

A wide range of genuine parts and accessories are available from our

Genuine parts and accessories, extended warranties and service

offer the following after sales service options:

Repair Service and Information Help Desk

labour guarantee for 12 months from the date of the repair.

appliance, our operators are on hand with help and advice.

UK: 08709 066066

www

.theservicecentre.co.uk

Republic of Ireland: 1850 302 200

of your appliance.

possible.

Extended Warranties

UK: 08709 088 088

www.theservicecentre.co.uk

Republic of Ireland: 1850 502 200

appliance during the period of cover.

appliances less than 8 years old.

Genuine Parts and Accessories

UK: 08709 077 077

www.theservicecentre.co.uk

Republic of Ireland: [phone]

hotline or through our web site.

repairs are all

available on our web-site at:

www.theservicecentre.co.uk

General Domestic Appliances Limited,Morley Way, Peterborough, PE2 9JB.

PRINTED BY SIMLEX.FOUR ASHES,WOLVERHAMPTON. August 2002 1366200003-02

STEP 4

Choosing a Washing Programme

IMPORTANT INFORMATION: The temperature of the incoming water supply and selection of any Optional Wash Feature will affect the

programme times.

ITCL Codes Fabric Temp. Full Programme Approx.Max

˚C Load Time (mins) Spin Speed

based on hot depending

WASHING

WEIGHT LOADS

and cold fill on model

Two examples of
typical loads for
washing different
types of fabric:

COTTON

2 Bath Towels
6 Shirts
6 Blouses
2 Set of Pyjamas
4 Sets of Underwear
2 Pillow Cases

= 5kg

SYNTHETIC

2 Children’s Dresses
4 Shirts
4 Blouses
1 Set of Pyjamas
4 Sets of Underwear

= 3kg

A

B

C

D

G

White Cotton & Linen
without special finishes. 95 5kg 120 - 140 1200rpm

Colourfast cotton, linen or
viscose without special finishes 60 5kg 150 - 170 1200rpm

Non-colourfast cotton, linen
& viscose 40 5kg 70 - 80 1200rpm

Coloured nylon,polyester,
acrylic/cotton mixtures, cotton
or viscose with special finishes
(eg. drip dry), coloured
polyester/cotton mixtures 50 3kg 60 - 70 900rpm

Acrylics, acetates & tri-acetate

E

F

blends of these fabrics with
wool, polyester/wool blends 40 3kg 50 - 60 900rpm

Woollen blankets,wool
mixtures with cotton, rayon
or silk. 40 2.7kg 55 - 65 900rpm
Shrink resistant machine
washable wool 40 1.4kg 40 - 50 900rpm

Silk & printed acetate fabrics
with colours not fast at 40˚ 30 1.4kg 35 - 40 900rpm

Refresh programmes warm 0.9kg 30 - 35 900rpm

For gentle wash, rinse & spin options see STEP 7

Selecting a Prewash

For heavily soiled loads,press and hold the required wash pro­gramme button until a second beep is heard,the infobubble™
will display ‘Prewash’and .

To cancel press the wash programme button a third time and a
beep will be heard.

Button Selection:

To select,press button.
Press again to cancel.

Interlocking Door System:

To Open...

Grip the door handle and press the button whilst pulling open the door.

To Close...

Apply pressure at the 2 o’clock position until the door clicks.

Indicator Light...

When ‘START’ is pressed the door will lock and a symbol will be
displayed in the Infobubble™ throughout the programme.
Approximately 1-2 minutes after the programme has finished the
symbol will disappear and the door can be opened.

WARNING:Do not attempt to open the door whilst the symbol is
displayed in the infobubble™

STEP 5

Optional Wash Features

Cancel Button

To start the selection again, press and hold the cancel button for a few seconds,all settings displayed will disappear and the
Infobubble™ will display ‘Select Programme’.

NOTE: If pressed when setting ‘Time Delay’ or when time delay is

active,time delay is cancelled but the selected wash programme and
optional wash features will remain,the Infobubble™ will display
these. Press start to proceed with the programme.

Rinse Hold / Fabric Care

● Not available with Programme ‘F’.

Press Action Infobubble™
Button Display

x1 Rinse - Minimises creasing of silk by

Hold suspending wash load in final

rinse water.

Note: To spin, press the ‘Rinse Hold’ button again ( the Infobubble™ display
will remind you to do this,or select the buzzer).

x2 Fabric - Protects delicates with a

Care gentle wash, automatic rinse

hold and 800rpm spin.

x3 Cancel

Bioprofile / Time Saver

Press Action Infobubble™
Button Display

x1 Bioprofile - Increases water temperature

at stages to ensure maximum
wash performance from your
biological detergent.

x2 Time - Saves up to 25 minutes on

Saver lightly soiled items by

reducing the wash & spin
time of any programme.

x3 Selects Bioprofile & Time Saver together

x4 Cancel

Drying Programme / Drying Time

● Not available with Programme ‘F’.

Press Action Infobubble™
Button Display

x1 Selects low heat programme

x2 Selects full heat programme

Note: To increase drying time by 10 minute increments, up to 120 minutes,
press and hold button.

Start, Buzzer / Time Delay

Press Action Infobubble™
Button Display

x1 & Hold Buzzer - Lets you know when the

programme has finished or
when Rinse Hold is activated.

Time - Gives you the option to delay
Delay your wash programme from

1 to 18 hours.

Note: When the button is released the programme will start automatically
and the Infobubble™ will display ‘Starting Programme’.

Variable Spin

Press Action Infobubble™
Button Display

x1 Display existing programme spin speed.

x2 & Hold Reduce spin speed by 100rpm intervals to

400rpm or ‘0’(no spin).

x3 Return to normal programme setting.

Variable Rinse

Variable Temperature

Press Action Infobubble™
Button Display

x1 & Hold Reduce programmed temperature in 5˚C

intervals to a minimum of 30˚C

x2 Cancel

● Not available with Programme ‘F’.

Press Action Infobubble™
Button Display

x1 Add a rinse for sensitive skin.

x2 Delete a rinse to save time and water.

x3 Return to normal programme setting.

STEP 6

Items Not Suitable
for Tumble Drying:

● Garments with the ITCL

code ­DO NOT TUMBLE DRY.

● Woollens.

● Large bulky items eg.

quilts, bedspreads,
pillows etc... expand
when dry,preventing air
flow through the
appliance.

● Items containing plastic

film, foam rubber or
rubber like materials eg.
pillows, cushions, PVC
rainwear or inflammable
articles which contain
inflammable substances
eg. towels contaminated
with hair lacquer.

● Fibreglass (eg.some

types of curtains).

● Items which have been

dry cleaned.

Choosing a Drying Programme

Fabric

Natural

IMPORTANT INFORMATION: A 10 minute ‘Cool Tumble’phase at the end of
each drying cycle allows fabrics to gently cool down, minimising creasing.

All fabrics contain a little natural moisture even when ‘dry’,this should not
be lost if the clothes are to remain soft and fluffy. If clothes are subjected
to extreme drying they tend to wrinkle and consequently need more
ironing than usual. As clothes feel damper when warm, allow for this
when removing items before the ‘Cool Tumble’phase is complete.

This machine incorporates a ‘Dry Spin’ feature, see Automatic Features.

Programme Dry Weight

Typ e

B,C,D & E

F,G & H

Load

2.5kg max. 55

2kg max.Synthetic

Programme

Selector Setting

SPIN HEAT IRON DRY FULL DRY

Long
Long

Short
Short

High
High

Low
Low

Time Setting

(approx.mins)

35

80
45

80
50

90
60

DRYING WEIGHT

LOADS

Two examples of typi­cal loads for drying dif­ferent types of fabric:

COTTON

1 Bath Towel
3 Shirts
3 Blouses
1 Set of Pyjamas
2 Sets of Underwear
1 Pillow Case

= 2.5kg

SYNTHETIC

2 Children’s

Dresses
2 Shirts
4 Blouses
1 Set of Pyjamas

= 2kg

Independent Drying Programme

IMPORTANT INFORMATION: Before selecting an independent drying programme, ensure the mains button is in the ‘OFF’ position.

1 2 3 4 5 6

Remove the wet
laundry and
dosing ball (if
used) until the
correct ‘Drying
Weight Load’is
left in the drum.

Close door by
applying pressure at
the 2 o’clock position.

WARNINGS:

● If your appliance is not permanently
plumbed in, turn on the cold water supply
to the appliance and hook the drain hose
over the sink to enable to condensing
action to work.

Switch ‘ON’.
The Infobubble™ will
display ’Select
Programme’

● The dryer is intended
for use only where
water is used for the
cleaning process.

Select optional wash &
dry features (STEP 5),
you will hear a beep
and the Infobubble™
will display the
selection.

● Be careful not to
touch the drum at
the top as this area
gets hot during
drying.

Press ‘START’, the door
will lock and the
symbol will appear in
the Infobubble™
throughout the wash
& dry programme.

● On no account
should liquid fabric
conditioner be
added during the
drying process.

1-2 minutes after
completion of the
wash programme
the symbol will
disappear and the
door can be opened.
Switch ‘OFF’ after
use.

● Misuse of the
dryer may create
a fire hazard.

STEP 7

Wash & Auto Dry Programme

1

Switch on both the
water and electricity
supply at the mains.

WARNINGS:

● Do not allow children
to play with the
appliance or tamper
with the controls.

2

Sort laundry by label
into groups with the
same wash & dry
requirements,load the
appliance.
See Drying Weight
Load examples (STEP 6)

6

Select optional wash
programme (STEP 4),
you will hear a beep
and the Infobubble™
will display the pro­gramme information.

● Do not overload the
appliance! It may
damage laundry and
reduce the quality of
the wash.

3

Close door by
applying pressure at
the 2 o’clock position.

7

Select optional wash &
dry features (STEP 5),
you will hear a beep
and the Infobubble™
will display the
selection.

● Do not attempt to open the
door when water is visible in
the drum or if the
symbol is displayed in the
Infobubble™.

4

Add detergent /
conditioner to the
dispenser drawer
(STEP 3). Refer to the
manufacturer’s dosage
instructions.

8 9

Press ‘START’, the door
will lock and the
symbol will appear in
the Infobubble™
throughout the wash
& dry programme.

● Do not use a dosing ball
to dispense detergent
when using a wash and
auto dry programme.

5

Switch ‘ON’.
The Infobubble™ will
display ’Select
Programme’

1-2 minutes after
completion of the wash
programme the
symbol will disappear
and the door can be
opened. Switch ‘OFF’
after use.

Gentle Wash,Rinse & Spin Options for Programme G

Press Infobubble™ Description Options
Button Display Available

Once Silk 30˚C Gentle Wash for Silks. Rinse Hold, Fabric Care,

Variable Rinse,Variable
Spin & Timer Saver.

x2 Refresh 40˚C A very quick light wash No options.

for freshening up.

x3 Rinses & Rinse for hand washed Variable Rinse.

Super Spin cottons or as an extra
1200 rinse for programme ‘F’.

x4 Wool Rinses Rinse for hand washed Variable Rinse.

& Spin 1000 woollens or as an extra

rinse for programme ‘F’.

x5 Rinses & Slow Rinse for hand washed Variable Rinse.

Spin 800 delicates / acrylics or as

an extra rinse after
programmes ‘D, E & G’.

x6 Super Spin Spin for hand washed No options.

1200 cottons or as an extra

spin for programmes
‘A, B & C’.

x7 Wool Spin Spin for hand washed No options.

1000 woollens or as an extra

spin for programme ‘F’.

x8 Slow Spin Spin for hand washed

800 delicates or as an extra

spin for programmes
D,E & G’

x9 NOTE: Returns Infobubble™ display to Silks 30˚C

STEP 8

Troublesh

Washcare Tips:

Before washing:

● Pre-treat stains.

● Close zips, tie belts, strings etc...

and press studs to prevent
tangling.

● Remove papers or tissues from
pockets.

● Remove sharp objects and coins
from pockets as they could cause
damage to clothes or the
appliance.

● Limit the size of absorbent loads
ie. towels, to 3kg (7lb) to give
good washing/rinsing results.

● Place small items in a wash bag.

● Check wash labels as some items

may require a cool programme.

● Wash non-colourfast woollens or
really dirty laundry separately as
they may affect other items.

● Laundry will not wash properly if
you overload the appliance.

● Laundry without a wash label
should not be machine washed.

MY MACHINE MAKES A

NOISE OR VIBRATES IN A

SPIN PROGRAMME.

Check all loose items, such as

coins, have been removed

from the laundry.

Have both transit fixings been

removed from the machine?

✓

Has the polystyrene block been

removed from underneath the

machine?

✓

Have you adjusted the feet to

stabilise the machine?

See STEP 2: Installation

MY LAUNDRY HAS NOT

SPUN DRY.

MY MACHINE WILL NOT

START

Close the door. Choose a

programme and then press start

Does the ‘door indicator’ light

come on after 2 seconds?

✓

Check that a time delay has

not been set on the machine.

Is the machine plugged in

and switched on?

✓

Is the socket OK? Test with

another appliance to check.

✓

Is the fuse in the plug OK?

Plug the machine in and turn

the socket switch on.

If possible use another socket

for the machine.

If not replace it, see STEP1:

Electricity Supply

MY MACHINE DOES N

PUMP OUT WATER

(E15)

Has the drain hose been i

Are the drainage unit, sta

or under sink connectio

Has ‘Rinse Hold’been sel

✗

✗

✗

The light will flash until th

Press the ‘Rinse Hold’ b

Clear any blockages tha

Is the machine connect

Check the blocked end

under sink drainage un

correctly?

✓

from blockages?

✓

is pressed again.

✓

again.

See STEP 2: Installati

been found

a sink waste system

✓

been cut off.

Was a short spin programme

used on a non-synthetic load.

✓

There has been an unbal-

anced load and the machine

could not spin. Redistribute

the clothes by hand and

select a spin only programme.

Did the water pump out?

If not see ‘MY MACHINE DOES

NOT PUMP OUT WATER’.

✗

MY MACHINE STOPS

BEFORE A SPIN

PROGRAMME.

The ‘Rinse Hold’ button has

been pressed and this will be

displayed in the Infobubble™

display until the button is

pressed again.

WATER COLLECTS IN

FABRIC DISPENSE

COMPARTMENT

Clean fabric dispenser d

See STEP 3:‘The Dispe

Drawer’.

MY MACHINE IS LEAKING

(E10/E11/E13)

THE PROGRAMME TAKES A

LONG TIME

In the unlikely event of a problem

occurring with your machine, an Error

ERROR CODES

Code will appear in the Infobubble™.

Brief explanations of the codes are

✗

Are the fill hoses on correctly?

If not tighten them.

✗

Is your water pressure too

✗

Turn the main supply tap

high?

✓

down.

✗

Check for low temperature and

low pressure for the hot and

cold water supply

SUDS ARE COMING FROM

THE DISPENSER DRAWER

E10/11/13

E15

E17

shown below:

No Hot / Cold fill ­Check the water supply
and the hot and cold hose
connections.

Water will not pump out ­See ‘MY MACHINE DOES
NOT PUMP OUT WATER’.

Door is not closed properly
Pressure at the 2 o’clock
position until door clicks.

Is the standpipe or household

drain blocked.

✓

You may need to call in a

plumber.

Is steam coming from the

dispenser drawer?

✓

The machine is designed to

release steam from the dispenser

drawer during hot washes.

Check the feet have been

levelled.

E16

✗

Check the correct amount of

suitable detergent has been

used, refer to manufacturer’s

recommendations.

E14

E30/31

High water level ­Disconnect or turn off the
water supply,then call for a
Service Engineer.

Call for a Service Engineer

Motor Drive Problem ­Run the programme again,
if problem persists call for

✗

THE LAUNDRY IS NOT DRY

AFTER USING THE DRY

PROGRAMME

Is the cold water turned on at the

tap?

✓

E50/51

✗

If the appliance is still not working

Repair Service and Information Desk

a Service Engineer.

Call for a Service Engineer.

contact:

UK 08709 066 066

Republic of Ireland 1850302 200

Did you select the right heat/time

setting?

✓

Was the laundry spun dry at the

end of a wash programme,if not

select a spin and dry option to

suit the fabric type.

✗

You will be asked for the following

details: Name and Address, Post

Code,Telephone Number,Date of
Purchase,Colour and Model/Serial
Numbers - which can be found on

the inside of the door.

Clear and precise details of the query

or fault.

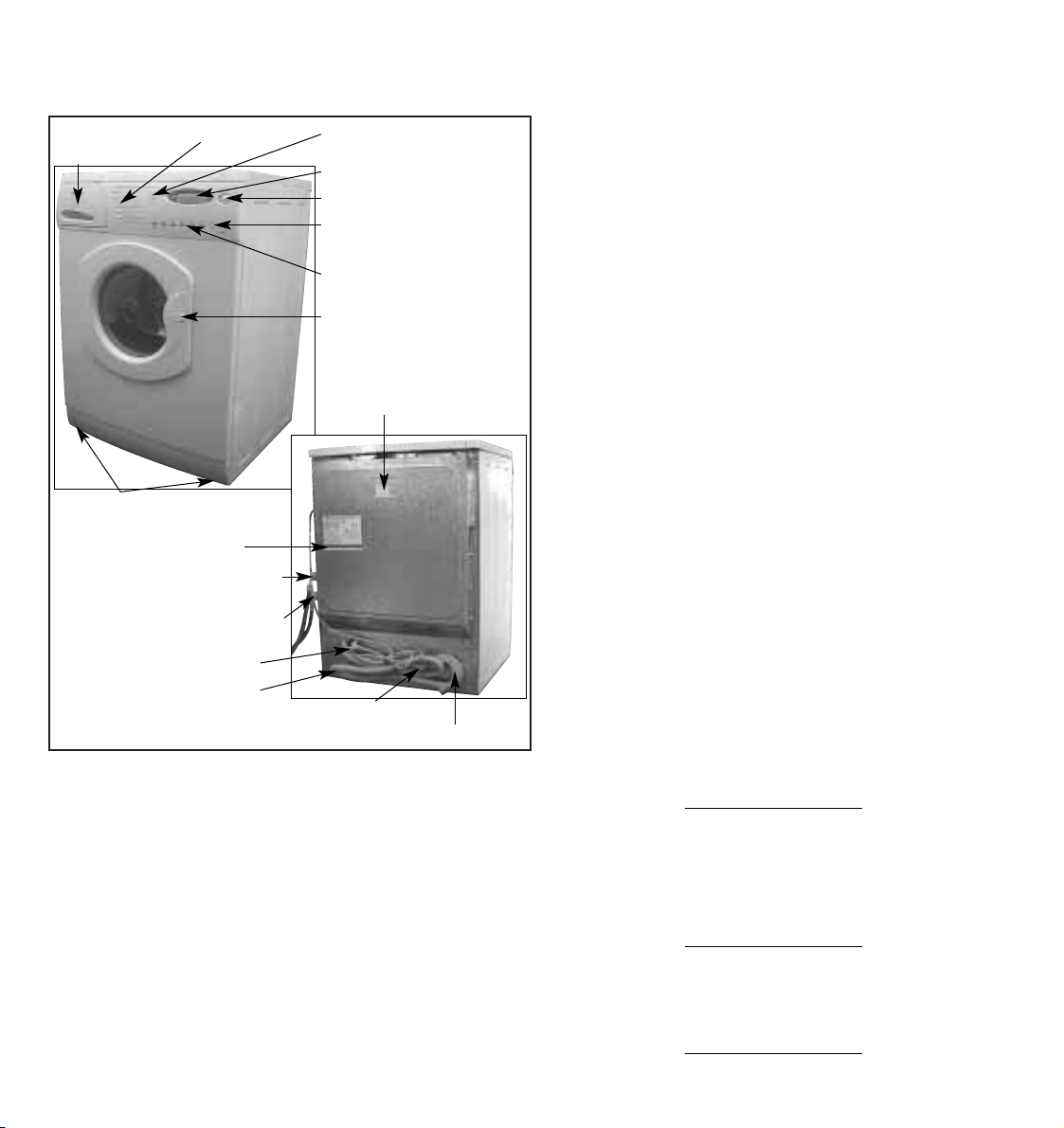

Getting to Know your Appliance

Wash Programme Buttons

Dispenser Drawer

Adjustable Feet

RED line indicates the minimum
height for the drainage hose.

Hot Water inlet point and supplied

Hose (Red or Grey end)

Cold Water inlet point and supplied

Hose (Blue end)

Mains Cable

Drainage Hose

Start, Buzzer/Time Delay
Button

Infobubble™ Display
Mains On/Off Button

Cancel Button

Optional Wash/Dry Feature
Button

Door Handle &
Release Button

Rating Plate

Retaining Flaps

Hooked End Support

Cleaning the Exterior:

Use a damp cloth or silicon polish to clean the exterior surfaces of the
appliance.

Cleaning the Door Bowl:

Clean the internal surface of the door bowl regularly with a soft cloth.
A build up of soap powder and water hardness residue may result in
water leaking from the door.

DO NOT clean any part of the machine with abrasive cleaners,scouring
agents, acids, chlorine based bleach or metal polish as they may cause
damage.

Automatic Features:

Intelligent Care:

Takes care of your laundry by monitoring your machine’s performance.
Prevents your machine spinning with an uneven load and reports any
specific problems on the Infobubble™ display.

Temperature Sensed Fill:

Makes the best use of the existing hot water supply,saving energy,
time and money.

Auto Creasecare:

Reduces creasing on any wash programme by gradually reducing the
water temperature towards the end of the wash programme.

Profile Spin:

Less water, less creasing and less ironing. Gradually steps up the spin
speed for the most efficient water extraction.

Pulse Spin:

Reduces wear and tear on your laundry. A long,steady spin is
followed by a 30 second burst at the maximum speed for your
machine, to enable safer,more efficient water extraction.

Dry Spin:

There will be a 2 minute spin about 20 minutes after the drying
programme has started; this improves the drying performance.

NOTE: This feature will not operate if you have selected a combined Wash
& Auto Dry Programme for synthetic fabrics.

Infobubble™ Display:

The Infobubble™ displays your selected wash programme,optional
wash features selected and shows you exactly where you are in the
washing cycle.

Key Contacts

Over 1200 trained specialists, directly employed by us, ensure that

you can have complete confidence in both the appliances and

Repair Service and Information Desk

(Open 8 to 8 Mon - Fri, 8 to 6 Sat, 10 to 4 Sun & Bank Holidays)

Note: Our operators will require the Model number and Serial number.

After Sales Service

services we offer.

UK: 08709 066 066

.theservicecentre.co.uk

www

Republic of Ireland: 1850 302 200

Extended Warranties

UK: 08709 088 088

(Open 8 to 8 Mon - Sun)

www.theservicecentre.co.uk

Republic of Ireland: 1850 502 200

Maintenance Wash:

We recommend a maintenance wash 2 or 3 times a year, to avoid a build
up of greasy deposits and water hardness residue.
Simply run wash programme ‘C’ without any laundry in the drum, using
the usual amount of detergent.

Genuine Parts and Accessories

(Open 8-30 to 5-30 Mon - Fri & 9 to 12 Sat)

UK: 08709 077 077

www.theservicecentre.co.uk

Republic of Ireland: [phone]

STEP 1

Electricity Supply

STEP 2

WARNING: The appliance must be earthed.

Fuses

Your appliance comes fitted with a plug and a 13A fuse. If you need to
replace the fuse,only those rated at 13A and ASTA approved to
BS1362 should be used.To change fuse lift holder to vertical position
and lift fuse out.To replace, insert fuse and push fuse holder down
into locked position. Correct replacement is identified by colour cod­ing or the marking on base of plug.

WARNING: Do not use plug unless fuse holder is in locked position.

Changing the Mains Lead

A special lead can be ordered from Hotpoint Service
UK: 08709 066 066 or Republic of Ireland: 1850 302 200
If you have damaged the existing lead or require a longer one a
charge will be made. It is strongly advised that this work is carried out
by a qualified electrician.

Changing the Plug

Cut off and dispose of the supplied plug if it does not fit your socket.

WARNING:To avoid a shock hazard do not insert the discarded plug into
a socket anywhere else.

IMPORTANT: WIRES IN THE MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:

Green/Yellow - Earth
Blue - Neutral
Brown - Live

If you change the plug, the colour of wires in the mains lead may not
correspond with the colour of the markings identifying terminals in
the plug.You should therefore wire it as shown:

Green and yellow (Earth)
wire to terminal marked ‘E’,
symbol , or coloured
green and yellow.

Blue (Neutral) wire to
terminal marked ‘N’or
coloured black.

13A ASTAapproved fuse to

BS1362.

Brown (Live) wire to terminal

marked ‘L’ or coloured red.

1

POLYSTYRENE BLOCK...

NOTE: YOU MAY NEED A SECOND PERSON TO HELP YOU
RAISE AND LOWER THE APPLIANCE.

This is part of the packaging
and should have come away
with the polystyrene base -

IF IT HAS NOT... REMOVE IT!

4

NOTE:

MOV

ALON

WHI

YOU

HOO

LEVEL

DRA

(*see

5

LEVEL?...

YOUR MACHINE WILL BE NOISY IF THE TWO
NOT ADJUSTED SO THE MACHINE STANDS F

Each foot has two parts: The Locking Disk a

Locking

Disk

CE marking certifies that this appliance conforms to the following
EEC directives:
Low Voltage Equipment - 72/23/EEC & 93/68/EEC
Electromagnetic Compatibility - 89/336/EEC, 92/31/EEC & 93/68/EEC

Foot

Release the locking disk on the

i

two front feet and screw the feet
in or out until the machine stands
firm and level.

Turn ON

ii

on the
each is
of the m

Installation

2

REMOVE TRANSIT BRACKETS...

IMPORTANT:

Internal transit brackets
are fitted to prevent
damage during transit
and MUST be removed
before use...

Failure to do so may
cause damage to your

Remove and

retain 3 screws

from the back of

the worktop lid

Slide and push worktop lid back
into position, ensuring front edge is
correctly located into the console.

From the rear of the

machine, grip sides of

the worktop lid, lift,slide

and pull towards you.

machine!

DRAINAGE SYSTEM...we recommend one of the following:

STANDPIPE METHOD

Hooked End Support

Insert drainage hose

DO NO

T REMOVE IT.

approximately 100mm
into the standpipe.

.............................

Standpipe height:
minimum 500mm
from the floor.

OR

Remove 4 screws

and the rear transit

bracket - retain.

Replace the work top lid
using the 3 original screws.

UNDER SINK METHOD

cut off the blocked
end of the under sink
drainage unit.

Remove 3 screws

and front transit
bracket - retain.

3

PLEASE USE THE NEW HOSES
SUPPLIED, FITTED TO THE
MACHINE.

DO NOT REMOVE!

800mm
from floor

Fix the hooked
end support at
a minimum
800mm from
the floor.

CONNECT TO THE

Old hoses may cause leaks
due to worn out washers.

Attach the GREY
drainage hose to the
under sink drainage
unit securely,using a
hose clip.

6

CONNECT TO THE POWER SUPPLY...

PLUG YOUR MACHINE INTO AN ELECTRICAL SOCKET WHICH IS
EASILY ACCESSIBLE. SWITCH ON

NOTE: Hotpoint recommend

extension leads are not used.

Move your machine into position,
take care not to trap or kink the
hoses.

7

READY...

TO CHECK ALL PARTS OF
CLEAN THE INSIDE OF YO

SELECT A 95˚ WHITE CO

WITHO

✗

THIS WILL TAKE APP

STEP 3

The Dispenser Drawer

Check both hot and

i

cold water supplies
are running freely...

Connect fill hoses to

ii

water supply taps:

- Red or Grey Hose
end to Hot

- Blue Hose end to
Cold

TURN ON BOTH TAPS

If you have no hot water
supply...

A cold fill adaptor is
available from your local
Hotpoint authorised Service
Centre or by
calling the
Genuine
Parts &
Accessories
Hotline
(see KEY
CONTACTS).

Changing the Main
Wash Indicator:

The main wash indicator
has been fitted to
dispense powder
detergent only.
If you wish to use liquid
detergent, reposition the
main wash indicator as
shown below:

Pull the drawer out until

1

it reaches its stop.

Press down on button,

2

to release the drawer
latch and remove the
drawer.

1

2

3

4

5

6

Index:

1. Drawer latch

2. Button

3. Main wash
indicator

4. Main wash
compartment

5. Prewash
compartment

6. Fabric conditioner
compartment.

Dispensing Powder
Detergent

To achieve optimum wash
results we recommend that
you use the detergent
manufacturers dispensing
cup, to dispense no more
than 300ml of powder.

and

WITHOUT ANY DETERGENT

✗

Lift the main wash

3

indicator out of slots,
rotate and reposition for
Liquid, ensuring it is
secure.

Relocate the drawer and

4

push back into place.

Dispensing Fabric
Conditioner

Pour fabric conditioner into
the compartment.
We recommend that you do
not exceed the maximum
level indicated.

Cleaning the Dispenser Drawer &
Compartments:

It is advisable to clean the dispenser
drawer regularly:

Remove the drawer, see ‘Changing
the Main Wash Indicator’, wash
the dispenser drawer and clean
out the compartment.
Dry thoroughly and relocate.
