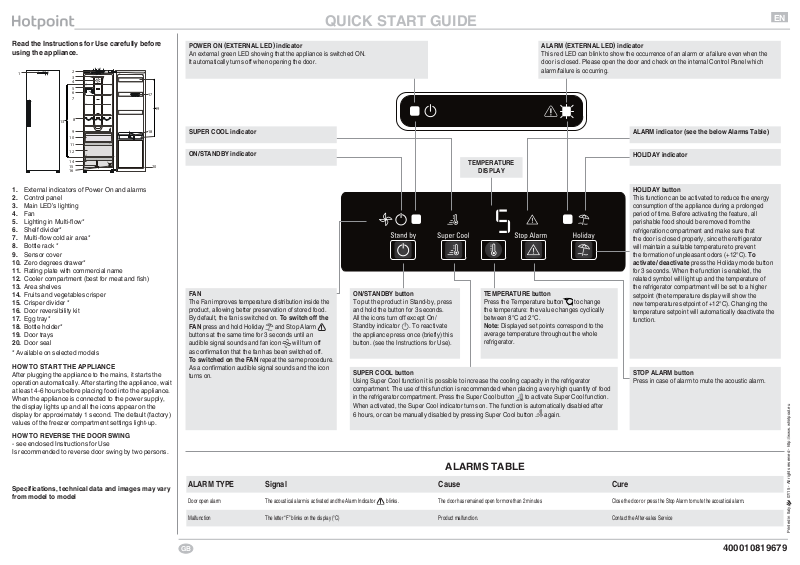

Hotpoint TFUL163PVH QUICK START GUIDE

QUICK START GUIDE

EN

Read the Instructions for Use carefully before
using the appliance.

1

2
3

4

5
6

7

X

X

8

13

9

10

11

12

14
15
16

17

19

18

20

1. External indicators of Power On and alarms

2. Control panel

3. Main LED’s lighting

4. Fan

5. Lighting in Multi-flow*

6. Shelf divider*

7. Multi-flow cold air area*

8. Bottle rack *

9. Sensor cover

10. Zero degrees drawer*

11. Rating plate with commercial name

12. Cooler compartment (best for meat and fish)

13. Area shelves

14. Fruits and vegetables crisper

15. Crisper divider *

16. Door reversibility kit

17. Egg tray*

18. Bottle holder*

19. Door trays

20. Door seal

* Available on selected models

HOW TO START THE APPLIANCE

After plugging the appliance to the mains, it starts the
operation automatically. After starting the appliance, wait
at least 4-6 hours before placing food into the appliance.
When the appliance is connected to the power supply,
the display lights up and all the icons appear on the
display for approximately 1 second. The default (factory)
values of the freezer compartment settings light-up.

HOW TO REVERSE THE DOOR SWING

- see enclosed Instructions for Use
Is recommended to reverse door swing by two persons.

POWER ON (EXTERNAL LED) indicator

An external green LED showing that the appliance is switched ON.
It automatically turns off when opening the door.

SUPER COOL indicator

ON/STANDBY indicator

FAN

The Fan improves temperature distribution inside the
product, allowing better preservation of stored food.
By default, the fan is switched on. To switch off the

FAN press and hold Holiday

and Stop Alarm
buttons at the same time for 3 seconds until an
audible signal sounds and fan icon will turn off

ON/STANDBY button

To put the product in Stand-by, press
and hold the button for 3 seconds.
All the icons turn off except On/
Standby indicator . To reactivate
the appliance press once (briefly) this
button. (see the Instructions for Use).

as confirmation that the fan has been switched off.
To switched on the FAN repeat the same procedure.
As a confirmation audible signal sounds and the icon
turns on.

SUPER COOL button

Using Super Cool function it is possible to increase the cooling capacity in the refrigerator
compartment. The use of this function is recommended when placing a very high quantity of food
in the refrigerator compartment. Press the Super Cool button
When activated, the Super Cool indicator turns on. The function is automatically disabled after

6 hours, or can be manually disabled by pressing Super Cool button

ALARM (EXTERNAL LED) indicator

This red LED can blink to show the occurrence of an alarm or a failure even when the
door is closed. Please open the door and check on the internal Control Panel which
alarm/failure is occurring.

TEMPERATURE

DISPLAY

TEMPERATURE button

Press the Temperature button to change
the temperature: the value changes cyclically
between 8°C ad 2°C.
Note: Displayed set points correspond to the
average temperature throughout the whole
refrigerator.

to activate Super Cool function.

again.

ALARM indicator (see the below Alarms Table)

HOLIDAY indicator

HOLIDAY button

This function can be activated to reduce the energy
consumption of the appliance during a prolonged
period of time. Before activating the feature, all
perishable food should be removed from the
refrigeration compartment and make sure that
the door is closed properly, since the refrigerator
will maintain a suitable temperature to prevent
the formation of unpleasant odors (+12°C). To
activate/ deactivate press the Holiday mode button
for 3 seconds. When the function is enabled, the
related symbol will light up and the temperature of
the refrigerator compartment will be set to a higher
setpoint (the temperature display will show the
new temperature setpoint of +12°C). Changing the
temperature setpoint will automatically deactivate the
function.

STOP ALARM button

Press in case of alarm to mute the acoustic alarm.

Specifications, technical data and images may vary
from model to model

ALARMS TABLE

ALARM TYPE Signal Cause Cure

Door open alarm

Malfunction The letter “F” blinks on the display (°C) Product malfunction. Contact the After-sales Service

The acoustical alarm is activated and the Alarm Indicator

GB

blinks.

The door has remained open for more than 2 minutes Close the door or press the Stop Alarm to mute the acoustical alarm.
