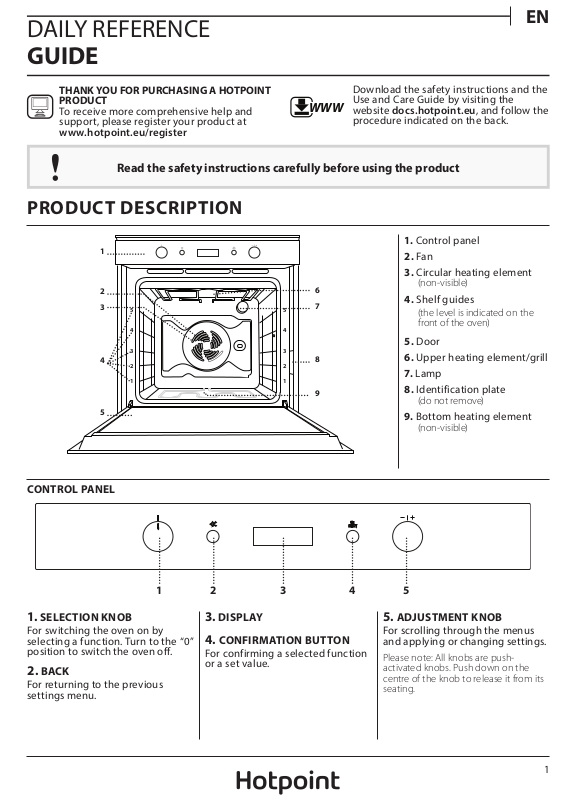

DAILY REFERENCE

WWW

GUIDE

THANK YOU FOR PURCHASING A HOTPOINT PRODUCT

To receive more comprehensive help and support, please register your product at

www.hotpoint.eu/register

Read the safety instructions carefully before using the product

PRODUCT DESCRIPTION

Download the safety instructions and the Use and Care Guide by visiting the website docs.hotpoint.eu, and follow the procedure indicated on the back.

1. Control panel

2. Fan

3. Circular heating element

(non-visible)

4. Shelf guides

(the level is indicated on the front of the oven)

5. Door

6. Upper heating element/grill

7. Lamp

8. Identification plate

(do not remove)

9. Bottom heating element

(non-visible)

CONTROL PANEL

1 2 3 4 5

1. SELECTION KNOB

For switching the oven on by selecting a function. Turn to the “0” position to switch the oven off.

2. BACK

For returning to the previous settings menu.

3. DISPLAY

4. CONFIRMATION BUTTON

For confirming a selected function or a set value.

5. ADJUSTMENT KNOB

For scrolling through the menus and applying or changing settings.

Please note: All knobs are pushactivated knobs. Push down on the centre of the knob to release it from its seating.

Page 2

ACCESSORIES

WWW

Download the Use and Care Guide from docs.hotpoint.eu for more information

WIRE SHELF DRIP TRAY BAKING TRAY GRILL PAN SET

The number of accessories may vary depending on which model is purchased. Other accessories can be purchased separately from the After-sales Service.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

Insert the wire shelf horizontally by sliding it across the shelf guides, making sure that the side with the raised edge is facing upwards.

Other accessories, such as the drip tray and the baking tray, are inserted horizontally in the same way as the wire shelf.

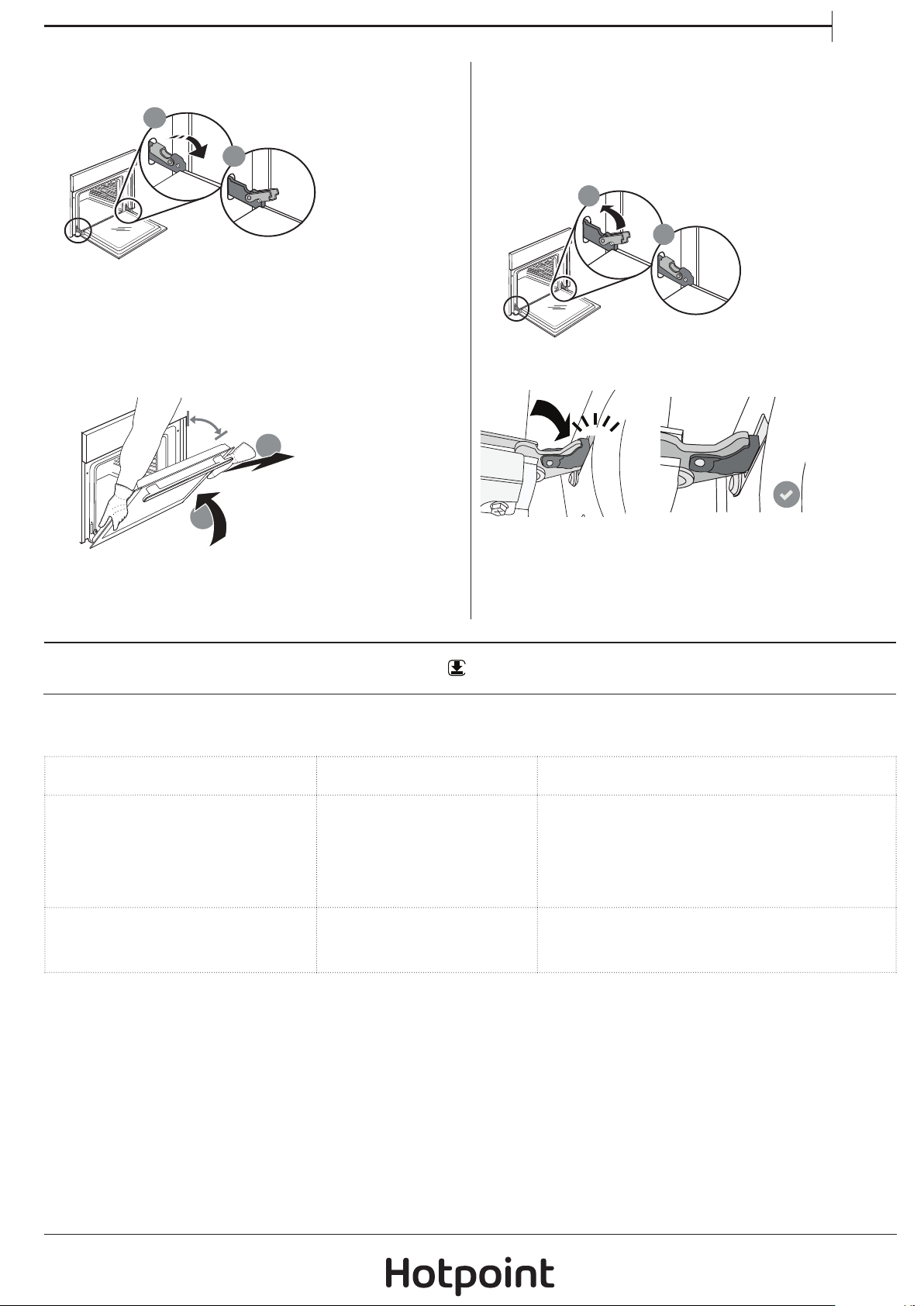

REMOVING AND REFITTING THE SHELF GUIDES

. To remove the shelf guides, lift the guides up and then gently pull the lower part out of its seating: The shelf guides can now be removed.

. To refit the shelf guides, first fit them back into their upper seating. Keeping them held up, slide them into the cooking compartment, then lower them into position in the lower seating.

Page 3

FUNCTIONS

OFF

For switching off the oven.

LIGHT

For switching the light inside the oven on and

off. This function does not activate cooking.

CONVENTIONAL

For cooking meat or baking cakes with liquid

centre on a single shelf.

CONVECTION BAKE

For cooking meat or baking cakes with liquid

centre on a single shelf.

FORCED AIR

For cooking different foods that require the same cooking temperature on several shelves (maximum three) at the same time. This function can be used to cook different foods without odours being transferred from one food to another.

GRILL

For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 500 ml of drinking water.

SETTINGS

For changing the oven settings (time, language, audible signal volume, brightness, ECO mode, unit of measurement).

Please note: When Eco mode is active, the brightness of the display will be reduced after a few seconds to save energy.

SPECIAL FUNCTIONS

MEAT

the best temperature and cooking method for meat. This function intermittently activates the fan at low speed to prevent the food from drying out too much.

POULT

best temperature and cooking method for poultry. This function intermittently activates the fan at low speed to prevent the food from drying out too much.

CASSE

the best temperature and cooking method for pasta dishes.

MEAT

This function automatically selects

POULTRY

This function automatically selects the

CASSEROLE

This function automatically selects

TURBO GRILL

For roasting large joints of meat (legs, roast beef, chicken). We recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 500 ml of drinking water. The turnspit (if provided) can be used with this function.

MAXI COOKING

For cooking large joints of meat (above 2.5 kg). Use the 1st or 2nd shelves, depending on the size of the joint. The oven does not have to be preheated. We suggest turning the meat during cooking to obtain uniform browning on both sides. It is advisable to baste the meat every now and again so that it does not become too dry.

FAST PREHEATING

For preheating the oven quickly.

ECO FORCED AIR*

For cooking stuffed roasting joints and fillets of meat on a single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation. When this function is in use, the ECO light will remain switched off throughout cooking. To use the ECO cycle and therefore optimise power consumption, the oven door should not be opened until the food is completely cooked.

BREAD

best temperature and cooking method for all types of bread.

PIZZA

best temperature and cooking method for all types of pizza.

PASTR

best temperature and cooking method for all kinds of cakes (leavened cakes, filled cakes, tarts, etc.).

RISIN

savoury dough. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle.

WARM

crisp.

BREAD

This function automatically selects the

PIZZA

This function automatically selects the

PASTRY

This function automatically selects the

RISING

For optimal proving of sweet or

WARM KEEPING

For keeping just-cooked food hot and

* Function used as reference for the energy eciency declaration in accordance with Regulation (EU) No. 65/2014

Page 4

SLOW

(at 85°C) gently while keeping them tender and succulent. We recommend searing roasting joints in a pan first to brown the meat and help seal in its natural juices. Cooking times range from two hours for fish weighing 300 g to four or five hours for fish weighing 3 kg, and from four hours for joints of meat weighing 1 kg to six or seven hours for joints of meat weighing 3 kg.

SLOW COOKING

For cooking meat (at 90°C) and fish

Page 5

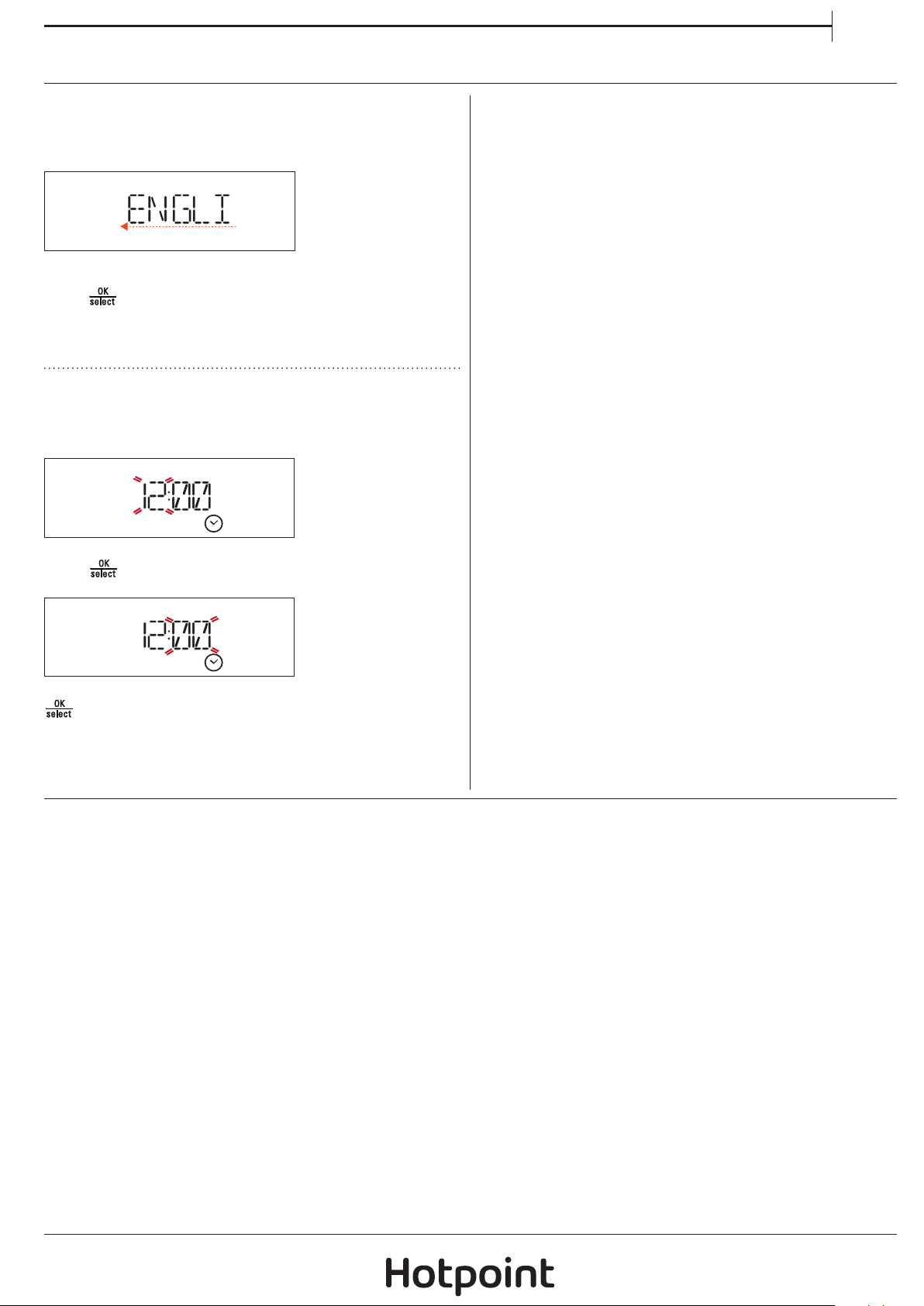

USING THE APPLIANCE FOR THE FIRST TIME

1. PLEASE SELECT LANGUAGE

You will need to set the language and the time when you switch on the appliance for the first time: “ENGLISH” will scroll along the display.

Turn the adjustment knob to scroll through the list of available languages and select the one you require. Press

Please note: The language can subsequently be changed from the “Settings” menu.

to confirm your selection.

2. SET THE TIME

After selecting the language, you will need to set the current time: The two digits for the hour will flash on the display.

Turn the adjustment knob to set the correct hour and press the display.

: The two digits for the minutes will flash on

3. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: This is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it. Heat the oven to 200 °C for around one hour, ideally using a function with air circulation (e.g. “Forced Air” or “Convection Bake”). Follow the instructions for setting the function correctly.

Please note: It is advisable to air the room after using the appliance for the rst time.

Turn the adjustment knob to set the minutes and press

to confirm.

Please note: You may need to set the time again following lengthy power outages.

Page 6

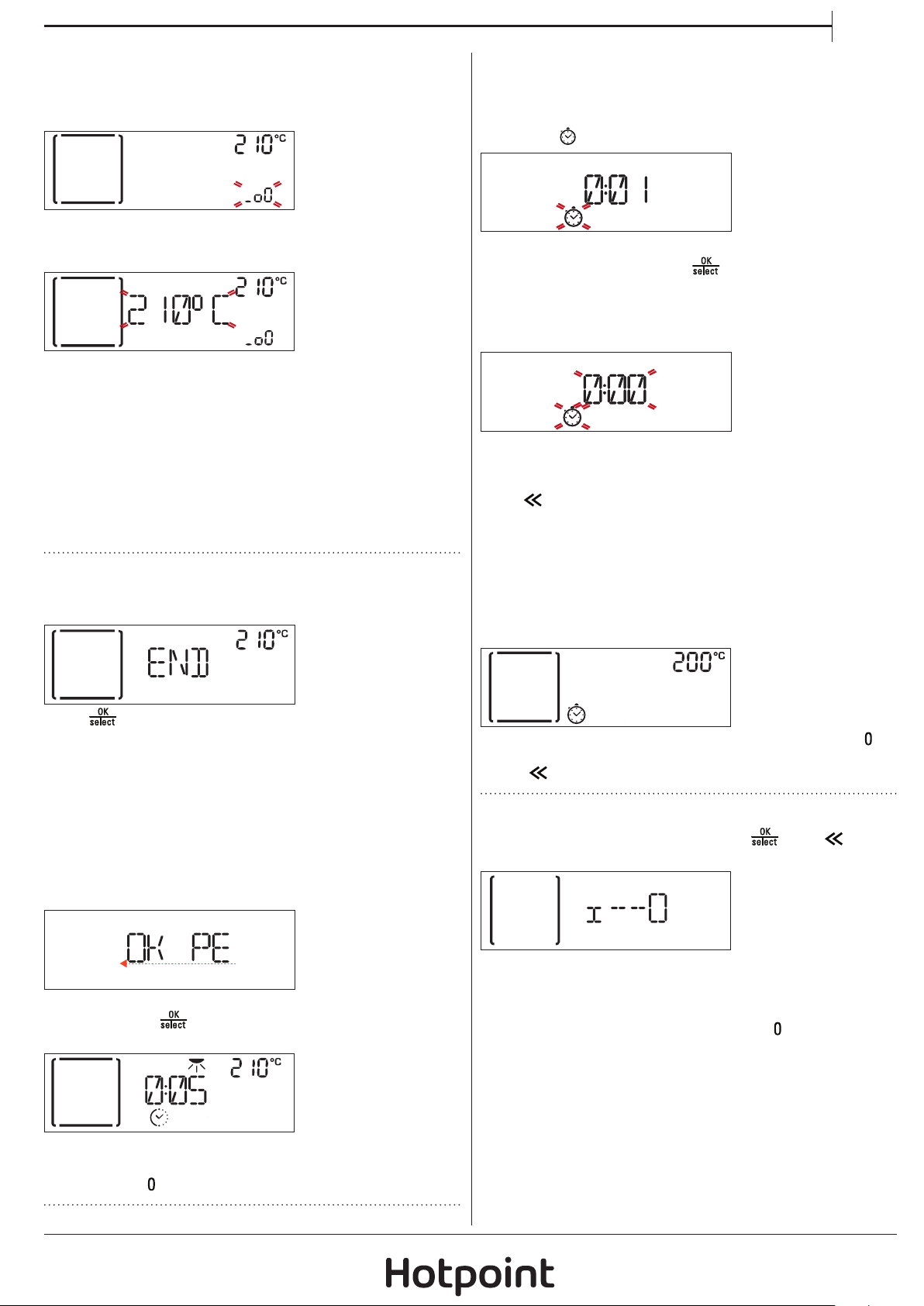

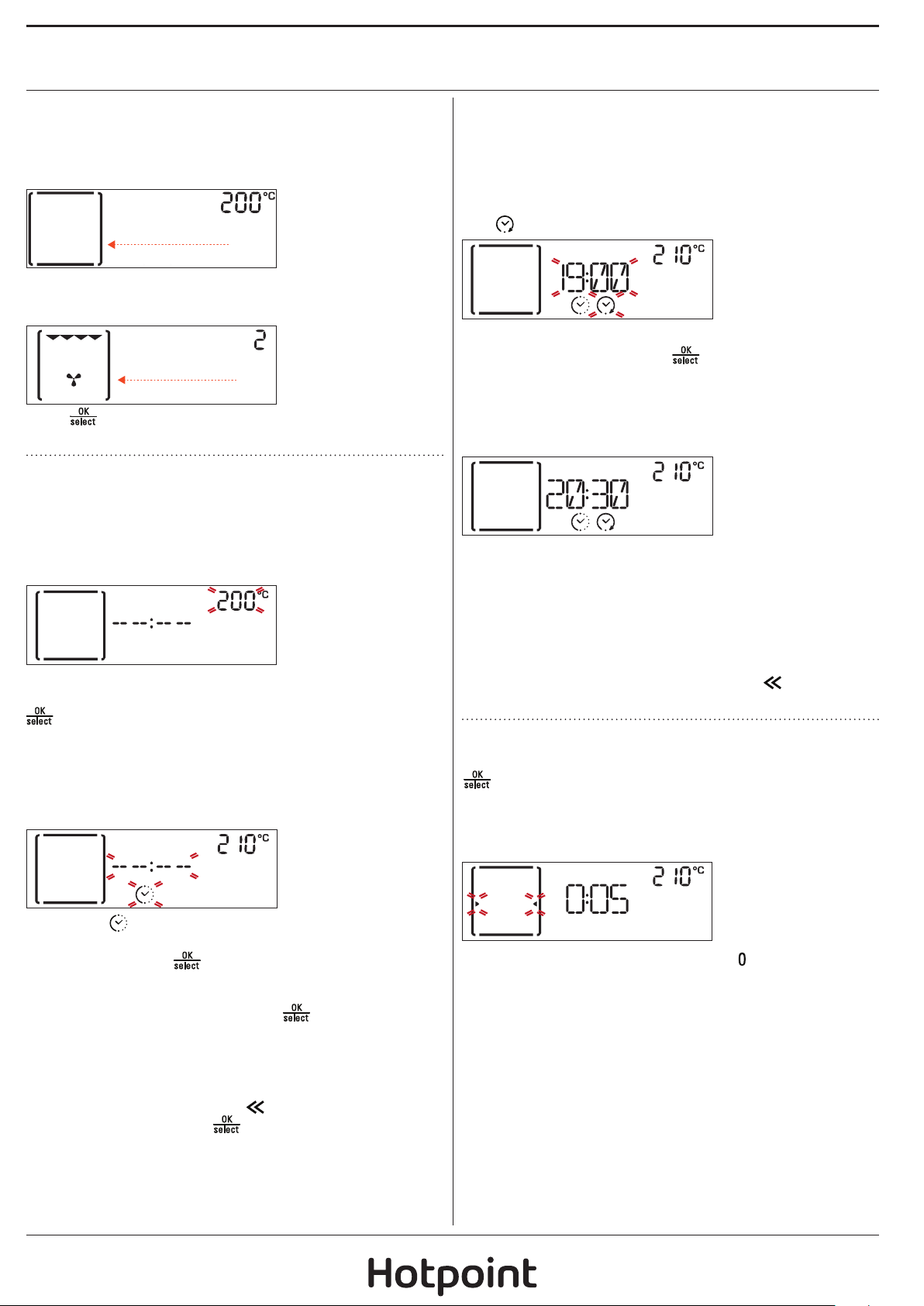

DAILY USE

1. SELECT A FUNCTION

Turn the selection knob to switch on the oven and show the function you require on the display: The display will show the icon for the function and its basic settings.

CONVE

To select an item from the menu (the display will show the first available item), turn the adjustment knob until the item you require is shown.

TURBO

Press to confirm your selection: The display will show the basic settings.

2. SET THE FUNCTION

After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence.

TEMPERATURE/GRILL LEVEL

SET THE COOKING END TIME

DELAYED START

In many functions, once you have set a cooking time you can delay starting the function by programming its end time. The display shows the current end time that is set and the

Turn the adjustment knob to set the time you want cooking to end, then press the function. Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Notes: Programming a delayed cooking start time will disable the oven preheating phase: The oven will reach the temperature your require gradually, meaning that cooking times will be slightly longer than those listed in the cooking table.

icon flashes.

to confirm and start

When the value flashes on the display, turn the adjustment knob to change it, then press

to confirm and continue to alter the settings that

follow (if possible).

Please note: Once the function has been activated, the temperature can be changed using the adjustment knob.

DURATION

When the icon flashes on the display, use the adjustment knob to set the cooking time you require, then press

You do not have to set the cooking time if you want to manage cooking manually: Press start the function. In this case, you cannot set the end cooking time by programming a delayed start.

Please note: You can adjust the cooking time that has been set during cooking by pressing : use the adjustment knob to amend it and then press to conrm.

to confirm.

to confirm and

During the waiting time, you can use the adjustment knob to amend the programmed end time or press the settings.

to change

3. ACTIVATE THE FUNCTION

Once you have applied the settings you require, press

to confirm the time that cooking will end and

activate the function.

Please note: Once cooking has started, the display will recommend the most suitable level for each function.

You can turn the selection knob to to pause the function that has been activated at any time.

Page 7

4. PREHEATING

Some functions have an oven preheating phase: Once the function has started, the display indicates that the preheating phase has been activated.

PRE

Once this phase has finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature:

At this point, open the door, place the food in the oven, close the door and start cooking.

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result. Opening the door during the preheating phase will stop pause it. The cooking time does not include a preheating phase. You can always change the temperature you want the oven to reach using the adjustment knob.

5. END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

. TIMER

When the oven is switched off, the display can be used as a timer. To activate this function, make sure that the oven is switched off and turn the adjustment knob: The

Turn the adjustment knob to set the length of time you require and then press timer. An audible signal will sound and the display will indicate once the timer has finished counting down the selected time.

Please note: The timer does not activate any of the cooking cycles. Use the adjustment knob to change the time set on the timer; press to switch the timer o at any time.

Once the timer has been activated, you can also select and activate a function. Turn the selection knob to switch on the oven and then select the function your require. Once the function has started, the timer will continue to count down independently without interfering with the function itself.

icon will flash on the display.

again to activate the

Press to continue cooking in manual mode (without a programmed cooking time) or turn the adjustment knob to extend the cooking time by setting a new duration. In both cases, the temperature or the grill level settings will be retained.

BROWNING

Some functions of the oven enable you to brown

the surface of the food by activating the grill once cooking is complete

When the display shows the relevant message, if required press cycle.

to start a five-minute browning

CONVE

To switch off the timer, turn the selection knob to to stop the function that is currently active and then press

. KEY LOCK

To lock the keypad, press and hold and at the same time for at least five seconds.

Do this again to unlock the keypad.

Please note: This function can also be activated during cooking. For safety reasons, the oven can be switched o at any time by turning the selection knob to .

You can also stop the function at any time by turning the selection knob to select a different function or by turning it to

to switch the oven off.

Page 8

COOKING TABLE

RECIPE FUNCTION PREHEAT.

Leavened cakes

Filled cake

(cheesecake, strudel, fruit pie)

Biscuits/tartlets

Choux buns

PASTR

TEMPERATURE

(°C)

COOK TIME

(Min.)

- 160-180 30-90

Yes 160-180 30-90

- 160 –200 30 - 85

Yes 160 –200 35-90

- 170 – 180 15 - 45

Yes 160 -170 20-45

Yes 160 -170 20-45 ***

Yes 180 -200 30-40

Yes 180 -190 35-45

Yes 180 -190 35-45 ***

Yes 90 110 -15 0

LEVEL

AND

ACCESSORIES

2/3

Meringues

Yes 90 130 - 150

Yes 90 140-160 ***

PIZZA

Pizza (Thin, thick, focaccia)

- 220 - 250 20-40

Yes 220 - 240 20-40

Yes 220 - 240 25-50 ***

Bread loaf 1 kg

Rolls

BREAD

- 180 - 220 50 - 70

- 180 - 220 30 - 50

Bread Yes 180 -200 30 - 60

PIZZA

Yes 250 10 - 15

Frozen pizza

Yes 250 10 - 20

Yes 180 -190 40-55

Salty cakes

(vegetable pie, quiche)

Yes 180 -190 45 - 60

Yes 180 -190 45-70 ***

2 / 3

3 1

Vols-au-vents/pu pastry crackers

Lasagne/soué

Baked pasta/cannelloni

CASSE

Yes 190 -200 20-30

Yes 180 -190 20-40

Yes 180 -190 20-40 ***

- 190 -200 40 - 65

- 190 -200 25 - 45

3 1

Page 9

RECIPE FUNCTION PREHEAT.

Lamb/veal/beef/pork 1 kg

Chicken/rabbit/duck 1 kg

Turkey/goose 3 kg

Baked sh/en papillote (llet,

whole)

Stued vegetables

(tomatoes, courgettes, aubergines)

MEAT

POULT

TEMPERATURE

(°C)

- 190 -200 60 - 90

- 200 -230 50 - 80

- 190 -200 90 - 150

Yes 180 -200 40-60

Yes 180 -200 50-60

COOK TIME

(Min.)

Toasted bread - 3 (High) 3-6

Fish llets/slices - 2 (Medium) 20-30 *

Sausages/kebabs/spare ribs/ hamburgers

2 - 3 (Medium -

High)

15 - 30 *

Roast chicken 1-1.3 kg - 2 (Medium) 55-70 **

Roast beef rare 1 kg - 2 (Medium) 35-50 **

LEVEL

AND

ACCESSORIES

Leg of lamb/knuckle - 2 (Medium) 60-90 **

Roast potatoes - 2 (Medium) 35-55 **

Vegetable gratin - 3 (High) 10-25

Lasagne and meat Yes 200 50-100 ***

Meat and potatoes Yes 200 45-100 ***

Fish and vegetables Yes 180 30-50 ***

Complete meal: Fruit tart (level 5)/

lasagne (level 3)/meat (level 1)

Yes 190 40-120 ***

Stued roasting joints - 200 80-120 ***

Cuts of meat (rabbit, chicken,

lamb)

* Turn food halfway through cooking. **Turn food two thirds of the way through cooking (if necessary). *** Estimated length of time: dishes can be removed

- 200 50-100 ***

WWW

Download the Use and Care Guide from docs.hotpoint.eu for the table of tested recipes, compiled for the certification authorities in accordance with the standard IEC 60350-1

from the oven at different times depending on personal preference.

3 1

MANUAL

FUNCTIONS

SPECIAL

FUNCTIONS

ACCESSORIES

Conventional Grill Turbo Grill Forced Air Convection Bake Eco Forced Air

MEAT POULT CASSE

Meat Poultry Casserole Bread Pizza Pastry

Wire shelf

Baking tray or cake tin on

the wire shelf

Drip tray / Dessert tray /

Baking tin on wire shelf

BREAD PIZZA

Drip tray

Drip tray with 500 ml of

water

PASTR

Baking tray

Page 10

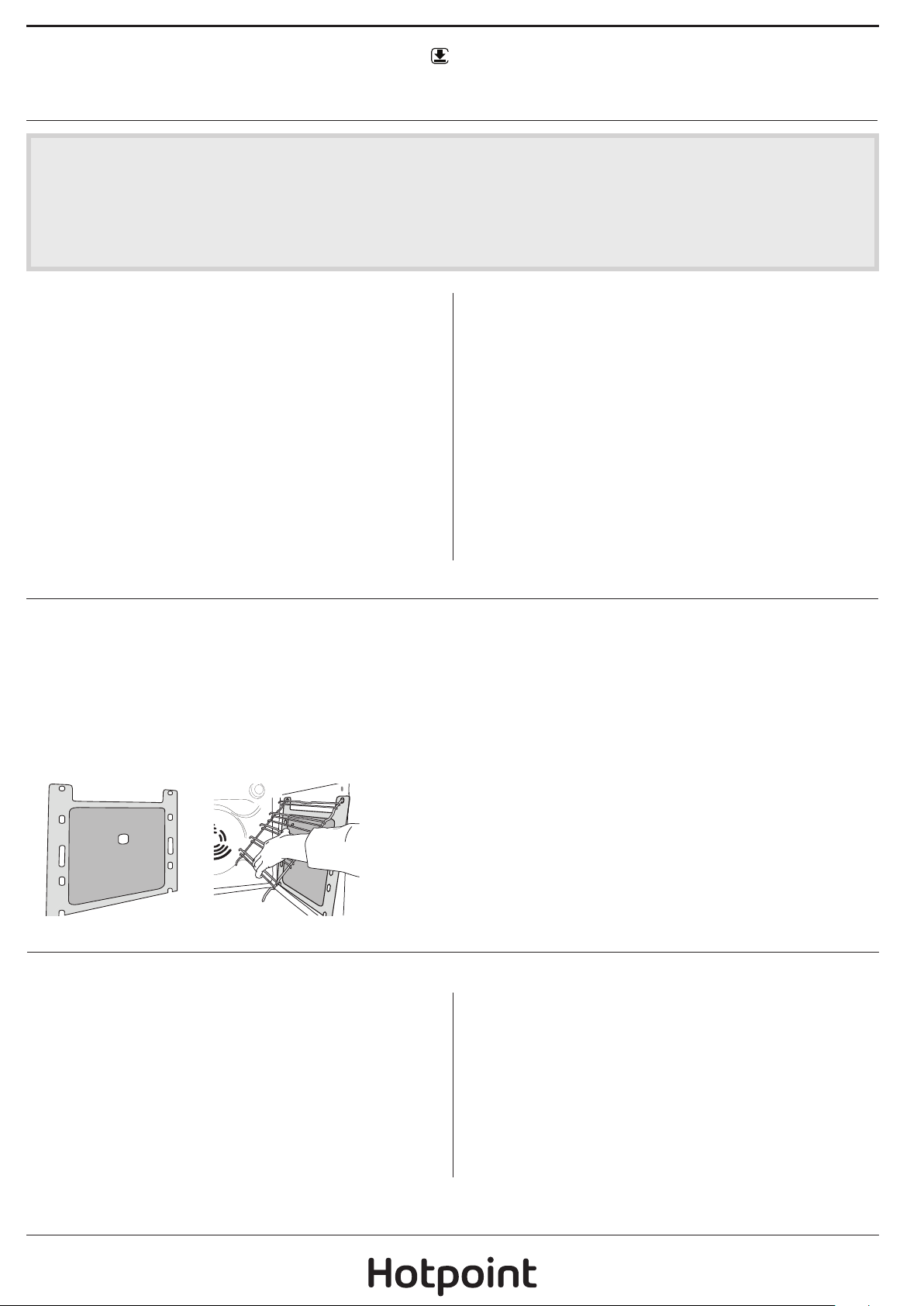

MAINTENANCE AND CLEANING

WWW

Download the Use and Care Guide from docs.hotpoint.eu for more information

Make sure that the oven has cooled down before carrying out any maintenance or cleaning.

Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

Wear protective gloves.

EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.

• Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of

The oven must be disconnected from the mains before carrying out any kind of maintenance work.

cooking foods with a high water content, leave the oven to cool completely and then wipe it with a cloth or sponge.

• Clean the glass in the door with a suitable liquid detergent.

• The oven door can be removed to facilitate cleaning.

• The top heating element of the grill can be lowered to clean the upper panel of the oven .

ACCESSORIES

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

CLEANING THE CATALYTIC PANELS

This oven is equipped with special catalytic liners that facilitate cleaning of the cooking compartment thanks to their special self-cleaning coating, which is highly porous and able to absorb grease and grime. These panels are fitted to the shelf guides: When repositioning and then refitting the shelf guides, make sure that the hooks at the top are slotted into the appropriate holes in the panels.

REPLACING THE LAMP

1. Disconnect the oven from the power supply.

2. Unscrew the cover from the light, replace the bulb

and screw the cover back on the light.

3. Reconnect the oven to the power supply.

To make best use of the catalytic panels’ self-cleaning properties, we recommend heating the oven to 200 °C for around one hour using the “Convection Bake” function. The oven must be empty during this time. Then leave the oven to cool down before removing any remaining food residues using a non-abrasive sponge.

Please note: Using corrosive or abrasive cleaning agents, sti brushes, pan scourers or oven sprays could damage the catalytic surface and compromise its self-cleaning properties.

Please contact our After-sales Service if you require replacement panels.

Please note: Only use 25-40 W/230 V type E-14, T300 °C incandescent bulbs, or 20-40 W/230 V type G9, T300 °C halogen bulbs. The bulb used in the product is specically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). Light bulbs are available from our After-sales Service.

- If using halogen bulbs, do not handle them with your bare hands as your ngerprints could cause damage. Do not use the oven until the light cover has been retted.

Page 11

REMOVING AND REFITTING THE DOOR

~15°

1. To remove the door, open it fully and lower the

catches until they are in the unlock position.

2. Close the door as much as you can.

Take a firm hold of the door with both hands – do not hold it by the handle. Simply remove the door by continuing to close it while pulling it upwards at the same time until it is released from its seating. Put the door to one side, resting it on a soft surface.

3. Refit the door by moving it towards the oven,

aligning the hooks of the hinges with their seating and securing the upper part onto its seating.

4. Lower the door and then open it fully.

Lower the catches into their original position: Make sure that you lower them down completely.

Apply gentle pressure to check that the catches are in the correct position.

“CLICK”

5. Try closing the door and check to make sure that it

lines up with the control panel. If it does not, repeat the steps above: The door could become damaged if it does not work properly.

TROUBLESHOOTING

Problem Possible cause Solution

The oven is not working. Power cut.

Disconnection from the mains.

The display shows the letter “F” followed by a number or letter.

Software problem. Contact you nearest Client After-sales

WWW

Check for the presence of mains electrical power and whether the oven is connected to the electricity supply. Turn off the oven and restart it to see if the fault persists.

Service Centre and state the number following the letter “F”.

Download the Use and Care Guide from docs.hotpoint.eu for more information

Page 12

USEFUL TIPS

XXX

XXXX

XXXXXX

XXX

XXXXXX

WWW

Download the Use and Care Guide from

docs.hotpoint.eu for more information

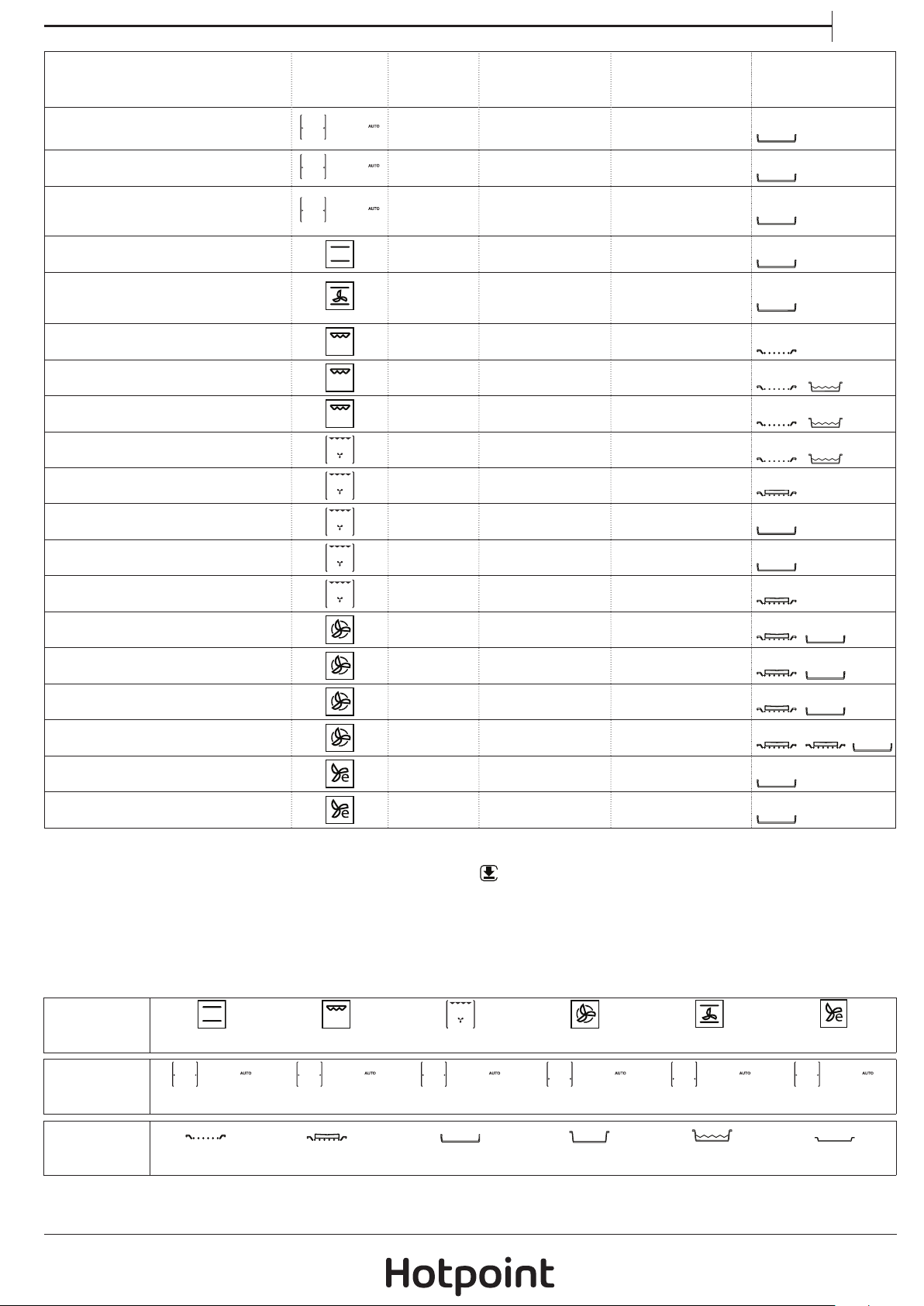

HOW TO READ THE COOKING TABLE

The table lists the best function, accessories and level to use to cook various different types of food. Cooking times start from the moment food is placed in the oven, excluding preheating (where required). Cooking temperatures and times are approximate and depend on the amount of food and the type of accessory used. Use the lowest recommended settings to begin with and, if the food is not cooked enough, then switch to higher settings. Use the accessories supplied and preferably dark-coloured metal cake tins and baking plates. You can also use Pyrex or stoneware pans and accessories, but bear in mind that cooking times will be slightly longer.

COOKING DIFFERENT FOODS AT THE SAME TIME

Using the “FORCED AIR” function, you can cook different foods which require the same cooking temperature at the same time (for example: fish and vegetables), using different shelves. Remove the food which requires a shorter cooking time and leave the food which requires a longer cooking time in the oven.

PRODUCT FICHE

WWW

The product fiche with energy data of this

appliance can be downloaded from our website

docs.hotpoint.eu

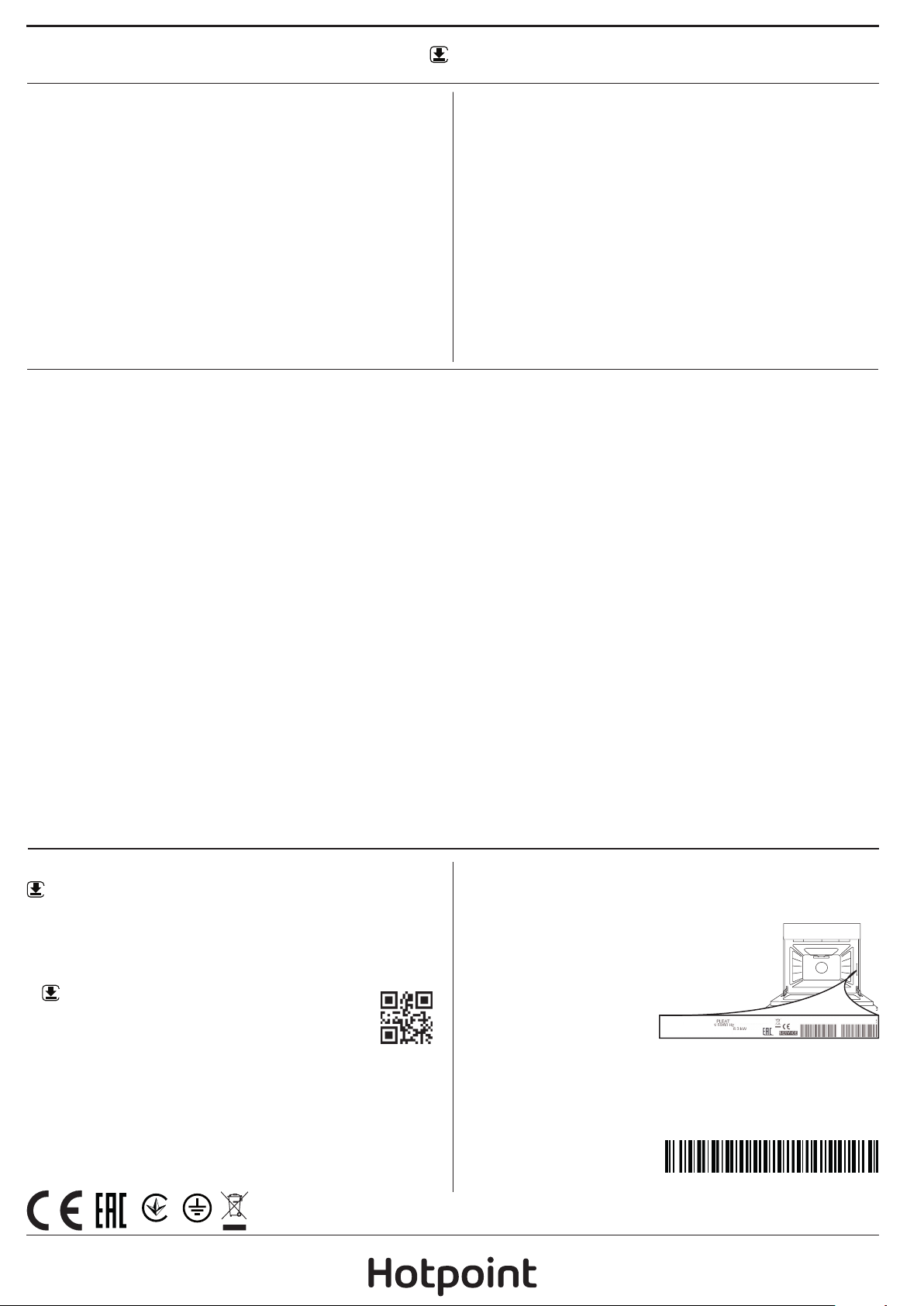

HOW TO OBTAIN THE USE AND CARE GUIDE

WWW

Download the Use and Care Guide from our website docs.hotpoint.eu (you can use this QR code), specifying the product's commercial code. > Alternatively, contact our Client After-sales Service

001

CONTACTING OUR AFTER-SALES SERVICE

You can find our contact details in the warranty manual. When contacting our Client After-sales Service, please state the codes provided on your product's identification plate.

XXXX X

Model: xxxXXXXxx

XXXXXX XXXXXX XXXXX XXXXXXX

400010886345

Printed in Italy
