Hotpoint SH33W, SH33X, SHS33X, SHS33XK, SHS33CX Operating Instructions Manual
...

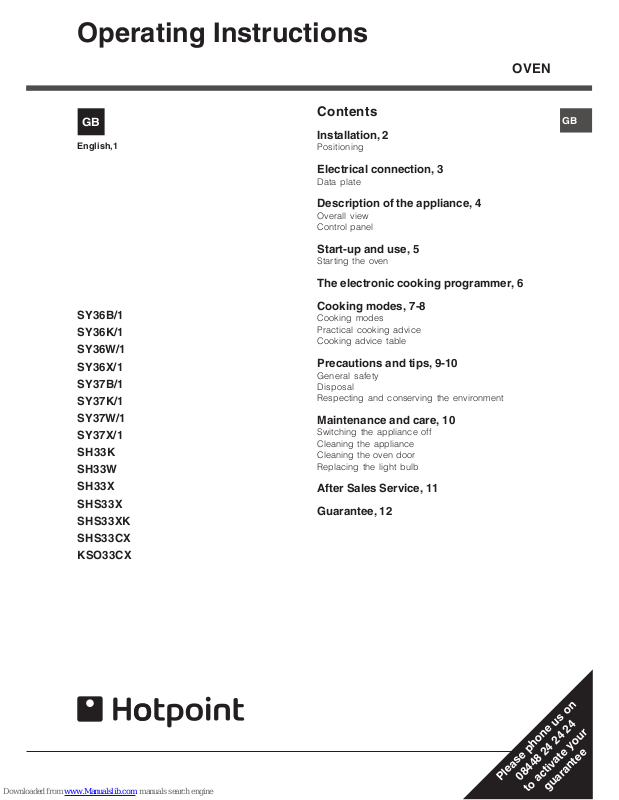

Operating Instructions
Contents
Installation, 2
Positioning
Electrical connection, 3
Data plate
Description of the appliance, 4
Overall view
Control panel
Start-up and use, 5
Starting the oven
The electronic cooking programmer, 6
Cooking modes, 7-8
Cooking modes
Practical cooking advice
Cooking advice table
Precautions and tips, 9-10
General safety
Disposal
Respecting and conserving the environment
Maintenance and care, 10
Switching the appliance off
Cleaning the appliance
Cleaning the oven door
Replacing the light bulb
After Sales Service, 11
Guarantee, 12
SY36B/1
SY36K/1
SY36W/1
SY36X/1
SY37B/1
SY37K/1
SY37W/1
SY37X/1
SH33K
SH33W
SH33X
SHS33X
SHS33XK
SHS33CX
KSO33CX
English,1
GB
OVEN
GB
Please phone us on
08448 24 24 24
to activate your
guarantee
2
GB
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
595 mm.
595 mm.
24 mm.
545 mm.
5 mm.
567 mm.
23 mm.
575-585 mm.
45 mm.
560 mm.
547 mm. min.
Installation
560 mm.
45 mm.
! Before you operate yuor new Hotpoint Single Oven,
please read these instructions fully. They contain
important information for safe use, for installation and
for care of the appliance.
! Please keep these operating instructions for future
reference. Pass them on to possible new owners of
the appliance.
! Keep packaging material out of the reach of
children. It can become a choking or suffocation
hazard.
see Precautions and tips
).
Positioning
! The appliance must be installed by a qualified
person in compliance with the instructions provided.
Incorrect installation may cause harm to persons,
animals or may damage property.
Fitting the appliance
Use the appropriate cabinet to ensure that the
appliance functions properly.
• The panels adjacent to the oven must be made of
heat-resistant material.
• Cabinets with a veneer exterior must be assembled
with glues which can withstand temperatures of up
to 100°C.
• To install the oven under the counter (
see diagram
)
and in a kitchen unit, the cabinet must have the
following dimensions:
! The appliance must not come into contact with
electrical parts once it has been installed.
The consumption indications on the data plate have
been calculated for this type of installation.
Ventilation
To ensure good ventilation, the back panel of the
cabinet must be removed. It is advisable to install the
oven so that it rests on two strips of wood, or on a
completely flat surface with an opening of at least 45 x
560 mm (
see diagrams
).
Centring and fastening
Position the 4 tabs on the side of the oven according
to the 4 holes of the outer frame. Adjust the tabs
according to the thickness of the cabinet side panel,
as shown below:
thickness of 20 mm: take off
the removable part of the tab
(
see diagram
)
thickness of 18 mm: use the
first groove, which has already
been set in the factory (
see
diagram
)
thickness of 16 mm: use the
second groove (
see diagram
)
Secure the appliance to the cabinet by opening the
oven door and putting 4 screws into the 4 holes of the
outer frame.
! All parts which ensure the safe operation of the
appliance must not be removable without the aid of a
tool.
3
GB
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
DATA PLATE
Dimensions
width cm 43.5
height cm 32
depth cm 40
Volume lt. 56
Electrical
connections
voltage: 230-240V ~ 50Hz
maximum power absorbed
2250W-2400W
ENERGY LABEL
Directive 2002/40/EC on the label
of electric ovens.
Standard EN 50304
Declared energy consumption for
Forced convection Class – heating
mode: Fan assisted
This appliance conforms to the
following European Economic
Community directives:
- 2006/95/EEC of 12/12/06 (Low
Voltage) and subsequent
amendments;
- 2004/108/EEC of 15/12/04
(Electromagnetic Compatibility) and
subsequent amendments;
- 93/68/EEC of 22/07/93 and
subsequent amendments.
- 2002/96/EC and subsequent
amendments.
Electrical Connection
Electrical connection
The electrical connection to the mains must be made
on the appliance. The power voltage and frequency
are as indicated on the rating plate.
!
THIS APPLIANCE MUST BE EARTHED.THIS APPLIANCE MUST BE EARTHED.
THIS APPLIANCE MUST BE EARTHED.THIS APPLIANCE MUST BE EARTHED.
THIS APPLIANCE MUST BE EARTHED.
Fitting the power supply cable
1. Open the terminal
board by inserting a
screwdriver into the
side tabs of the cover.
Use the screwdriver as
a lever by pushing it
down to open the cover
(
see diagram
).
2. Install the power
supply cable by
loosening the cable
clamp screw and the
three wire contact
screws L-N-
.
Connect the wires to
the corresponding
terminals: the Blue wire
to the terminal marked
(N), the Brown wire to
the terminal marked (L)
and the Yellow/Green
wire to the terminal marked
(
see diagram
).
3. Secure the cable by fastening the clamp screw.
4. Close the cover of the terminal board.
Electrical Connection:
Voltage Frequency: 230 V-1+N 50Hz
Fuse Section: 16A
Supply cable: 3x1.5mm
2
You can connect your oven to the system means of
a terminal board. Refer to above information for the
minimal cable sections and the calibration of the
protective elements according to the connection.
If the appliance is installed with a junction box, an
omnipolar circuit breaker - with a minimum contact
opening of 3mm - should be installed between the
appliance and the mains.
Power cable supply connection to the electrical mains:
We recommend you use a power supply cable which
is long enough to allow you to take the oven out of its
recess in the event of maintenance operations (only
use HAR - H 05 - RRF quality cables fitted with a plug
conforming to the regulations in force.
The plug must be accessible at all times.
Unplug the appliance before all operations, even
when replacing the oven lamp.
Using the appliance without correct earthing is
highly dangerous.
! After connecting the appliance to the flexible
cable, tighten all the screws on the terminal board.
N
L
4
GB
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
Control panelControl panel
Control panelControl panel
Control panel
GRILLGRILL
GRILLGRILL
GRILL
DRIPPING PANDRIPPING PAN
DRIPPING PANDRIPPING PAN
DRIPPING PAN
GUIDES GUIDES
GUIDES GUIDES
GUIDES for the
sliding racks
position 5position 5
position 5position 5
position 5
position 4position 4
position 4position 4
position 4
position 3position 3
position 3position 3
position 3
position 2position 2
position 2position 2
position 2
position 1position 1
position 1position 1
position 1
Description of the appliance
Overall view
Control panel
SELECTORSELECTOR
SELECTORSELECTOR
SELECTOR
Knob
ELECTRONIC
programmer*
Indicator light
THERMOSTATTHERMOSTAT
THERMOSTATTHERMOSTAT
THERMOSTAT
VARIABLE GRILLVARIABLE GRILL
VARIABLE GRILLVARIABLE GRILL
VARIABLE GRILL
Knob
MAX
1/2
MIN
0
MA
60
100
220
180
140
•• ••
