Page 1

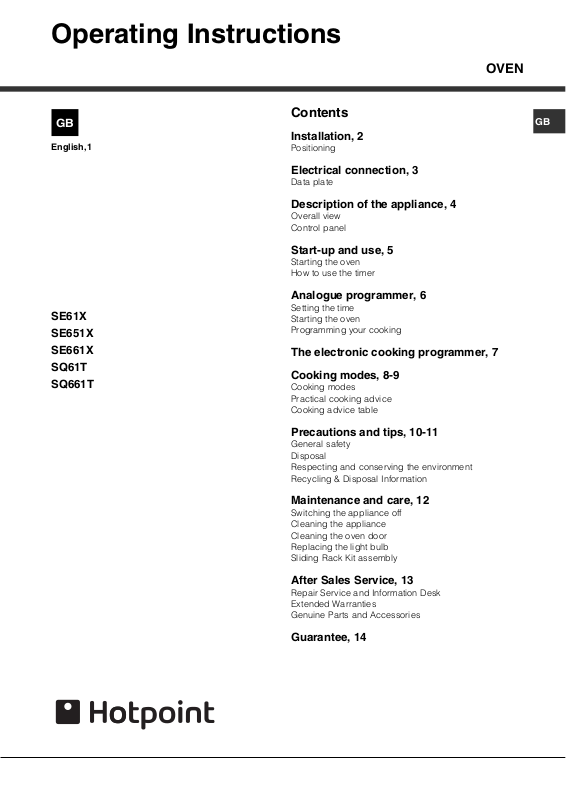

Operating Instructions

OVEN

English,1

SE61X

SE651X

SE661X

SQ61T

SQ661T

Contents

Installation, 2

Positioning

Electrical connection, 3

Data plate

Description of the appliance, 4

Overall view

Control panel

Start-up and use, 5

Starting the oven

How to use the timer

Analogue programmer, 6

Setting the time

Starting the oven

Programming your cooking

The electronic cooking programmer, 7

Cooking modes, 8-9

Cooking modes

Practical cooking advice

Cooking advice table

Precautions and tips, 10-11

General safety

Disposal

Respecting and conserving the environment

Recycling & Disposal Information

Maintenance and care, 12

Switching the appliance off

Cleaning the appliance

Cleaning the oven door

Replacing the light bulb

Sliding Rack Kit assembly

After Sales Service, 13

Repair Service and Information Desk

Extended Warranties

Genuine Parts and Accessories

Guarantee, 14

Page 2

Installation

! Before placing your new appliance into operation

please read these operating instructions carefully.

They contain important information for safe use, for

installation and for care of the appliance.

! Please keep these operating instructions for future

reference. Pass them on to possible new owners of

the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation

hazard. see Precautions and tips).

! The appliance must be installed by a qualified

person in compliance with the instructions provided.

Incorrect installation may cause harm to persons,

animals or may damage property.

Fitting the appliance

Use the appropriate cabinet to ensure that the

appliance functions properly.

 The panels adjacent to the oven must be made of

heat-resistant material.

Ventilation

To ensure good ventilation, the back panel of the

cabinet must be removed. It is advisable to install the

oven so that it rests on two strips of wood, or on a

completely flat surface with an opening of at least 45 x

560 mm (see diagrams).

45 mm.

560 mm.

Centring and fastening

Position the 4 tabs on the side of the oven according

to the 4 holes of the outer frame. Adjust the tabs

according to the thickness of the cabinet side panel,

as shown below:

thickness of 20 mm: take off

the removable part of the tab

(see diagram)

 Cabinets with a veneer exterior must be assembled

with glues which can withstand temperatures of up

to 100°C.

 To install the oven under the counter (see diagram)

and in a kitchen unit, the cabinet must have the

following dimensions:

567 mm.

45 mm.

558 mm.

593 mm.

23 mm.

595 mm.

5 mm.

595 mm.

545 mm.

24 mm.

! The appliance must not come into contact with

electrical parts once it has been installed.

The consumption indications on the data plate have

been calculated for this type of installation.

thickness of 18 mm: use the

first groove, which has already

been set in the factory (see

diagram)

thickness of 16 mm: use the

second groove (see diagram)

Secure the appliance to the cabinet by opening the

oven door and putting 4 screws into the 4 holes of the

outer frame.

! All parts which ensure the safe operation of the

appliance must not be removable without the aid of a

tool.

Page 3

Electrical Connection

Electrical connection

The electrical connection to the mains must be made

on the appliance. The power voltage and frequency

are as indicated on the rating plate.

! THIS APPLIANCE MUST BE EARTHED.

Connecting the power supply cable

To open the terminal board:

 Using a screwdriver, press on the tabs situated on

each side of the terminal board cover.

 Pull open the terminal board cover.

To connect the power supply cable, proceed as

follows:

 Unscrew the cable clamp screw and the contact

screws L-N-6.

 Fasten the wires beneath the screwheads using the

following colour scheme: Blue (N) Brown (L)

Yellow-Green 6

 Fasten the power supply cable in the

corresponding cable clamp and close the cover.

Electrical Connection:

Voltage Frequency: 230

V-1+N 50Hz

Fuse Section: 16A

Supply cable: 3x1.5mm

4 2

N L

You can connect your oven to the system means of a

terminal board. Refer to above information for the

minimal cable sections and the calibration of the

protective elements according to the connection.

If the appliance is installed with a junction box, an

omnipolar circuit breaker - with a minimum contact

opening of 3mm - should be installed between the

appliance and the mains.

Power cable supply connection to the electrical

mains:

We recommend you use a power supply cable which

is long enough to allow you to take the oven out of its

recess in the event of maintenance operations (only

use HAR - H 05 - RRF quality cables fitted with a plug

conforming to the regulations in force.

The plug must be accessible at all times.

Unplug the appliance before all operations, even

when replacing the oven lamp.

Using the appliance without correct earthing is

highly dangerous.

! After connecting the appliance to the flexible

cable, tighten all the screws on the terminal board.

DATA PLATE

Dimensions

Volume Dimensions of

models with removable racks

Volume of models with removable racks

Electrical connections

ENERGY LABEL

width cm 43.5 height cm 32 depth cm 41.5

lt. 58 width cm 37.5

height cm 32 depth cm 41.5

lt. 50

voltage: 230-240V ~ 50/60 Hz or 50Hz (see data plate) maximum power absorbed 2800-3000W

Directive 2002/40/EC on the label of electric ovens. Norm EN 50304 Energy consumption for Natural convection – heating mode: Traditional mode Declared energy consumption for Forced convection Class – heating mode: Baking

This appliance conforms to the following European Economic Community directives:

-73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments;

- 93/68/EEC of 22/07/93 and subsequent amendments.

- 2002/96/EC

Page 4

Description of the appliance

Overall view

Control panel

GRILL

DRIPPING PAN

SELECTOR

Knob

TIMER

knob

GUIDES for the

sliding racks

position 5 position 4 position 3 position 2 position 1

THERMOSTAT Knob

Indicator light

THERMOSTAT

SELECTOR

Knob

Indicator light

THERMOSTAT

SELECTOR

Knob

ELECTRONIC

programmer*

THERMOSTAT Knob

ANALOGUE PROGRAMMER

knob

* Only on certain models.

Indicator light

THERMOSTAT

Knob

Page 5

Start-up and use

! The first time you use your appliance, heat the empty

oven with its door closed at its maximum temperature

for at least half an hour. Ensure that the room is well

ventilated before switching the oven off and opening

the oven door. The appliance may produce a slightly

unpleasant odour caused by the burning away of

protective substances used during the manufacturing

process.

Starting the oven

1. Select the desired cooking mode by turning the

SELECTOR knob.

2. Select the desired temperature with the

THERMOSTAT knob. See the Cooking advice table for

cooking modes and the suggested cooking

temperatures (see Cooking Modes).

3. When lit, the THERMOSTAT indicator light indicates

that the oven is heating up to the temperature set.

4. You may do the following during cooking:

- change the cooking mode by turning the SELECTOR

knob.

- change the temperature by turning the

THERMOSTAT knob.

- stop cooking by turning the SELECTOR knob to the

0 position.

Oven light

It goes on when selecting

knob. It stays on when a cooking mode is selected.

How to use the timer

1. To set the buzzer, turn the TIMER knob clockwise

almost one complete revolution.

2. Turn the knob anticlockwise to set the desired time:

align the minutes shown on the TIMER knob with the

indicator on the control panel.

3. The timer operates in minutes: when the selected

time has elapsed, a buzzer will sound.

! The timer does not turn the oven on or off.

with the SELECTOR

! Never put objects directly on the oven bottom to

avoid damaging the enamel coating.

! Always place cookware on the rack(s) provided.

Cooling ventilation

In order to cool down the external temperature of the

oven, some models are fitted with a cooling fan that

blows out air between the control panel and the oven

door.

! Once the cooking has been completed, the cooling

fan remains on until the oven has cooled down

sufficiently.

Only on certain models

Page 6

Analogue programmer

Setting the time

Press the PROGRAMMER knob and turn it

anticlockwise to set the correct time.

! The clock can only be set if the oven is connected to

the mains. In case of a power failure, the

PROGRAMMER will stop: the correct time will have to

be reset.

Starting the oven

1. Turn the PROGRAMMER knob anticlockwise until

the 9 symbol is displayed.

2. Pull the PROGRAMMER knob and turn it

anticlockwise until the knob marker lines up with the

current time. A click will indicate the end of the

programming phase.

3. Select the desired cooking mode using the

SELECTOR knob.

4. To turn the oven off, set the SELECTOR knob back

to the 0 position.

Programming your cooking

Programming instant cooking time

1. Turn the PROGRAMMER knob anticlockwise until

the desired cooking time is displayed.

2. Pull the PROGRAMMER knob and turn it

anticlockwise until the knob marker lines up with the

current time. A click will indicate the end of the

programming phase.

3. Select the desired cooking mode using the

SELECTOR knob. The oven comes on immediately

and stays on for the entire duration of the set cooking

time.

4. When the selected time has elapsed, a buzzer will

sound and the oven will turn off.

5. Turn the PROGRAMMER knob anticlockwise until

the 9 symbol is displayed.

6. To turn the oven off, set the SELECTOR knob back

to the 0 position.

 For example: it is 9:00 a.m. and a time of 1 hour

and 15 minutes is programmed. The programme

stops automatically at 10:15 a.m.

Programming a delayed cooking time

1. Turn the PROGRAMMER knob anticlockwise until

the desired cooking time is displayed.

2. Pull the PROGRAMMER knob and turn it

anticlockwise until the knob marker lines up with the

desired cooking start time.

3. Select the desired cooking mode using the

SELECTOR knob. The oven will come on at the set

cooking start time and will stay on for the entire

duration of the set cooking time.

4. When the selected time has elapsed, a buzzer will

sound and the oven will turn off.

5. Turn the PROGRAMMER knob anticlockwise until

the 9 symbol is displayed.

6. To turn the oven off, set the SELECTOR knob back

to the 0 position.

 For example: it is 9:00 a.m. and a time of 1 hour

and 15 minutes is programmed and the start time is

set to 11:00. The programme starts automatically at

11:00 and ends at 12:15.

! To cancel programming, turn the PROGRAMMER

knob anticlockwise until the symbol 9 is displayed.

Page 7

The electronic

cooking programmer

This feature allows you to program the oven or the grill

as follows:

 delayed cooking time for a specified period;

 immediate start for a specified period;

 timer.

Button Functions:

: Timer with hours and minutes;

: cooking time;

: end cooking time;

: Manual change;

(

: set cooking time (to count down);

)

: set cooking time (to start from zero)

How to reset the digital clock

After the appliance has been connected to the power

supply, or after a power cut, the clock display will

automatically reset to 0:00 and begin to blink.  Press the $ and % buttons consecutively and

then reset the time (within 4 seconds) using the

) and * buttons. The button * advances the hours. The button ) decreases the hours.

The time can also be changed in the following two

ways:

1. Repeat all of the steps above.

2. Press the ( button, and then use the ) and *

buttons to reset the time.

Manual operation of the oven

Once the time has been set, the programmer

automatically switches to manual mode.

! Press the ( button to restore the manual mode after

every Automatic cooking session.

Delayed cooking time for a specified period

The total cooking time as well as the time at which the

cooking will finish must be set. If we assume that the

time display reads10:00:

1. Turn the oven control knob to the setting and tempe-

rature desired (example: static oven mode at 200°C).

2. Press the button $ and then set the cooking time (within four seconds) using the ) and * buttons.

Supposing the cooking time is set to 30 minutes, the

display will read as follows:

Release the button, and within 4 seconds, the current time

will reappear with the m symbol along with the word auto

3. Press the button % and then use the ) and * buttons

to set the time for when the cooking program should

end. Let us imagine this time to be 1:00 p.m.

4. After the button has been released, the current time

will be displayed after approximately 4 seconds:

When auto is on, it indicates that the length of

cooking time and the time it is due to finish have been

programmed in automatic mode. At this point, the

oven will turn on automatically at 12:30 and turn off

after 30 minutes. When the oven is turned on, the

symbol m will be displayed for the entire cooking time.

The cooking duration can be displayed at any time by

pressing the button $ , and the time it is due to finish may be displayed by pressing the button % .

Once cooking is completed, the timer will ring; to turn

it off, simply press any button except the ) and *

buttons.

Immediate start for a specified period

By programming just the duration (points 1 and 2 of the

Delayed cooking time for specified period section),

cooking will begin immediately.

To cancel a cooking schedule already programmed

Press the $ button, and use the ) button to set the time

to:

then press the manual cooking mode button (.

Timer Feature

The timer feature allows you to enter a specific amount

of time and begins to count down. This feature does not

turn the oven on or off; it merely sounds when the time

has elapsed.

When the button  has been pressed, the display will

read as follows:

Then use the * and ) buttons to set the desired time.

As soon as the button has been released, the timer will

start to count down and the current time will be

displayed.

After the time has expired, an audible signal will be

emitted, which can be turned off by pressing any button

(except the * and ) buttons). At this point the symbol H

will also turn off.

Correction/Cancellation of data

 The data entered can be changed at any time by

pressing the corresponding button and the * or )

buttons.

 When the data for the cooking duration is cancelled,

the data for the time cooking is due to end is also

cancelled automatically, and vice versa.

 If the oven has already been programmed, it will not

accept times for the end of cooking which are before

the start of the programmed cooking process.

Page 8

Cooking modes

! A temperature value can be set for all cooking

modes between 60°C and Max, except for

 BARBECUE (recommended: set only to MAX power

level);

 GRATIN (recommended: do not exceed 200°C).

TRADITIONAL OVEN mode

Both the top and bottom heating elements will come

on. With this traditional cooking mode, it is best to use

one cooking rack only: if more than one rack is used,

the heat will be distributed unevenly.

MULTI-COOKING mode

All the heating elements (top, bottom and circular), as

well as the fan, will come on. Since the heat remains

constant throughout the oven, the air cooks and

browns food uniformly. A maximum of two racks may

be used at the same time.

BARBECUE mode

than one rack simultaneously, switch the position of

the dishes halfway through the cooking process.

BAKING mode

The rear heating element and the fan come on,

guaranteeing the distribution of heat delicately and

uniformly throughout the oven. This mode is ideal for

baking and cooking temperature sensitive foods such

as cakes that need to rise and to prepare certain

tartlets on 3 shelves simultaneously.

Practical cooking advice

! Do not place racks in position 1 and 5 during fan-

assisted cooking. Excessive direct heat can burn

temperature sensitive foods.

! In the BARBECUE and GRATIN cooking modes,

place the dripping pan in position 1 to collect cooking

residues (fat and/or grease).

MULTI-COOKING

 Use position 2 and 4, placing the food that requires

more heat on 2.

The top heating element comes on.

The high and direct temperature of the grill is

recommended for food that requires high surface

temperature. Always cook in this mode with the oven

door closed.

GRATIN mode

The top heating element, as well as the fan, will come

on. This combination of features increases the

effectiveness of the unidirectional thermal radiation of

the heating elements through forced circulation of the

air throughout the oven. This helps prevent food from

burning on the surface, allowing the heat to penetrate

right into the food. Always cook in this mode with the

oven door closed.

PIZZA mode

The bottom and circular heating elements, as well as

the fan, will come on. This combination heats the oven

rapidly by producing a considerable amount of heat,

particularly from the bottom element. If you use more

 Place the dripping pan on the bottom and the rack

on top.

BARBECUE

 Insert the rack in position 3 or 4. Place the food in

the centre of the rack.

 We recommend that you set the maximum power

level. The top heating element is regulated by a

thermostat and may not always be on.

PIZZA MODE

 Use a light aluminium pizza pan. Place it on the

rack provided.

For a crispy crust, do not use the dripping pan

(prevents crust from forming by extending cooking

time).

 If the pizza has a lot of toppings, we recommend

adding the mozzarella cheese on top of the pizza

halfway through the cooking process.

Page 9

Cooking advice table

Cooking

modes

Convection

Oven

Multi-cooking

Barbecue

Gratin

Pizza Mode

Baking Mode

Duck Roast veal or beef Pork roast Biscuits (short pastry) Tarts Pizza (on 2 racks) Lasagne Lamb Roast chicken + potatoes Mackerel Plum cake Cream puffs (on 2 racks) Biscuits (on 2 racks) Sponge cake (on 1 rack) Sponge cake (on 2 racks) Savoury pies Soles and cuttlefish Squid and prawn kebabs Cod filet Grilled vegetables Veal steak Cutlets Hamburgers Mackerels Toasted sandwiches Grilled chicken Cuttlefish Pizza Roast veal or beef Chicken Tarts Fruit cakes Plum cake Sponge cake Stuffed pancakes (on 2 racks) Small cakes (on 2 racks) Cheese puffs (on 2 racks) Cream puffs (on 3 racks) Biscuits (on 3 racks) Meringues (on 3 racks)

Foods Weight

(in kg)

1 1 1

1 1 1 1

1+1

1 1

0.5

0.5 1

1.5 1 1 1

1 1 1 1 1

n.° 4

1.5

0.5 1 1

0.5 1

0.7

0.5

1.2

0.6

0.4

0.7

0.5

Rack position Pre-heating

time (min)

3 3 3 3 3

2 and 4

3 2

2 and 4

2 2 and 4 2 and 4

2 2 and 4

3 or 4

2 or 3

3 2 and 4 2 and 4 2 and 4

1 and 3 and 5 1 and 3 and 5 1 and 3 and 5

15 15 15 15 15 15 10 10 15 10 10 10 10 10 10 15

5 5 5 5 5 5 5 5

5 10 10 15 10 10 15 15 15 15 15 15 15 15 15 15

Recommended

temperature

200 200 200 180 180 230 180 180 200 180 170 190 180 170 170

200 MAX MAX MAX

MAX MAX MAX MAX MAX MAX

200

220

180

160

200

190

210

180

Cooking

time

(minutes)

65-75 70-75 70-80 15-20 30-35 15-20 30-35 40-45 60-70 30-35 40-50 20-25 10-15 15-20 20-25 25-30

8-10

6-8

10 10-15 15-20 15-20

7-10

15-20

2-3 55-60 30-35 15-20 25-30 60-70 20-30 40-45 40-50 25-30 30-35 20-25 15-20 20-25 20-25

180

Page 10

Precautions and tips

! The appliance was designed and manufactured in

compliance with international safety standards. The

following warnings are provided for safety reasons

and must be read carefully.

General safety

 The appliance was designed for domestic use

inside the home and is not intended for commercial

or industrial use.

 The appliance must not be installed outdoors, even

in covered areas. It is extremely dangerous to leave

the appliance exposed to rain and storms.

 When handling the appliance, always use the

handles provided on the sides of the oven.

 Do not touch the appliance with bare feet or with

wet or moist hands and feet.

 The appliance must be used to cook food by adults

only and according to the instructions in this

manual.

 When the appliance is in use, the heating

elements and some parts of the oven door

become extremely hot. Make sure you don't

touch them and keep children well away.

 Ensure that the power supply cable of other

electrical appliances does not come into contact

with the hot parts of the oven.

 The openings used for ventilation and dispersion of

heat must never be covered.

 Always grip the oven door handle in the centre: the

ends may be hot.

 Always use oven gloves to place cookware in the

oven or when removing it.

 Do not use aluminium foil to line the bottom of the

oven.

 When unplugging the appliance always pull the

plug from the mains socket, do not pull on the

cable.

 Never carry out any cleaning or maintenance work

without having unplugged the plug from the mains.

 In the case of a malfunction, under no

circumstances should you attempt to repair the

appliance yourself. Repairs carried out by

inexperienced persons may cause injury or further

malfunctioning of the appliance. Contact a Service

Centre (see Assistance).

 Do not rest heavy objects on the open oven door.

Disposal

 Observe local environmental standards when

disposing packaging material for recycling

purposes. Observe existing legislation when

disposing of the old appliance.

 The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE),

requires that old household electrical appliances

must not be disposed of in the normal unsorted

municipal waste stream. Old appliances must be

collected separately in order to optimise the

recovery and recycling of the materials they contain

and reduce the impact on human health and the

environment. The crossed out wheeled bin

symbol on the product reminds you of your

obligation, that when you dispose of the appliance

it must be separately collected.

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.

Respecting and conserving the

environment

 By using the appliance in the hours between late

afternoon and early morning, you can help reduce

the work load placed on electrical companies.

 Do not place flammable materials in the oven: if the

appliance is switched on by mistake, it could catch

fire.

 Always make sure the knobs are in the l/

position when the appliance is not in use.

¡

 Always keep the oven door closed when using the

BARBECUE and GRATIN modes: to attain best

results and to save energy (approximately 10%).

 Regularly check the door seals and wipe clean to

ensure they are free of debris so that they stick

properly to the door and do not allow heat to

disperse.

Page 11

Recycling & Disposal Information

As part of Hotpoint's continued commitment to helping

the environment, Hotpoint reserves the right to use

quality recycled components to keep down customer

costs and minimise material wastage.

Please dispose of packaging and old appliances

carefully.

To minimise risk of injury to children, remove the door,

plug and cut mains cable off flush with the appliance.

Dispose of these parts separately to ensure that the

appliance can no longer be plugged into a mains

socket, and the door cannot be locked shut.

Page 12

Maintenance and care

Switching the appliance off

Disconnect your appliance from the electricity supply

before carrying out any work on it.

Cleaning the appliance

 The stainless-steel or enamel-coated external parts

as well as the rubber seals may be cleaned using a

sponge that has been soaked in lukewarm water

and neutral soap. If these stains are difficult to

remove, use only specialised products. After

cleaning, rinse and dry thoroughly. Do not use

abrasive powders or corrosive substances.

 Ideally, the inside of the oven should be cleaned

after each use, when it is still lukewarm. Use hot

water and detergent, rinse and dry with a soft cloth.

Do not use abrasive products.

 The accessories can be washed like everyday

crockery (even in your dishwasher).

Cleaning the oven door

Clean the glass door using non-abrasive products and

sponges and dry it with a soft cloth.

To clean more thoroughly, you can remove the oven

door.

1. Open the oven door fully (see diagram).

2. Lift up and turn the small levers located on the two

hinges (see diagram).

Replacing the light bulb

To replace the oven light bulb:

1. Remove the glass cover of the lamp-holder.

2. Remove the

light bulb and

replace it with a

similar one:

Wattage 25 W,

cap E 14.

3. Replace the

glass cover (see

diagram).

Sliding Rack Kit assembly

To assemble the sliding racks:

1. Loosen the two

screws A (see diagram).

If the oven is fitted with

self-cleaning panels,

these will have to be

temporarily

disassembled.

3. Grip the door on the two

external sides and close it

approximately half way. Unlock

the door by pressing on the

clamps F, then pull the door

towards you lifting it out of its

seat (see diagram).

To replace the door, reverse

this sequence.

Inspecting the seals

Check the door seals around the oven periodically. If

the seals are damaged, please contact your nearest

After-sales Service Centre (see Assistance). We

recommend not using the oven until the seals have

been replaced.

2. Replace the screws A with the screws and spacers

(B + C) supplied with the kit.

3. Tighten the new screws B and the corresponding

spacers C, fitting the self-cleaning panels on again.

4. Secure the two joints

D of the guide rail in the

holes provided on the

oven walls (see

diagram). The holes for

5. Finally, fit the guide rail on the spacer C.

the left guide rail are

situated at the top, while

the holes for the right

one are at the bottom.

Page 13

After Sales Service

No one is better placed to care for your Hotpoint appliance during the course of its working life than

us - the manufacturer.

Essential Contact Information

Hotpoint Service

We are the largest service team in Europe offering you access to 400 skilled telephone advisors and

1100 fully qualified engineers on call to ensure you receive fast, reliable, local service.

UK: 08709 066 066

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Please note: Our advisors will require the following information:

Model number:

Serial number:

Parts and Accessories

We supply a full range of genuine replacement parts as well as accessory products that protect and

hygienically clean your appliance to keep it looking good and functioning efficiently throughout its life.

UK: 08709 077 077

Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Appliance Registration

We want to give you additional benefits of Hotpoint ownership. To activate your free 5 year parts

guarantee you must register your appliance with us.

UK: 0870 6092094

Republic of Ireland: 01 230 0800

www.hotpointservice.co.uk

Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB

Indesit Company Unit 49 Airways Industrial Estate,Dublin 17

Recycling & Disposal Information

As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to use quality,

recycled components to keep down customer costs and minimise material wastage.

Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children, remove the

door, plug and cut the mains cable off flush with the appliance. Dispose of these parts separately to ensure that the

appliance can no longer be plugged into a mains socket, and the door cannot be locked shut.

Page 14

Guarantee

12 Months Parts and Labour Guarantee

Your appliance has the benefit of our manufacturers guarantee, which covers the cost of breakdown

repairs for twelve months from the date of purchase.

This gives you the reassurance that if, within that time, your appliance is proven to be defective

because of either workmanship or materials, we will, at our discretion, either repair or replace the

appliance at no cost to you.

This guarantee is subject to the following conditions:

- The appliance has been installed and operated correctly and in accordance with our

operating and maintenance instructions.

- The appliance is used only on the electricity or gas supply printed on the rating plate.

- The appliance has been used for normal domestic purposes only.

- The appliance has not been altered, serviced, maintained, dismantled, or otherwise

interfered with by any person not authorised by us.

- Any repair work must be undertaken by us or our appointed agent.

- Any parts removed during repair work or any appliance that is replaced become our property.

- The appliance is used in the United Kingdom or Republic of Ireland.

The guarantee does not cover:

- Damage resulting from transportation, improper use, neglect or interference or as a result

of improper installation.

- Replacement of any consumable item or accessory . These include but are not limited to: plugs,

cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.

- Replacement of any removable parts made of glass or plastic.

THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR

NON-DOMESTIC PREMISES.

5 Year Parts Guarantee

Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on

you registering your appliance with us and the parts being fitted by one of our authorised engineers.

There will be a charge for our engineer's time. To activate the extra parts warranty on your

appliance, simply call our registration line on 0870 6092094 (ROI 01 230 0800).

Extended Guarantees

We offer a selection of repair protection plans that enable you to fully cover yourself against the

expense of repair bills for the life of your policy. To find the ideal plan for you please call our advice

line on 08709 088 088 (ROI 01 230 0233).

Free Helpdesk Service

We have a dedicated team who can provide free advice and assistance with your appliance if you

experience any technical difficulties within the first 90 days of ownership. Simply call our Hotpoint

Service Hotline on 08709 066 066 (ROI 0818 313 413) for telephone assistance, or, where

necessary, to arrange for an engineer to call. If we cannot resolve the technical problem we will

replace your machine or, if you prefer, give you your money back.

Page 15

Notes

Page 16

Notes

09/2005 - 195047274.01

XEROX BUSINESS SERVICES
