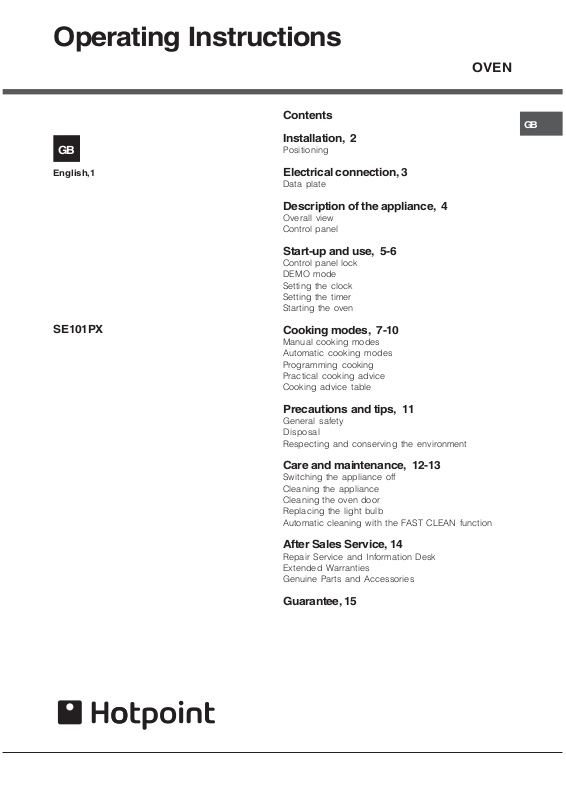

Hotpoint SE101PX User Manual
Operating Instructions
OVEN
GB
English,1
SE101PX
Contents
GB
Installation, 2
Positioning
Electrical connection, 3
Data plate
Description of the appliance, 4
Overall view
Control panel
Start-up and use, 5-6
Control panel lock
DEMO mode
Setting the clock
Setting the timer
Starting the oven
Cooking modes, 7-10
Manual cooking modes
Automatic cooking modes
Programming cooking
Practical cooking advice
Cooking advice table
Precautions and tips, 11
General safety
Disposal
Respecting and conserving the environment
Care and maintenance, 12-13
Switching the appliance off
Cleaning the appliance
Cleaning the oven door
Replacing the light bulb
Automatic cleaning with the FAST CLEAN function
After Sales Service, 14
Repair Service and Information Desk
Extended Warranties
Genuine Parts and Accessories
Guarantee, 15
560 mm.
45 mm.
Installation
GB
Before operating your new appliance please read
this instruction booklet carefully. It contains
important information concerning the safe operation,
installation and maintenance of the appliance.
Please keep these operating instructions for future
reference. Make sure that the instructions are kept
with the appliance if it is sold, given away or moved.
Positioning
Keep all packaging materials out of the reach of
children. It may present a choking or suffocation
hazard (see Precautions and tips).
The appliance must be installed by a qualified
person in compliance with the instructions provided.
Incorrect installation may cause harm to people and
animals or may damage property.
Built-in appliance
Use the appropriate cabinet to ensure that the
appliance functions properly.
The panels adjacent to the oven must be made of
heat-resistant material.
Ventilation
To ensure adequate ventilation is provided, the back
panel of the cabinet must be removed. It is
advisable to install the oven so that it rests on two
strips of wood, or on a completely flat surface with
an opening of at least 45 x 560 mm (see diagrams).
Centring and fixing
Position the 4 tabs on the side of the oven so that
they are lined up with the 4 holes on the outer frame.
Adjust the tabs according to the thickness of the
cabinet side panel, as shown below:
20 mm thick: take off the
removable part of the tab (see
diagram).
Cabinets with a veneer exterior must be
assembled with glues which can withstand
temperatures of up to 100°C.
To install the oven under a counter (see diagram)
or in a kitchen unit, the cabinet must have the
following dimensions:
567 mm.
45 mm.
558 mm.
593 mm.
23 mm.
595 mm.
5 mm.
595 mm.
545 mm.
24 mm.
The appliance must not come into contact with
electrical parts once it has been installed.
The indications for consumption given on the data
plate have been calculated for this type of installation.
18 mm thick: use the first
groove, which has already
been set in the factory (see
diagram).
16 mm thick: use the second
groove (see diagram).
Secure the appliance to the cabinet by opening the
oven door and inserting 4 screws into the 4 holes on
the outer frame.
All parts which ensure the safe operation of the
appliance must not be removable without the aid of
a tool.
2
Electrical Connection
Electrical connection
The electrical connection to the mains must be made
on the appliance. The power voltage and frequency
are as indicated on the rating plate.
! THIS APPLIANCE MUST BE EARTHED.
Connecting the power supply cable
To open the terminal board:
Using a screwdriver, press on the tabs situated
on each side of the terminal board cover.
Pull open the terminal board cover.
To connect the power supply cable, proceed as
follows:
_ Unscrew the cable clamp screw and the contact
screws L-N-$.
Fasten the wires beneath the screwheads using
the following colour scheme: Blue (N) Brown (L)
Yellow-Green $
Fasten the power supply cable in the
corresponding cable clamp and close the cover.
Electrical Connection:
Voltage Frequency: 230
V-1+N 50Hz
Fuse Section: 16A
Supply cable:
3x1.5mm
2
42
NL
You can connect your oven to the system means of
a terminal board. Refer to above information for the
minimal cable sections and the calibration of the
protective elements according to the connection.
If the appliance is installed with a junction box, an
omnipolar circuit breaker - with a minimum contact
opening of 3mm - should be installed between the
appliance and the mains.
Power cable supply connection to the electrical
mains:
We recommend you use a power supply cable which
is long enough to allow you to take the oven out of
its recess in the event of maintenance operations
(only use HAR - H 05 - RRF quality cables fitted with
a plug conforming to the regulations in force.
The plug must be accessible at all times.
Unplug the appliance before all operations, even
when replacing the oven lamp.
Using the appliance without correct earthing is
highly dangerous.
! After connecting t he appliance
cable, tighten all the screws on the terminal
board.
TABLE OF CHARACTERISTICS
width 43.5 cm
Dimensions
Volume 56 l
Electrical
connections
ENERGY LABEL
height 32 cm
depth 40 cm
voltage: 220-240V ~ 50/60Hz
maximum power absorbed
2800 W
Directive 2002/40/EC on the
label of electric ovens.
Regulation EN 50304
Declared energy
consumption for Forced
convection Class
heating mode: Gratin
This appliance conforms to
the following European
Economic Community
directives: 73/23/EEC dated
19/02/73 (Low Voltage) and
subsequent amendments 89/336/EEC dated 03/05/89
(Electromagnetic
Compatibility) and
subsequent amendments 93/68/EEC dated 22/07/93
and subsequent
amendments.
2002/96/EEC
to the flexible
GB
3
Description
of the appliance
GB
Overall view
Control panel
Control panel
GRILL
DRIPPING PAN
GUIDES for the
sliding racks
position 5
position 4
position 3
position 2
position 1
TEMPERATURE
display
AUTOMATIC
COOKING
MODE
icons
CONTROL PANEL
POWER
button
MANUAL COOKING
MANUAL COOKING
MODE
icons
MODE
selector
TEMPERATURE
adjustment
DOOR LOCK
indicator
AUTOMATIC
COOKING MODE
selector
FAST
CLEAN
selector
DURATION
icon
TIME SETTING
button
FAST
CLEAN
level indicator
COOKING END TIME
icon
TIME
display
CLOCK
icon
START
icon
TIMER
icon
START / STOP
TIME ADJUSTMENT
buttons
4
Start-up and use
The first time you use your appliance, heat the empty
oven with its door closed at its maximum temperature
for at least half an hour. Ensure that the room is well
ventilated before switching the oven off and opening
the oven door. The appliance may emit a slightly
unpleasant odour caused by protective substances
used during the manufacturing process burning away.
The Control panel lock and DEMO mode can be
activated/deactivated even when the control panel is
switched off.
If no button is pressed within 2 minutes of the oven
being switched on, the appliance will be switched
off automatically.
Control panel lock
To lock the oven controls, press the button, the
START/STOP button and the time + button on the
right hand side of the control panel in sequence. A
buzzer sounds and the TEMPERATURE display
shows Loc.
To unlock the oven controls, press the
and the time - button on the right hand side of the
control panel in sequence.
The control panel lock function can be activated
when a cooking programme is in progress or when
the oven is switched off, or when a cooking end time
has been set and the start button pressed. The
control panel lock function can also be deactivated
in all the above situations and after the oven has
completed the set cooking programme.
button
Demo mode
The oven can operate in DEMO mode: all heating
elements are deactivated, and controls remain operative.
To deactivate the DEMO mode, while the oven is
switched on press the ON/OFF button, the START/
STOP button and the time "+" button on the right
hand side of the control panel, in that order.
To deactivate the DEMO mode, while the oven is
switched on press the ON/OFF button and the time
- button on the right hand side of the control panel.
A buzzer sounds and the time display shows D off.
The DEMO mode can only be activated when the
oven is switched on and no cooking programme has
been commenced.
Setting the clock
The clock may be set when the oven is switched off
or when it is switched on, provided that a delayed
cooking cycle has not been programmed previously.
1. Press the
button several times until the
icon and the two digits on the TIME display flash.
2. Press the + and - buttons to adjust the hours.
3. Press the
4. Press the + and - buttons to adjust the minutes.
5. Press the
button.
button again to confirm.
Setting the timer
This may be set while the oven is switched off or
while it is switched on.
1. Press the
icon and the three digits on the TIME display flash.
2. Press the + and - buttons to adjust the
minutes;
3. Press the
button several times until the
button again to confirm.
Switching the oven on
Press the button to switch the oven on or off.
Starting the oven
Press the button to select the desired manual
cooking mode. The cooking temperature and
duration may be set.
Press the
cooking mode. The cooking temperature and
duration are both set to default values. The duration
may be modified by ±5/10 minutes, depending on
the selected cooking mode. The text In which
appears on the TEMPERATURE display stands for
place the food IN the oven. A delayed cooking
cycle may be programmed.
Begin cooking by pressing the START/STOP
button. The oven will begin its preheating stage, and
the current preheating temperature indicator lights
illuminate when this stage is complete. The
temperature of the manual cooking modes may be
adjusted by pressing the + and - buttons on the
left hand side of the control panel.
When the preheating stage is complete, a buzzer
sounds and all current preheating temperature
indicator lights are illuminated: place the food in the
oven.
During cooking it is always possible to:
- Change the temperature by pressing the + and buttons on the left hand side of the control panel
(manual cooking modes only).
- Interrupt cooking while maintaining the set duration
by pressing the START/STOP button.
button to select the desired automatic
GB
5
