Page 1
DAILY REFERENCE
WWW
GUIDE
EN
THANK YOU FOR PURCHASING AN
HOTPOINT PRODUCT
To receive more comprehensive help and
support, please register your product at
www.hotpoint.eu/register
Before using the appliance carefully read the Health and Safety guide.

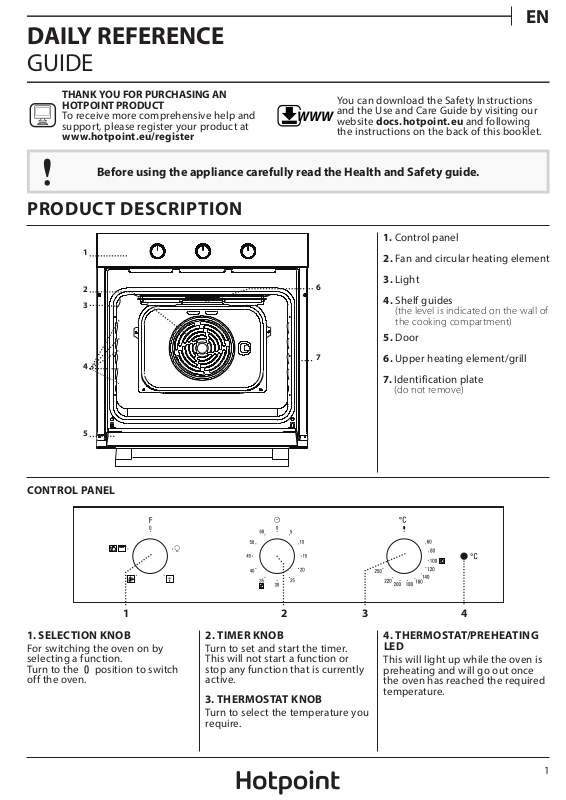

PRODUCT DESCRIPTION
1
2
3
4
You can download the Safety Instructions
and the Use and Care Guide by visiting our
website docs.hotpoint.eu and following
the instructions on the back of this booklet.
1. Control panel
2. Fan and circular heating element
6
7
3. Light
4. Shelf guides
(the level is indicated on the wall of
the cooking compartment)
5. Door
6. Upper heating element/grill
7. Identification plate
(do not remove)
5
CONTROL PANEL
1 2 3 4
1. SELECTION KNOB
For switching the oven on by
selecting a function.
Turn to the
off the oven.
position to switch
2. TIMER KNOB
Turn to set and start the timer.
This will not start a function or
stop any function that is currently
active.
3. THERMOSTAT KNOB
Turn to select the temperature you
require.
4. TH ERMOSTAT/PRE HEATIN G
LED
This will light up while the oven is
preheating and will go out once
the oven has reached the required
temperature.
1
Page 2
ACCESSORIES
WIRE SHELF BAKING TRAY
The number of accessories may vary depending on which model is purchased.
Other accessories can be purchased separately from our After-sales Service.
INSERTING THE WIRE SHELF
AND OTHER ACCESSORIES
. Insert the wire shelf onto the level you require by
holding it tilted slightly upwards and resting the
raised rear side (pointing upwards) down first. Then
slide it horizontally along the shelf guide as far as
possible.
. The other accessories, such as the dripping pan, are
inserted horizontally by sliding them along the shelf
guides.
FUNCTIONS
LIGHT
For switching on the oven light.
DEFROSTING
For accelerating the defrosting of food.
FORCED AIR
For cooking different foods on multiple shelves
(maximum of three) at the same time. This function
can be used to cook different foods without odours
being transferred from one food to another.
GRILL
For grilling steaks, kebabs and sausages,
cooking vegetables au gratin or toasting bread.
When grilling meat, we recommend using a dripping
pan to collect the cooking juices: Position the pan on
any of the levels below the wire shelf and add 200 ml
of drinking water.
DIAMOND CLEAN
The action of the steam released during this
special low-temperature cleaning cycle allows dirt
and food residues to be removed with ease. Pour
200 ml of drinking water into a tray and place this on
the third level. Run the function for 35 minutes at a
temperature of 100 °C.
Leave the oven to cool down at the end of the
cleaning cycle.
Only activate this function when the oven is cold.
2
Page 3
USING THE APPLIANCE FOR THE FIRST TIME
HEATING THE OVEN
A new oven may release odours that have been left
behind during manufacturing – this is completely
normal.
Before starting to cook food, we therefore
recommend heating the oven with it empty in order
to remove any possible odours.
Remove any protective cardboard or transparent film
from the oven and remove any accessories from inside
it.
Heat the oven to 250 °C for about one hour,
preferably using the “Forced air” function. The oven
must be empty during this time.
Follow the instructions for setting the function
correctly.
Please note: It is advisable to air the room after using the
appliance for the rst time
DAILY US E
EN
1. SELECT A FUNCTION
To select a function, turn the selection knob to the
symbol for the function you require.
2. ACTIVATE A FUNCTION
To start the function you have selected, turn the
thermostat knob to set the temperature you require.
To end an active function at any time, turn the
selection knob and the thermostat knob to the
position to switch the oven off.
DIAMOND CLEAN FUNCTION
To use the “Diamond Clean” cleaning function, pour
200 ml of drinking water onto the bottom of the oven,
then turn the selection knob and the thermostat knob
to the
We recommend activating this function for 35
minutes.
symbol.
3. PREHEATING PHASE
After starting the function, the thermostat LED will
light up to indicate
Once preheating is complete, the thermostat LED will
switch off to indicate that the oven has reached the
set temperature: Place the food into the oven and
proceed with cooking.
Please note: Placing food in the oven before preheating has
nished may have an adverse eect on the nal cooking
result.
. SETTING THE TIMER
This option does not interrupt or program cooking
but allows you to use the display as a timer, either
while a function is active or when the oven is
switched off.
Turn the knob right round in an clockwise direction
and then turn it back in the opposite direction to the
desired cooking duration: An audible signal will
sound once the timer has finished counting down the
selected time.
that preheating is in progress.
3
Page 4
COOKING TABLE
Leavened cakes
Biscuits/tartlets
Choux buns
Meringues
Pizza/focaccia
RECIPE FUNCTION PREHEATIN G
Yes 150 - 170 30 - 90
Yes 160 - 180 30 - 90
Yes 150 - 170 15 - 35
Yes 150 - 170 20 - 45
Yes 150 - 170 20 - 45
Yes 180 - 200 30 - 50
Yes 170 - 190 35 - 50
Yes 90 150 - 200
Yes 90 140 - 200
Yes 90 140 - 200
Yes 220 - 250 10 - 25
Yes 200 - 240 20 - 45
TEMPERATURE
(°C)
TIME
(MIN)
LEVEL
AND ACCESSORIES
3
4
1
3
4
5
2
3
1
3
4
2
3
4
5
2
3
1
3
4
2
Bread loaf 80 g Yes 180 - 200 30 - 45
Sliced bread 500 g Yes 180 50 - 70
Bread Yes 180 - 200 30 - 80
Yes 250 10 - 20
Frozen pizza
Yes 230 - 250 10 - 25
Yes 180 - 200 30 - 45
Savoury bakes
(vegetable pie, quiche)
Yes 180 - 200 35 - 50
Yes 180 - 200 35 - 50
Yes 190 - 200 20 - 30
Vols-au-vents/
pu pastry crackers
Yes 180 - 190 20 - 40
Yes 180 - 190 20 - 40
Lasagne/pasta bake/
canneloni/ans
Yes 180 - 200 45 - 65
Lamb/veal/beef/pork 1 kg Yes 180 - 200 80 - 110
3
3
4
2
3
4
2
3
4
5
2
3 1
3
4
5
2
3 1
3
3
ACCESSORIES
4
Wire shelf
Oven dish or baking tray
on the wire shelf
Dripping pan/baking tray
on the wire shelf
Dripping pan with 200ml
of water
Baking tray
Page 5
EN
RECIPE FUNCTION PREHEATIN G
TEMPERATURE
(°C)
TIME
(MIN)
Roast pork with crackling 2 kg Yes 180 - 190 110 - 150
Chicken/rabbit/duck 1 kg Yes 200 - 230 50 - 100
Turkey/goose 3 kg Yes 180 - 200 150 -200
Baked sh/en papillote
(llets, whole)
Stued vegetables
(tomatoes, courgettes, aubergines)
Yes 170 - 190 30 - 45
Yes 180 - 200 50 - 70
Baked potatoes Yes 200 - 220 30 - 50
Toasted bread 5 mins 250 1 - 3
Fish llets/slices 5’ 250 15 - 30 *
Sausages/kebabs/
spare ribs/hamburgers
5 mins 250 15 - 30 *
Vegetable gratin 5 mins 250 5 - 15
Meat and potatoes Yes 190 - 200 45 - 100 ***
LEVEL
AND ACCESSORIES
3
3
2
3
3
3
5
4
5
3
4
4
4
1
Fish and vegetables Yes 180 30 - 50 ***
Lasagne and meat Yes 200 50 - 100 ***
Complete meal: fruit tart (level 5)/
lasagne
* Turn food halfway through cooking
** Turn food two thirds of the way through cooking (if
necessary).
*** Estimated length of time: Dishes can be removed
from the oven at dierent times depending on personal
preference.
(level 3)/meat ( level 1)
Yes 180 - 190 40 - 120 ***
Download the Use and Care Guide from docs . hotpoint . eu
for the table of tested recipes, compiled for the certication
authorities in accordance with the standard IEC 60350-1.
4
4
5
2
1
3 1
FUNCTIONS
Grill Forced Air
5
Page 6
HINTS AND TIPS
HOW TO READ THE COOKING TABLE
The table lists the best function, accessories and level
to use to cook various different types of food.
Cooking times start from the moment food is placed
in the oven, excluding preheating (where required).
Cooking temperatures and times are approximate
and depend on the amount of food and the type
of accessory used. Use the lowest recommended
settings to begin with and, if the food is not cooked
enough, then switch to higher settings. Use the
accessories supplied and preferably dark-coloured
metal oven dishes and baking trays. You can also use
Pyrex or stoneware pans and accessories, but bear in
mind that cooking times will be slightly longer.
MAINTENANCE
AND CLEANING
Do not use steam cleaning
equipment.
Use protective gloves during all
operations.
Carry out the required
operations with the oven cold.
Disconnect the appliance from
the power supply.
COOKING DIFFERENT FOODS AT THE SAME TIME
The “Forced Air” function enables you to cook
different foods (such as fish and vegetables) on
different shelves at the same time. Remove the food
which requires a shorter cooking time and leave the
food which requires a longer cooking time in the
oven.
Do not use wire wool, abrasive
scourers or abrasive/corrosive
cleaning agents, as these could
damage the surfaces of the
appliance.
EXTERIOR SURFACES
Clean the surfaces with a damp microfibre cloth. If
they are very dirty, add a few drops of pH-neutral
detergent. Finish off with a dry cloth.
Do not use corrosive or abrasive detergents. If any of
these products inadvertently comes into contact with
the surfaces of the appliance, clean immediately with
a damp microfibre cloth.
INTERIOR SURFACES
• After every use, leave the oven to cool and then
clean it, preferably while it is still warm, to remove
any deposits or stains caused by food residues. To
dry any condensation that has formed as a result of
cooking foods with a high water content, leave the
oven to cool completely and then wipe it with a cloth
or sponge.
LOWERING THE UPPER HEATING ELEMENT
1. Pull the heating element out a little and lower it
down.
• The door can be easily removed and refitted to
facilitate cleaning of the glass.
• Clean the glass in the door with a suitable liquid
detergent.
• The upper heating element of the grill can be
lowered to clean the ceiling of the oven.
ACCESSORIES
Soak the accessories in a washing-up liquid solution
after use, handling them with oven gloves if they
are still hot. Food residues can be removed using a
washing-up brush or a sponge.
2. To reposition the heating element, lift it up and
pull it slightly towards you, making sure to fit it into
its seating.
6
Page 7
REMOVING AND REFITTING THE DOOR
~60°
a
b
~15°
1. To remove the door, open it fully and lower the
catches until they are in the unlock position.
2. Close the door as much as you can.
Take a firm hold of the door with both hands – do not
hold it by the handle.
Simply remove the door by continuing to close it
while pulling it upwards (a) at the same time until it is
released from its seating (b).
EN
CLICK TO CLEAN CLEANING THE GLASS
1. After removing the door and resting it on a soft
surface with the handle downwards, simultaneously
press the two retaining clips and remove the upper
edge of the door by pulling it towards you.
2. Lift and firmly hold the inner glass with both
hands, remove it and place it on a soft surface before
cleaning it.
3. To correctly reposition the inner glass, make sure
that the “R” is visible in the left-hand corner.
First insert the long side of the glass indicated by “R”
into the support seats, then lower it into position.
Put the door to one side, resting it on a soft surface.
3. Refit the door by moving it towards the oven,
aligning the hooks of the hinges with their seating
and securing the upper part onto its seating.
4. Lower the door and then open it fully.
Lower the catches into their original position: Make
sure that you lower them down completely.
5. Try closing the door and check to make sure that it
lines up with the control panel. If it does not, repeat
the steps above.
4. Refit the upper edge: A click will indicate correct
positioning. Make sure the seal is not broken before
refitting the door.
7
Page 8
XXX
XXXX
X
XXXXXX
XXXXXX
X
XXX
XXXX
X
XXX
XXXXXX
TROUBLESHOOTING
Problem Possible cause Solution
The oven is not working. Power cut.
Disconnection from the
mains.
Check that the mains electricity supply is
working and that the oven is connected to it.
Turn the oven off and on again to see if the
fault persists.
PRODUCT FICHE
WWW
The product fiche with energy data of this
appliance can be downloaded from the website
docs . hotpoint . eu
HOW TO OBTAIN THE USE AND CARE GUIDE
WWW
>
Download the Use and Care Guide
from our website docs . hotpoint . eu (you
can use this QR Code), specifying the
product’s commercial code.
> Alternatively, contact our Client After-sales Service.
001
8
CONTACTING OUR AFTERSALES SERVICE
You can find our contact details in the warranty
manual. When
contacting our Client
After-sales Service,
please state the codes
provided on your
product’s identification
plate.
X
X
X
X
XX
Model: xxxXXXXxx
X
X
XXXXXX XXXXXX XXXXX XXXXXXX
400010869547
Printed in I taly
Loading...
