Hotpoint RGBS300DMWW Specifications
RGBS300DM
To cabinets below cooktop
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
30"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
46 3/8"
28 3/4"
w/ handle
26 1/4"
w/o handle
30"
36 1/4"
+/- 1/4
44 3/4"
8 1/2"

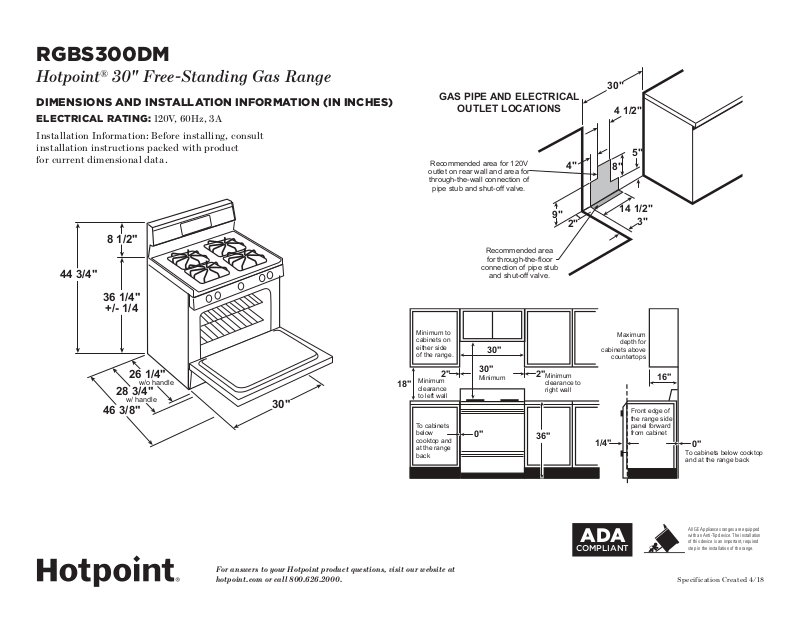

Hotpoint® 30" Free-Standing Gas Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRICAL RATING: 120V, 60Hz, 3A
Installation Information: Before installing, consult
installation instructions packed with product
for current dimensional data.
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
Minimum to
cabinets on
either side
of the range.
2"
Minimum
18"
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
30"
30"
Minimum
0"
9"
2"
Minimum
clearance to
right wall
36"
4"
2"
1/4"
30"
4 1/2"
5"
8"
14 1/2"
Maximum
depth for
cabinets above
countertops
Front edge of
the range side
panel forward
from cabinet
3"
16"
0"
and at the range back
For answers to your Hotpoint product questions, visit our website at
hotpoint.com or call 800.626.2000.
ADA
COMPLIANT
All GE Appliances ranges are equipped
with an Anti-Tip device. The installation
of this device is an important, required
step in the installation of the range.
Speci fication Created 4/18
RGBS300DM
Hotpoint® 30" Free-Standing Gas Range
FEATURES AND BENEFITS
Standard clean oven – Smooth surface and rounded corners make clean-up
quick and easy
4.8 cu. ft. oven capacity – Enough room to cook an entire meal at once
Sealed cooktop burners – Contains spills and make cleaning quick and easy
Porcelain upswept cooktop – Raised edges contain spills, while the surface is
easy to wipe clean
Heavy steel grates
Two oven racks – Durable to securely hold any cookware
One-piece durable handle
Broiler drawer – Delivers high concentrated heat for crisping and browning
Model RGBS300DMWW – White
Model RGBS300DMBB – Black
Speci fication Created 4/18
