Hotpoint RGB528PENWW, RGB528PEPBB, RGB528PEPWW, RGB528PEP User Manual
CERTIFIED
30
46-1/8
26-1/4*
46-3/8
36-1/4
30
46-1/8
26-1/4*
46-3/8
36-1/4
24
30
8
4
9
2
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common area
for gas outlet and electrical outlet
*Depth from wall
to front of closed
oven door.
30
46-1/8
26-1/4*
46-3/8
36-1/4
*Depth from wall
to front of closed
oven door.

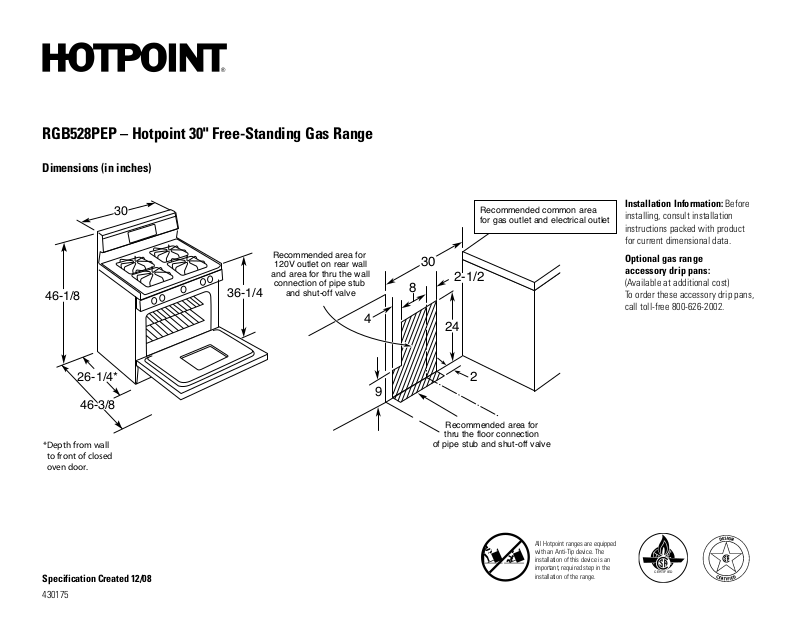

RGB528PEP – Hotpoint 30" Free-Standing Gas Range
Dimensions (in inches)
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
Optional gas range
accessory drip pans:
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002.
Specification Created 12/08
430175
All Hotpoint ranges are equipped
with an Anti-Tip device. The
installation of this device is an
important, required step in the
installation of the range.
RGB528PEP – Hotpoint 30" Free-Standing Gas Range
3
5
0
l
4
0
0
l
4
5
0
l
5
0
0
l
B
R
O
I
L
O
F
F
Front
Lite
OFF
LO
HI
2
4
6
8
Lite
OFF
LO
HI
2
4
6
8
Rear
OVEN
TEMP
Lite
OFF
LO
HI
2
4
6
8
Lite
OFF
LO
HI
2
4
6
8
Rear
Front
Timer
Clock
Set
Features and Benefits
• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking more items at once
• All Purpose Burners - Deliver a wide range of heat output ideal for most cooking requirements
• Electronic Clock And Timer - Features a convenient digital clock and easy-to-use timer with
an audible signal to help coordinate cooking times in the kitchen
• Standard Grates - Provide a sturdy and convenient cookware surface for everyday cooking
• Porcelain Upswept Cooktop - Features raised edges to help contain spills and make
clean-up easy
• Lift-Up Cooktop - Cooktop lifts up for easy access to porcelain-enameled subtop
• Porcelain Oven Door - Offers a scratch-resistant porcelain coating for easy cleaning
• Standard Window - Provides a convenient viewing area to check the progress of food
• Easy Clean Subtop - Porcelain enameled subtop collects spills and messes for easy cleaning
• Model RGB528PEPBB – Black on black
Specification Created 12/08
430175
• Model RGB528PEPWW – White on white
