Hotpoint RGB526DEHBB, RGB526DEHWW Specifications
RGB526DEH
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
30"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
46 3/8"
28 3/4"
w/ handle
26 1/4"
w/o handle
30"
36"
46 7/8"
10 7/8"

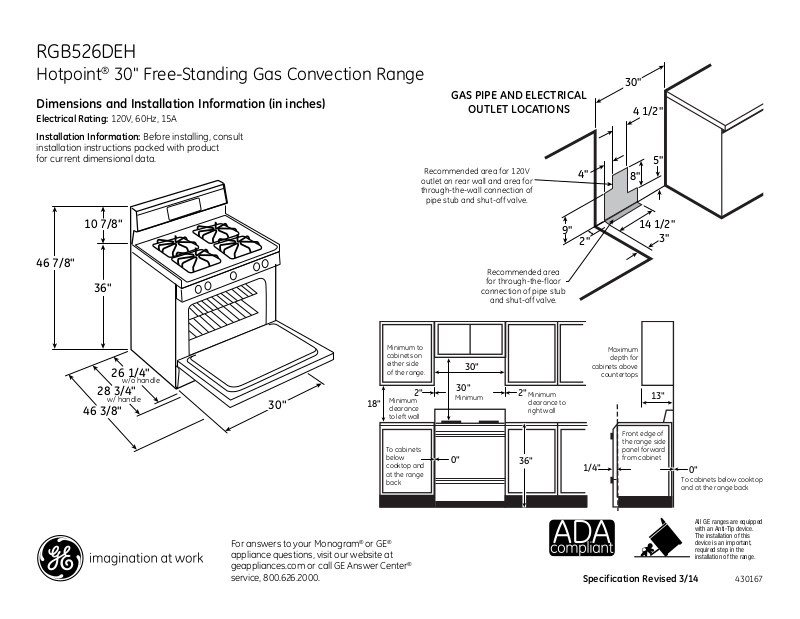

Hotpoint® 30" Free-Standing Gas Convection Range
Dimensions and Installation Information (in inches)
Electrical Rating: 120V, 60Hz, 15A
Installation Information: Before installing, consult
installation instructions packed with product
for current dimensional data.
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
18"
Minimum to
cabinets on
either side
of the range.
2"
Minimum
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
30"
30"
Minimum
0"
2"
Minimum
clearance to
right wall
36"
30"
4 1/2"
4"
9"
8"
14 1/2"
2"
Maximum
depth for
cabinets above
countertops
Front edge of
the range side
panel forward
from cabinet
1/4"
Specification Revised 3/14
13"
5"
3"
0"
To cabinets below cooktop
and at the range back
All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.
430167
RGB526DEH
Hotpoint® 30" Free-Standing Gas Convection Range
Features and Benefits
• Standard Clean Oven - Smooth surface and rounded corners make
clean-up quick and easy
• 4.8 cu. ft. Oven Capacity - Enough room to cook an entire meal
at once
• Sealed Cooktop Burners - Contains spills and make cleaning quick
and easy
• All purpose burners - Deliver a wide range of heat output ideal for
most cooking needs
• Standard Grates - Hold cookware securely over burners
• Model RGB526DEHBB - Black on black
• Model RGB526DEHWW - White on white
Specification Revised 3/14
430167
