RGB524PPAWH—30" Free-Standing Gas Range

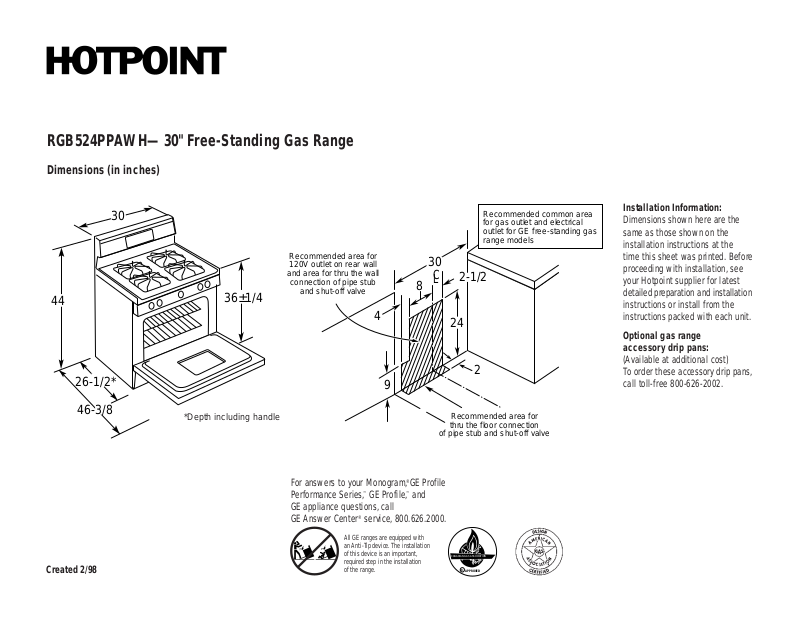

Dimensions (in inches)
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
30
44
26-1/2*
46-3/8
36±1/4
Installation Information:
Dimensions shown here are the
same as those shown on the
installation instructions at the
time this sheet was printed. Before
proceeding with installation, see
your Hotpoint supplier for latest
detailed preparation and installation
instructions or install from the
instructions packed with each unit.
Optional gas range
accessory drip pans:
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002.
24
30
8
4
9
2
C
L
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common area
for gas outlet and electrical
outlet for GE free-standing gas
range models
CANADIAN GAS ASSOCIATION
R
APPROVED
*Depth including handle
For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™and
GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Created 2/98
RGB524PPAWH—30" Free-Standing Gas Range
OVEN CONTROL
Features and Benefits
•Porcelain-Enameled Cooktop
•Lift-Up Cooktop with Easy-Clean Subtop
•Twin Cooktop Burners
•Black Removable Square Grates
•Standing Pilot Ignition System
•Extra-Large Standard Clean Oven
•Slide Out Broiler Drawer
•2 Oven Shelves / 6 Embossed Rack Positions
•Solid Color-Matched Porcelain-Enameled Door
•Visor-Style Handle
•Also Available with Electronic Pilotless Ignition System as Model RGB524PEA
•Optional Accessory One-Piece Drip Pans Available at Additional Cost
•Model RGB524PPAWH–White
•Model RGB524PPAAD–Almond
