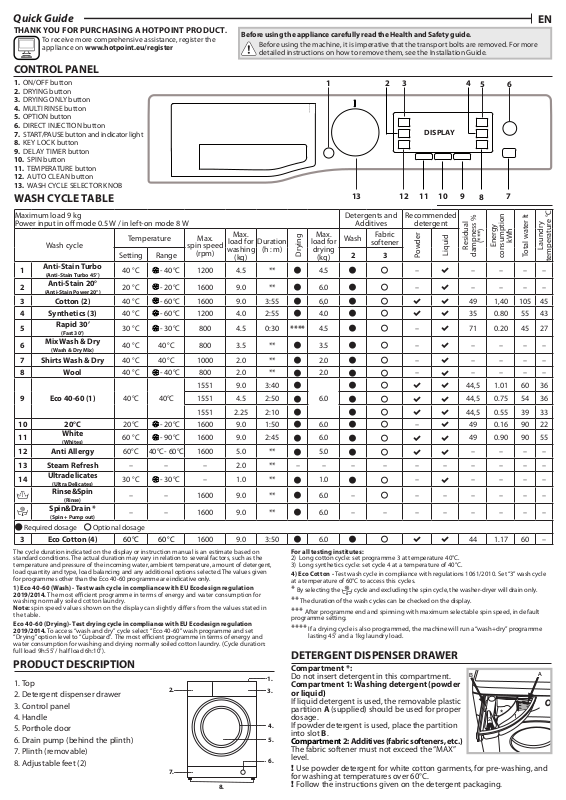

HOTPOINT RD 966 JD UK N Daily Reference Guide

Quick Guide

THANK YOU FOR PURCHASING A HOTPOINT PRODUCT.

To receive more comprehensive assistance, register the appliance on www.hotpoint.eu/register

Before using the appliance carefully read the Health and Safety guide.

Before using the machine, it is imperative that the transport bolts are removed. For more detailed instructions on how to remove them, see the Installation Guide.

CONTROL PANEL

1.	ON/OFF button	1	2 3	4 5	6
2.	DRYING button
3.	DRYING ONLY button
4.	MULTI RINSE button
5.	OPTION button
6.	DIRECT INJECTION button			DISPLAY
7.	START/PAUSE button and indicator light			DISPLAY

8.KEY LOCK button

9.DELAY TIMER button

10.SPIN button

11.TEMPERATURE button

12.AUTO CLEAN button

13.WASH CYCLE SELECTOR KNOB

WASH CYCLE TABLE

Maximum load 9 kg

Detergents and

Recommended

°C

Power input in off mode 0.5 W / in left-on mode 8 W

Additives

detergent

Residual

(***)

Energy

kWh

Laundry

Temperature

Max.

Wash

Fabric

load for Duration

load for

softener

Wash cycle

spin speed

Setting

Range

(rpm)

washing

(h : m)

Drying

drying

Powder

Liquid

dampness

consumption

waterTotallt

temperature

Anti-Stain Turbo

(kg)

°C

- 40 °C

1200

4.5

–

(Anti-Stain Turbo 45‘)

Anti-Stain 20°

°C

- 20 °C

1600

9.0

6.0

–

(Anti-Stain Power 20°)

Cotton (2)

40 °C

- 60 °C

1600

9.0

3:55

6,0

1,40

105

Synthetics (3)

°C

- 60 °C

1200

4.0

2:55

4.0

0.80

Rapid 30’

°C

- 30 °C

800

4.5

0:30

****

4.5

–

0.20

(Fast 30’)

Mix Wash & Dry

°C

40 °C

800

3.5

–

(Wash & Dry Mix)

Shirts Wash & Dry

°C

40 °C

1000

2.0

–

Wool

40 °C

- 40 °C

800

2.0

–

1551

9.0

3:40

44,5

1.01

Eco 40-60 (1)

40 °C

40°C

1551

4.5

2:50

6.0

44,5

0.75

1551

2.25

2:10

44,5

0.55

20°C

°C

- 20 °C

1600

9.0

1:50

6.0

–

0.16

White

°C

- 90 °C

1600

9.0

2:45

6.0

0.90

(Whites)

Anti Allergy

60°C

40°C- 60°C

1600

5.0

–

Steam Refresh

–

2.0

–

Ultradelicates

°C

- 30 °C

–

1.0

–

(Ultra Delicates)

Rinse&Spin

–

1600

9.0

6.0

–

(Rinse)

Spin&Drain *

–

1600

9.0

6.0

–

(Spin + Pump out)

Required dosage Optional dosage

Eco Cotton (4)

60 °C

1600

9.0

3:50

6.0

1.17

–

The cycle duration indicated on the display or instruction manual is an estimate based on standard conditions. The actual duration may vary in relation to several factors, such as the temperature and pressure of the incoming water, ambient temperature, amount of detergent, load quantity and type, load balancing and any additional options selected.The values given for programmes other than the Eco 40-60 programme are indicative only.

1) Eco 40-60 (Wash) - Test wash cycle in compliance with EU Ecodesign regulation 2019/2014. The most efficient programme in terms of energy and water consumption for washing normally soiled cotton laundry.

Note: spin speed values shown on the display can slightly differs from the values stated in the table.

Eco 40-60 (Drying)- Test drying cycle in compliance with EU Ecodesign regulation 2019/2014. To access “wash and dry” cycle select “Eco 40-60” wash programme and set “Drying” option level to “Cupboard”. The most efficient programme in terms of energy and water consumption for washing and drying normally soiled cotton laundry. (Cycle duration: full load 9h:55’ / half load 6h:10’).

PRODUCT DESCRIPTION

1.Top

2.Detergent dispenser drawer

3.Control panel

4.Handle

5.Porthole door

6.Drain pump (behind the plinth)

7.Plinth (removable)

8.Adjustable feet (2)

	1.
2.	3.
	4.
	5.
	6.
7.
	8.

For all testing institutes:

2)Long cotton cycle: set programme 3 at temperature 40°C.

3)Long synthetics cycle: set cycle 4 at a temperature of 40°C.

4)Eco Cotton - Test wash cycle in compliance with regulations 1061/2010. Set “3” wash cycle at a temperature of 60°C to access this cycles.

*By selecting the cycle and excluding the spin cycle, the washer-dryer will drain only.

**The duration of the wash cycles can be checked on the display.

***After programme end and spinning with maximum selectable spin speed, in default programme setting.

****If a drying cycle is also programmed, the machine will run a “wash+dry” programme lasting 45’ and a 1kg laundry load.

DETERGENT DISPENSER DRAWER
Compartment *:				A
Do not insert detergent in this compartment.	B			A
Compartment 1: Washing detergent (powder
or liquid)
If liquid detergent is used, the removable plastic
partition A (supplied) should be used for proper			*
dosage.		2	*	1
If powder detergent is used, place the partition
into slot B.
Compartment 2: Additives (fabric softeners, etc.)
The fabric softener must not exceed the “MAX”
level.

!Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C.

!Follow the instructions given on the detergent packaging.

WASH CYCLES

Follow the instructions on the symbols of the garment’s wash care label. The value indicated in the symbol is the maximum recommended temperature for washing the garment.

Anti-Stain Turbo

This cycle is ideal for washing daily stains in 45’. It is ideal for mixed fabrics and coloured garments.

Anti-Stain 20°C

this programme ensures maximum stain removal capacity with no need for pre-treatment at low temperatures, preserving fabrics and colours.

Cotton

Suitable for washing towels, underwear, table cloths, etc. made of resistant linen and cotton that are moderately to heavily soiled.

Synthetics

Specific for synthetic items. If the dirt is difficult to remove, the temperature can be increased up to 60° and powder detergent can be used too.

Rapid 30’

For washing lightly soiled garments in a short time. Not suitable for wool, silk and garments to be washed by hand.

Mix Wash & Dry

use programme 6 to wash and dry mixed garments (cotton and synthetics). This cycle may be used to wash and dry loads of up to 3.5 kg; we recommend the use of liquid detergent.

The use of the steam in this programme is optimised to reduce the formation of creases on garments, making them easier to iron.

Shirts Wash & Dry

Use programme 7 to wash and dry shirts and T-shirts in different fabrics and colours to ensure maximum care. This cycle may be used to wash and dry loads of up to 2 kg. To achieve optimum results, use liquid detergent and pre-treat cuffs, collars and stains. The use of the steam in this programme is optimised to reduce the formation of creases on garments, making them easier to iron.

Wool - Woolmark Apparel Care - Green:

the wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool

garments labelled as “hand wash” provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of

this washer-dryer. (M1318)

Eco 40-60

For washing normally soiled cotton garments declared to be washable at 40 °C or 60 °C, together in the same cycle. This is the standard cotton programme and the most efficient in terms of water and energy consumption.

20°C

For washing lightly soiled cotton garments, at a temperature of 20 °C.

White

For heavily soiled whites and resistant colours.

Anti Allergy

Suitable for removing major allergens such as pollen, mites and cat or dog hair.

Steam Refresh

For refreshing garments, neutralised unpleasant odours and relaxing the fibres by delivering steam into the drum. The garments will be damp at the end of the cycle.

Ultradelicates

For washing very delicate garments. It is advisable to turn the garments inside out before washing them. For best results, use liquid detergent on delicate garments.

We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates. Use liquid detergent on delicate garments for best results.

When selecting an exclusively time-based drying function, a drying cycle is performed at the end of the wash cycle that is particularly delicate, thanks to light handling and appropriate temperature control of the water jet.

The recommended durations are:

1 kg of synthetic garments --> 165 min

1 kg of synthetic and cotton garments --> 180 min 1 kg of cotton garments --> 180 min

The degree of dryness depends on the load and fabric composition.

Rinse&Spin

Designed for rinsing and spinning.

Spin&Drain

Designed for spinning and draining the water.

Eco Cotton

For washing normally soiled cotton garments at 60°C.

DISPLAY

The display is useful when programming the machine and provides a great deal of information.

C A C

C2:55

COTONE

90°

1200

-- h

The following will appear in area A: the icon and programme selected, the washing and drying phases and time remaining to the end of the cycle. Area B will include the two intensity levels relative to the DIRECT INJECTION option. The indicator lights relative to the available functions appear in area C. Area D will display the time remaining to the start of the selected cycle if the DELAY TIMER function was set.

Area E will display the maximum available spin speed on the basis of the set cycle; if the cycle does not include the spin cycle setting, the dimly lit “--” symbol will appear in the area.

Area F will show the temperature value that can be selected on the basis of the set cycle.

If the cycle does not include setting of the temperature, the dimly lit “--” symbol will appear in the area.

! The first time the machine is switched on, you will be asked to select the language and the display will automatically show the language selection menu.

To select the desired language press the X and Y buttons; to confirm the selection press the Z button.

To change the language switch off the machine and press buttons G, H, I simultaneously until an alarm is heard: the language-selection menu will be displayed again.

! To change the display luminosity, which by default is set to the highest value, switch the machine off then simultaneously press buttons G, L and M until the buzzer sounds.

Press buttons X and Y to choose the desired level of luminosity then confirm by pressing button Z.

! During the wash cycle or when the DELAY TIMER function has been enabled, if the user does not interact with the display for 1 minute the SCREEN SAVER activates. To return to the previous window, simply press any button.

LOCKED DOOR INDICATOR

When lit, the symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the door.

To open the door while a cycle is in progress, press the START/PAUSE button ; if the symbol is off, the door can be opened.

FIRST-TIME USE

Once the appliance has been installed, and before it is used for the first time, run a wash cycle with detergent and no laundry, by setting the “Auto Clean” cycle.

DAILY USE

Prepare the laundry by following the suggestions appearing under the “TIPS AND SUGGESTIONS” section.

- Press the ON/OFF button ; “HOTPOINT” will appear on the display; the

indicator light relative to the START/PAUSE	button will flash slowly
green.

-Open the door. Load the laundry while making sure not to exceed the maximum load quantity indicated in the wash cycle table.

-Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments, as described in the “DETERGENT DISPENSER DRAWER” section.

-Close the door.

-Use the WASH CYCLE selector knob to select the desired wash cycle: the cycle’s name will appear on the display; the cycle will be associated with a specific temperature and spin speed which can be modified. The duration of the cycle will appear on the display.

-Modify the temperature and/or spin speed: the machine automatically selects the maximum temperature and spin speed set for the selected wash cycle; these values cannot therefore be increased. Pressing the button gradually reduces the temperature down to the cold wash setting

(the “--” symbol will appear on the display). Pressing the button gradually reduces the spin speed until it is completely excluded (the “--” symbol will appear on the display). Pressing the buttons further restores

the maximum allowed values for the selected cycle.
- Select the desired options.
- Press the START/PAUSE	button to start the wash cycle; the relative
indicator light will light up steady green and the door will lock (
symbol on).
PAUSING A CYCLE
To pause the wash cycle, press the START/PAUSE		button again; the

indicator light will flash amber. To start the wash cycle from the point at which it was interrupted, press the START/PAUSE button again.

CHANGING A RUNNING WASH CYCLE

To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button (the relative indicator light will flash amber), then select the desired cycle and press the START/PAUSE

button again.

! To cancel a cycle that has already begun, press and hold the ON/OFF button. The cycle will be stopped and the machine will switch off.

AT THE END OF THE WASH CYCLE

This will be indicated by the word “CYCLE END” on the display; when the symbol switches off, the door may be opened. Open the door and

switch off the machine. If you do not press ON/OFF button, the washing machine will switch off automatically after about a 10 minutes. Close the water tap and unload the washing machine. Leave the door ajar to allow the drum to dry.
