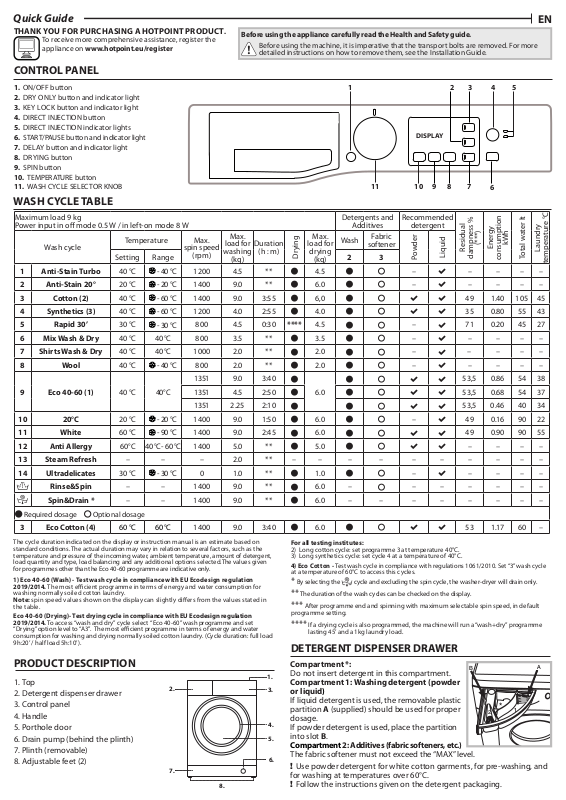

Quick Guide
THANK YOU FOR PURCHASING A HOTPOINT PRODUCT.
To receive more comprehensive assistance, register the appliance on www.hotpoint.eu/register
EN
Before using the appliance carefully read the Health and Safety guide.
Before using the machine, it is imperative that the transport bolts are removed. For more detailed instructions on how to remove them, see the Installation Guide.
CONTROL PANEL
1. ON/OFF button |
1 |
2 |
3 |
4 |
5 |
2.DRY ONLY button and indicator light
3.KEY LOCK button and indicator light
4. |
DIRECT INJECTION button |
|
5. |
DIRECT INJECTION indicator lights |
DISPLAY |
6. |
START/PAUSE button and indicator light |
|
7. |
DELAY button and indicator light |
|
8. |
DRYING button |
|
9.SPIN button
10.TEMPERATURE button
11. WASH CYCLE SELECTOR KNOB |
11 |
10 9 8 |
7 |
6 |
WASH CYCLE TABLE
Maximum load 9 kg |
|
|
|
|
|
|
|
Detergents and |
Recommended |
|
% |
|
|
|
°C |
|||
Power input in off mode 0.5 W / in left-on mode 8 W |
|
|
|
|
Additives |
detergent |
Residual |
(***) |
Energy |
kWh |
|
Laundry |
||||||
|
|
Temperature |
Max. |
Max. |
|
|
Max. |
Wash |
Fabric |
|
|
|
||||||
|
|
load for Duration |
|
load for |
softener |
|
|
|
||||||||||
|
Wash cycle |
|
|
spin speed |
|
|
|
|
|
|||||||||
|
|
Setting |
Range |
(rpm) |
washing |
(h : m) |
Drying |
drying |
2 |
3 |
Powder |
Liquid |
|
dampness |
|
consumption |
waterTotallt |
temperature |
|
|
(kg) |
|
(kg) |
|
|
||||||||||||
1 |
Anti-Stain Turbo |
40 °C |
- 40 °C |
1200 |
4.5 |
** |
|
4.5 |
|
|
– |
|
|
– |
|
– |
– |
– |
2 |
Anti-Stain 20° |
20 °C |
- 20 °C |
1400 |
9.0 |
** |
|
6.0 |
|
|
– |
|
|
– |
|
– |
– |
– |
3 |
Cotton (2) |
40 °C |
- 60 °C |
1400 |
9.0 |
3:55 |
|
6,0 |
|
|
|
|
|
49 |
1.40 |
105 |
45 |
|
4 |
Synthetics (3) |
40 °C |
- 60 °C |
1200 |
4.0 |
2:55 |
|
4.0 |
|
|
|
|
|
35 |
0.80 |
55 |
43 |
|
5 |
Rapid 30’ |
30 °C |
- 30 °C |
800 |
4.5 |
0:30 |
**** |
4.5 |
|
|
– |
|
|
71 |
0.20 |
45 |
27 |
|
6 |
Mix Wash & Dry |
40 °C |
40 °C |
800 |
3.5 |
** |
|
3.5 |
|
|
– |
|
|
– |
|
– |
– |
– |
7 |
Shirts Wash & Dry |
40 °C |
40 °C |
1000 |
2.0 |
** |
|
2.0 |
|
|
– |
|
|
– |
|
– |
– |
– |
8 |
Wool |
40 °C |
- 40 °C |
800 |
2.0 |
** |
|
2.0 |
|
|
– |
|
|
– |
|
– |
– |
– |
|
|
|
|
1351 |
9.0 |
3:40 |
|
|
|
|
|
|
53,5 |
0.86 |
54 |
38 |
||
9 |
Eco 40-60 (1) |
40 °C |
40°C |
1351 |
4.5 |
2:50 |
|
6.0 |
|
|
|
|
53,5 |
0.68 |
54 |
37 |
||
|
|
|
|
1351 |
2.25 |
2:10 |
|
|
|
|
|
|
53,5 |
0.46 |
40 |
34 |
||
10 |
20°C |
20 °C |
- 20 °C |
1400 |
9.0 |
1:50 |
|
6.0 |
|
|
– |
|
|
49 |
0.16 |
90 |
22 |
|
11 |
White |
60 °C |
- 90 °C |
1400 |
9.0 |
2:45 |
|
6.0 |
|
|
|
|
|
49 |
0.90 |
90 |
55 |
|
12 |
Anti Allergy |
60°C |
40°C- 60°C |
1400 |
5.0 |
** |
|
5.0 |
|
|
|
|
|
– |
|
– |
– |
– |
13 |
Steam Refresh |
– |
– |
– |
2.0 |
** |
– |
– |
– |
– |
– |
– |
|
– |
|
– |
– |
– |
14 |
Ultradelicates |
30 °C |
- 30 °C |
0 |
1.0 |
** |
|
1.0 |
|
|
– |
|
|
– |
|
– |
– |
– |
|
Rinse&Spin |
– |
– |
1400 |
9.0 |
** |
|
6.0 |
– |
|
– |
– |
|
– |
|
– |
– |
– |
|
Spin&Drain * |
– |
– |
1400 |
9.0 |
** |
|
6.0 |
– |
– |
– |
– |
|
– |
|
– |
– |
– |
Required dosage Optional dosage
3 |
Eco Cotton (4) |
60 °C |
60 °C |
1400 |
9.0 |
3:40 |
|
6.0 |
|
|
|
|
53 |
1.17 |
60 |
– |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The cycle duration indicated on the display or instruction manual is an estimate based on standard conditions. The actual duration may vary in relation to several factors, such as the temperature and pressure of the incoming water, ambient temperature, amount of detergent, load quantity and type, load balancing and any additional options selected.The values given for programmes other than the Eco 40-60 programme are indicative only.
1) Eco 40-60 (Wash) - Test wash cycle in compliance with EU Ecodesign regulation 2019/2014. The most efficient programme in terms of energy and water consumption for washing normally soiled cotton laundry.
Note: spin speed values shown on the display can slightly differs from the values stated in the table.
Eco 40-60 (Drying)- Test drying cycle in compliance with EU Ecodesign regulation 2019/2014. To access “wash and dry” cycle select “Eco 40-60” wash programme and set “Drying” option level to “A3”. The most efficient programme in terms of energy and water consumption for washing and drying normally soiled cotton laundry. (Cycle duration: full load 9h:20’ / half load 5h:10’).
For all testing institutes:
2)Long cotton cycle: set programme 3 at temperature 40°C.
3)Long synthetics cycle: set cycle 4 at a temperature of 40°C.
4)Eco Cotton - Test wash cycle in compliance with regulations 1061/2010. Set “3” wash cycle at a temperature of 60°C to access this cycles.
*By selecting the cycle and excluding the spin cycle, the washer-dryer will drain only.
**The duration of the wash cycles can be checked on the display.
***After programme end and spinning with maximum selectable spin speed, in default programme setting.
****If a drying cycle is also programmed, the machine will run a “wash+dry” programme lasting 45’ and a 1kg laundry load.
DETERGENT DISPENSER DRAWER
PRODUCT DESCRIPTION
1.Top
2.Detergent dispenser drawer
3.Control panel
4.Handle
5.Porthole door
6.Drain pump (behind the plinth)
7.Plinth (removable)
8.Adjustable feet (2)
|
1. |
2. |
3. |
|
4. |
|
5. |
|
6. |
7. |
|
|
8. |
Compartment *: |
B |
|
|
A |
Do not insert detergent in this compartment. |
|
|
|
|
Compartment 1: Washing detergent (powder |
|
|
|
|
or liquid) |
|
|
|
|
If liquid detergent is used, the removable plastic |
|
|
* |
|
partition A (supplied) should be used for proper |
|
2 |
1 |
|
|
|
|||
dosage. |
|
|
|
|
|
|
|
|
|
If powder detergent is used, place the partition |
|
|
|
|
into slot B. |
|
|
|
|
Compartment 2: Additives (fabric softeners, etc.) |
|
|
|
|
The fabric softener must not exceed the “MAX” level.
!Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C.
!Follow the instructions given on the detergent packaging.
WASH CYCLES
Follow the instructions on the symbols of the garment’s wash care label. The value indicated in the symbol is the maximum
recommended temperature for washing the garment.
Anti-Stain Turbo
This cycle is ideal for washing daily stains in 45’. It is ideal for mixed fabrics and coloured garments.
Anti-Stain 20°C
this programme ensures maximum stain removal capacity with no need for pre-treatment at low temperatures, preserving fabrics and colours.
Cotton
Suitable for washing towels, underwear, table cloths, etc. made of resistant linen and cotton that are moderately to heavily soiled.
Synthetics
Specific for synthetic items. If the dirt is difficult to remove, the temperature can be increased up to 60° and powder detergent can be used too.
Rapid 30’
For washing lightly soiled garments in a short time. Not suitable for wool, silk and garments to be washed by hand.
Mix Wash & Dry
use programme 6 to wash and dry mixed garments (cotton and synthetics). This cycle may be used to wash and dry loads of up to 3.5 kg; we recommend the use of liquid detergent.
The use of the steam in this programme is optimised to reduce the formation of creases on garments, making them easier to iron.
Shirts Wash & Dry
Use programme 7 to wash and dry shirts and T-shirts in different fabrics and colours to ensure maximum care. This cycle may be used to wash and dry loads of up to 2 kg. To achieve optimum results, use liquid detergent and pre-treat cuffs, collars and stains. The use of the steam in this programme is optimised to reduce the formation of creases on garments, making them easier to iron.
Wool - Woolmark Apparel Care - Green:
the wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool
garments labelled as “hand wash” provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washer-dryer. (M1318)
Eco 40-60
For washing normally soiled cotton garments declared to be washable at 40 °C or 60 °C, together in the same cycle. This is the standard cotton programme and the most efficient in terms of water and energy consumption.
20°C
For washing lightly soiled cotton garments, at a temperature of 20 °C.
White
For heavily soiled whites and resistant colours.
Anti Allergy
Suitable for removing major allergens such as pollen, mites and cat or dog hair.
Steam Refresh
For refreshing garments, neutralised unpleasant odours and relaxing the fibres by delivering steam into the drum. The garments will be damp at the end of the cycle.
Ultradelicates
For washing very delicate garments. It is advisable to turn the garments inside out before washing them. For best results, use liquid detergent on delicate garments.
We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates. Use liquid detergent on delicate garments for best results.
When selecting an exclusively time-based drying function, a drying cycle is performed at the end of the wash cycle that is particularly delicate, thanks to light handling and appropriate temperature control of the water jet.
The recommended durations are:
1 kg of synthetic garments --> 150 min
1 kg of synthetic and cotton garments --> 180 min 1 kg of cotton garments --> 180 min
The degree of dryness depends on the load and fabric composition.
Rinse&Spin
Designed for rinsing and spinning.
Spin&Drain
Designed for spinning and draining the water.
Eco Cotton
For washing normally soiled cotton garments at 60°C.
DISPLAY
The display is useful when programming the washer-dryer and provides
plenty of information. |
B |
|
A
Section A displays the duration of the various available wash cycles and, once the cycle starts, the time remaining to the latter’s end (the display will show the maximum duration of the selected cycle which may decrease after a few minutes, as the actual duration varies in relation to the laundry load and the chosen settings); if the Delay option was set, the display will show the time remaining to the start of the selected wash cycle.
Moreover, pressing the relative button allows for visualising the maximum values for the temperature, spin speed or type of drying relative to the selected programme or the most recently selected ones, if compatible with the selected programme.
The “washing phases” relative to the selected cycle and the “washing phase” of the running cycle appear in section B:
Main Wash
Rinse
Spin/Pump out
Drying
Section C displays – starting from the left – the icons corresponding to “temperature”, “spin” and “drying”.
The “temperature” bars |
|
|
|
|
indicate the maximum temperature level |
||||||
|
|
|
|
||||||||
|
|||||||||||
that can be selected for the |
chosen cycle. |
||||||||||
The “spin” bars |
|
|
|
|
indicate the maximum spin speed that can be |
||||||
|
|
|
|
||||||||
|
|
|
|||||||||
|
|
||||||||||
selected for the |
|
chosen cycle. |
|
||||||||
The |
symbol lights up while the drying settings are being adjusted. |
LOCKED DOOR INDICATOR
When lit, the symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the door.
To open the door while a cycle is in progress, press the START/PAUSE
button |
; if the |
symbol is off, the door can be opened. |
FIRST-TIME USE
Once the appliance has been installed, and before it is used for the first time, run a wash cycle with detergent and no laundry, by setting the
“Auto-Clean” cycle.
DAILY USE
Prepare the laundry by following the suggestions appearing under the “TIPS AND SUGGESTIONS” section.
- Press the ON/OFF button ; the indicator light relative to START/PAUSE will flash slowly green.
-Open the door. Load the laundry while making sure not to exceed the maximum load quantity indicated in the wash cycle table.
-Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments, as described in the “DETERGENT DISPENSER DRAWER” section.
-Close the door.
-The machine automatically displays the maximum temperature and spin speed values for the selected cycle, or the most recently used settings if
they are compatible with the selected cycle. Pressing the button gradually reduces the temperature down to the cold wash “OFF” setting. Pressing the button gradually reduces the spin speed until it is completely excluded (“OFF” setting). Pressing the buttons further restores the maximum allowed values for the selected cycle.
-Select the desired wash cycle.
-Select the desired options.
- Press the START/PAUSE button to start the wash cycle; the relative
indicator light will light up steady green and the door will lock ( symbol on).
PAUSING A CYCLE
To pause the wash cycle, press the START/PAUSE button again; the indicator light will flash amber. To start the wash cycle from the point at
which it was interrupted, press the START/PAUSE button again.
OPENING THE DOOR, IF NECESSARY
Once a cycle starts, the symbol turns on to signal that the door cannot be opened. While a wash cycle is running, the door remains locked. To open the door while a cycle is under way, for example, to add or remove
garments, press the START/PAUSE |
|
button to pause the cycle; the |
indicator light will flash amber. If the |
symbol is not lit, the door may be |
|
opened. Press the START/PAUSE |
button again to continue the cycle. |
CHANGING A RUNNING WASH CYCLE
To change a wash cycle while it is in progress, pause the washer-dryer using
the START/PAUSE |
button (the relative indicator light will flash amber), |
|
then select the desired cycle and press the START/PAUSE |
button again. |
! To cancel a cycle that has already begun, press and hold the ON/OFF
button. The cycle will be stopped and the machine will switch off.
AT THE END OF THE WASH CYCLE
This will be indicated by the word “END” on the display; when the symbol switches off, the door may be opened. Open the door and switch off the machine. If you do not press ON/OFF button, the washing machine will switch off automatically after about a 10 minutes. Close the water tap and unload the washing machine. Leave the door ajar to allow the drum to dry.
C
