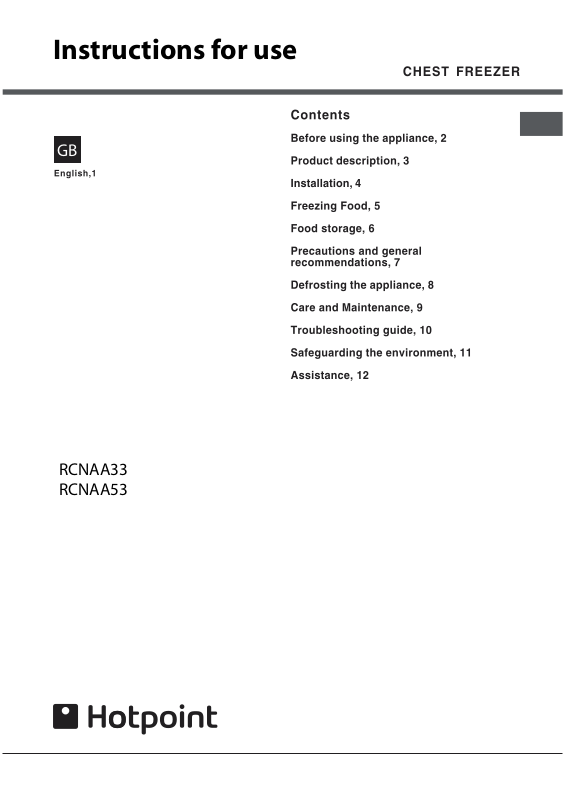

Hotpoint RCNAA53, RCNAA33 User Manual

Instructions for use

RCNAA33 RCNAA53

Before using the appliance

Your new appliance is designed exclusively for domestic use and for storing frozen food, freezing fresh food and making ice cubes.

Regulations require that the appliance is earthed. The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the above procedures and reminders.

1. After unpacking, make sure that the appliance is undamaged and that the lid closes perfectly tight. Any damage must be reported to your dealer within 24 hours after delivery of the appliance.

2. Wait at least two hours before switching the appliance on in order to ensure the refrigerant circuit is fully efficient.

3. Installation of the appliance and electrical connections must be carried out by a qualified electrician, in accordance with the manufacturer's instructions and local safety regulations.

4. Clean the inside of the appliance before using it.

• Before connecting the appliance to the mains

supply, ensure that the voltage corresponds to that given on the rating plate located on the rear of the appliance.

• Electrical connections must be made in

accordance with local regulations.

Product description

1. Thermostat: Temperature adjustment.

2. Red LED (if provided): indicates that the appliance temperature is not sufficiently low.

3. Green LED (if provided): indicates that the appliance is on.

4. Yellow LED (if provided): indicates that the fast freeze function is active.

The exact configuration of the controls may vary according to the model.

1. Lid handle.

2. Lock (if provided).

3. Seal.

4. Divider (if provided).

5. Defrost water drain plug.

6. Control panel.

7. Side motor cooling grille.

8. Upper edge.

9. Condenser (located at the rear)

Climatic Classe Amb. T. (°C) Amb. T. (°F)

SN From 10 to 32 From 50 to 90

N From 16 to 32 From 61 to 90

ST From 16 to 38 From 61 to 100

T From 16 to 43 From 61 to 110

Installation

• Refer to chapter "Before using the appliance".

• Unpack the appliance.

• Remove the 4 protection pieces inserted between

lid and appliance.

• Warning: two of the four protection pieces must be fitted in the seat of the condenser plastic supports, located at the rear of the product. This is necessary to ensure the correct distance from the wall.

• Ensure that the defrosting water drainage plug (if provided) is correctly positioned (5).

• For best operation of the appliance and in order to avoid damage when the lid is opened, leave a space of at least 7 cm from the rear wall and 7 cm at the sides.

• Fit the accessories (if provided).

Switching on the appliance

• The appliance is factory set for optimum operation at a temperature of -18°C.

• Plug in the appliance.

• The green LED lights up (if provided).

• Also the red LED (if provided) will switch on

because the temperature inside the appliance is not yet sufficiently low for food storage. The red LED will normally switch off within the first six hours after the appliance is switched on.

• After connecting the appliance to the mains supply and when the optimal temperature has been reached (this phase takes about 1 hour during which the lid will not open), ensure that the fast freeze button is not pressed (the yellow LED, if provided, is off).

• Place food inside the product only when the red LED (if provided) has switched off.

• Thanks to the efficient lid seal, the appliance lid will not re-open easily immediately after closing. Wait a few minutes before re-opening the lid of the appliance.

Temperature Adjustment

Use the thermostat to select the ideal storage temperature. To adjust the internal temperature, proceed as follows:

• Turn the thermostat knob to 1 for a storage temperature that is less cold.

• Turn the thermostat knob to 6 /

storage temperature.

• When the appliance is only partially full, it is advisable to set the thermostat to lower positions (towards "E", if indicated on the thermostat scale).

for a colder
