Chest Freezers 1
Instructions for installation and use
Safety - a good habit to get into.
ATTENTION
Read your manual carefully since it contains instructions
which will ensure safe installation, use and maintenance of
your appliance.
Your Refrigerator is built to International safety standards
(EC directive 73/23 - 19.02.73) and has been awarded the
European approval mark (IMQ) for compliance with UK
electrical safety requirements. It also meets the EC
standards on the prevention and elimination of radio
interference (EC directive 89/336 - 03.05.89).
- The manufacturer reserves himself the right to modify the
characteristics of the models without prior notice.
- Some models may not have all the accessoires indicated.
1. This appliance is designed to be used indoors and under no
circumstances should it be installed outside even if protected
by a roof. Leaving the appliance exposed to the rain and
whether is exceedingly dangerous.
2. The appliance should be used only by adults and exclusively
for storing foodstuffs in compliance with the instructions provided in this manual. Under no circumstances should children
be allowed to operate, or tamper with, this product.
3. Do not attempt to operate or handle this appliance when
barefoot, or with wet hands or feet.
4. It is highly recommended that you do not operate this appliance by connecting it to the power supply with extensions or
multiple socket plugs. If the refrigerator has been installed between two cabinets, make sure that the supply chord is not
dangerously crimped or trapped beneath a heavy object.
5. Never pull the cable or the appliance to remove the plug
from the socket; this is exceedingly dangerous.
6. Do not touch the internal cooling elements, especially if your
hands are wet, since you could burn or hurt yourself. Do not
place ice cubes straight from the freezer into your mouth as
this may result in burns.
7. Before doing any cleaning, disconnect the appliance from
the electricity (by pulling out the plug or turning off the general switch in your home).
8. Before disposing of your old appliance, remember to break
or remove the lock as a safety measure to protect children who
might lock themselves inside the appliance when playing. In
addition, if the appliance is a new one with a lock, keeo the
key out of the reach of small children.
9. If your appliance is not operating properly, read the chapter
entitled, “Trouble Shooting”, which might help you resolve the
problem, before calling an after-sales service centre. Do not
attempt to repair the appliance by tampering with the internal
components.
10. If the power supply cord must be replaced, please contact
one of our Customer Service Centers. In some cases, the connections are made using special terminals and in others a special tool must be used to access the connections.
11. Do not use electric appliances inside the compartment for
food storage, if these are not those recommended by the
manufacturer.
12. At the end of the functional life of your appliance – containing
cyclopentane gas in the insulation foam and perhaps gas R600a
(isobutane) in the refrigeration circuit – the latter should made
safe before being sent to the dump.
For this operation, please contact your dealer or the Local
Organisation in charge of waste disposal.
Installation
To ensure that the appliance operates properly and to
reduce energy consumption, it is important that the
appliance is installed correctly.
Ventilation
The compressor and condenser generate heat and, therefore, need to be ventilated properly. Rooms with less than
perfect ventilation are not very suited for installation of the
appliance. Therefore, it should be installed in a room with
an opening (window or French window) that provide the
appropriate amount of air re-circulation. It is also important
that the room not be too humid.
During installation, make sure not to cover or obstruct the
grates that allow for proper ventilation of the appliance.
For proper ventilation of the appliance, you must leave a
space of at least 10 cm between the sides of the appliance
and any adjacent cabinets/walls.
Away from Heat
Avoid positioning the appliance in a place where it is directly
exposed to sunlight or near an oven, cook top or the like.
Electrical Connection and Earthing
Before proceeding with the electrical connection, make sure
that the voltage indicated on the rating plate, located on
the back part of the freezer, corresponds to the mains voltage in your home and that the socket is fitted with a standard earthing wire in accordance with safety standards for
46/90 systems. If the socket is not fitted with an earthing
wire, the manufacturer will not be held liability for any damages and or injuries arising out of the use of the appliance.
Do not use multiple sockets or adapters.
ance in such a way that you can access the socket where
it is plugged in.
Position the appli-
Insufficient power?
The electrical socket must be able to handle the maximum
power load of the appliance, which is indicated on the rating
plate
located on the back part of the freezer
.
1
GB
A Closer Look
Temperature Adjustment Knob
A
This knob makes it possible to adjust the internal temperature of the freezer with the following settings:
- 1: Freezer is on low;
- 3: Freezer is on high;
By turning the knob from setting "1" to setting "3"
allows you to lower the temperature.
Warning Light
B
When this red warning light comes on for a prolonged
period of time, it means that the freezer is not functioning properly and the temperature is rising too
much. (Call your Service Centre)
This warning light might come on for a brief period
when the door is left open for an extended period of
time (when the freezer is being loaded or unloaded).
Power Supply Indicator Light
C
The green light will come on and stay on while the
appliance is connected to the mains and is operating normally.
Fast Freeze Indicator Light
D
This yellow indicator light will come on when the
freezing switch E is on the "S" setting.
The freezing switch
E
When in position "S", allows the compressor to
function continuously in order to reach the temperatures necessary for the rapid freezing of fresh
food. The same switch, is position "N" permits the
freezer to function according to the thermostat
regulation.
Light (This box is not supplied with some models)
F
Basket
G
Wheels
H
Defrost water drain system (This box is not
I
supplied with some models)
Ventilating grille
J
F
G
S
NS
J
SUPER ON ALARM
ABCDE
3
GB
I HH
2
Setting Up Your Appliance
Once the appliance has been connected to the power source,
the green C and red B lights will turn on. Turn the fast freeze
switch (E) to the Super "S" setting (the yellow D light will
turn on).
When the red B light turns off, change the setting for the E
switch to the "N" setting.
At this point the freezer can be used.
NOTICE
Use average temperature settings to ensure optimum
performance and to save energy.
Getting the Most Out of Your Appliance
Tips on Freezing
- Remember that you should never refreeze products you
have allowed to thaw, even if only partially. Once thawed,
cook the food, then either eat (within 24 hours) or refreeze
it
- Consult a specialized manual when packaging foods
for freezing.
- For the best storage and thawing, remember to freeze
small portions. This will ensure rapid and uniform freezing.
Mark package with a description of the contents and the
date it was frozen.
-
Never freeze more food than that allowed by the maximum
freezing capacity indicated on the data plate which is located
on the back of the freezer.
- Turn the E switch to the "S" setting (the yellow D light will
come on).
- To freeze food, make sure that the red light is off. Then
turn the fast freeze switch (E) to the "S" setting (Super).
Then place the food to be frozen into the freezer, making
sure that it is placed, to the furthest extent possible, in direct contact with the side walls of the deepest part of the
freezer and not in contact with food that has already been
frozen. It should be kept in mind, in fact, that proper storage depends on the speed at which the food is frozen. For
this reason, we recommend that the switch be turned to
the "S" setting 24 hours before the food to be frozen is
placed inside the freezer.
- Avoid opening the freezer door during the freezing process.
- Placing substantial amounts of fresh food in the appliance
may temporarily raise the temperature within the freezer
(the red light will turn on). Since this is a temporary situation,
it will not compromise the storage of the food that has
already been frozen.
- After 24 hours and once the freezing process has been
completed,turn the freezer switch (E) to the "N" setting
(yellow light is off).
Attention: Do not forget to change the temperature setting if you want to avoid useless wastes of energy.
- In the case of power failure or breakdown, do not open
the freezer door. This will help maintain the temperature
inside the freezer, ensuring that foods are conserved for at
least 20 hours.
- Do not place full bottles in the freezer because liquids
increase in volume when they freeze and this could cause
the bottles to burst.
Storage
For best storage of fresh-frozen and frozen foods, do not set the
thermostat knob below 1, regardless of the ambient temperature
of the room where the freezer is installed. For ambient temperatures of up to 25°-27°C, the thermostat knob should be set between 1 and 2, while for temperatures up to 32°C the setting
should be between 2 and 3.
Make sure the stored foods are not placed above the storage limit

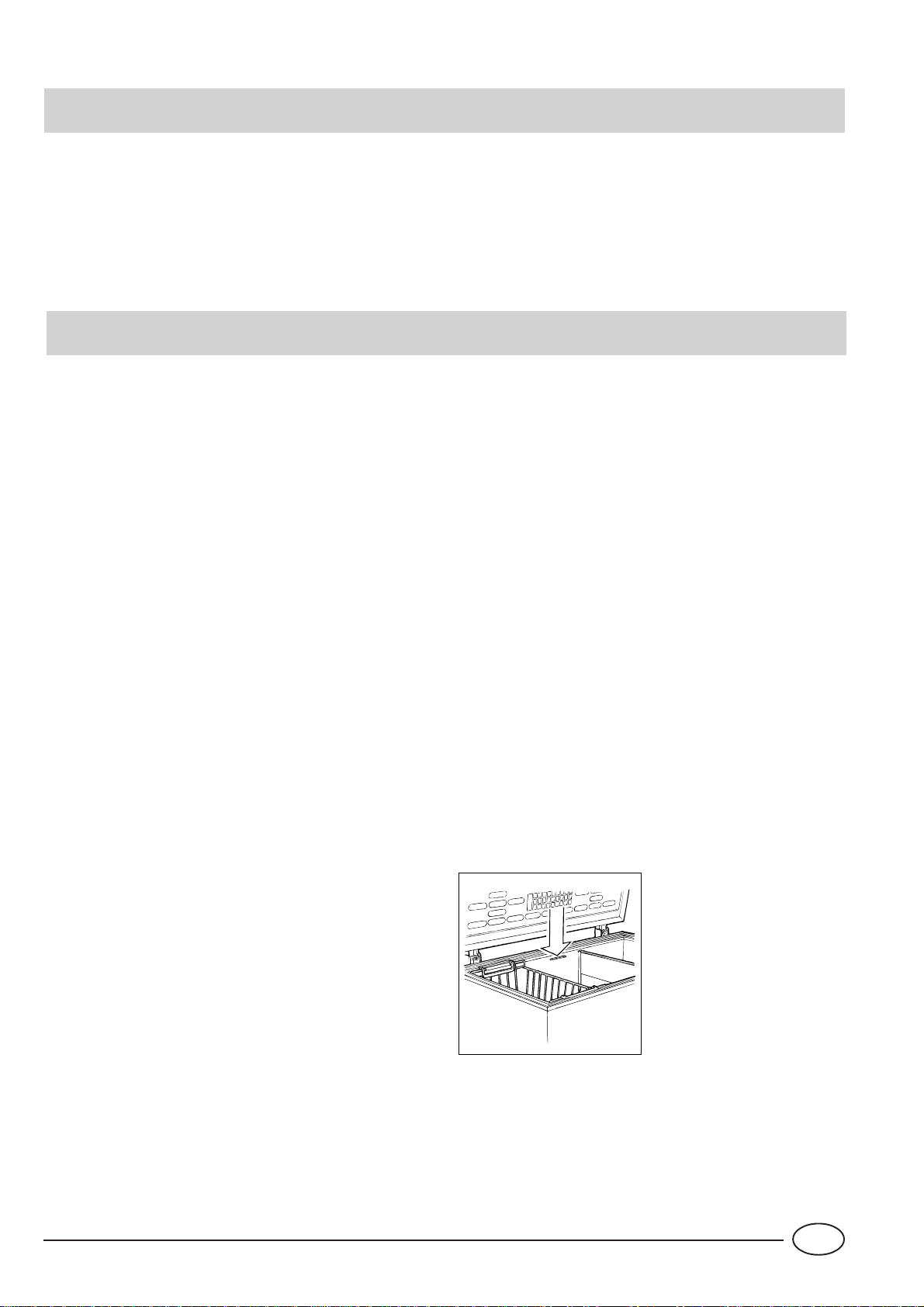

which is marked off by a storage time (Fig. 1).
Follow the instructions on the packages of frozen foods scrupulously. If none are provided, do not store the food for more than 3
months from the date of purchase.
When purchasing frozen foods, make sure that they have been
stored at the proper temperature and that the package is properly
sealed. When purchasing frozen foods, it is best to transport them
in appropriate containers to keep them cold and then place them
in the freezer immediately.
If the package is damp on the outside or is abnormally swollen, it
is likely that the package was stored at an inadequate temperature and the food has deteriorated.
Fig. 1
3
GB
Guide to Using the Freezer
Meat and Fish
Food Wrapping
Beef Roast Tinfoil 2 / 3 9 / 10 Not required.
Lamb Tinfoil 1 / 2 6 Not required.
Pork Roast Tinfoil 1 6 Not required.
Veal Roast Tinfoil 1 8 Not required.
Veal/Pork Chops
Veal/Lamb Cutlets
Minced Meat
Heart and Liver Plastic Baggies 3 Not required.
Each piece wrapped in cling wrap and
then in tinfoil (4 to 6 slices)
Each piece wrapped in cling wrap and
then in tinfoil (4 to 6 slices)
In aluminium containers covered with cling
wrap.
Tenderising
(days)
Freshly
minced
Storage
(months)
6 Not required.
6 Not required.
2 Slowly in refrigerator.
Thawing Time
Sausages Cling Wrap or Tinfoil 2 As necessary.
Chicken and Turkey Tinfoil 1 / 3 9 Very slowly in refrigerator.
Duck and Goose Tinfoil 1 / 4 6 Very slowly in refrigerator.
Pheasant, Partrige and
Wild Duck
Hare and Rabbit Tinfoil 3 / 4 6 Very slowly in refrigerator.
Venison Tinfoil or Cling Wrap 5 / 6 9 Very slowly in refrigerator.
Large Fish Tinfoil or Cling Wrap 4 / 6 Very slowly in refrigerator.
Small Fish Plastic Baggies 2 / 3 Not required.
Crustaceans Plastic Baggies 3 / 6 Not required.
Shellfish
Tinfoil 1 / 3 9 Very slowly in refrigerator.
Store in salted water in aluminium
containers or plastic containers.
3 Very slowly in refrigerator.
Boiled Fish Tinfoil or Cling Wrap 12 In hot water.
Fried Fish Plastic Baggies 4 / 6 Directly in pan.
GB
4
Fruits and Vegetables
Food Preparation
Apples and Pears Peel and cut into slices. 2’
Apricots, Peaches,
Cherries and Plums
Strawberries
Blackberries and
Raspberries
Cooked Fruit Cut, cook and strain.
Fruit Juice Wash, cut and crush.
Cauliflower
Cabbage and
Brussel Sprouts
Peas Shell and wash. 2’ Plastic Baggies 12 Not required.
Peel and pit. 1’ / 2’
Rinse and fry.
Remove leaves, cut head
into small pieces and blanch
in water and a little lemon
juice.
Wash and cut into small
pieces.
Blanching
Time
2’ Plastic Baggies 12 Not required.
1’ / 2’ Plastic Baggies 10 / 12 At room temperature.
Wrapping
In Containers (cover
with syrup)
In Containers (cover
with syrup)
In Containers (cover
with sugar)
In Containers (add
10% sugar)
In Containers (sugar
to taste)
Storage
(months)
12
12
10 / 12
12
10 / 12
Thawing Time
In refrigerator very
slowly.
In refrigerator very
slowly.
In refrigerator very
slowly.
In refrigerator very
slowly.
In refrigerator very
slowly.
French Beans Wash and slice if required. 2 Plastic Baggies 10 / 12 Not required.
Carrots, Peppers
and Turnips
Mushrooms and
Asparagus
Spinach Wash and mince. 2’ Plastic Baggies 12 At room temperature.
Vegetable for Soups
Various Foods Preparation
Bread Plastic Baggies 4
Cakes Plastic Baggies 6
Cream Plastic Containers 6
Butter
Peel, wash and slice if
necessary.
Wash, peel and cut up. 3’ / 4’
Wash and cut up in small
pieces.
3’ / 4’ Plastic Baggies 12 Not required.
3’
Blanching
Time
Plastic Baggies or
Containers
Plastic Baggies or
Containers
Wrapping
In original wrapping
or tinfoil
6 At room temperature.
6 / 7 Not required.
Storage
(months)
6 In refrigerator.
Thawing time
At room temperature
and in the oven.
About 10 minutes at
room temperature,
cook at 100/200°C.
At room temperature or
in refrigerator.
Boiled Food or
Vegetable Soup
Eggs
Plastic or Glass
Containers
Freeze without shells
in small containers
5
3 / 6
10
At room temperature or
in hot water.
At room temperature or
in refrigerator.
GB
Energy Saving Tips
- Install the Appliance Correctly
This means that the appliance should be installed away from
sources of heat or direct sunlight, in a well ventilated room.
- Correct Temperature Settings
Set the freezer temperature knob to one of the medium
settings. Very low temperatures will not only consume a great
deal of energy, but will neither improve nor lengthen the
storage life of the food.
- Shut the Doors
Open your appliance only when strictly necessary - every
time you open the door most of the cold air will be lost. In
Caring for Your Appliance
Before doing any cleaning, disconnect the appliance
from the electricity (by pulling out the plug or turning
off the general switch in your home).
Defrosting
WARNING: do not damage the refrigeration circuit.
It is a good idea to remove the frost buildup from the inside
of the appliance from time to time.
Make sure not to use pointed metal objects to do so as this
could result in piercing the refrigeration circuits, causing irreparable damage to the appliance. Use the plastic scraper
provided with the freezer.
To defrost the freezer completely (which should be done
once or twice a year), disconnect the appliance from the
power supply and leave the door open until all the frost has
melted.
The freezer is equipped with a system to drain the water
from the defrosting procedure. Simply, place a container in
the position indicated in figures 2 ou 3.
To speed up defrosting, one or more pots of warm water
can be placed inside the appliance.
While defrosting the freezer, it is a good idea to wrap the
food taken from the freezer in several layers of paper and
place it in a cool place. Since the temperature of the frozen
food will inevitably rise, it is best to consume it quickly as its
storage life will have been shortened.
order to restore the correct temperature, the motor will have
to run and consume energy.
- Check the Door Seals
Keep the seals clean and pliable so that they fit closely against
the door to ensure that no cold air is lost.
- Avoid Frost Buildup
Remember to check the sides of the freezer for frost. When
the frost becomes too thick, defrost the freezer immediately
(See, "Caring for Your Appliance").
Cleaning and Maintenance
The inside of the freezer should be cleaned on a periodic
basis after it has been defrosted. Only use a water and bicarbonate solution to clean the appliance. Do not use abrasive cleaning products, detergents or soap. After the inside
has been cleaned, rinse well with clean water and dry carefully.
Once the appliance has been cleaned, turn on the appliance, following the instructions in "Setting Up Your Appliance."
Changing the unside lamp bulb
To change the bulb inside the appliances that are equipped
with internal lighting, remove the bulb cover situated on
the inside wall of the door by pushing the ends of the cover
(Fig. 4). Replace the old bulb with a new one of ni higher
than 15 W.
When not in use
Should the unit not be used for a long period of time (for
example during the summer holidays), disconnect the plug
from the mains and leave the door open to avoid the formation of mould and unpleasant odours after completing the
defrosting and cleaning operations.
Fig. 2
GB
Fig. 4
Fig. 3
6
Troubleshooting
The Green Light is Off
Have you checked if:
· there is power to the unit?
· the main power switch to the house is on?
The Red Alarm Light is Always On
Have you checked if:
· the door is closed properly and the seal is still OK?
· the door is being opened too often?
· the temperature knob is on the right setting?
· there is too much frost buildup?
The Motor Runs Constantly
Have you checked if:
· the yellow light is on (constant operation setting)?
· the thermostat is on the right setting?
The Appliance Makes Too Much Noise
Have you checked if:
· the freezer is level?
· the appliance has been installed between cabinets that
vibrate and make noise?
· it is the noise made by the refrigerant, which occurs even
when the compressor is off (this is not a defect).
If after all the checks, the appliance still does not operate or
the problem persists, call the nearest Service Centre and inform them of: the type of problem, the abbreviation of the
model name (Mod.) and the relative numbers (S/N) written
on the rating plate located on the back part of the freezer
(see example in the figure below).
75
Test
P.S-I.
TI
Net
Util
Utile
Pressure
HIGH-235
LOW 140
RG 2330
Mod.
220 - 240 V- 50 Hz 150 W
340
Total
Gross
Bruto
Brut
Compr.
Syst.
Kompr.
Made in Italy 13918
Gross
Bruto
Brut
R 134 a
kg 0,090
93139180000 S/N 704211801
Cod.
Gross
Bruto
Brut
W
Fuse
A
Freez. Capac
Poder de Cong
kg/24 h
4,0
Max 15 w
Class
Clase
N
Classe
Never call on unauthorized technicians and always
refuse spare parts which are not originals.
7
GB
.
Viale Aristide Merloni, 47
60044 Fabriano (AN) Italy
Tel. +39 0732 6611
www.indesitcompany.com
06/2005 - 395002800.01 - Xerox Business Services DocuTech
Loading...
