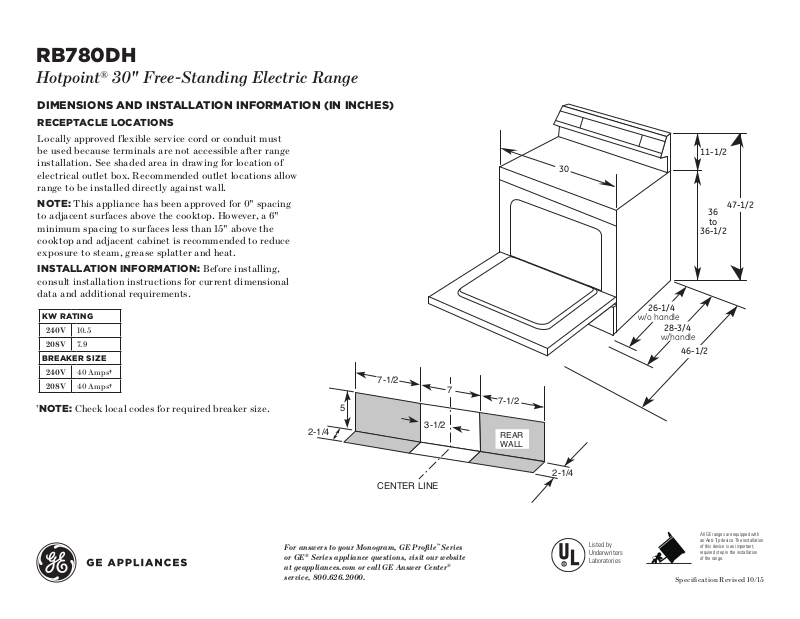

Dimension and installation information (in inches)
Single Oven Range
Hotpoint® 30" Free-Standing Electric Range
Dimensions anD installation infoRmation (in incHes)
Recep tacle locat i o n s
Locally approved flexible service cord or conduit must
be used because terminals are not accessible after range
installation. See shaded area in drawing for location of
electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
note: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
installatio n i n f o R mati on: Before installing,
consult installation instructions for current dimensional
data and additional requirements.
KW R at ing
24 0V 10.5
208V 7.9
BReaKeR size
24 0V 40 Amps
208V 40 Amps†
†
note: Check local codes for required breaker size.
†
2-1/4
11-1/2
30
47-1/2
36
to
36-1/2
7-1/2
7
5
3-1/2
7-1/2
REAR
WALL
26-1/4
w/o handle
28-3/4
w/handle
46-1/2
CENTER LINE
For answers to your Monogram, GE Profile™ Series
or GE® Series appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
2-1/4
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Speci fication Rev ised 10/15
RB780DH
Hotpoint® 30" Free-Standing Electric Range
featuRes and Benefits
Self-clean oven – Cleans the oven cavity without the need for scrubbing
Ceramic glass cooktop – Smooth cooktop easily wipes clean
Ribbon heating elements – Consistent heat and glass surface provide
fast, even heating
5.0 cu. ft. oven capacity – Cook more dishes at once
Electronic oven controls – Electronic touch pads are easy to operate
Standard window – Provides a convenient viewing area to check the
progress of food
Frameless glass oven door – Simple, stylish and easy to clean
Two oven racks – Durable to securely hold any cookware
Interior oven light – Illuminates the oven interior
Audible preheat signal – Know when the oven is ready
Designer-style handle – Sleek lines and a rounded shape that
add to the modern appearance
Model RB780DHBB – Black on black
Model RB780DHWW – White on white
